Online high-speed backup - Advanced Copy functions

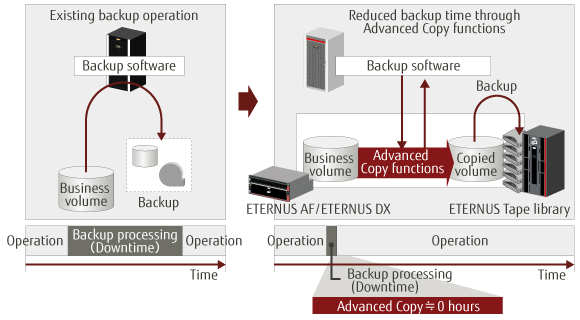

The Advanced Copy functions allow the ETERNUS AF/ETERNUS DX to carry out high-speed copying operations itself, with no need to draw on server CPU resources. With Advanced Copy functions, at any point in time a business data volume can be copied to a separate copy volume, quickly and within the ETERNUS AF/ETERNUS DX . Once the copy is complete, the copy volume can be separated from the business volume ensuring no further updates to the business volume are applied to the copy volume. This allows the copy volume data to be backed up to a tape device, as a point in time copy of the business data, while normal operations continue.

Advanced copy functions1

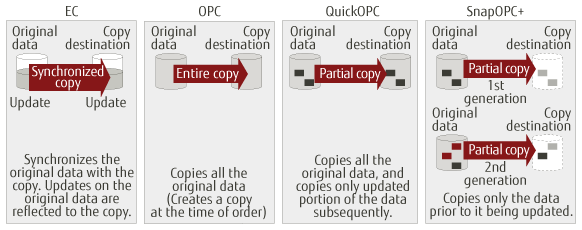

The Advanced Copy functions offer different copy methods: "Mirror Suspend", "Background Copy" and "Copy-on-Write" that are implemented as "Equivalent Copy (EC)", "One Point Copy (OPC)", and "SnapOPC+" functions.
There is also a QuickOPC function, which only copies data that has been updated since the previous update, while the SnapOPC+ function also enables generation management.

EC (Equivalent Copy) function

A function that always creates a synchronized copy of a business data volume on a copy volume (Mirroring method).
The business volume and copy volume are synchronized but can be separated at any required time (mirror suspend). The copy volume can then be backed up to a tape device while business operations continue on the business volume.
Suspend/Resume functions can be used to re-establish the mirror by copying only updated data since the mirror was suspended.

OPC (One Point Copy) function

A function that creates a copy of the business data volume at any point in time (Background Copy).
Data on the business volume is copied logically to a copy volume, quickly, as and when required.
The copy volume can be used for backup operation, to a tape device, without waiting for physical copy completion, while business operations can continue on the business volume.

QuickOPC

A function that creates a copy of all the business data volume and subsequently only copies updated data (Background Copy). This suits large database operation where backup times must be reduced.

SnapOPC

A function that creates a copy of the data prior to it being updated (Copy-on-Write).
As requires less copy volume capacity compared with full backup, SnapOPC is ideal for backup operations for systems with relatively few updates such as file servers.

SnapOPC+

Like SnapOPC, SnapOPC+ only copies the data prior to it being updated on the business volume. However, it enables generation management of the updated data (Copy-on-Write).
As SnapOPC+ doesn't actually store duplicate data but manages it as history information (unlike SnapOPC), disk-based generation backup can be achieved using less copy volume capacity.

Advanced copy functions2

Benefit

  • Non-disruptive backup operations using Advanced Copy functions not only reduce backup processing times but also ensure backup data is always up-to-date.

Product Requirement

Supported Storage Systems

  Supported Storage
EC ETERNUS AF250 S2/AF250 All-Flash Arrays
ETERNUS AF650 S2/AF650 All-Flash Arrays
ETERNUS DX200F All-Flash Arrays
ETERNUS DX60 S4/S3
ETERNUS DX100 S4/S3, DX200 S4/S3 (in SAN environment)
ETERNUS DX500 S4/S3, DX600 S4/S3 (in SAN environment)
ETERNUS DX8700 S3/S2, DX8900 S4/S3
ETERNUS DX60 S2/DX60
ETERNUS DX80 S2/DX80
ETERNUS DX90 S2/DX90
ETERNUS DX400 S2/DX400 series
ETERNUS DX8000 series
ETERNUS4000, ETERNUS8000
OPC ETERNUS AF250 S2/AF250 All-Flash Arrays
ETERNUS AF650 S2/AF650 All-Flash Arrays
ETERNUS DX200F All-Flash Arrays
ETERNUS DX60 S4/S3
ETERNUS DX100 S4/S3, DX200 S4/S3 (in SAN environment)
ETERNUS DX500 S4/S3, DX600 S4/S3 (in SAN environment)
ETERNUS DX8700 S3/S2, DX8900 S4/S3
ETERNUS DX60 S2/DX60
ETERNUS DX80 S2/DX80
ETERNUS DX90 S2/DX90
ETERNUS DX400 S2/DX400 series
ETERNUS DX8000 series
ETERNUS4000, ETERNUS8000
QuickOPC ETERNUS AF250 S2/AF250 All-Flash Arrays
ETERNUS AF650 S2/AF650 All-Flash Arrays
ETERNUS DX200F All-Flash Arrays
ETERNUS DX60 S4/S3
ETERNUS DX100 S4/S3, DX200 S4/S3 (in SAN/NAS environments)
ETERNUS DX500 S4/S3, DX600 S4/S3 (in SAN/NAS environments)
ETERNUS DX8700 S3/S2, DX8900 S4/S3
ETERNUS DX60 S2/DX60
ETERNUS DX80 S2/DX80
ETERNUS DX90 S2/DX90
ETERNUS DX400 S2/DX400 series
ETERNUS DX8000 series
ETERNUS4000, ETERNUS8000
SnapOPC ETERNUS AF250 S2/AF250 All-Flash Arrays
ETERNUS AF650 S2/AF650 All-Flash Arrays
ETERNUS DX200F All-Flash Arrays
ETERNUS DX60 S4/S3
ETERNUS DX100 S4/S3, DX200 S4/S3 (in SAN environment)
ETERNUS DX500 S4/S3, DX600 S4/S3 (in SAN environment)
ETERNUS DX8700 S3/S2, DX8900 S4/S3
ETERNUS DX80 S2
ETERNUS DX90 S2
ETERNUS DX400 S2/DX400 series
ETERNUS DX8000 series
ETERNUS4000, ETERNUS8000
SnapOPC+ ETERNUS AF250 S2/AF250 All-Flash Arrays
ETERNUS AF650 S2/AF650 All-Flash Arrays
ETERNUS DX200F All-Flash Arrays
ETERNUS DX60 S4/S3
ETERNUS DX100 S4/S3, DX200 S4/S3 (in SAN/NAS environments)
ETERNUS DX500 S4/S3, DX600 S4/S3 (in SAN/NAS environments)
ETERNUS DX8700 S3/S2, DX8900 S4/S3
ETERNUS DX60 S2/DX60
ETERNUS DX80 S2/DX80
ETERNUS DX90 S2/DX90
ETERNUS DX400 S2/DX400 series
ETERNUS DX8000 series
ETERNUS4000, ETERNUS8000

Operational Interface and Supported Servers

  Operational Interface Supported Servers
EC Systemwalker StorageMGR GR/CF GlobalServer
ETERNUS SF AdvancedCopy Manager Mission Critical IA Server
UNIX Server
Industry Standard Servers
OPC Systemwalker StorageMGR GR/CF GlobalServer
ETERNUS SF AdvancedCopy Manager Mission Critical IA Server
UNIX Server
Industry Standard Servers
QuickOPC ETERNUS SF AdvancedCopy Manager Mission Critical IA Server
UNIX Server
Industry Standard Servers
VSS(Volume Shadow copy Service) Mission Critical IA Server
Industry Standard Servers
SnapOPC ETERNUS SF AdvancedCopy Manager Mission Critical IA Server
UNIX Server
Industry Standard Servers
SnapOPC+ ETERNUS SF AdvancedCopy Manager Mission Critical IA Server
UNIX Server
Industry Standard Servers
ETERNUS Web GUI[1]
ETERNUS CLI[1]
ETERNUS SF Express[1][2] Industry Standard Servers
VSS(Volume Shadow copy Service)[1] Mission Critical IA Server
Industry Standard Servers

[1] Up to 8 sessions of this function are available for free with ETERNUS AF250 S2/AF250, DX200F and ETERNUS DX60 S4/S3/S2, DX100 S4/S3, DX200 S4/S3, DX80 S2/DX90 S2, DX60/DX80/DX90.

[2] ETERNUS SF Express is exclusively for use with ETERNUS AF250 S2/AF250, DX200F, and ETERNUS DX60 S4/S3/S2, DX60, DX100 S4/S3, DX200 S4/S3, DX80 S2/DX90 S2.
