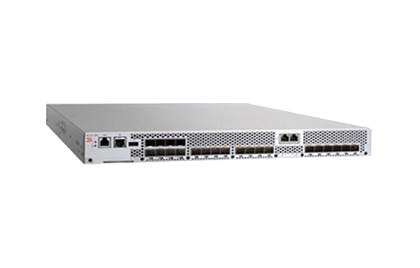

Brocade 7810

Brocade 7810

  • Moves more data faster over distance with up to 10 Gb/s replication throughput and consolidate FC and IP replication workloads
  • Drives more throughput with advanced compression technology to expand WAN capacity
  • Encrypts storage data flows over distance without a performance penalty
  • Consolidates replication workloads from Fibre Channel and IP storage arrays

ImgPlaceholder ImgPlaceholder ImgPlaceholder
Move more Data faster over Distance
Data Protection against Network Disruptions and Outages
A Purpose-Built Extension Platform for Midrange Storage

This powerful, reliable, and secure platform is purpose-built to handle the unrelenting growth of data traffic between data centers in Fibre Channel and IP storage environments. Supporting up to 250 milliseconds Round-Trip Time (RTT) latency, the Brocade 7810 enables cost-effective extension solutions over distances up to 25,500 kilometers (15,845 miles).

The Brocade 7810 Extension Switch uses unbreakable network encryption to ensure that data-in-flight is protected from threats over the WAN. This switch features robust, hardware-based IPsec with AES 256-bit encryption to keep data secure and meet security compliance requirements. In addition, hardware-based IPsec encrypts data flows over distance without a performance penalty.

Whether supporting point-to-point connections, a multisite SAN, or remote offices, the Brocade 7810 Extension Switch offers enterprise-class capabilities to meet demanding disaster recovery requirements. With twelve 32 Gb/s capable Fibre Channel ports and six 1/10 GbE ports, this switch provides the bandwidth and throughput required for maximum application performance over WAN connections.

  • ImgPlaceholder
    Move more Data faster over Distance
    This powerful, reliable, and secure platform is purpose-built to handle the unrelenting growth of data traffic between data centers in Fibre Channel and IP storage environments. Supporting up to 250 milliseconds Round-Trip Time (RTT) latency, the Brocade 7810 enables cost-effective extension solutions over distances up to 25,500 kilometers (15,845 miles).
  • ImgPlaceholder
    Data Protection against Network Disruptions and Outages
    The Brocade 7810 Extension Switch uses unbreakable network encryption to ensure that data-in-flight is protected from threats over the WAN. This switch features robust, hardware-based IPsec with AES 256-bit encryption to keep data secure and meet security compliance requirements. In addition, hardware-based IPsec encrypts data flows over distance without a performance penalty.
  • ImgPlaceholder
    A Purpose-Built Extension Platform for Midrange Storage
    Whether supporting point-to-point connections, a multisite SAN, or remote offices, the Brocade 7810 Extension Switch offers enterprise-class capabilities to meet demanding disaster recovery requirements. With twelve 32 Gb/s capable Fibre Channel ports and six 1/10 GbE ports, this switch provides the bandwidth and throughput required for maximum application performance over WAN connections.

Tech Specs

Ethernet interfaces 1GbE, 10GbE
Fibre Channel performance 8.5 Gbit/s line speed, full duplex;
14.025 Gbit/s line speed, full duplex; 28.05 Gbit/s line speed, full duplex; auto-sensing of 8, 16, and 32 Gbit/s port speeds
Fibre Channel ports 12 ports, 32 Gbit/s capable, universal (E, F, M, D, and EX ports)
Maximum Fibre Channel frame size 2,112-byte payload
Scalability Full fabric architecture with 239 switches maximum
Certified maximum Single fabric: 56 domains, 7 hops
Multiprotocol routing fabric: 19 hops
Fabric latency Non-blocking shared memory, 900 ns with no contention, cut-through switching at 32 Gbit/s
Classes of service Class 2, Class 3, Class F (inter-switch frames)
Port types F_Port, E_Port, EX_Port, (FCR E_Port), D_Port (Diagnostic), M_Port (Mirror), and self-discovery based on switch type (U_Port); VE_Port (FCIP and IP extension)
Data traffic types Fibre Channel, FCIP, and IP extension
Media types Fibre Channel: Brocade hot-pluggable Small Form-Factor Pluggable (SFP) and SFP+, short wavelength(SWL), and long wavelength (LWL) transceivers (available wavelength options vary for 8, 16, and 32 Gbit/s SFPs)

Ethernet: Brocade hot-pluggable SFP and SFP+, short-reach wavelength (SRWL), long-reach wavelength (LRWL), and copper SFP/SFP+ transceivers
USB One USB port for system log file downloads or firmware upgrades
Fabric services Simple Name Server (SNS); Registered State Change Notification (RSCN), NTP, RADIUS, RCS (Reliable Commit Service), Dynamic Path Selection (DPS), Exchange-based routing, device-based routing, portbased routing, lossless, Brocade Advanced Zoning, Web Tools, Brocade Trunking, Extended Fabrics, Fabric Vision, SDDQ
Extension Extension Trunking, Adaptive Rate Limiting (ARL), WAN Test Tool (Wtool), Open Systems Tape Pipelining (OSTP), FastWrite (FCIP-FW), QoS Marking, Bandwidth Enforcement, PerPriority TCP QoS,(PTQ), Advanced Extension, and Integrated Routing (FCR).
Maximum IP MTU size Jumbo Frames 1280 bytes to 9216 bytes
Ethernet ports 6 ports of 1GbE/10GbE for LAN and WAN connectivity
Enclosure 1U chassis designed to be mounted in a 19-in. cabinet
Brocade Trunking (BT) Up to eight 32 Gbit/s links aggregating to 256 Gbit/s per trunk. There is no limit to how many trunk groups can be configured per switch.
Licensing options The following optional extension features can be enabled on the Brocade 7810 base configuration via the upgrade license:
Enable WAN-side throughput from 1 Gbit/s to 2.5 Gbit/s
Enable 10 GbE port speed on the Ethernet ports
Turn on additional 8 Fibre Channel ports, includes 16 Gbit/s SFPs
Enable advanced software features, including Brocade Fabric Vision technology, Extension Trunking, Fibre Channel Trunking, and Integrated Routing
Service Weblink http://www.fujitsu.com/global/services
Support Pack Options Available in major metropolitan areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)
Recommended Service 24x7, Onsite Response Time: 4h
Support Pack Options Available in major metropolitan areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)
Recommended Service 24x7, Onsite Response Time: 4h
