Fujitsu Desktop ESPRIMO G9013

Fujitsu Desktop ESPRIMO G9013

  • Windows 11 Pro. Fujitsu recommends Windows 11 Pro for business.
  • High performance in an ultra-compact design
  • Low noise Mini PC
  • Flexible mounting options and wide range of usage scenarios, perfect with AIO Display P2410
  • Perfect fit for modern offices and workplaces of tomorrow

More Details
ImgPlaceholder ImgPlaceholder ImgPlaceholder ImgPlaceholder
Green technology
Small in size but grand in performance
Flexibility without limits
Ultimate usability - Perfect fit for modern offices and workplaces

Eye-catching exclusive modern design

High performance in a small Mini PC design

Pleasant working environment due to quiet system

Flexible mounting options and wide range of usage scenarios
  • ImgPlaceholder
    Green technology
    Eye-catching exclusive modern design
  • ImgPlaceholder
    Small in size but grand in performance
    High performance in a small Mini PC design
  • ImgPlaceholder
    Flexibility without limits
    Pleasant working environment due to quiet system
  • ImgPlaceholder
    Ultimate usability - Perfect fit for modern offices and workplaces
    Flexible mounting options and wide range of usage scenarios

Tech Specs

Product ESPRIMO G9013
Operating system Windows 11 Pro. Fujitsu recommends Windows 11 Pro for business.
Windows 11 Home
Windows 10 Pro. Fujitsu recommends Windows 11 Pro for business.
Mainboard D4014-A3x (proprietary )
Chipset Intel® Q670
Processor Intel® Core™ i9-12900 processor, 30 MB, 2.4 GHz
Intel® Core™ i9-13900 processor, 36 MB, 2.0 GHz
Intel® Core™ i7-12700 processor, 25 MB, 2.1 GHz
Intel® Core™ i7-13700T processor, 30 MB, 1.4 GHz
Intel® Core™ i7-13700 processor, 30 MB, 2.1 GHz
Intel® Core™ i5-12400 processor, 18 MB, 2.5 GHz
Intel® Core™ i5-12500 processor, 18 MB, 3.0 GHz
Intel® Core™ i5-13400T processor, 20 MB, 1.3 GHz
Intel® Core™ i5-13400 processor, 20 MB, 2.5 GHz
Intel® Core™ i5-13500T processor, 24 MB, 1.6 GHz
Intel® Core™ i5-13500 processor, 24 MB, 2.5 GHz
Intel® Core™ i3-12100 processor, 12 MB, 3.3 GHz
Intel® Core™ i3-13100 processor, 12 MB, 3.4 GHz
Supported capacity RAM (max.) 64 GB, 2 Memory slot(s) DIMM (DDR5), Dual channel support, For dual channel performance, 2 memory modules have to be ordered. Capacity per channel has to be the same. 5600 MT/s may be clocked down to 5200/4800 MT/s depending on processor and memory configuration
Serial ATA total 2
thereof SATA III Serial ATA III (6 Gbit), NCQ, AHCI, RAID 1/0
Drives (optional) DVD Super Multi ultra slim (tray), SATA
BD Triple Writer SATA ultra slim (tray), SATA
Drive bay x 3.5-inch external bay
x 3.5-inch internal bay
Slots 1 x PCI-Express 3.0 x4 (mech. x16)
Interfaces 1x USB 3.2 Gen 1 (5 Gbps) Type-A
1x USB 3.2 Gen 2 (10 Gbps) Type-A
1x USB 3.2 Gen 2x2 (20 Gbps) Type-C (provides up to 15W) x USB front
1x USB 2.0 Type-A
3x USB 3.2 Gen 2 (10 Gbps) Type-A
1x USB 3.2 Gen 2 Type-C (10 Gbps, supports DisplayPort 1.4 and power delivery sink**)
see flexible interface options x USB rear
1 x Ethernet (RJ-45)
1 x Kensington Lock support
1 (DisplayPort 1.4) x DisplayPort
1 x HDMI
Graphics Intel® UHD Graphics 770, Intel® UHD Graphics 730, Intel® UHD Graphics 710, Up to half size of total system memory
Audio type Realtek ALC257N
Communication 10/100/1,000 MBit/s Intel® I219LM
1 (optional with two integrated antennas) x Integrated WLAN
Weight Small
Min:0.86kg; 1x mem,1xSDD
Max:1.025kg; 2x mem,2xSSD,HDD,Flexi,WLAN
ODD vers.: Min:1.2kg/Max:1.29kg
int. PSU vers.: Min:1.45kg/Max:1.59kg
AC adapt.(0.32kg), power cord(0.175kg) not part of min/max
Dimensions (W x D x H) 146.5 x 164.5 x 36 mm
5.77 x 6.48 x 1.42 inch
Power efficiency note 90 Watt AC adapter: power supply efficiency at 115/230V: 89% average efficiency
150 Watt internal PLATINUM power supply (optional):
Power supply efficiency in % at 10% / 20% / 50% / 100% load
for 230V ; 90/93/94/94
for 115V ; 90/91/93/92

Read full specs

Accessories

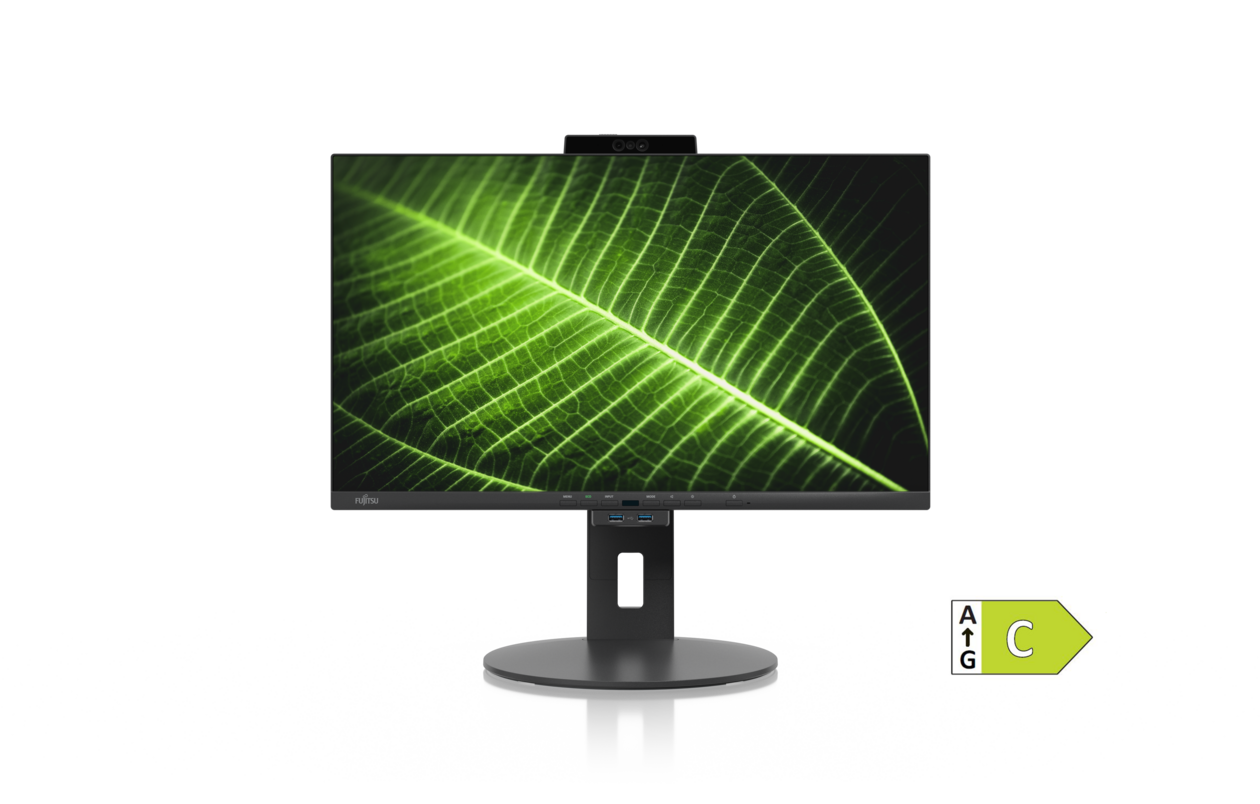

Fujitsu AIO Display P2410

The Fujitsu AIO Display P2410 is the universal display unit for Mini PCs like ESPRIMO Gx012/13 Small and FUTRO S7011 to be connected via USB Type-C to enables All-in-One like usage. It comes with front and side USB connectors for ergonomic comfort and optional side optical drive for wide range of usage.

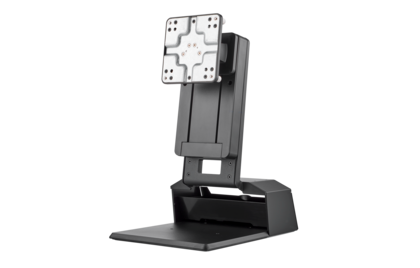

Mounting Kit for Height Adjustable Fujitsu Displays
- up to 11th Gen. Display (2022)

The Fujitsu Mounting Kit for Height Adjustable Fujitsu Displays has been specifically (2022) designed for use with ESPRIMO Q/G Mini PCs, FUTRO Thin Clients and Fujitsu Displays. With this solution you can save space on the desk, reduce clutter on desk and realize a clean desk working environment.

Mounting Kit for Height Adjustable Fujitsu Displays
- up to 10th Gen. Display

The Fujitsu Mounting Kit for Height Adjustable Fujitsu Displays has been specifically designed for use with ESPRIMO Q/G Mini PCs, FUTRO Thin Clients and Fujitsu Displays. With this solution you can save space on the desk, reduce clutter on desk and realize a clean desk working environment.

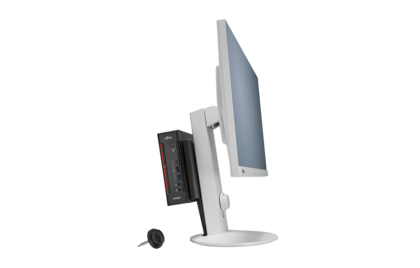

Universal Monitor Stand

Save desk space without compromising productivity with the Universal Monitor Stand that brings together a Desktop ESPRIMO Mini PC (G Series Small and ODD plus Q Series) or Thin Client FUTRO and a VESA compatible Fujitsu Display. For optimum ergonomics the height and tilt angle of the display can be adjusted, whilst hassle-free installation of the devices on the stand makes the life of your IT department easier.
