Fujitsu Desktop ESPRIMO G9013
Fujitsu Desktop ESPRIMO G9013
- Windows 11 Pro. Fujitsu recommends Windows 11 Pro for business.
- High performance in an ultra-compact design
- Low noise Mini PC
- Flexible mounting options and wide range of usage scenarios, perfect with AIO Display P2410
- Perfect fit for modern offices and workplaces of tomorrow
Green technology |
Small in size but grand in performance |
Flexibility without limits |
Ultimate usability - Perfect fit for modern offices and workplaces |
Eye-catching exclusive modern design |
High performance in a small Mini PC design |
Pleasant working environment due to quiet system |
Flexible mounting options and wide range of usage scenarios |
-
Green technology
Eye-catching exclusive modern design -
Small in size but grand in performance
High performance in a small Mini PC design -
Flexibility without limits
Pleasant working environment due to quiet system -
Ultimate usability - Perfect fit for modern offices and workplaces
Flexible mounting options and wide range of usage scenarios
Tech Specs
Product |
ESPRIMO G9013 |
Operating system |
Windows 11 Pro. Fujitsu recommends Windows 11 Pro for business. Windows 11 Home Windows 10 Pro. Fujitsu recommends Windows 11 Pro for business. |
Mainboard |
D4014-A3x (proprietary ) |
Chipset |
Intel® Q670 |
Processor |
Intel® Core i9-12900 processor, 30 MB, 2.4 GHz Intel® Core i9-13900 processor, 36 MB, 2.0 GHz Intel® Core i7-12700 processor, 25 MB, 2.1 GHz Intel® Core i7-13700T processor, 30 MB, 1.4 GHz Intel® Core i7-13700 processor, 30 MB, 2.1 GHz Intel® Core i5-12400 processor, 18 MB, 2.5 GHz Intel® Core i5-12500 processor, 18 MB, 3.0 GHz Intel® Core i5-13400T processor, 20 MB, 1.3 GHz Intel® Core i5-13400 processor, 20 MB, 2.5 GHz Intel® Core i5-13500T processor, 24 MB, 1.6 GHz Intel® Core i5-13500 processor, 24 MB, 2.5 GHz Intel® Core i3-12100 processor, 12 MB, 3.3 GHz Intel® Core i3-13100 processor, 12 MB, 3.4 GHz |
Supported capacity RAM (max.) |
64 GB, 2 Memory slot(s) DIMM (DDR5), Dual channel support, For dual channel performance, 2 memory modules have to be ordered. Capacity per channel has to be the same. 5600 MT/s may be clocked down to 5200/4800 MT/s depending on processor and memory configuration |
Serial ATA total |
2 |
thereof SATA III |
Serial ATA III (6 Gbit), NCQ, AHCI, RAID 1/0 |
Drives (optional) |
DVD Super Multi ultra slim (tray), SATA BD Triple Writer SATA ultra slim (tray), SATA |
Drive bay |
x 3.5-inch external bay x 3.5-inch internal bay |
Slots |
1 x PCI-Express 3.0 x4 (mech. x16) |
Interfaces |
1x USB 3.2 Gen 1 (5 Gbps) Type-A 1x USB 3.2 Gen 2 (10 Gbps) Type-A 1x USB 3.2 Gen 2x2 (20 Gbps) Type-C (provides up to 15W) x USB front 1x USB 2.0 Type-A 3x USB 3.2 Gen 2 (10 Gbps) Type-A 1x USB 3.2 Gen 2 Type-C (10 Gbps, supports DisplayPort 1.4 and power delivery sink**) see flexible interface options x USB rear 1 x Ethernet (RJ-45) 1 x Kensington Lock support 1 (DisplayPort 1.4) x DisplayPort 1 x HDMI |
Graphics |
Intel® UHD Graphics 770, Intel® UHD Graphics 730, Intel® UHD Graphics 710, Up to half size of total system memory |
Audio type |
Realtek ALC257N |
Communication |
10/100/1,000 MBit/s Intel® I219LM 1 (optional with two integrated antennas) x Integrated WLAN |
Weight |
Small Min:0.86kg; 1x mem,1xSDD Max:1.025kg; 2x mem,2xSSD,HDD,Flexi,WLAN ODD vers.: Min:1.2kg/Max:1.29kg int. PSU vers.: Min:1.45kg/Max:1.59kg AC adapt.(0.32kg), power cord(0.175kg) not part of min/max |
Dimensions (W x D x H) |
146.5 x 164.5 x 36 mm 5.77 x 6.48 x 1.42 inch |
Power efficiency note |
90 Watt AC adapter: power supply efficiency at 115/230V: 89% average efficiency 150 Watt internal PLATINUM power supply (optional): Power supply efficiency in % at 10% / 20% / 50% / 100% load for 230V ; 90/93/94/94 for 115V ; 90/91/93/92 |
Resources
Data Sheets and Product Information
Brochures and Information Material
Product Related Support
Accessories

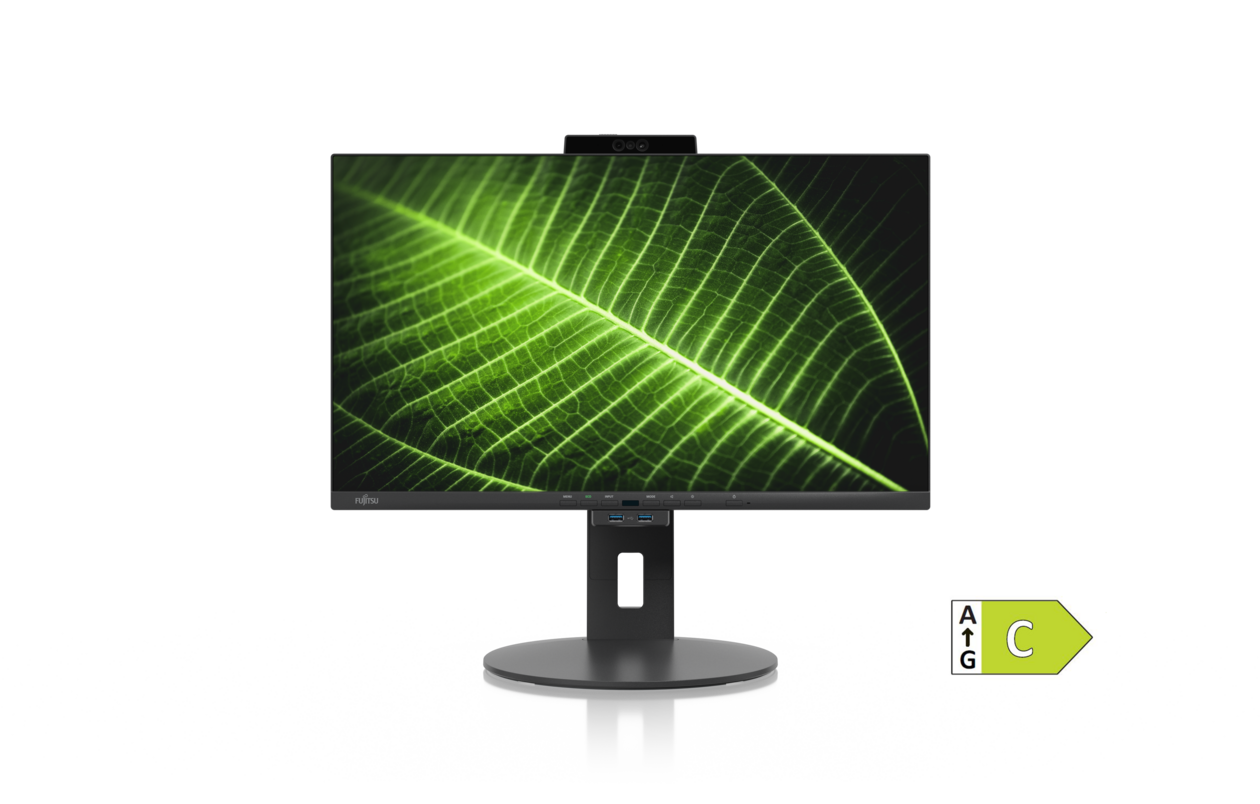

Fujitsu AIO Display P2410The Fujitsu AIO Display P2410 is the universal display unit for Mini PCs like ESPRIMO Gx012/13 Small and FUTRO S7011 to be connected via USB Type-C to enables All-in-One like usage. It comes with front and side USB connectors for ergonomic comfort and optional side optical drive for wide range of usage. |
|

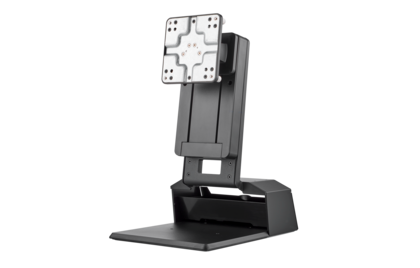

Mounting Kit for Height Adjustable Fujitsu Displays
|
|
Mounting Kit for Height Adjustable Fujitsu Displays
|
|

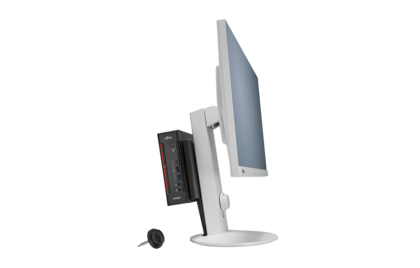

Universal Monitor StandSave desk space without compromising productivity with the Universal Monitor Stand that brings together a Desktop ESPRIMO Mini PC (G Series Small and ODD plus Q Series) or Thin Client FUTRO and a VESA compatible Fujitsu Display. For optimum ergonomics the height and tilt angle of the display can be adjusted, whilst hassle-free installation of the devices on the stand makes the life of your IT department easier. |
