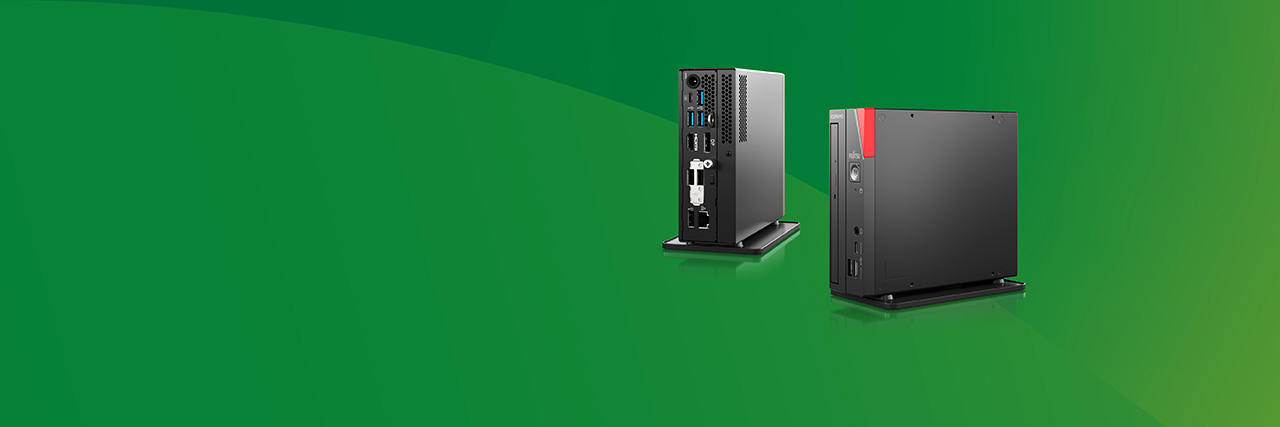

Fujitsu ESPRIMO G7012A

Fujitsu ESPRIMO G7012A

  • Windows 11 Pro. Fujitsu recommends Windows 11 Pro for business.
  • A stylish Mini PC with ultra-compact design
  • Energy and space-saving device for clean, clutter-free desk
  • Flexible mounting options and wide range of usage scenarios
  • The PC which can transform your workplace for the next generation

ImgPlaceholder ImgPlaceholder ImgPlaceholder ImgPlaceholder
A smart Mini PC with ultra-compact design
Small in size but grand in performance
Flexibility without limits
Ultimate usability

Eye-catching exclusive modern design

High performance for best price in a small Mini PC design

Pleasant working environment due to quiet system

Perfect fit for modern offices, shared workplaces or working from home

  • ImgPlaceholder
    A smart Mini PC with ultra-compact design
    Eye-catching exclusive modern design
  • ImgPlaceholder
    Small in size but grand in performance
    High performance for best price in a small Mini PC design
  • ImgPlaceholder
    Flexibility without limits
    Pleasant working environment due to quiet system
  • ImgPlaceholder
    Ultimate usability
    Perfect fit for modern offices, shared workplaces or working from home

Tech Specs

Product ESPRIMO G7012A
Operating system Windows 11 Pro. Fujitsu recommends Windows 11 Pro for business.
Windows 11 Home
Windows 10 Pro. Fujitsu recommends Windows 11 Pro for business.
Mainboard D4016-A (proprietary )
Chipset Integrated in CPU
Processor AMD Ryzen™ 7 Pro 5850U
AMD Ryzen™ 5 Pro 5650U
Supported capacity RAM (max.) 64 GB, 2 Memory slot(s) DIMM (DDR4), Dual channel support, For dual channel performance, 2 memory modules have to be ordered. Capacity per channel has to be the same.
Serial ATA total 2
thereof SATA III Serial ATA III (6 Gbit), NCQ, AHCI, RAID 1/0
Drives (optional) DVD Super Multi ultra slim (tray), SATA
BD Triple Writer SATA ultra slim (tray), SATA
Drive bay x 3.5-inch external bay
x 3.5-inch internal bay
1 x 5.25-inch external bay
Slots 1 x PCI-Express 3.0 x4 (mech. x16)
Interfaces 3 x USB 3.2 Gen1 (5 Gbps) total
4 x USB 3.2 Gen2 (10 Gbps) total
1 (plus 2 ports optional*) x USB 2.0 total
2x USB 3.2 Gen 2 Type-A
1x USB 3.2 Gen 2 Type-C (provides up to 15W) x USB front
1x USB 2.0 Type-A (plus 2 ports optional*)
3x USB 3.2 Gen 1 Type-A
1x USB 3.2 Gen 2 Type-C (10 Gbps, supports DisplayPort 1.4 and power delivery sink**) x USB rear
1x RJ-45
(2nd port optional*) x Ethernet (RJ-45)
1 x Kensington Lock support
1x DisplayPort 1.4
(2nd port optional*) x DisplayPort
1 x HDMI
Graphics AMD Radeon™ Graphics
Audio type Realtek ALC257N
Communication 10/100/1,000 MBit/s Realtek RTL8111EPV
optional; WLAN 802.11ax/Wi-Fi 6 and BT5.2 x Integrated WLAN
Weight 0.8 kg
DVD version: 1,0 kg(?)
internal power supply / PCIe slot version: 1,5 kg(?)
Dimensions (W x D x H) 146.5 x 164.5 x 36 mm
5.77 x 6.48 x 1.42 inch
Power efficiency note 90 Watt AC adapter: power supply efficiency at 115/230V: 89% average efficiency
150 Watt internal PLATINUM power supply (optional):
Power supply efficiency in % at 10% / 20% / 50% / 100% load
for 230V ; 88/92/94/93(?)
for 115V ; 87/91/92/91(?)
Warranty period 1 year
Operating system notes Bring-In / Onsite Service (depending on country)
After the end of the product life Fujitsu will continue to test and support all upcoming Windows releases for a period of maximum 5 years, depending on the available extension of hardware services through Fujitsu Warranty top ups. For details please see “Fujitsu Service Statement for Windows General Availability Channel” at https://support.ts.fujitsu.com/IndexProdSupport.asp?lng=com&OpenTab=
The use of Windows Operating System is subject to acceptance of the End User License Agreement of Microsoft as applicable under the relevant Microsoft program.
1 x 2.5-inch internal bay
x 5.25-inch internal bay

Accessories

Fujitsu AIO Display P2410

The FUJITSU AIO Display P2410 is the universal display unit for different Mini PC platforms like ESPRIMO Gx012 Small to be connected via USB Type-C to enables All-in-One like usage. This all-rounder comes with front and side USB connectors for ergonomic comfort and optional side optical drive for wide range of usage.

Mounting Kit for Height Adjustable FUJITSU Displays

The FUJITSU Mounting Kit for Height Adjustable FUJITSU Displays has been specifically designed for use with ESPRIMO Q/G Mini PCs, FUTRO Thin Clients and FUJITSU Displays. By mounting an ESPRIMO Mini PC or a FUTRO Thin Client behind a display, you can save space on the desk, reduce clutter on desk and realize a clean desk working environment.
