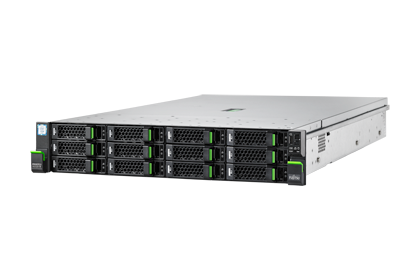

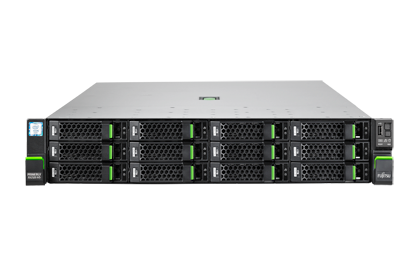

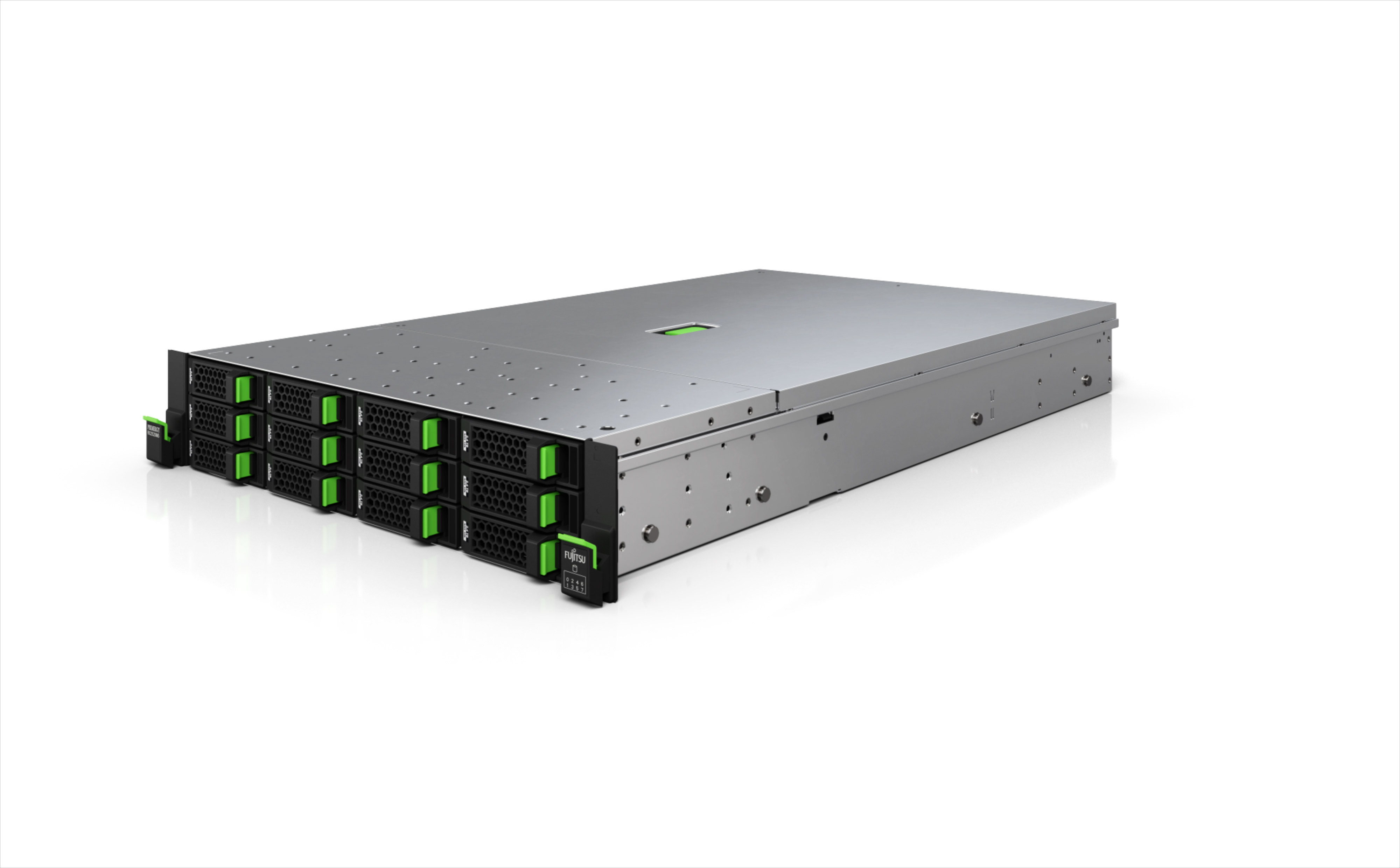

FUJITSU Server PRIMERGY RX2520 M5

Keyboard shortcuts for the player:
  • F: Fullscreen
  • Esc: Exit fullscreen
  • ↑: Volume up
  • ↓: Volume down
  • ←: 5 sec. back
  • →: 5 sec. forward
  • Space: Play/Pause
  • S: Subtitle On/Off
The Fujitsu PRIMERGY RX2520 M5 is an efficient and scalable platform for essential business applications. Its dual sockets host Intel® Xeon® Scalable Family processors with up to 768 GB RAM. The PRIMERGY RX2520 delivers an especially well balanced price / performance ratio making it ideal for baseline datacenter workloads i.e. for collaboration platforms or storage-hungry applications. The system design offers room for future growth thanks to modular design approaches for variable base units, PSUs, controllers, LAN etc. iRMC S5 server management lowers operational costs additionally.

Features & Benefits

Właściwości Korzyści
Well-balanced price / performance ratio
  • A good choice of Intel® Xeon® Scalable Family processors with up to 18 cores combined with up to 768GB DDR4 RAM (12 DIMM slots) and up to 6x PCIe slots.

  • The variability of choice for the new generation “Cascade Lake” processors are ideal for price/performance sensitive environments. The system offers well-enough scalability for memory and additional devices to complement small-scale virtualization or collaboration platforms.
Flexible and scalable platform
  • Huge numbers of storage drives in various base units with up to 12x 3.5-inch or 24x 2.5-inch storage drives are available. M.2 device support, the modular concept for the base unit as well as a choice for optional LAN controller, RAID controller and power supplies as well as built-in backup devices such as LTO drives are configurable for this server.

  • The server is a scalable platform to best meet increasing individual demand optimized to suit serverized storage scenarios or storage demanding applications. Due to upgrade kits and the modular platform, just grow over time within the same system and utilize to the best over the entire lifecycle.
Cost efficient operations
  • The system comes with onboard LAN, a simplified power management with profiles for ‘minimum power’ and ‘low-noise’. Optional redundant, hot-plug PSU with 96% efficiency (80PLUS Titanium) save everyday. Our onboard iRMC S5 server management controller connects well to the Fujitsu ServerView Suite offers tools for installation and deployment, permanent status monitoring and control.

  • This allows a cost-efficient onboard Ethernet connection for almost all tasks and a simplified and comprehensive power management that results with the high efficient power supplies in significant savings. Fujitsu ServerView Suite provides all the functions for fail-safe, flexible and automated 24x7 server operations and improves end-user productivity via intelligent and innovative system management solutions.
Revolutionize data center management
  • Fujitsu ServerView Suite is a free-of-charge management software including tools for installation and deployment, permanent status monitoring and control as well as BIOS, firmware and selected software updates. In addition FUJITSU Software Infrastructure Manager (ISM) provides converged management across multiple data centers. The new ISM Essential license, available free-of-charge provides essential server management and converged monitoring functions.

  • Fujitsu offers comprehensive infrastructure management and server management solutions which is key to efficient data center operations. They provides all the functions for flexible and automated 24x7 IT operations and improves end-user productivity via intelligent and innovative system management solutions. ISM helps improve data center efficiency and overall IT Productivity with converged infrastructure management, paving the path to software-defined data center.

Technical details

ChipsetIntel® C624
Mainboard typeD3386-B
Product TypeDual Socket Rack Server
ProcessorIntel® Xeon® Processor Scalable Family
1 - 2
Memory8 GB - 768 GB, DIMM (DDR4)
Memory protectionAdvanced ECC, Memory Scrubbing, SDDC
Drives (optional)DVD supermulti, ultraslim, SATA I
RDX Drive, 100 MB/s, 320 GB, 500 GB, 1 TB, 2 TB, USB 3.0
LTO7HH Ultrium, 300 MB/s, 2,500 GB, SAS 6Gb/s
PCI-Express 3.0 x83 x Low profile
Slot NotesImportant: The number of PCIe slots depends on the number of CPUs:
3x PCIe x8 Gen 3 with CPU1
1x PCIe x16 Gen 3 with CPU1
2x PCIe x16 Gen 3 with CPU2
Accessible drive bays1 x 5.25/0.5-inch for ODD, 1 x 5.25/1.6-inch for backup devices
1 x 5.25/1.6-inch for 1 x backup drive or 1 x ODD
Optional accessible drives1x optical drive, 1x backup drive
1x optical disk drive
All possible options described in relevant system configurator.
Storage drive bays2.5-inch base units (max. 24 x 2.5) or 3.5-inch base units (max. 12 x 3.5)
12 x 2.5-inch hot-plug SAS/SATA
16 x 2.5-inch hot-plug SAS/SATA
24 x 2.5-inch hot-plug SAS/SATA
4 x 3.5-inch hot-plug SAS/SATA
12 x 3.5-inch hot-plug SAS/SATA
SAS expander not required with PRAID EP5xxi
not expandable, incl. SAS expander
optionally expandable to 8x 3.5“ with SAS expander
Storage drive typeHDD SATA, 6 Gb/s, 12 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SATA, 6 Gb/s, 14 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SATA, 6 Gb/s, 1 TB, 7,200 rpm, 512e, hot-plug, 2.5-inch, business critical
HDD SATA, 6 Gb/s, 2 TB, 7,200 rpm, 512e, hot-plug, 2.5-inch, business critical
HDD SATA, 6 Gb/s, 1 TB, 7,200 rpm, 512n, hot-plug, 2.5-inch, business critical
HDD SATA, 6 Gb/s, 2 TB, 7,200 rpm, 512n, hot-plug, 2.5-inch, business critical
Dual microSD 64GB Enterprise
HDD SAS, 12 Gb/s, 900 GB, 15,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 900 GB, 15,000 rpm, hot-plug, 3.5-inch, enterprise
HDD SAS, 12 Gb/s, 2.4 TB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 2.4 TB, 10,000 rpm, 512e, hot-plug, 3.5-inch, enterprise
HDD SAS, 12 Gb/s, 12 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SAS, 12 Gb/s, 14 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SAS, 12 Gb/s, 1.2 TB , 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise, SED
HDD SAS, 12 Gb/s, 300 GB, 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise, SED
HDD SAS, 12 Gb/s, 600 GB , 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise, SED
HDD SAS, 12 Gb/s, 1.8 TB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise, SED
HDD SAS, 12 Gb/s, 2.4 TB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise, SED
HDD SAS, 12 Gb/s, 6 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, enterprise, SED
HDD SAS, 12 Gb/s, 10 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, enterprise, SED
SSD SATA, 6 Gb/s, 3.84 TB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
SSD SATA, 6 Gb/s, 3.84 TB, Mixed-use, hot-plug, 3.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
HDD SAS, 12 Gb/s, 1 TB, 7,200 rpm, 512n, hot-plug, 2.5-inch, business critical
HDD SAS, 12 Gb/s, 2 TB, 7,200 rpm, 512n, hot-plug, 2.5-inch, business critical
HDD SAS, 12 Gb/s, 12 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, enterprise, SED
HDD SAS, 12 Gb/s, 14 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, enterprise, SED
HDD SAS, 12 Gb/s, 6 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SAS, 12 Gb/s, 8 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SATA, 6 Gb/s, 1 TB, 7,200 rpm, 512n, hot-plug, 3.5-inch, business critical
HDD SATA, 6 Gb/s, 2 TB, 7,200 rpm, 512n, hot-plug, 3.5-inch, business critical
HDD SATA, 6 Gb/s, 4 TB, 7,200 rpm, 512n, hot-plug, 3.5-inch, business critical
HDD SATA, 6 Gb/s, 6 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
HDD SATA, 6 Gb/s, 8 TB, 7,200 rpm, 512e, hot-plug, 3.5-inch, business critical
PCIe-SSD SFF, 1.6 TB, Mixed-use, hot-plug, 2.5-inch, Flash drive, 3.0 DWPD (Drive Writes Per Day for 5 years)
PCIe-SSD SFF, 3.2 TB, Mixed-use, hot-plug, 2.5-inch, Flash drive, 3.1 DWPD (Drive Writes Per Day for 5 years)
PCIe-SSD SFF, 6.4 TB, Mixed-use, hot-plug, 2.5-inch, Flash drive, 3.2 DWPD (Drive Writes Per Day for 5 years)
PCIe-SSD SFF, 1 TB, Read-Intensive, hot-plug, 2.5-inch, Flash drive, 1 DWPD (Drive Writes Per Day for 5 years)
PCIe-SSD SFF, 2 TB, Read-Intensive, hot-plug, 2.5-inch, Flash drive, 0.6 DWPD (Drive Writes Per Day for 5 years)
PCIe-SSD SFF, 4 TB, Read-Intensive, hot-plug, 2.5-inch, Flash drive, 0.6 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 1.92 TB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 0.9 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 240 GB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 1.4 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 3.84 TB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 1.0 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 480 GB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 0.9 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 7.68 TB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 0.5 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 960 GB, Read-Intensive, hot-plug, 3.5-inch, enterprise, 0.9 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 1.92 TB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 0.9 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 240 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1.4 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 3.84 TB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1.0 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 480 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 0.9 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 7.68 TB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 0.5 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 960 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 0.9 DWPD (Drive Writes Per Day for 5 years)
SSD M.2 SATA, 6 Gb/s, 240 GB, non hot plug, enterprise, 1.4 DWPD (Drive Writes Per Day for 5 years)
SSD M.2 SATA, 6 Gb/s, 480 GB, non hot plug, enterprise, 1.4 DWPD (Drive Writes Per Day for 5 years)
SSD M.2 SATA, 6 Gb/s, 240 GB, non hot plug, enterprise, for VMware
HDD SAS, 12 Gb/s, 300 GB, 15,000 rpm, hot-plug, 3.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB, 15,000 rpm, hot-plug, 3.5-inch, enterprise
HDD SAS, 12 Gb/s, 300 GB, 15,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB, 15,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 1.2 TB, 10,000 rpm, 512n, hot-plug, 3.5-inch, enterprise
HDD SAS, 12 Gb/s, 300 GB, 10,000 rpm, 512n, hot-plug, 3.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB, 10,000 rpm, 512n, hot-plug, 3.5-inch, enterprise
HDD SAS, 12 Gb/s, 1.2 TB, 10,000 rpm, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 300 GB, 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB, 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 900 GB, 10,000 rpm, 512n, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 1.2 TB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 1.8 TB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 600 GB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 900 GB, 10,000 rpm, 512e, hot-plug, 2.5-inch, enterprise
HDD SAS, 12 Gb/s, 1.8 TB, 10,000 rpm, 512e, hot-plug, 3.5-inch, enterprise
SSD SATA, 6 Gb/s, 1.92 TB, Mixed-use, hot-plug, 3.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
SSD SATA, 6 Gb/s, 240 GB, Mixed-use, hot-plug, 3.5-inch, enterprise, 3.6 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 480 GB, Mixed-use, hot-plug, 3.5-inch, enterprise, 3.6 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 960 GB, Mixed-use, hot-plug, 3.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
SSD SATA, 6 Gb/s, 1.92 TB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
SSD SATA, 6 Gb/s, 240 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3.6 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 480 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3.6 DWPD (Drive Writes Per Day for 5 years)
SSD SATA, 6 Gb/s, 960 GB, Mixed-use, hot-plug, 2.5-inch, enterprise, 3 DWPD (drive writes per day for 5 years)
PCIe-SSD SFF, 3.2 TB, Mixed-use, hot-plug, 2.5-inch, Flash drive, 3.0 DWPD (Drive Writes Per Day for 5 years)
PCIe-SSD SFF, 6.4 TB, Mixed-use, hot-plug, 2.5-inch, Flash drive, 3.0 DWPD (Drive Writes Per Day for 5 years)
PCIe-SSD SFF, 1 TB, Read-Intensive, hot-plug, 2.5-inch, Flash drive, 3.0 DWPD (Drive Writes Per Day for 5 years)
PCIe-SSD SFF, 2 TB, Read-Intensive, hot-plug, 2.5-inch, Flash drive, 3.0 DWPD (Drive Writes Per Day for 5 years)
PCIe-SSD SFF, 4 TB, Read-Intensive, hot-plug, 2.5-inch, Flash drive, 3.0 DWPD (Drive Writes Per Day for 5 years)
I/O controller onboardIntel® C624, 1 x SATA channel for ODD
All hardware storage controller options are described under Components
2 x 1 Gbit/s onboard
IPMI 2.0 compatible, Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller)
Trusted Platform Module (TPM)Infineon / TPM 1.2 or TPM 2.0 module; TCG compliant (option)
Power supply configuration1x non hot-plug power supply or 2x hot-plug power supply for redundancy
Active power (max. configuration)643 W
Weightup to 25 kg
Rack (W x D x H)482.4 mm (Bezel) / 445mm (Body) x 770 x 86.6 mm
Mounting Depth Rack740 mm
Server ManagementServer Management and Infrastructure Management
StandardInfrastructure Manager (ISM) Essential, Node Management, Health status Monitoring and Control, Capacity/Threshold Management, Power Management, Converged Management, Auto Discovery, Remote Management, Update Management, Logging and Auditing, ServerView Suite (Deploy), ServerView Installation Manager, ServerView Scripting Toolkit, ServerView Suite (Control), ServerView Operations Manager (incl. PDA and ASR & R), ServerView Agents and CIM provider, ServerView Agentless Management, ServerView System Monitor, SVOM- Event Manager, ServerView RAID Manager, SVOM- Threshold Manager, Power Monitor (monitoring the Power Consumption), Power Management (iRMC), Storage Management (server) with SVOM/SV-RAID, ServerView Suite (Maintain), iRMC S5 (Remote Management), System Update Manager (BIOS, Firmware, Windows Drives and SV Agents), Performance management (SVOM), Asset Management, Primecollect, Customer Self Service, Online Diagnostics, ServerView Suite (Integrate), ServerView Integration packs for MS System Center, VMware vCenter, VMware vRealize, Nagios, and HP SIM
OptionServerView Suite (Maintain), ServerView eLCM, iRMC Advanced Pack incl. Advanced Video Redirection (AVR), video capturing and Virtual Media, Infrastructure Manager (ISM), Automate device configuration
Mass OS installation
Node Management
Health status Monitoring and Control
Capacity/Threshold Management
Power Management
Converged Management
Auto Discovery
Virtual-IO Management
Network topology Management, Remote Management
Update Management
Logging and Auditing
Integrate in to
Enterprise Management
Vendor specific Management
Monitor 3rd party platforms
Warranty period3 years
Warranty typeOnsite warranty
Service Lifecycle5 years after end of product life
Service Weblinkhttp://www.fujitsu.com/emeia/products/product-support-services/

Components

PRIMERGY RDX USB 3.0
Napęd wymienny PRIMERGY RDX to profesjonalne rozwiązanie do tworzenia kopii zapasowych, na które stać każdego. Ten napęd to nowy sposób tworzenia kopii zapasowych, archiwizacji i transportowania danych. Napęd PRIMERGY RDX łączy w sobie najlepsze cechy dysków twardych i technologii napędów taśmowych.
PSAS CP400i
8-portowy adapter magistrali głównej SAS/SATA, PSAS CP400i, zapewnia zwiększone możliwości połączeń i maksymalną wydajność w przypadku wysokiej klasy serwerów i aplikacji w wewnętrznej i zewnętrznej pamięci masowej. Wysoka wydajność została uzyskana dzięki kontrolerowi LSI SAS3008 IO, który zapewnia wysoki poziom integracji najnowszych technologii SAS i PCI Express 3.0.
PRIMERGY LTO-7 HH Ultrium
Po raz pierwszy w historii, siódma generacja napędów taśmowych Linear Tape Open (LTO-7) umożliwia zapisanie 6 TB nieskompresowanych danych na jednej taśmie z prędkością przesyłu sięgającą 300 MB/s. Włączenie kompresji umożliwia zachowanie do 15 TB danych na jednym napędzie z prędkością przesyłu do 600 MB/s.
PFC QLE2740 / QLE2742 Fibre Channel Adapters
The Gen6 32 Gb/s Fibre Channel Host Bus Adapters (HBA) QLE2740 and QLE2742 for the PRIMERGY & PRIMEQUEST servers are ideal for virtualized environments and transaction intensive applications. The adapters support the latest PCIe 3.0 standard for lower cooling and power costs. In addition, QLogic StorFusion technology delivers streamlined provisioning, guaranteed quality of service (QoS), and improved resiliency while addressing the needs of IT organizations that require reliability, integrated management, and guaranteed network performance.
PFC EP Emulex LPe32000 / LPe32002 Fibre Channel Adapters
The Emulex Gen 6 32 Gb Fibre Channel (FC) Host Bus Adapters (HBA) by Broadcom for PRIMERGY and PRIMEQUEST server systems are optimal Fibre Channel HBAs for virtualized, cloud and mission critical deployments. The PFC EP Emulex Gen 6 Fibre Channel HBAs LPe32000/32002 by Broadcom take performance to a new level with PCIe 3.0 support, data integrity capabilities and cloud scale reliability, and ease of use. Organizations looking to improve performance, protect against data corruption, and simplify operations of FC SANs in cloud or high performance environments can benefit from deploying the PFC EP LPe32000/32002.
Adaptery Fibre Channel QLE2690 / QLE2692
Udoskonalone adaptery magistrali głównej Fibre Channel 16 Gb/s (HBA) QLE2690 i QLE2692 piątej generacji dla serwerów PRIMERGY i PRIMEQUEST są idealne dla środowisk zwirtualizowanych i aplikacji wymagających intensywnego przetwarzania transakcji. Adaptery obsługują najnowszy standard PCIe 3.0, który obniża koszty chłodzenia i energii. Ponadto technologia QLogic StorFusion zapewnia skuteczniejsze alokowanie zasobów, gwarantowaną jakość usług (QoS) i większą elastyczność, a jednocześnie uwzględnia potrzeby firm z branży IT, którym zależy na niezawodności, zintegrowanym zarządzaniu i gwarantowanej wydajność sieci.
PFC EP Emulex LPe31000 / LPe31002 Fibre Channel Adapters
The Emulex Gen 6 16 Gb Fibre Channel (FC) Host Bus Adapters (HBA) by Broadcom for PRIMERGY and PRIMEQUEST server systems are optimal Fibre Channel HBAs for virtualized, cloud and mission critical deployments. The PFC EP Emulex Gen 6 Fibre Channel HBAs LPe31000/31002 by Broadcom take performance to a new level with PCIe 3.0 support, data integrity capabilities and cloud scale reliability, and ease of use. Organizacje chcące zwiększyć wydajność, zabezpieczyć się przed uszkodzeniem danych i uprościć obsługę FC SAN w chmurze lub w środowiskach wymagających wysokiej wydajności mogą skorzystać na wdrożeniu adapterów LPe16000/16002.
PRAID CP400i - 8 portów 12Gb/s SAS, 6Gb/s SATA
Kontroler kart Fujitsu PRAID CP400i SAS/SATA oparty na LSI SAS3008 umożliwia obsługę technologii RAID w przystępnych cenach i przy niskim zużyciu energii. Podstawowy kontroler kart PRAID CP400i MegaRAID to proste rozwiązanie obejmujące najważniejsze poziomy RAID o nieskomplikowanej konfiguracji.
PRAID EP540i
The Fujitsu RAID Controller PRAID EP540i with 4GB cache and16x12Gbit/s SAS ports improves performance for storage intensive workloads such as databases and sets new speed and data security standards for internal storage drives. The new PRAID EP540i supports up to 16 SAS/SATA drives, up to 4 NVMe PCIe drives or a mixture of SAS/SATA and NVMe drives. NVMe is an interface with lower overhead, lower latency and drastically increased bandwidth and IOP's. The RAID stack is based on the Broadcom MegaRAID® and offers high data throughput, a comprehensive fault tolerance function and user-friendly management options. Moreover, the Controller management is integrated seamlessly into the Fujitsu server management concept. All controller functions are supported by the Fujitsu ServerView RAID Manager. The PRAID EP540i is designed for 3, 6 and 12Gbit/s SAS as well as for 3 and 6Gbit/s SATA drives. Regardless of the drive speed, it delivers significant performance improvements in both read and write applications.
Adapter PSAS CP400e
8-portowy adapter magistrali głównej SAS/SATA, PSAS CP400e, zapewnia zwiększone możliwości połączeń i maksymalną wydajność w przypadku wysokiej klasy serwerów i aplikacji w wewnętrznej i zewnętrznej pamięci masowej. Wysoka wydajność została uzyskana dzięki kontrolerowi LSI SAS9300, który zapewnia wysoki poziom integracji najnowszych technologii SAS i PCI Express 3.0.
PLAN EP MCX4-EN 100GbE QSFP28
The FUJITSU PLAN EP MCX4-EN 100GbE is based on Mellanox’s ConnectX®-4 EN (Single port) Network Interface Card. ConnectX-4 EN Network Controller with 100Gb/s Ethernet connectivity addresses virtualized infrastructure challenges, delivering best-in-class and highest performance to various demanding markets and applications. Providing true hardware-based I/O isolation with unmatched scalability and efficiency, achieving the most cost-effective and flexible solution for Web 2.0, Cloud, data analytics, database, and storage platforms. 100Gb Ethernet (100GbE) enables network bandwidth to be cost-effectively scaled in support of next-generation server and storage solutions residing in Cloud and Web-scale data center environments.

FUJITSU PLAN EP MCX4-EN 100GbE Network Interface Cards deliver advanced Ethernet solutions designed for FUJITSU Server PRIMERGY and PRIMEQUEST systems with Microsoft Windows Server 2016 and 2012 R2, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 12, VMware ESXi 6.5. Designed for SUSE Linux Enterprise Server 12 SP2 operating system supporting use cases such as SAP HANA®, and for Microsoft Windows Server 2016 operating system supporting use cases such as Storage Spaces Direct certified with Premium and Standard SDDC (Software Defined Data Center) qualifiers.
PLAN EP MCX4-EN 40GbE QSFP
The FUJITSU PLAN EP MCX4-EN 40GbE is based on Mellanox’s ConnectX®-4 EN (Dual port) Network Interface Card. ConnectX-4 EN Network Controller with 40Gb/s Ethernet connectivity addresses virtualized infrastructure challenges, delivering best-in-class and highest performance to various demanding markets and applications. Providing true hardware-based I/O isolation with unmatched scalability and efficiency, achieving the most cost-effective and flexible solution for Web 2.0, Cloud, data analytics, database, and storage platforms. 40Gb Ethernet (40GbE) enables network bandwidth to be cost-effectively scaled in support of next-generation server and storage solutions residing in Cloud and Web-scale data center environments.

FUJITSU PLAN EP MCX4-EN 40GbE Network Interface Cards deliver advanced Ethernet solutions designed for FUJITSU Server PRIMERGY and PRIMEQUEST systems with Microsoft Windows Server 2016 and 2012 R2, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 12, VMware ESXi 6.5. Designed for SUSE Linux Enterprise Server 12 SP2 operating system supporting use cases such as SAP HANA®, and for Microsoft Windows Server 2016 operating system supporting use cases such as Storage Spaces Direct certified with Premium and Standard SDDC (Software Defined Data Center) qualifiers.
PLAN EP MCX4-LX 25GbE SFP28
The FUJITSU PLAN EP MCX4-LX 25GbE is based on Mellanox’s ConnectX®-4 Lx EN (Dual port) Network Interface Card. ConnectX-4 Lx EN Network Controller with 10/25Gb/s Ethernet connectivity addresses virtualized infrastructure challenges, delivering best-in-class and highest performance to various demanding markets and applications. Providing true hardware-based I/O isolation with unmatched scalability and efficiency, achieving the most cost-effective and flexible solution for Web 2.0, Cloud, data analytics, database, and storage platforms. 25Gb Ethernet (25GbE) enables network bandwidth to be cost-effectively scaled in support of next-generation server and storage solutions residing in Cloud and Web-scale data center environments. The 25GbE results in a single switch lane connection similar to existing 10GbE technology—but it delivers 2.5 times greater bandwidth.

Compared to 40GbE solutions, 25GbE technology provides superior switch port density by requiring just a single switch lane compared to the 40GbE with four lanes. FUJITSU PLAN EP MCX4-LX 25GbE Dual-Port 10/25GbE Network Interface Cards deliver advanced Ethernet solutions designed for FUJITSU Server PRIMERGY and PRIMEQUEST systems with Microsoft Windows Server 2016 and 2012 R2, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 12, VMware ESXi 6.5. Designed for SUSE Linux Enterprise Server 12 SP2 operating system supporting use cases such as SAP HANA®, and for Microsoft Windows Server 2016 operating system supporting use cases such as Storage Spaces Direct certified with Premium and Standard SDDC (Software Defined Data Center) qualifiers.
PLAN CP 2x1Gbit Cu Intel® I350-T2
Niezawodna komunikacja z nową kartą sieciową Ethernet LAN. Nowa, oparta na chipie Intel® 1GbE karta sieciowa Intel I350-T2 Ethernet LAN Adapter jest wyposażona w dwa porty Gigabit Ethernet do obsługi standardu 10/100/1000 BaseT.
PLAN CP 4x1Gbit Cu Intel® I350-T4
Niezawodna komunikacja z nową kartą sieciową Ethernet LAN. Nowa, oparta na chipie Intel® 1GbE karta sieciowa Intel I350-T4 Ethernet LAN Adapter jest wyposażona w cztery porty Gigabit Ethernet do obsługi standardu 10/100/1000 BaseT.
Konwergentna karta sieciowa (CNA)
Emulex OCe14102
Należące do rodziny rozwiązań CNA 14000 urządzenie OCe14102 wykorzystuje infrastrukturę DCB (Converged Enhanced Ethernet) 10 Gbit/s do obsługi sieci i pamięci masowych, ograniczając nakłady inwestycyjne (CapEx) na adaptery, przełączniki i kable, a także koszty operacyjne (OpEx) zasilania, chłodzenia i administracji IT. Karta OCe14102 zwiększa sprawność i skalowalność centrów danych IT, a także optymalizuje wykorzystanie serwera poprzez skalowanie wirtualizacji o wysokiej gęstości.
Karta sieciowa Emulex OCe14102
Karta sieciowa Fujitsu "Emulex OCe14102" to czwarta generacja kart Emulex OneConnect® OCe14000. Rodzina kart sieciowych OCe14000 Ethernet zapewnia wysoką przepustowość rzędu 10Gb Ethernet (10GbE) oferując wiele korzyści w przypadku korzystania z usług w chmurze. System jest przygotowany na co raz większą się ilość danych, zwiększając ich sprawność i skalowalność poprzez wdrożenie bezpiecznych rozwiązań w chmurze. Optymalizacja wykorzystania serwerów poprzez skalowanie wirtualizacji o wysokiej gęstości, a także dostarczanie przepustowości kontrolowanej przez użytkownika przepustowości zgodnie z obciążeniami i usługami zarządzania.
Karta sieciowa EmulexOCe14102-NT
Karta sieciowa „Fujitsu OCe14102-NT”, należąca do rodziny OCe14000, oferuje wysokowydajne rozwiązanie do obsługi sieci, które doskonale sprawdzi się w wirtualizacji, w chmurze i w obsłudze centrów danych. Ta karta — w przeciwieństwie do karty Emulex OCe14102 — wykorzystuje typ złącza RJ45. To złącze jest zgodne ze standardami CAT6/6A/7/7A dotyczącymi okablowania z wykorzystaniem skrętek i zapewnia maksymalną przepustowość rzędu 10Gb Ethernet przy wyjątkowo niskich kosztach. Karta OCe14102-NT typu NIC skupia się na funkcjach chmury, dlatego nie obsługuje funkcji pamięci masowej (iSCSI i FCoE) uniwersalnej konwergentnej karty sieciowej.

Case Studies

  • Oman , Industry: Healthcare
    Oman’s Raysut Cement Company succeeds its wider digital transformation and automates business critical workflows with SAP S/4HANA running on Integrated System PRIMEFLEX for SAP HANA

    RCC chose Fujitsu to upgrade to SAP S/4HANA, doubling performance speeds, increasing productivity, improving visibility, automating workflows and adding mobility.Tags: Data Center , ETERNUS CS Virtual Tape Sol., SAP HANA

  • Germany , Industry: Manufacturing
    PRIMERGY and ETERNUS systems help Remmers to migrate to SAP HANA

    SAP HANA enables Remmers to produce real-time reports for its sales, accounting and reporting departments in 26 companies across Germany and abroad, even dealing with the different currencies. The entire SAP environment is hosted from the company’s headquarters in Löningen, with the two redundantly designed data centers ensuring high availability.Tags: SAP Solutions

  • India , Industries: Manufacturing , Retail, Retail-Wholesale
    Tara Jewels automated its business processes and increased productivity with Integrated System PRIMEFLEX for SAP HANA

    Since its foundation in 2000, Tara Jewels has relied on SAP® to support critical business functions such as ERP and finance. However, accessing the accumulated data and producing reports quickly became difficult and time-consuming. The company wanted to introduce a more effective automated platform to make its operations more efficient.Tags: SAP HANA , SAP Solutions, Storage Solutions, System Efficiency

  • Germany , Industries: Manufacturing , Retail-Wholesale
    LAMY Expands Storage Infrastructure

    Lamy had already invested heavily in the development of a virtualized server and client infrastructure, helping it to increase the flexibility of its IT systems while at the same time reducing energy costs and administration requirements. The first step toward greater availability was to mirror the hardware. To supply the processing power required for the double load that would be placed on the respective zero clients, it was sufficient to upgrade the RAM of the existing PRIMERGY servers.Tags: Storage Solutions

  • Germany , Industry: Insurance
    AOK Uses FlexFrame and PRIMERGY Blade Server Technology

    Arbeitsgemeinschaft AOK-Rechenzentrum Bremen/Lower Saxony performs exhaustive data center services for the employees of the two AOK health insurance providers that cover Bremen and Lower Saxony.Tags: IT infrastructure

    • Prev
    • Next

Press Release

  • Targi CeBIT, Hanower / Monachium,November 05, 2013
    Fujitsu prowadzi praktyczne testy magistrali centrum przetwarzania danych bez limitu szybkości

    W trakcie Fujitsu Forum firma Fujitsu prezentuje technologię, która w przyszłości spowoduje istotne zmiany w centrach przetwarzania danych — zarówno funkcjonalne, jak i konstrukcyjne. Usunięcie obecnych limitów szybkości i wprowadzenie transmisji z szybkością światła eliminuje wąskie gardła ograniczające wydajność, co umożliwia realizowanie zadań biznesowych w czasie rzeczywistym.

  • Targi CeBIT, Hanower / Monachium,November 05, 2013
    Fujitsu PRIMEQUEST pokonuje ograniczenia baz danych przechowywanych w pamięci operacyjnej i umożliwia podejmowanie decyzji w czasie rzeczywistym z wykorzystaniem systemów ERP

    Podczas konferencji Fujitsu Forum firma Fujitsu zapowiedziała program oceny technologii serwerów klasy wyższej PRIMEQUEST, które zwiększają możliwą wielkość baz danych przechowywanych w pamięci operacyjnej do 12 TB. Oznacza to, że Fujitsu jako pierwszy dostawca na rynku umożliwia firmom podejmowanie decyzji w czasie rzeczywistym z wykorzystaniem dużych baz danych aplikacji SAP ERP uruchomionych w trybie in-memory (przechowywanie zbiorów w pamięci operacyjnej) na platformie SAP HANA .

  • Targi CeBIT, Hanower / Monachium,October 16, 2013
    Fujitsu oferuje małym i średnim przedsiębiorstwom nową, wszechstronną generację serwerów

    Firma Fujitsu wprowadziła na rynek dwa nowe, zoptymalizowane serwery FUJITSU PRIMERGY, zbudowane z myślą o zaspokojeniu potrzeb małych i średnich przedsiębiorstw oraz oddziałów terenowych dużych firm. Oba systemy są oparte na najnowszej jednoprocesorowej platformie Intel Xeon z serii E3 v3.

  • Targi CeBIT, Hanower / Monachium,October 11, 2013
    Fujitsu oferuje dostęp na żądanie przy nieznacznym zaangażowaniu działu informatyki

    Firma Fujitsu rozszerza swoje popularne architektury referencyjne vShape, aby zapewnić dostęp na żądanie do usług, aplikacji i danych przy jak najmniejszym zaangażowaniu działów informatyki. Klienci mogą wykorzystywać narzędzie do zarządzania eCloud Manager firmy fluidOps bez względu na to, który pakiet do wirtualizacji vShape najlepiej odpowiada ich potrzebom, co pozwala optymalnie wykorzystywać zalety vShape jako ważnej pomocy w działalności biznesowej.

    • Prev
    • Next

Support Packs

Support Pack OptionsGlobally available in major business areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)
Recommended Service24x7, Onsite Response Time: 4h - For locations outside of EMEIA please contact your local Fujitsu partner.

Documents

Product Support Services - Comprehensive Offerings at a Glance

FUJITSU Product Support Services
