Servers for the data-driven world

PRIMERGY Servers

"We are using PRIMERGY servers for more than 15 years without downtime! That's what I call quality!"
Uros Lampret, Procurator, Our Space Appliances d.o.o.

In today's rapidly evolving business landscape, IT plays an increasingly important role in enabling organizations to stay competitive and meet their customers' demands. To keep up with the latest IT trends, companies need to have the right infrastructure in place, including servers that can handle a wide range of workloads and business demands.

PRIMERGY Server systems are an ideal solution for this purpose, delivering workload-optimized x86 industry standard servers that can meet the needs of any business. Recognizing that there is no one-size-fits-all solution, Fsas Technologies offers a comprehensive server portfolio that includes expandable tower servers, versatile rack-mount servers, density-optimized multi-node servers, and GPU servers purpose-built for AI and VDI.

All of these systems are designed to handle multiple and computing-intensive workloads, but each server is optimized for specific use cases. Whether you are a large enterprise with multiple sites or a small or medium-sized company with limited space and budget, PRIMERGY Servers can help your IT become the business enabler you have always wanted it to be. With the right choice of server, you can ensure that your infrastructure is up to date with the latest IT trends and equipped to handle whatever demands the future may bring.


Quality

Designed to deliver high-quality performance and reliability.


Efficiency

Operate with high energy efficiency, reducing power consumption and costs.


Agility

Flexible and scalable solutions for changing business needs.


Integration

Seamless integration with existing IT infrastructures and applications.

Find the right server

20  Products

Filters

(0)

Form Factor

Height Units

Processor Quantity

Processor Type

Memory Slots

Memory Capacity

max. Storage Drive Bays

PCIe slots

FUJITSU Server PRIMERGY TX1330 M4

  • Fields the latest Intel® Xeon® E-2200/ E-2100 product family processors plus 2,666 MT/s 128GB DDR4 RAM
  • Ideal for standard small & medium business workloads (infrastructure, collaborative, industry apps) plus storage demanding deployments
  • High capacity, secure storage - 24x drives with a range of configurations
  • Future ready today - 4x PCI Gen3 slots, a range of advanced upgrade, OS options and rack upgrade kit
  • Enhanced reliability by design including redundant power supplies, plus the latest management software including iRMC S5, Fujitsu software ISM

Read More

FUJITSU Server PRIMERGY RX1330 M4

  • Highly reliable, energy-efficient single-socket entry-level rack server
  • Cost-efficient foundation for powering small, digital businesses
  • Ideal for file, web hosting, communication, collaboration and virtualization workloads
  • Enterprise-class reliability and operational efficiency in compact form factor
  • Easy serviceability and simplified server management

Read More

FUJITSU Server PRIMERGY RX2520 M5

  • Efficient and scalable platform for essential business applications
  • Well balanced price / performance ratio
  • Ideal for standard datacenter workloads, e.g. collaboration platforms or storage-hungry applications
  • Room for future growth thanks to modular design approach
  • Flexible configuration options: Broad selection options for controllers, devices and OS's

Read More

FUJITSU Server PRIMERGY RX2530 M5

  • Maximum productivity in a space-saving 1U housing
  • Ideal for virtualization, scale-out scenarios and small databases
  • Support of Intel® Optane™ DC persistent memory
  • Up to 7.5 TB memory for highest performance demands
  • GPU support for VDI and graphic-intensive computing

Read More

FUJITSU Server PRIMERGY RX2540 M5

  • 2U dual-socket rack server for high usability, scalability and cost-efficiency
  • Ideal for running enterprise applications, collaboration workloads as well as traditional databases
  • Modular design offers excellent expandability of up to 28 disk drives
  • Up to 7.5TB memory for highest performance demands
  • GPGPU support for VDI and graphic-intensive computing

Read More

Serwer FUJITSU PRIMERGY RX4770 M6

  • Czterogniazdowy system x86 zapewniający najwyższy poziom skalowalności w obudowie 3U
  • Idealne rozwiązanie do obsługi kluczowych zadań biznesowych, wirtualizacji na dużą skalę i baz danych w pamięci
  • Boost performance with 3rd Generation Intel® Xeon® Scalable Processors (up to 28 cores / CPU)
  • Obsługa dużych zestawów danych z maksymalnie 48 modułami DIMM (24 z nich mogą być modułami Intel® Optan™ PMem)
  • Możliwość skalowania dzięki 24 2,5-calowym napędom pamięci masowej, 11 gniazdom PCIe Gen3 i obsłudze 2 kart GPU

Read More

FUJITSU Server PRIMERGY RX4770 M5

  • Power for the backend of digitalization
  • Fulfils the requirements of solutions operating ‘in-memory’ such as SAP HANA
  • Ideal for server consolidation, databases, business processing, and data-intensive applications
  • High density 2U form factor with up to enormous 15 TB memory
  • Extended RAS-features for fail-safe operation

Read More

Serwer FUJITSU Serwer PRIMERGY TX1310 M3

  • Obsługuje procesory z rodziny Intel® Xeon® E3-1200 v6 oraz ekonomiczne opcje
  • Odpowiednia wydajność do najważniejszych zadań
  • Ekonomiczne konfiguracje – idealny jako „pierwszy serwer” dla małych i średnich przedsiębiorstw oraz wdrożeń woluminów
  • Niezawodność i wszechstronność serwerów przez całą dobę, w najlepszej cenie
  • Cichy, kompaktowy i łatwy w obsłudze – idealny do małych biur i oddziałów

Read More

FUJITSU Server PRIMERGY TX1320 M4

  • Supports the latest Intel® Xeon® E-2200/ E-2100 product family processors plus 2,666 MT/s 128 GB DDR4 RAM
  • Designed for standard small & medium business workloads: infrastructure (file, print, web), collaborative (email), or industry applications
  • Ultra-compact, silent design – fits anywhere and ideal for offices or showrooms
  • Full-fledged server for your business needs - 8x drives, 4x PCIe and a range of controllers, OS, device options
  • Enhanced reliability by design including redundant power supplies, plus the latest management software including iRMC S5, Fujitsu software ISM

Read More

FUJITSU Server PRIMERGY TX2550 M5

  • Power packed performance with the latest Intel® Xeon® Scalable Processor Family, and up to 1.5 TB GB DDR4 plus Intel® Optane™ DC persistent memory
  • Well suited for demanding business applications, virtualization solutions, demanding storage deployment scenarios
  • Top level expandability - 32x drives, significant range of advanced options, OS plus rack-ready configurations and rack kit
  • Top availability levels - high efficiency hot-plug power supplies and other redundancy features
  • Advanced server management software suite with Fujitsu software ISM and iRMC S5 for ease of use across the lifecycle

Read More

FUJITSU Server PRIMERGY GX2570 M6

  • Advanced GPU-accelerated dual-socket x86 server in a 4U chassis
  • Ideal for high-grade AI, Data-Science and HPC workloads
  • High-performance with 8x NVIDIA A100 GPU acceleration, 3rd Generation Intel® Xeon® Scalable processors, 2TB DDR4 memory
  • Flexible by design with up to 10x NVMe drives, 10x PCIe Gen4 expansion slots with a range of upgrade options
  • Investment protection with 3+1 Platinum 2200W PSUs for high effiency and redundancy

Read More

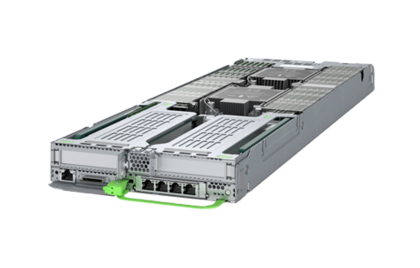

FUJITSU Server PRIMERGY CX2550 M5

  • Node the right price-performance ratio
  • Cloud/HPC optimized half-width 1U server node
  • Easy serviceability and simplified server management
  • Highly reliable, energy-efficient dual-socket entry-level server node
  • 16 DIMM slots with up to 2048 GB DDR4 memory

Read More

FUJITSU Serwer PRIMERGY CX400 M4

  • Kompaktowy i modułowy fundament
  • Doskonała wydajność w kompaktowej obudowie
  • Program Fujitsu Software Infrastructure Manager
  • Elastyczność dopasowana do potrzeb
  • Udoskonalone funkcje zabezpieczeń

Read More

FUJITSU Server PRIMERGY CX2560 M5

  • All-round half-width 1U server node
  • Up to 4 nodes/chassis
  • 16x DIMMs thereof 4x DCPMM
  • Use case: Virtualization & Cloud
  • Up to 4 nodes/chassis

Read More

FUJITSU Server PRIMERGY CX2550 M6

  • Ideal for high performance and technical computing with a 1U server node (4 nodes in CX400 M6)
  • Best performance with the 3rd generation of Intel® Xeon® Processor Scalable Family (up to 24 cores/CPU)
  • 16x DIMM slots with high memory bandwidth of up to 3200 MT/s ideal for memory intensive workloads
  • DynamicLoM adapter via OCP V3 and the new PCIe 4th Generation slots
  • Scale capacity and performance with up to two 2.5” SATA or PCIeSSD storage devices per node

Read More

FUJITSU Server PRIMERGY CX2560 M6

  • Ideal solution for virtualization and cloud scenarios with maximum power and security
  • 3rd generation of Intel® Xeon® Processor Scalable Family brings the highest performance
  • 24 memory slots supporting up to 6TB with DDR4 DIMM modules (up to 12 TB in combination with PMem)
  • Gain storage flexibility 6 (4x SATA/SAS + 2x (SATA/PCIeSSD) or 6 PCIeSSD per node
  • DynamicLoM adapter via OCP V3 and 3 new PCIe 4th Generation slots

Read More

FUJITSU Server PRIMERGY CX400 M6

  • Ideal for virtualization, high performance and technical computing as well as cloud computing
  • Powered by 3rd Generation Intel® Xeon® Scalable processors
  • With Intel® Optane™ PMem modules, get the combination of high capacity and persistence
  • Enough space for your business needs with up to 24x 2,5’’ SAS/SATA/NVME storage devices
  • Allows nodes and components to share power, cooling, and management

Read More

FUJITSU Server PRIMERGY RX2450 M1

  • Dual-socket x86 server (2U) powered by 2nd Gen AMD EPYC™ 7002 Series Processors
  • Scale from 8 to 64 cores (16 to 128 threads) per socket, up to 256MB L3 Cache
  • Ideal for virtualized environments, as high-end enterprise server and data-intensive workloads
  • Drive traditional and emerging workloads with 32 DIMM slots (up to 2 TB memory)
  • Scale to meet demands with up to 24x 2.5” storage drives and up to 4x PCIe 4.0 expansion slots

Read More

FUJITSU Server PRIMERGY RX2530 M6

  • Dual-socket x86 server providing an ideal mix of performance and cost in a dense 1U chassis
  • Ideal for virtualization, scale-out scenarios, databases as well as HPC infrastructures
  • Boost performance with 3rd Generation Intel® Xeon® Scalable Processors (up to 40 cores / CPU)
  • Maximize performance with 32 DIMM modules (up to 10 TB in combination with PMem)
  • Gain storage flexibility with up to 4x 3.5”, up to 10x 2.5”, or 32x EDSFF storage devices

Read More

FUJITSU Server PRIMERGY RX2540 M6

  • Dual-socket x86 server that delivers the latest in performance in a compact 2U chassis
  • Ideal for collaboration, business processing, graphics rendering or in-memory databases
  • Boost performance with 3rd Generation Intel® Xeon® Scalable Processors (up to 40 cores / CPU)
  • Drive demanding workloads with 32 DIMM modules (up to 12 TB in combination with PMem)
  • Scale to meet demands with up to 12x 3.5”, up to 24x 2.5”, or 64x EDSFF storage devices

Read More
×
FUJITSU Server PRIMERGY TX1330 M4 FUJITSU Server PRIMERGY RX1330 M4 FUJITSU Server PRIMERGY RX2520 M5 FUJITSU Server PRIMERGY RX2530 M5 FUJITSU Server PRIMERGY RX2540 M5 Serwer FUJITSU PRIMERGY RX4770 M6 FUJITSU Server PRIMERGY RX4770 M5 Serwer FUJITSU Serwer PRIMERGY TX1310 M3 FUJITSU Server PRIMERGY TX1320 M4 FUJITSU Server PRIMERGY TX2550 M5 FUJITSU Server PRIMERGY GX2570 M6 FUJITSU Server PRIMERGY CX2550 M5 FUJITSU Serwer PRIMERGY CX400 M4 FUJITSU Server PRIMERGY CX2560 M5 FUJITSU Server PRIMERGY CX2550 M6 FUJITSU Server PRIMERGY CX2560 M6 FUJITSU Server PRIMERGY CX400 M6 FUJITSU Server PRIMERGY RX2450 M1 FUJITSU Server PRIMERGY RX2530 M6 FUJITSU Server PRIMERGY RX2540 M6
Chipset Intel® C246
 Intel® C246
 Intel® C624
 Intel® C624
 Intel® C624
 Intel® C621A
 Intel® C624
 Intel® C236
 Intel® C246
 Intel® C624
 - Intel® C621
 - Intel® C624
 Intel® C621A
 Intel® C621A
 - - Intel® C621A
 Intel® C621A
Mainboard type D3673
 D3675
 D3386-B
 D3383-B
D3384-B
 - D3753
 - D3673
 D3386-B
 MBD-X12DGO-6
 D 3853
 - D 3853
 D 3893
 D 3894
 - MBD-H12DSU-IN-P
 D3890
 D3891
Product Type Mono Socket Tower Server
 Mono Socket Rack Server
 Dual Socket Rack Server
 Dual Socket Rack Server
 Dual Socket Rack Server
 - Quad Socket Rack Server
 - Mono Socket Tower Server
 Dual Socket Tower Server
 Dual Socket Rack Server
 Dual Socket 1U Server Node
 - Dual Socket 1U Server Node
 Dual Socket 1U Server Node
 Dual Socket 1U Server Node
 Multi-Node Server Chassis
 Dual Socket Rack Server
 Dual Socket Rack Server
 Dual Socket Rack Server
Processor Intel® Xeon® E-2200 processor family, Intel® Xeon® E-2100 processor family, Intel® Pentium® processor, Intel® Core™ i3 processor
 Intel® Xeon® E-2200 processor family, Intel® Xeon® E-2100 processor family, Intel® Celeron® processor, Intel® Core™ i3 processor, Intel® Pentium® processor
 Intel® Xeon® Bronze 3xxx processor, Intel® Xeon® Silver 4xxx processor, Intel® Xeon® Gold 5xxx processor
1 - 2
 Intel® Xeon® Bronze 3xxx processor, Intel® Xeon® Silver 4xxx processor, Intel® Xeon® Gold 5xxx processor, Intel® Xeon® Gold 6xxx processor, Intel® Xeon® Platinum 8xxx processor
1 - 2 x Intel® Xeon® Processor Scalable Family
 Intel® Xeon® Bronze 3xxx processor, Intel® Xeon® Silver 4xxx processor, Intel® Xeon® Gold 5xxx processor, Intel® Xeon® Gold 6xxx processor, Intel® Xeon® Platinum 8xxx processor
1 - 2
 - Intel® Xeon® Gold 5xxx processor, Intel® Xeon® Gold 6xxx processor, Intel® Xeon® Platinum 8xxx processor
2 or 4
4
 - Intel® Xeon® E-2200 processor family, Intel® Xeon® E-2100 processor family, Intel® Pentium® processor, Intel® Core™ i3 processor
 Intel® Xeon® Bronze 3xxx processor, Intel® Xeon® Silver 4xxx processor, Intel® Xeon® Gold 5xxx processor, Intel® Xeon® Gold 6xxx processor
 Intel® Xeon® Gold 63xx processor, Intel® Xeon® Platinum 83xx processor
 Intel® Xeon® Gold 5xxx processor, Intel® Xeon® Gold 6xxx processor, Intel® Xeon® Platinum 8xxx processor
 - Intel® Xeon® Bronze 3xxx processor, Intel® Xeon® Silver 4xxx processor, Intel® Xeon® Gold 5xxx processor, Intel® Xeon® Gold 6xxx processor
 Intel® Xeon® Gold 53xx processor, Intel® Xeon® Silver 43xx processor
 Intel® Xeon® Silver 43xx processor, Intel® Xeon® Gold 53xx processor
 Intel® Xeon® Silver 43xx processor, Intel® Xeon® Gold 53xx processor
 AMD EPYC™ 7002 series processor
 Intel® Xeon® Silver 43xx processor, Intel® Xeon® Gold 53xx processor, Intel® Xeon® Gold 63xx processor, Intel® Xeon® Platinum 83xx processor
 Intel® Xeon® Silver 43xx processor, Intel® Xeon® Gold 53xx processor, Intel® Xeon® Gold 63xx processor, Intel® Xeon® Platinum 83xx processor
1 - 2 x Intel® Xeon® Processor Scalable Family
Memory 4 GB - 128 GB, DIMM (DDR4)
 4 GB - 128 GB, DIMM (DDR4)
 8 GB - 768 GB, DIMM (DDR4)
 8 GB - 8 TB, DIMM (DDR4 / DDR-T for non-volatile memory modules)
 8 GB - 7.5 TB, DIMM (DDR4 / DDR-T for non-volatile memory modules)
 - 16 GB - 15 TB, DIMM (DDR4 / DDR-T for non-volatile memory modules)
 - 4 GB - 128 GB, DIMM (DDR4)
 8 GB - 1.5 TB, DIMM (DDR4 / DDR-T for non-volatile memory modules)
 512 GB - 2 TB
 8 GB - 3.5 TB, DIMM (DDR4 / DDR-T for non-volatile memory modules)
8 GB - 2048 GB
 - 8 GB - 3.5 TB, DIMM (DDR4 / DDR-T for non-volatile memory modules)
 8 GB - 4 TB, DIMM (DDR4)
8 GB - 4096 GB
 8 GB - 6.1 TB, DIMM (DDR4 RDIMM, LRDIMM and Intel® Optane™ PMem)
 12 TB
 256 GB - 2 TB, DIMM (DDR4) ECC
 8 GB - 10 TB, DIMM (DDR4 RDIMM, LRDIMM and Intel® Optane™ PMem)
 8 GB - 12 TB, DIMM (DDR4 RDIMM, LRDIMM and Intel® Optane™ PMem)
Memory slots 4
4 (2 banks with 2 DIMMs each)
 12 (6 DIMMs per CPU, 6 channels with 1 DIMM per channel)
 24 (12 DIMMs per CPU, 6 channels with 2 slots per channel)
 24 (12 DIMMs per CPU, 6 channels with 2 slots per channel)
 - 48 (12 DIMMs per CPU, 6 channels with 2 slots per channel)
 - 4
12 (6 DIMMs per CPU, 6 channels with one DIMM per channel)
 32
16 (8 DIMMs per CPU, 6 channels with 2 slots per channel)
 - 16 (8 DIMMs per CPU, 6 channels with 2 slots per channel)
 16 (8 DIMMs per CPU, 8 channels with 1 slot per channel)
 24 (12 DIMMs per CPU, 8 channels with 2 slots per channel)
 96
32 (16 DIMMs per CPU)
 32 (16 DIMMs per CPU, 8 channels with 2 slots per channel)
 32 (16 DIMMs per CPU, 8 channels with 2 slots per channel)
Memory protection ECC
 ECC
 Advanced ECC, Memory Scrubbing, SDDC
 Advanced ECC, Memory Scrubbing, SDDC, Rank sparing memory support, Memory Mirroring support
 Advanced ECC, Memory Scrubbing, SDDC, Rank sparing memory support, Memory Mirroring support
 - Advanced ECC, Memory Scrubbing, SDDC, Memory Mirroring support, Rank sparing memory support
 - ECC
 Advanced ECC, SDDC
 - Advanced ECC, SDDC
 - Advanced ECC, SDDC
 ECC, Memory Scrubbing, SDDC
 ECC, Memory Scrubbing, SDDC, ADDDC (Adaptive Double DRAM Device Correction), Memory Mirroring support
 - ECC
 ECC, Memory Scrubbing, SDDC, ADDDC (Adaptive Double DRAM Device Correction), Memory Mirroring support
 ECC, Memory Scrubbing, SDDC, ADDDC (Adaptive Double DRAM Device Correction), Memory Mirroring support
Drives (optional) DVD-ROM, half height, SATA I
DVD Super Multi, half height, SATA I
DVD supermulti, ultraslim, SATA I
Blu-ray Disc™ Triple Writer, ultraslim, SATA I
RDX Drive, 100 MB/s, 320 GB, 500 GB, 1 TB, 2 TB, USB 3.0
LTO6HH Ultrium, 160 MB/s, 2,500 GB, SAS 6Gb/s
LTO7HH Ultrium, 300 MB/s, 2,500 GB, SAS 6Gb/s
LTO7HH Ultrium, 300 MB/s, SAS 6Gb/s
 DVD supermulti, ultraslim, SATA I
 DVD supermulti, ultraslim, SATA I
RDX Drive, 100 MB/s, 320 GB, 500 GB, 1 TB, 2 TB, USB 3.0
LTO7HH Ultrium, 300 MB/s, 2,500 GB, SAS 6Gb/s
LTO7HH Ultrium, 300 MB/s, SAS 6Gb/s
 DVD supermulti, ultraslim, SATA I
 DVD supermulti, ultraslim, SATA I
RDX Drive, 100 MB/s, 320 GB, 500 GB, 1 TB, 2 TB, USB 3.0
LTO6HH Ultrium, 160 MB/s, 2,500 GB, SAS 6Gb/s
LTO7HH Ultrium, 300 MB/s, 2,500 GB, SAS 6Gb/s
LTO7HH Ultrium, 300 MB/s, SAS 6Gb/s
 - DVD supermulti, ultraslim, SATA I
 - DVD supermulti, ultraslim, SATA I
RDX Drive, 100 MB/s, 320 GB, 500 GB, 1 TB, 2 TB, USB 3.0
 DVD-ROM, half height, SATA I
DVD Super Multi, half height, SATA I
DVD supermulti, ultraslim, SATA I
Blu-ray Disc™ Triple Writer, ultraslim, SATA I
RDX Drive, 100 MB/s, 320 GB, 500 GB, 1 TB, 2 TB, USB 3.0
LTO6HH Ultrium, 160 MB/s, 2,500 GB, SAS 6Gb/s
LTO7HH Ultrium, 300 MB/s, 2,500 GB, SAS 6Gb/s
LTO7HH Ultrium, 300 MB/s, SAS 6Gb/s
 - - - - - - - - DVD supermulti, ultraslim, SATA I
 DVD supermulti, ultraslim, SATA I
RDX Drive, 100 MB/s, 320 GB, 500 GB, 1 TB, 2 TB, USB 3.0
LTO6HH Ultrium, 160 MB/s, 2,500 GB, SAS 6Gb/s
LTO7HH Ultrium, 300 MB/s, 2,500 GB, SAS 6Gb/s
LTO7HH Ultrium, 300 MB/s, SAS 6Gb/s
PCI-Express 3.0 x4 1 x Full height, up to 168 mm length
1 x Low profile
- - - - - - 1 x Low profile notched
 - - - - - - - - - - -
PCI-Express 3.0 x8 2 x Full height, up to 240 mm length notched
 2 x Low profile Length 175mm; PCIe slot
1 supports Modular RAID functions
 3 x Low profile
1 x Low profile (2nd processor required for slot 4)
 3 x Low profile (2nd processor required for slot 4)
 - - - 2 x Low profile notched
 5 x Full height Note: 2 of the slots become available via optional riser card. Refer to configurator for details
 - - - - - - - - - -
Accessible drive bays 3 x 5.25/1.6-inch
3 x 5.25/1.6-inch for 1 x backup drive + 1 x ODD
Accessible drive bays are not available in case of max. storage drive configuration
 1 x 5.25/0.4-inch for CD-RW/DVD
Accessible drive bays are not available in case of max. storage drive configuration
 1 x 5.25/0.5-inch for ODD, 1 x 5.25/1.6-inch for backup devices
1 x 5.25/1.6-inch for 1 x backup drive or 1 x ODD
 1 x 5.25/0.4-inch for CD-RW/DVD
 1 x 5.25/0.4-inch for CD-RW/DVD
 - - - 1 x 3.5/1.6-inch for backup devices, 1 x 5.25/0.5-inch for CD-RW/DVD
1 x 3.5/1.6-inch for backup devices, 1 x 5.25/0.4-inch for CD-RW/DVD
 3 x 5.25/1.6-inch
 - - - - - - - - 1 x 5.25/9.5mm for DVD-RW/Blu-ray
 1 x 5.25/9.5mm for DVD-RW/Blu-ray
1 x 5.25/0.4-inch for CD-RW/DVD
Optional accessible drives all possible options described in relevant system configurator
 Following limitations applies to 10x 2.5-inch HDD base unit: No CD-RW/DVD, 1x USB 2.0 at the front, no front VGA
 1x optical drive, 1x backup drive
1x optical disk drive
All possible options described in relevant system configurator.
 Ultra slim 9.5mm optical drive (optional)
n/a
Not for 10 x 2.5-inch base unit. All possible options described in relevant system configurator.
 ODD 5.25" possible
ODD 5.25" NOT possible
All possible options described in relevant system configurator.
 - 1 x 5.25/9.5mm for DVD-RW/Blu-ray
All possible options described in relevant system configurator.
 - - 3x 1.6x5.25" bays for an optical and/or backup drives
All possible options described in relevant system configurator.
 - - - - - - - - 2x 2.5-inch hot-plug SAS/SATA rear option
Ultra slim 9.5mm optical drive (optional)
n/a
Not for 10x 2.5-inch/32 x EDSFF base unit. All possible options described in relevant system configurator.
 ODD 5.25" possible
ODD 5.25" NOT possible
All possible options described in relevant system configurator.
Storage drive bays 3.5-inch or 2.5-inch hot-plug SAS/SATA
Max. 4x 3.5-inch or 8x 2.5-inch
Max. 12x 3.5-inch or 24x 2.5-inch
 4/8 x 2.5-inch hot-plug SATA/SAS (Up to 4x NVMe PCIe SSD supported) or 4x 3.5-inch hot-plug or 10 x 2.5-inch hot-plug SATA/SAS
Max. 4x 3.5-inch
Max. 8x 2.5-inch
Max. 10x 2.5-inch
 2.5-inch base units (max. 24 x 2.5) or 3.5-inch base units (max. 12 x 3.5)
12 x 2.5-inch hot-plug SAS/SATA
16 x 2.5-inch hot-plug SAS/SATA
24 x 2.5-inch hot-plug SAS/SATA
4 x 3.5-inch hot-plug SAS/SATA
12 x 3.5-inch hot-plug SAS/SATA
SAS expander not required with PRAID EP5xxi
not expandable, incl. SAS expander
optionally expandable to 8x 3.5“ with SAS expander
 up to 8 x 2.5-inch, 10 x 2.5-inch or 4 x 3.5-inch baseunit
up to 4x 3.5" (LFF) hot plug drives (SAS/SATA)
up to 4x 2.5" (SFF) hot plug drives (SAS/SATA); option for upgrade to 8x 2.5" (SFF) hot plug drives
up to 8x 2.5" (SFF) hot plug drives (SAS/SATA)
up to 10x 2.5" (SFF) hot plug drives (SAS/SATA); thereof up to 4x bays prepared for 2.5" PCIe SSD
up to 10x 2.5" (SFF) hot plug drives (SATA or PCIe SSD)
 3.5-inch or 2.5-inch hot-plug SAS/SATA
4 x 3.5-inch hot-plug SAS/SATA
12 x 3.5-inch hot-plug SAS/SATA
16 x 2.5-inch hot-plug SAS/SATA
8 x 2.5-inch hot-plug SAS/SATA
24 x 2.5-inch hot-plug SAS/SATA
 - 2.5-inch hot-plug SAS/SATA/PCIe
2 x M.2 slot whereas slot 1 supports 80mm or 110mm and slot 2 supports 42mm or 80mm
16 x 2.5-inch hot-plug SAS/SATA/PCIe
8 x 2.5-inch hot-plug SAS/SATA/PCIe
 - 3.5-inch non hot-plug or 2.5-inch hot-plug SAS/SATA or 2.5-inch NVMe drives
Max. 8x (4x + 4x) x 2.5-inch hot-plug
Max. 2 x 3.5-inch non hot-plug SATA
Not upgradeable in the field.
 3.5-inch or 2.5-inch hot-plug SAS/SATA
4 x 3.5-inch hot-plug SAS/SATA
8 x 3.5-inch hot-plug SAS/SATA
8 x 2.5-inch hot-plug SAS/SATA
16 x 2.5-inch hot-plug SAS/SATA
24 x 2.5-inch hot-plug SAS/SATA
optional expandable up to 8 storage drives
optional expandable up to 12 storage drives
not expandable
optional expandable up to 24 storage drives
optional expandable up to 32 storage drives
 6x NVMe/SAS/SATA (front)+4 NVMe (rear, optional) x 2.5-inch
8 x 2.5-inch hot-plug
 up to 2x 2.5-inch (in the PRIMERGY CX400 M4 chassis)
up to 2x 2.5” HDD/SSD device can be installed in CX400 M4 and 2x M.2 device can be installed in CX2550 M5 node
 - up to 6x 2.5-inch (in the PRIMERGY CX400 M4 chassis)
up to 6x 2.5” HDD/SSD devices can be installed in CX400 M4 and 2x M.2 device can be installed in CX2560 M4 node
 up to 2x 2.5-inch (in the PRIMERGY CX400 M6 chassis)
up to 2x 2.5” HDD/SSD device can be installed in CX400 M6 and 2x M.2 device can be installed in CX2550 M6 node
 up to 6x 2.5-inch (in the PRIMERGY CX400 M6 chassis)
up to 6x 2.5” SAS/SATA/PCIeSSD devices can be installed in CX400 M6 and 2x M.2 device can be installed in CX2560 M6 node
 24x 2.5" drive or HDD less configuration x 2.5-inch hot-plug
 up to 16x 2.5” SATA only + 4x 2.5” SAS/SATA + 4x 2.5” NVMe (PCIe Gen3)
 up to 4 x 3.5-inch, 8 x 2.5-inch, 10 x 2.5-inch or 32 x EDSFF base unit
up to 8x 2.5" (SFF) hot plug drives (SAS/SATA)
up to 4x 3.5" (LFF) hot plug drives (SAS/SATA)
up to 32x EDSFF hot plug drives (PCIe SSD)
up to 10x 2.5" (SFF) hot plug drives (SAS/SATA/PCIe SSD)
 up to 64x EDSFF, 16x 2.5-inch, 24x 2.5-inch, 10x 3.5-inch or 12x 3.5-inch base units
16 x 2.5-inch hot-plug SAS/SATA
10 x 3.5-inch hot-plug SAS/SATA
64
12 x 3.5-inch hot-plug SAS/SATA
24 x 2.5-inch hot-plug SAS/SATA
LAN Controller Intel® i210 onboard
2 x 10/100/1000 Mbit/s Ethernet
 Intel® i210 onboard
2 x 10/100/1000 Mbit/s Ethernet (TCP/IP acceleration)
 2 x 1 Gbit/s onboard
 2 x 1 Gbit/s onboard, Optional DynamicLoM OCP adaptors:, 4 x 1 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s SFP+, 4 x 10 Gbit/s SFP+, 2 x 25 Gbit/s SFP28 (only for 10x HDD/SSD base unit)
 2 x 1 Gbit/s onboard, Optional DynamicLoM OCP adaptors:, 4 x 1 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s SFP+, 4 x 10 Gbit/s SFP+
 - DynamicLoM based on Intel® C624 (Intel® X722)
Optional DynamicLoM OCP adaptors:, 2 x 10 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s SFP+, 4 x 1 Gbit/s Ethernet (RJ45), 4 x 10 Gbit/s SFP+
 - Intel® i210 onboard
2 x 10/100/1000 Mbit/s Ethernet
 2 x 1 Gbit/s onboard
 - Intel® i210 onboard
10/100/1000 Mbit/s Ethernet
 - Intel® i210 onboard
10/100/1000 Mbit/s Ethernet
 Intel® i210 onboard
10/100/1000 Mbit/s Ethernet
 onboard Broadcom® BCM5727
10/100/1000/10000 Mbit/s Ethernet
 - 2x 1GbE (Use AOC LAN card)
 Dynamic LoM via OCP slot; OCPv3 compliant, Optional OCP adaptors:, 4 x 1 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s Ethernet (RJ45), 4 x 10 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s SFP+, 4 x 10 Gbit/s SFP+, 2 x 25 Gbit/s QSFP28, 2x 100 Gbit/s QSFP28
Dynamic LoM via OCP slot; OCPv3 compliant, Optional OCP adaptors:, 4 x 1 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s Ethernet (RJ45), 4 x 10 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s SFP+, 4 x 10 Gbit/s SFP+, 2 x 25 Gbit/s QSFP28, 2x 100 Gbit/s QSFP28
Remote Management Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller), IPMI 2.0 compatible
 Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller)
 IPMI 2.0 compatible, Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller)
 Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller), IPMI 2.0 compatible
 Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller), IPMI 2.0 compatible
 - Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller), IPMI 2.0 compatible
 - Integrated Remote Management Controller (iRMC S5), IPMI 2.0 compatible
 IPMI 2.0 compatible, Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller)
 - IPMI 2.0 compatible, Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller)
 - IPMI 2.0 compatible, Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller)
 IPMI 2.0 compatible, Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller)
 IPMI 2.0 compatible, Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller)
 - Baseboard management controller (BMC)
 Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller), IPMI 2.0 compatible
 Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller), IPMI 2.0 compatible
USB ports 4 (2x internal, 2x external front, USB 3.0 is now known as USB 3.1 Gen 1). Server also has 2x external rear USB 3.1 Gen 2 ports
 4 Rear: 2x 3.1 Gen2 for all base units, Front (except 10x 2.5" HDD): 2x USB 3.1 Gen1
 7 x USB 3.0 (2x front, 4x rear, 1x internal type A)
 5 x USB 3.0 (2x front, 2x rear, 1x internal) - for base unit with 10x 2.5" drives 1x USB 2.0 front only
 5 x USB 3.0 (2x front, 2x rear, 1x internal) - for base units with max. drives count: 1x USB 2.0 front only
 - 5 x USB 3.0 (2x front, 2x rear, 1x internal)
 - 4 (2x internal, 2x external front, USB 3.0 is now known as USB 3.1 Gen 1). Server also has 2x external rear USB 3.1 Gen 2 ports
 7 x USB 3.0 (2x front, 4 x rear, 1x internal (type A)
 2
2 x USB 3.0 (rear) with high density connector
 - 2 x USB 3.0 (rear) with high density connector
 2 x USB 3.0 (rear) with high density connector
 2 x USB 3.0 (rear) with high density connector
 - 2 x USB 3.0 (2x rear)
 5 x USB 3.0 (2x front, 2x rear, 1x internal)
 6 x USB 3.0 (2x front, 2x rear, 2x internal)
Graphics 1 analog graphics interface derived from iRMC (up to 1600x1200 or 1920x1080 at 16bpp)
 1 x VGA (15-pin) / optional 1 x front VGA (not for 10x 2.5" HDD base unit)
 1 x VGA rear
 2 x VGA (thereof 1x front optional - not for base unit with 10x 2.5" drives)
 2 x VGA (thereof 1x front optional)
 - 2 x VGA (1 x front, 1 x rear)
 - 1 analog graphics interface derived from iRMC (up to 1600x1200 or 1920x1080 at 16bpp)
 1 x VGA
 - 1 x VGA (1x rear) with high density connector
 - 1 x VGA (1x rear) with high density connector
 1 x VGA (1x rear) with high density connector
 1 x VGA (1x rear) with high density connector
 - 1 x VGA (1x rear)
 2 x VGA (thereof 1x front optional - not for base unit with 10x 2.5” and 32x EDSFF drives)
 2 x VGA (thereof 1x front optional - not for base unit with 12x 3.5” and 24x 2.5" and 24x NVMe and 64x EDSFF drives)
Management LAN (RJ45) 1 x dedicated management LAN port for iRMC S5 (10/100/1000 Mbit/s), Management LAN traffic can be switched to shared onboard Gbit LAN port
 Management LAN traffic can be switched to shared onboard Gbit LAN port, 1 x dedicated management LAN port for iRMC S5 (10/100/1000 Mbit/s)
 1 x dedicated management LAN port for iRMC S5 (10/100/1000 Mbit/s), Management LAN traffic can be switched to shared onboard Gbit LAN port
 1 x dedicated management LAN port for iRMC S5 (10/100/1000 Mbit/s), Management LAN traffic can be switched to shared onboard LAN controller port, speed and connector is related to installed interface card.
 1 x dedicated management LAN port for iRMC S5 (10/100/1000 Mbit/s), Management LAN traffic can be switched to shared onboard LAN controller port, speed and connector is related to installed interface card.
 - 1 x dedicated management LAN port for iRMC S5 (10/100/1000 Mbit/s), Management LAN traffic can be switched to shared onboard LAN controller port, speed and connector is related to installed interface card.
 - 1 x dedicated management LAN port for iRMC S5 (10/100/1000 Mbit/s), Management LAN traffic can be switched to shared onboard Gbit LAN port
 1 x dedicated management LAN port for iRMC S5 (10/100/1000 Mbit/s), Management LAN traffic can be switched to shared onboard LAN port
 - Management LAN traffic can be switched to shared onboard Gbit LAN port
 - Management LAN traffic can be switched to shared onboard Gbit LAN port
 - Management LAN traffic can be switched to shared onboard Gbit LAN port
 - 1x 1GbE (1x rear)
 1 x dedicated management LAN port for iRMC S5 (10/100/1000 Mbit/s)
 1 x dedicated management LAN port for iRMC S5 (10/100/1000 Mbit/s)
Trusted Platform Module (TPM) TPM 2.0 module (option)
 Infineon / TPM 1.2 or TPM 2.0 module; TCG compliant (option)
 Infineon / TPM 1.2 or TPM 2.0 module; TCG compliant (option)
 Infineon / TPM 1.2 or TPM 2.0 module; TCG compliant (option)
 Infineon / TPM 1.2 or TPM 2.0 module; TCG compliant (option)
 - Infineon / TPM 1.2 or TPM 2.0 module; TCG compliant (option)
 - TPM 2.0 module (option)
 optional TPM
 - optional TPM
 - optional TPM
 - optional TPM
 - - Infineon / TPM 2.0 module; TCG compliant (option)
 Infineon / TPM 2.0 module; TCG compliant (option)
Power supply configuration 1 x standard, 1 x hot-plug, 2 x hot-plug redundant, 1 x hot-plug + 1 x Fujitsu FJBU internal battery backup unit (depending on
Model)
 1x standard power supply or1x hot-plug power supply or 2x hot plug power supplies for redundancy depending on model
 1x non hot-plug power supply or 2x hot-plug power supply for redundancy
 1 x hot-plug power supply or 2 x hot-plug power supply for redundancy
 1 x hot-plug power supply or 2x hot-plug power supply for redundancy
 - 2 hot-plug power supplies (standard), single power supply configuration possible
 - 1 x standard, 1 x hot-plug, 2 x hot-plug redundant, 1 x hot-plug + 1 x Fujitsu FJBU internal battery backup unit (depending on
Model)
 1x non hot-plug power supply or 2x hot-plug power supply for redundancy
 - - - - - - - 2 hot-plug power supplies
 1 x hot-plug power supply or 2 x hot-plug power supply for redundancy
 1 x hot-plug power supply or 2x hot-plug power supply for redundancy
Active power (max. configuration) 231 W
 264 W
 643 W
 883 W
 715 W
 - 2,335 W
 - 231 W
 748 W
 5,347 W
 - - - - - - - 1,848 W
 2,544 W
Weight Rack: 13 kg - 25 kg; Tower: 15kg - 28 kg
 up to 13 kg
 up to 25 kg
 up to 16 kg
 up to 25 kg
 - max. 29.7 kg
 - up to 10 kg
 Up to 35.5 kg
 - 4.5 kg
 - 4.5 kg
 5.1 kg
 4.9 kg
 approx. 28-43 kg
 up to 16.4 kg
 max. 18.2 kg
 max. 32 kg
Rack (W x D x H) 483 x 495 x 175 mm
 482.6 mm (Bezel) / 435.4 mm (Body) x 572 x 42.8 mm
 482.4 mm (Bezel) / 445mm (Body) x 770 x 86.6 mm
 483 mm (Bezel) / 435mm (Body) x 770.7 x 43 mm
 482.4 mm (Bezel) / 445 mm (Body) x 770 x 86.6 mm
 - 482.6 mm (Bezel) / 434.8 mm (Body) x 724.8 x 86.9 mm
 - - 483 (Bezel); 448 mm (body) x 736 x 177 mm
 485 x 947 x 175 mm
 - - - - - 480 mm (w/ bezel) / 443.5 mm (body) x 860 x 86.5 mm
 - 482.2 mm (Bezel) / 435 mm (Body) x 807.45 x 42.7 mm
 482.5 mm (Bezel) / 435 mm (Body) x 800 x 86.9 mm
Floor-stand (W x D x H) 177 x 560 x 455 mm
 - - - - - - - 98 x 399 x 340 mm
 177 x 777 x 456 mm
 - - - - - - - - - -
Mounting Depth Rack 543 mm
 - 740 mm
 748.2 mm
 740 mm
 - 741.3 mm
 - - - - - - - - - 812.8 mm
 - 836.95 mm
 873.1 mm
DC Infrastructure Management Infrastructure Manager (ISM)
Essential
Advanced
 Infrastructure Manager (ISM)
Essential
Advanced
 Infrastructure Manager (ISM)
Essential
Advanced
 Infrastructure Manager (ISM)
Essential
Advanced
 Infrastructure Manager (ISM)
Essential
Advanced
 - Infrastructure Manager (ISM)
Essential
Advanced
 - Infrastructure Manager (ISM)
Essential
Advanced
 Infrastructure Manager (ISM)
Essential
Advanced
 Infrastructure Manager (ISM)
Essential
Advanced
 Infrastructure Manager (ISM)
Essential
Advanced
 - Infrastructure Manager (ISM)
Essential
Advanced
 Infrastructure Manager (ISM)
Essential
Advanced
 Infrastructure Manager (ISM)
Essential
Advanced
 Infrastructure Manager (ISM)
Essential
Advanced
 Infrastructure Manager (ISM)
Essential
Advanced
 Infrastructure Manager (ISM)
Essential
Advanced
 Infrastructure Manager (ISM)
Essential
Advanced
Server Management Infrastructure Manager (ISM)
Essential
Advanced, ServerView Suite
 Infrastructure Manager (ISM)
Essential
Advanced, ServerView Suite
 Infrastructure Manager (ISM)
Essential
Advanced, ServerView Suite
 Infrastructure Manager (ISM)
Essential
Advanced, ServerView Suite
 Infrastructure Manager (ISM)
Essential
Advanced, ServerView Suite
 - Infrastructure Manager (ISM)
Essential
Advanced, ServerView Suite
 - Infrastructure Manager (ISM)
Essential
Advanced, ServerView Suite
 Infrastructure Manager (ISM)
Essential
Advanced, ServerView Suite
 - Infrastructure Manager (ISM)
Essential
Advanced, ServerView Suite
 - ServerView Suite, Infrastructure Manager (ISM)
Essential
Advanced
 Infrastructure Manager (ISM)
Essential
Advanced, ServerView Suite
 ServerView Suite, Infrastructure Manager (ISM)
Essential
Advanced
 Infrastructure Manager (ISM)
Essential
Advanced, ServerView Suite
 Infrastructure Manager (ISM)
Essential
Advanced, ServerView RAID Manager
 Infrastructure Manager (ISM)
Essential
Advanced, ServerView Suite
 Infrastructure Manager (ISM)
Essential
Advanced, ServerView Suite
Operating system http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473
 http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473
 http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473
 http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473
 http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473
 - http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473
 - http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473
 http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473
 http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473
 http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473
 - http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473
 http://docs.ts.fujitsu.com/dl.aspx?id=e4813edf-4a27-461a-8184-983092c12dbe
 http://docs.ts.fujitsu.com/dl.aspx?id=e4813edf-4a27-461a-8184-983092c12dbe
 http://docs.ts.fujitsu.com/dl.aspx?id=e4813edf-4a27-461a-8184-983092c12dbe
 http://docs.ts.fujitsu.com/dl.aspx?id=e4813edf-4a27-461a-8184-983092c12dbe
 http://docs.ts.fujitsu.com/dl.aspx?id=e4813edf-4a27-461a-8184-983092c12dbe
 http://docs.ts.fujitsu.com/dl.aspx?id=e4813edf-4a27-461a-8184-983092c12dbe
Warranty period 1 year
 1 year
 3 years
 3 years
 3 years
 - 3 years
 - 1 year
 3 years
 3 years
 3 years
 - 3 years
 3 years
 3 years
 3 years
 3 years
 3 years
 3 years
Warranty type Onsite warranty
 Onsite warranty
 Onsite warranty
 Onsite warranty
 Onsite warranty
 - Onsite warranty
 - Onsite Service
 Onsite warranty Warranty conditions tbd
 Onsite warranty
 Onsite warranty
 - Onsite warranty
 Onsite warranty
 Onsite warranty
 Onsite warranty
 Onsite warranty
 Onsite warranty
 Onsite warranty
Service Lifecycle 5 years after end of product life
 5 years after end of product life
 5 years after end of product life
 5 years after end of product life
 5 years after end of product life
 - 5 years after end of product life
 - 5 years after end of product life
 5 years after end of product life
 5 years after end of product life
 5 years after end of product life
 - 5 years after end of product life
 5 years after end of product life
 5 years after end of product life
 5 years
 5 years after end of product life
 5 years after end of product life
 5 years after end of product life
Service Weblink http://www.fujitsu.com/fts/services
 http://www.fujitsu.com/emeia/products/product-support-services/
 http://www.fujitsu.com/emeia/products/product-support-services/
 http://www.fujitsu.com/emeia/products/product-support-services/
 http://www.fujitsu.com/emeia/products/product-support-services/
 - http://www.fujitsu.com/emeia/products/product-support-services/
 - http://www.fujitsu.com/fts/products/product-support-services/
http://www.fujitsu.com/fts/products/product-support-services/
http://www.fujitsu.com/emeia/products/product-support-services/
 https://www.fujitsu.com/emeia/support/
 - https://www.fujitsu.com/emeia/support/
 https://www.fujitsu.com/emeia/support/
 https://www.fujitsu.com/emeia/support/
 https://www.fujitsu.com/emeia/support/
 http://www.fujitsu.com/emeia/products/product-support-services/
 http://www.fujitsu.com/emeia/products/product-support-services/
 http://www.fujitsu.com/emeia/products/product-support-services/
PCI-Express 4.0 x16 - - 1 x (190 mm) low profile
- - - - - - - 10 x
- - - 2 x low profile (via riser card)
 2 x x low profile PCIe 4.0 x16 slots (via riser card)
 - 4 x Full height 3x PCIe Gen4 x16 for double-wide GPU, 1x PCIe Gen4 x16
3 x Low profile (2nd processor required for slot 3); 1x16 if fh slot selected
 4 x Low profile (2nd processor required for slot 6 and 8)
PCI-Express 3.0 x16 - - - 3 x Low profile (2nd processor required for slot 4); 1x16 if fh slot selected
 3 x Low profile (2nd processor required for slot 5 and 6)
 11 x z czego 4 pełnowymiarowe i 7 niskoprofilowych
 8 x whereas 4x full height and 4x low profile with up to 167mm length
 1 x Pełna wysokość, do 240 mm długości
- 3 x Full height Note: One x16 PCIe slot is available with the first CPU, can be occupied by the optional Riser card. Second CPU adds two more x16 PCIe slots. Refer to configurator for details.
 - - - - - - - - - -
Typ płyty głównej - - - - - D3892
 - - - - - - - - - - - - - -
Typ produktu - - - - - Cztery gniazda - serwer w stelażu
 - Jedno gniazdo - serwer wieżowy
 - - - - Obudowa wielowęzłowego serwera
 - - - - - - -
Procesor - - - - - Procesory Intel® Xeon® Gold 53xxH, Procesory Intel® Xeon® Gold 63xxH, Procesory Intel® Xeon® Platinum 83xxH, Procesory Intel® Xeon® Platinum 83xxHL
2 lub 4
 - Procesor z rodziny Intel® Xeon® E3-1200 v6, Procesor Intel® Celeron®, Procesor Intel® Core™ i3, Procesor Intel® Pentium®
1 x Procesor z rodziny Intel® Xeon® E3-1200 v6, Procesor Intel® Celeron®, Procesor Intel® Core™ i3, Procesor Intel® Pentium®
 - - - - Procesor Intel® Xeon® Bronze 3xxx, Procesor Intel® Xeon® Silver 4xxx, Procesory Intel® Xeon® Gold 5xxx, Procesory Intel® Xeon® Gold 6xxx
 - - - - - - -
Pamięć - - - - - 16 GB - 15 TB, DIMM (DDR4 RDIMM, LRDIMM i Intel® Optane™ PMem)
 - 4 GB - 64 GB
4 GB - 64 GB, DIMM (DDR4)
4 GB - 32 GB, DIMM (DDR4)
 - - - - 15 TB
 - - - - - - -
Gniazda pamięci - - - - - 48 (12 modułów DIMM na procesor, 6 kanałów z 2 gniazdami na kanał)
 - 4
- - - - 64
- - - - - - -
Zabezpieczenie pamięci - - - - - ECC, Czyszczenie pamięci, SDDC, ADDDC (Adaptive Double DRAM Device Correction), Obsługa lustrzanego odwzorowywania pamięci
 - - - - - - - - - - - - - -
Napędy (opcjonalne) - - - - - DVD supermulti, ultraslim, SATA I
 - DVD supermulti, ultraslim, SATA I
Napęd RDX, 100 MB/s, 320 GB, 500 GB, 1 TB, 2 TB, USB 3.0
 - - - - - - - - - - - -
Dyski dostępne opcjonalnie - - - - - 1 x 5,25/9,5 mm dla napędu DVD-RW/Blu-ray
Wszystkie możliwe opcje są opisane w odpowiednim konfiguratorze systemu.
 - 2 (1x 9,5 mm dla napędu DVD/DVD-RW, 1x 5,25 mm o połowie wysokości)
 - - - - - - - - - - - -
Wnęki napędów pamięci masowej - - - - - 2,5-calowe
gniazda SAS/SATA/PCIe 2 x M.2 z możliwością podłączania w trakcie pracy
8 x 2,5 cala, możliwość podłączania podczas pracy, SAS/SATA/PCIe
16 x 2,5 cala, możliwość podłączania podczas pracy, SAS/SATA/PCIe
24 x 2,5 cala, możliwość podłączania podczas pracy, SAS/SATA/PCIe
 - 4 x 3,5 cala, bez możliwości podłączania podczas pracy, SATA
2 x 3,5 cala, łatwa wymiana, SATA
Tylko SATA
 - - - - - - - - - - - -
Kontroler LAN - - - - - Dynamic LoM przez gniazdo OCP; zgodne z OCPv3, Opcjonalne przejściówki OCP:, 2 x 10 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s SFP+, 4 x 10 Gbit/s SFP+, 2 x 25 Gbit/s QSFP28, 2 x 100 Gbit/s QSFP28
- Intel® i219 (wbudowana)
10/100/1000 Mbit/s Ethernet
 - - - - - - - - - - - -
Zarządzanie zdalne - - - - - Zintegrowany kontroler zarządzania zdalnego (iRMC S5, 512 MB pamięci zintegrowanej, w tym kontroler grafiki), Kompatybilny z IPMI 2.0
 - - - - - - - - - - - - - -
Porty USB - - - - - 5 x USB 3.0 (2 z przodu, 2 z tyłu, 1 w środku)
 - 8 (2 z przodu, 4 z tyłu, 1 w środku typu A, 1 w środku dla urządzeń do tworzenia kopii zapasowych)
 - - - - - - - - - - - -
Grafika - - - - - 2 x VGA (1 x z przodu, 1 x z tyłu)
 - 1 x DisplayPort x (procesor graficzny Intel iGfx)
 - - - - - - - - - - - -
Zarządzanie siecią LAN (RJ45) - - - - - 1 x wyznaczony do zarządzania port LAN dla iRMC S5 (10/100/1000 Mbit/s)
 - - - - - - - - - - - - - -
Moduł Trusted Platform Module (TPM) - - - - - Infineon / moduł TPM 2.0; zgodny z wymogami TCG (opcjonalne)
 - Infineon / moduł TPM 1.2 lub TPM 2.0; zgodność z TCG (opcjonalnie)
 - - - - - - - - - - - -
Konfiguracja zasilacza - - - - - 2 zasilacze z możliwością podłączania w trakcie pracy (w standardzie)
 - 1 standardowy zasilacz
 - - - - - - - - - - - -
Moc aktywna (maks. konfiguracja) - - - - - 2,518 W
 - 139 W
 - - - - - - - - - - - -
Waga - - - - - maks. 40 kg
 - Maks. 12 kg
 - - - - ok. 21-43 kg
 - - - - - - -
Stelaż (szer. x gł. x wys.) - - - - - 482,7 mm (obudowa) / 435 mm (korpus) x 800 x 129.4 mm
 - - - - - - 480,8 mm (z ramką)/444,0 mm (korpus) x 857 x 87.8 mm
 - - - - - - -
Głębokość montażu w stelażu - - - - - 830.7 mm
 - - - - - - 820.0 mm
 - - - - - - -
Zarządzanie infrastrukturą centrum danych - - - - - Infrastructure Manager (ISM)
Essential
Advanced
 - Infrastructure Manager (ISM)
Essential
Advanced
 - - - - Infrastructure Manager (ISM)
Essential
Advanced
 - - - - - - -
Zarządzanie serwerem - - - - - Infrastructure Manager (ISM)
Essential
Advanced, ServerView Suite
 - Infrastructure Manager (ISM)
Essential
Advanced, ServerView Suite
 - - - - Infrastructure Manager (ISM)
Essential
Advanced, ServerView Suite
 - - - - - - -
System operacyjny - - - - - http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473
 - http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473
 - - - - - - - - - - - -
Okres gwarancji - - - - - 3 lata
 - 1 rok
 - - - - 3 lata
 - - - - - - -
Rodzaj gwarancji - - - - - Gwarancja serwisu u klienta
 - Serwis u klienta
 - - - - Gwarancja serwisu u klienta
 - - - - - - -
Czas serwisowania - - - - - 5 lat od zakończenia cyklu eksploatacyjnego produktu
 - 5 lat od zakończenia cyklu eksploatacyjnego produktu
 - - - - 5 lat
 - - - - - - -
Łącze internetowe do serwisu - - - - - http://www.fujitsu.com/emeia/products/product-support-services/
 - http://www.fujitsu.com/fts/products/product-support-services/
- - - - https://www.fujitsu.com/emeia/support/
 - - - - - - -
PCI-Express 3.0 x4 (mech. x16) - - - - - - - 1 x Pełna wysokość, do 215 mm długości
- - - - - - - - - - - -
Stojak (szer. x gł. x wys.) - - - - - - - 180 x 313 x 374 mm
 - - - - - - - - - - - -
PCI-Express x1 - - - - - - - - 1 x Low profile PCI-Express 3.0
- - - - - - - - - - -
PCI-slots - - - - - - - - - 1 x PCI 32Bit, available via optional riser card. Refer to configurator for details
 - - - - - - - - - -
PCI-Express 4.0 x8 - - - - - - - - - - - - - - - - - - 1 x Low profile
3 x Low profile (2nd processor required for slot 4)
×

Solutions to maximize value and performance

uSCALE pay-per-use

uSCALE provides flexible on-premises IT infrastructure and services. These sustainable and scalable pay-per-use capabilities enable you to leverage your business potential. Choose the appropriate services you need to accelerate your digital transformation journey and de-risk your infrastructure investments with a cloud-like consumption model – where you only pay for what you use.

More info

PRIMEFLEX Integrated Systems: Accelerate Your Transformation to Hybrid IT

PRIMERGY servers are the foundation of our PRIMEFLEX Integrated Systems portfolio, providing a whole range of pre-integrated and hybrid IT enabled systems certified for virtualization software from Nutanix, Microsoft and VMware. In combination with standardized implementation and infrastructure support services providing technical solution support with a single point of contact, PRIMEFLEX Integrated Systems streamline the deployment, operation and maintenance of the on-premises platform of your hybrid IT infrastructure.

Read more

BS2000: Mainframe Power for Modern Data Centers

BS2000 mainframes are ideal for modern data centers, handling large datasets and numerous users cost-effectively while ensuring high availability. As central, high-performance systems, they are key components of dynamic infrastructures. They offer exceptional performance, scalability, and availability for mission-critical needs, ensuring future relevance. Flexible configuration options cater to diverse business needs, and seamless integration with existing IT infrastructures simplifies modernization efforts.

Know more

Beyond the infrastructure
