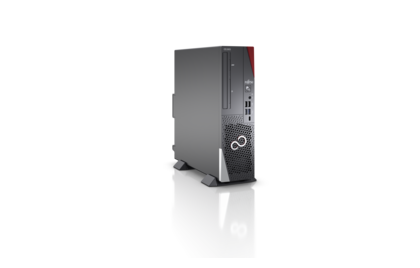

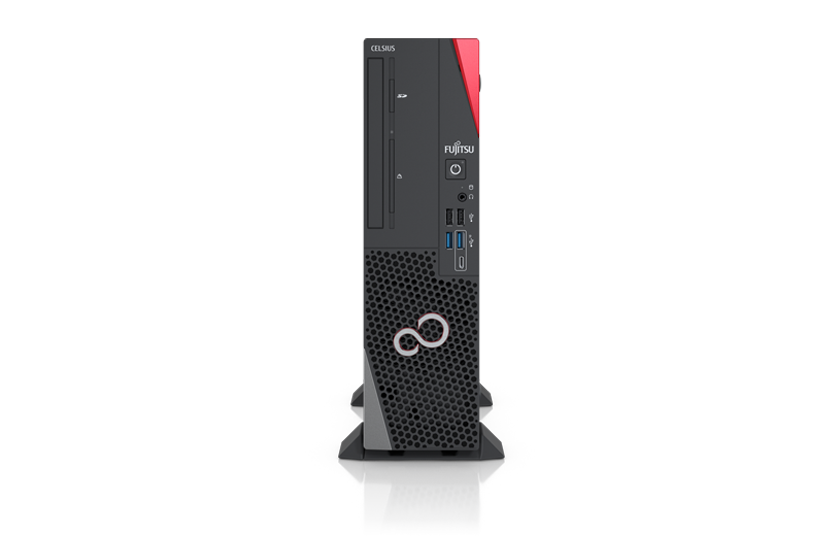

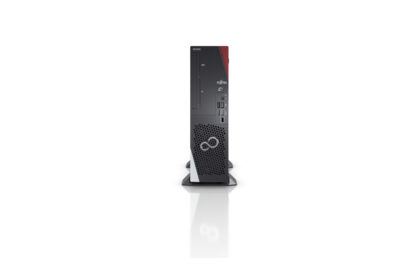

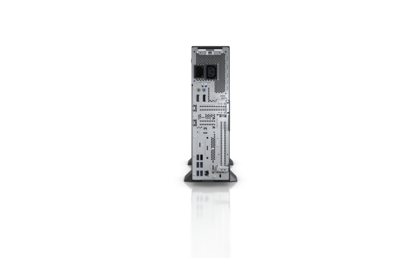

FUJITSU Workstation CELSIUS J5010

FUJITSU Workstation CELSIUS J5010

  • Windows 10 Pro for Workstations
  • 10th Gen Intel® Core™ and the powerful Intel® Xeon® W-1200 processors
  • Full-height graphics cards up to NVIDIA® Quadro® P2200
  • Ideal for3D CAD, design, visualization and multimedia applications
  • Extremely quiet workstation that's perfect for space-constrained workplaces

Więcej szczegółów
ImgPlaceholder ImgPlaceholder ImgPlaceholder ImgPlaceholder
Breakthrough performance
Space-saving design – taking the small form factor to next level
Whisper-quiet design
Ultimate usability

Power through demanding workflows with unparalleled ease

No compromise between performance, design and space

Pleasant working environment that helps you focus on what matters most

Easy access, upgrade and use of the system
  • ImgPlaceholder
    Breakthrough performance
    Power through demanding workflows with unparalleled ease
  • ImgPlaceholder
    Space-saving design – taking the small form factor to next level
    No compromise between performance, design and space
  • ImgPlaceholder
    Whisper-quiet design
    Pleasant working environment that helps you focus on what matters most
  • ImgPlaceholder
    Ultimate usability
    Easy access, upgrade and use of the system

Tech Specs

Product CELSIUS J5010
Operating system Windows 10 Pro for Workstations
Windows 10 Pro. Fujitsu recommends Windows 10 Pro for business.
Windows 10 Home
Chipset Intel® W480
Processor Intel® Xeon® processor W-1250, 3.30 GHz, up to 4.7 GHz
Intel® Xeon® processor W-1270, 3.40 GHz, up to 5.0 GHz
Intel® Xeon® processor W-1290, 3.20 GHz, up to 5.1 GHz
Intel® Core™ i9-10900 processor, 20 MB, 2.80 GHz
Intel® Core™ i7-10700 processor, 16 MB, 2.90 GHz
Intel® Core™ i5-10500 processor, 12 MB, 3.10 GHz
Intel® Core™ i5-10600 processor, 12 MB, 3.30 GHz
Intel® Core™ i3-10100 processor, 6 MB, 3.60 GHz
Supported capacity RAM (max.) 128 GB, 4 Memory slot(s) DIMM (DDR4) ECC/non-ECC, Dual channel support, For dual channel performance, 2 memory modules have to be ordered. Capacity per channel has to be the same. 2933 MHz may be clocked down to 2400MHz depending on processor and memory configuration
Interfaces 1 x Audio: line-in
1 x Audio: line-out
1 x Internal speakers
3 x USB 3.2 Gen1 (5 Gbps) total
5 and 1 optional x USB 3.2 Gen2 (10 Gbps) total
4 x USB 2.0 total
2x USB 2.0; 2x USB 3.2 Gen 2; 1x USB 3.2 Gen 2 Type-C (supports up to 15W) x USB front
1x USB 2.0 or 1x USB 3.2 Gen 1 Type A x USB internal
2x USB 2.0; 2x USB 3.2 Gen 1; 2x USB 3.2 Gen 2; optional: additional 1x USB 3.2 Gen 2 Type-C (supports DisplayPort 1.4 and power delivery (PD) up to 15W or 60W (occupies PCIe x16 slot) x USB rear
2 x DisplayPort
1 (optional) x Parallel (25pin with EPP and ECP)
optional x VGA
1 x Ethernet (RJ-45)
optional (DVI-D) x DVI
2 (optional) x Mouse / Keyboard (PS/2)
Graphics Intel® UHD Graphics P630, Intel® UHD Graphics 630, Up to half size of total system memory
Graphics features Support for up to three independent displays, DirectX® 12, HDCP support, OpenCL™ 2.1, OpenGL® 4.5, For multi monitoring mode, graphics card and integrated graphics run in parallel, DisplayPort interface supports Ver. 1.4 incl. Multi-Stream, Digital audio formats are supported, including Dolby Digital Plus (7.1 channels), DVI-D interface supports audio output if connected to the HDMI interface of a display via suitable adapter cables (not included), Additional I/O connectors configurable, choice of, DVI-D, HDMI™, VGA, USB Type-C™ (supports DisplayPort™ 1.4 and power delivery (PD) up to 15W), USB Type-C™ (supports DisplayPort™ 1.4 and power delivery (PD) up to 60W. Occupies PCIe x16 slot)
Midrange 3D: NVIDIA® Quadro® P2200, 5 GB, PCIe x16, 4 x DisplayPort
Entry 3D: NVIDIA® Quadro® P1000, 4 GB, PCIe x16, 4 x miniDP
Entry 3D: NVIDIA® Quadro® P620 LP, 2 GB, PCIe x16, 4 x miniDP
Entry 3D: NVIDIA® Quadro® P400 LP, 2 GB, PCIe x16, 3 x miniDP
Entry 3D: NVIDIA® T400, 2 GB, PCIe x16, 3 x miniDP
Entry 3D: AMD Radeon™ Pro WX 3100, 4 GB, 320 stream processors, PCIe x16, 1 x DisplayPort, 2 x miniDP
Entry 3D: AMD Radeon™ Pro WX 2100, 2 GB, 320 stream processors, PCIe x16, 1 x DisplayPort, 2 x miniDP
Others: MiniDP to DP Adapter Cable
Audio codec Realtek ALC623
Weight approx. 8 kg
approx. 17.64 lbs

Read full specs

Accessories

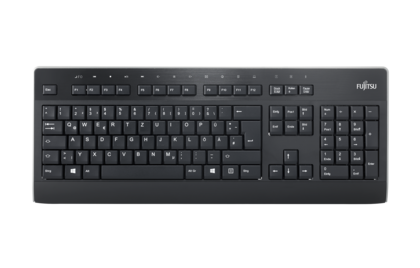

Keyboard KB955

The KB955 is a very flat keyboard with extra low keys and spill-resistant protection. The elegant design and top-quality construction makes the KB955 the ideal input device for any PC or Notebook user. If you accidently spill some water or coffee onto the keyboard, this special construction helps the liquid to flow away.

Blue LED Mouse M960

The Blue LED Mouse M960 comes in a slim design with proven Fujitsu engineering quality. The track on glass Blue LED sensor enables ultra precise switchable resolution at 1,000, 1,600 and 2,000 dpi. Blue LED Mouse M960 makes your life easier because it’s tailor-made for right handed users. It just feels great in your hand.

SpaceMouse Pro

Using the SpaceMouse™ Pro 3D mouse to navigate 3D models or environments is as simple as holding them in your hand. A slight movement of the controller cap delivers easy and precise control. SpaceMouse™ Pro is a companion to the traditional mouse and is operated with the free hand. Your traditional mouse hand is free to select, create and edit.

Show all in the data sheet
