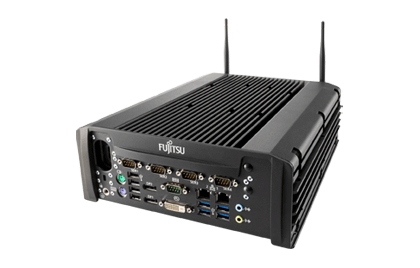

FUJITSU IoT Solution INTELLIEDGE™ A700 Appliance

FUJITSU IoT Solution INTELLIEDGE™ A700 Appliance combines the right mix of hardware components and software solutions helping organizations harness valuable operations data that keeps getting generated at the edge of their enterprise. Emerging technologies such as 5G connectivity coupled with interconnected and intelligent devices have already brought about a convergence of Operational Technology (OT) and traditional IT leading to the rise of Industrial Internet of Things (IIoT). The INTELLIEDGE A700 is a converged IoT appliance ready to apply IoT applications for organizations looking into optimizing and improving operational efficiencies by utilizing AI, Deep Analytics and Machine Learning for gaining better insights into their business.

Features & Benefits

FeaturesBenefits
Integrated & Manageable Platform
  • Fully optimized software and hardware integrated solution
Speed to market
  • Enables customers to directly leverage their existing IoT Applications using the INTELLIEDGE Appliance in their respective scenarios
FUJITSU INTELLIEDGE Center
  • INTELLIEDGE Center for device, applications and network management
Ease of management
  • Enables customers to setup and manage their INTELLIEDGE appliance hardware, installed IoT applications and network
Application isolation
  • Connect existing OT&IT systems to the cloud with IoT applications at the customer’s end in isolated sandboxes
Zero disruption
  • Enables full separation of applications thereby ensuring zero disruption and a secure environment
Resilient systems
  • System integrated recovery solution allows automated recovery to original state
Faster recovery
  • Enables uninterrupted operation in most disaster scenarios

Technical details

ProductINTELLIEDGE A700 Appliance
Operating SystemLightweight CentOSLinux with virtualization layer, Virtual Machines and Containers support
Device & Application managementCertificate based pairing concept Management through OPC-UA Graphical application management (INTELLIEDGE Center) Network management
Connectivity & protocols, data flow(application blueprints)MQTT, AMQP
Modbus, OPC-UA
Profibus*, Profinet*
Fujitsu K5, Azure, AWS*
Dataflow tool
Applications and AI/MLApplication VMs and/or containers Pre-optimized containers for AI/ML platforms, hardware acceleration*
Memory16 GB DDR4, 2400 MHz, SO DIMM
MainboardD3433-S2
Processor typeIntel® Core™ i7
Interfaces4 x USB 2.0
4 x USB 3.0
1 x DVI-D
2 x Display Port v1.2
1 x Ethernet (RJ-45)
5 x Serial
1 x Mouse / Keyboard (PS/2)
Weight5.45 kg
12.00 lbs
Power supplyIntegrated, AC Input 100-240V
Dimensions (W x D x H)299 x 244 x 93 mm
11.77 x 9.61 x 3.66 inch
Physical securityKensington Lock support
Intrusion switch
System and BIOS securityEmbedded security (TPM 2.0)
Boot sector virus protection
Write protect option for the Flash EPROM
