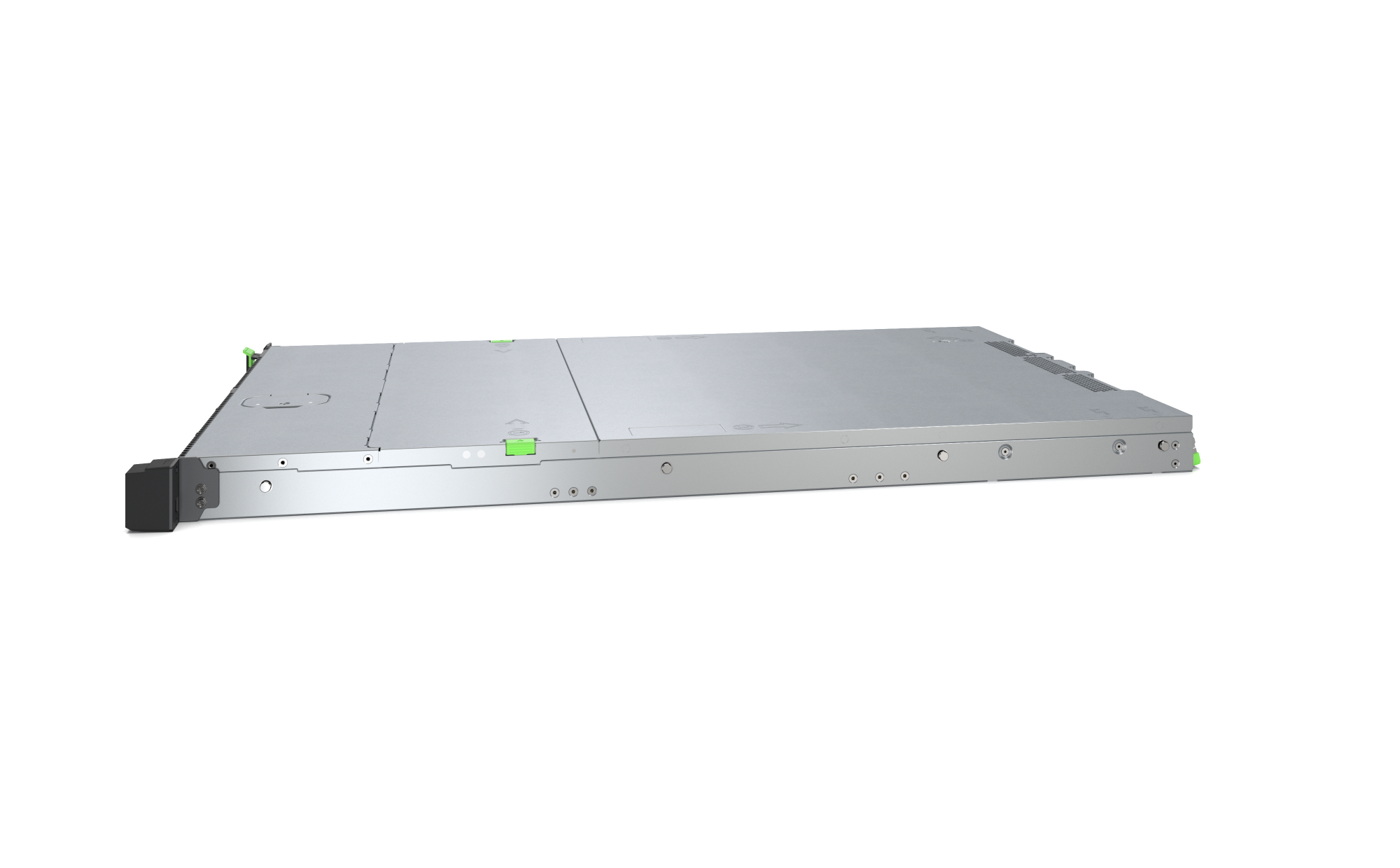

PRIMERGY RX1440 M2

PRIMERGY RX1440 M2

  • Mono-socket x86 server (1U) powered by AMD EPYC™ 9004 / 9005 series processor
  • Scale from 16 to 160 cores (32 to 320 threads) per socket, up to 1152 MB L3 Cache or highest frequencies
  • Ideal for AI machine learning, virtualized environments, as dense enterprise server and data-intensive workloads
  • Drive memory intensive and emerging workloads with 24 DDR5 DIMM slots (up to 6 TB memory with 6,000 MT/s)
  • Scale to meet demands with up to 10x 2.5” storage devices, upgrade kit +3x or 2x 2.5-inch rear bays, M.2 drives for booting, up to 3x NVIDIA GPU cards and up to 3x PCIe 5.0 expansion slots

Więcej szczegółów
ImgPlaceholder ImgPlaceholder ImgPlaceholder ImgPlaceholder
EFFICIENT, HIGH PERFORMANCE COMPUTING
EXPANDABILITY AND DENSITY
AGILE INFRASTRUCTURE MANAGEMENT
SECURITY

The versatile PRIMERGY RX1440 M2 server with AMD EPYC™ 9004 / 9005 processors shortens time to value for IT organizations running demanding workloads.

Agile and data-driven companies modern platforms that scale easily and are optimized for application performance. The PRIMERGY RX1440 M2 is built upon a mono system architecture but provides high amount of cores, exceptional broad memory configuration options and flexibility to meet performance demands.

As you scale your infrastructure, scale your profitability with the Infrastructure Manager (ISM). ISM enables organizations to have centralized control over the entire data center, which includes servers, storage, networking, as well as power and cooling using a single user interface.

Designed with security in mind, AMD EPYC™ 9004 / 9005 series processors help protect your CPU, applications, and data. With features such as AMD Secure Boot, there is an improved layer of security and firmware advanced persistent threats are mitigated. Platform Firmware Resilience (PFR) is provided by the PRIMERGY RX1440 M2.
  • ImgPlaceholder
    EFFICIENT, HIGH PERFORMANCE COMPUTING
    The versatile PRIMERGY RX1440 M2 server with AMD EPYC™ 9004 / 9005 processors shortens time to value for IT organizations running demanding workloads.
  • ImgPlaceholder
    EXPANDABILITY AND DENSITY
    Agile and data-driven companies modern platforms that scale easily and are optimized for application performance. The PRIMERGY RX1440 M2 is built upon a mono system architecture but provides high amount of cores, exceptional broad memory configuration options and flexibility to meet performance demands.
  • ImgPlaceholder
    AGILE INFRASTRUCTURE MANAGEMENT
    As you scale your infrastructure, scale your profitability with the Infrastructure Manager (ISM). ISM enables organizations to have centralized control over the entire data center, which includes servers, storage, networking, as well as power and cooling using a single user interface.
  • ImgPlaceholder
    SECURITY
    Designed with security in mind, AMD EPYC™ 9004 / 9005 series processors help protect your CPU, applications, and data. With features such as AMD Secure Boot, there is an improved layer of security and firmware advanced persistent threats are mitigated. Platform Firmware Resilience (PFR) is provided by the PRIMERGY RX1440 M2.

Product Video

Tech Specs

Chipset System on Chip (SoC)
Mainboard type D4130
Product Type Mono Socket Rack Server
Processor AMD EPYC™ 9004 series processor, AMD EPYC™ 9005 series processor
Memory 16 GB - 6 TB, DIMM (DDR5)
Memory slots 24 (24 DIMMs per CPU)
Memory protection Advanced ECC
Drives (optional) DVD supermulti, ultraslim, SATA I
Accessible drive bays 1 x 5.25/9.5mm for DVD-RW/Blu-ray
Optional accessible drives Ultra slim 9.5mm optical drive (optional)
All possible options described in relevant system configurator.
Storage drive bays Up to 10: 10x 2.5-inch SATA/SAS/NVMe (PCIe SSD)
up to 8x 2.5" (SFF) hot-plug drives (SAS/SATA)
up to 4x 3.5" (LFF) hot-plug drives (SAS/SATA)
up to 10x 2.5" (SFF) hot-plug drives (SAS/SATA)
up to 10x 2.5" (SFF) hot-plug drives (PCIe_NVMe)
LAN Controller Dynamic LoM via OCP slot; OCPv3 compliant, Optional OCP adaptors:, 4 x 1 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s Ethernet (RJ45), 4 x 10 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s SFP+, 4 x 10 Gbit/s SFP+, 2 x 25 Gbit/s SFP28, 4 x 25 Gbit/s SFP28, 2x 100 Gbit/s QSFP28
Remote Management Integrated Remote Management Controller (iRMC S6, 1024 MB attached memory incl. graphics controller)
USB ports 4 x USB 3.0 (2x rear, 2x front)
Graphics 1 x VGA (1x rear)
Management LAN (RJ45) 1 x dedicated management LAN port for iRMC S6 (10/100/1000 Mbit/s)
Trusted Platform Module (TPM) Infineon / TPM 2.0 module, FIPS; TCG compliant (option)
Power supply configuration 1x hot-plug power supply or 2x hot-plug power supply for redundancy
Active power (max. configuration) 2,608.6 W
Weight up to 18.9 kg
Rack (W x D x H) 483 x 842 x 43 mm
DC Infrastructure Management Infrastructure Manager (ISM)
Essential Edition
Advanced Edition
Server Management ServerView Agentless Service (SVAS), ServerView ESXi CIM Provider, ServerView Installation Manager (SVIM), ServerView Update Manager Express (UME)
Operating system http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473
Manufacturer warranty period 3 years
Manufacturer warranty type Onsite warranty
Service Lifecycle at least 5 years after shipment, for details see https://support.ts.fujitsu.com/
Service Weblink http://www.fujitsu.com/emeia/products/product-support-services/
Service Weblink http://www.fujitsu.com/emeia/products/product-support-services/
Support Pack Options Globally available in major metropolitan areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)
 Recommended Service 24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner.
Support Pack Options Globally available in major metropolitan areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)
Recommended Service 24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner.

Read full specs

Components

Fujitsu Adaptery Fibre Channel QLE2690 / QLE2692

Udoskonalone adaptery magistrali głównej Fibre Channel 16 Gb/s (HBA) QLE2690 i QLE2692 piątej generacji dla serwerów PRIMERGY i PRIMEQUEST są idealne dla środowisk zwirtualizowanych i aplikacji wymagających intensywnego przetwarzania transakcji. Adaptery obsługują najnowszy standard PCIe 3.0, który obniża koszty chłodzenia i energii. Ponadto technologia QLogic StorFusion zapewnia skuteczniejsze alokowanie zasobów, gwarantowaną jakość usług (QoS) i większą elastyczność, a jednocześnie uwzględnia potrzeby firm z branży IT, którym zależy na niezawodności, zintegrowanym zarządzaniu i gwarantowanej wydajność sieci.

FUJITSU PFC EP Emulex LPe31000 / LPe31002 Fibre Channel Adapters

The Emulex Gen 6 16 Gb Fibre Channel (FC) Host Bus Adapters (HBA) by Broadcom for PRIMERGY and PRIMEQUEST server systems are optimal Fibre Channel HBAs for virtualized, cloud and mission critical deployments. The PFC EP Emulex Gen 6 Fibre Channel HBAs LPe31000/31002 by Broadcom take performance to a new level with PCIe 3.0 support, data integrity capabilities and cloud scale reliability, and ease of use. Organizacje chcące zwiększyć wydajność, zabezpieczyć się przed uszkodzeniem danych i uprościć obsługę FC SAN w chmurze lub w środowiskach wymagających wysokiej wydajności mogą skorzystać na wdrożeniu adapterów LPe16000/16002.

Show all in the data sheet
