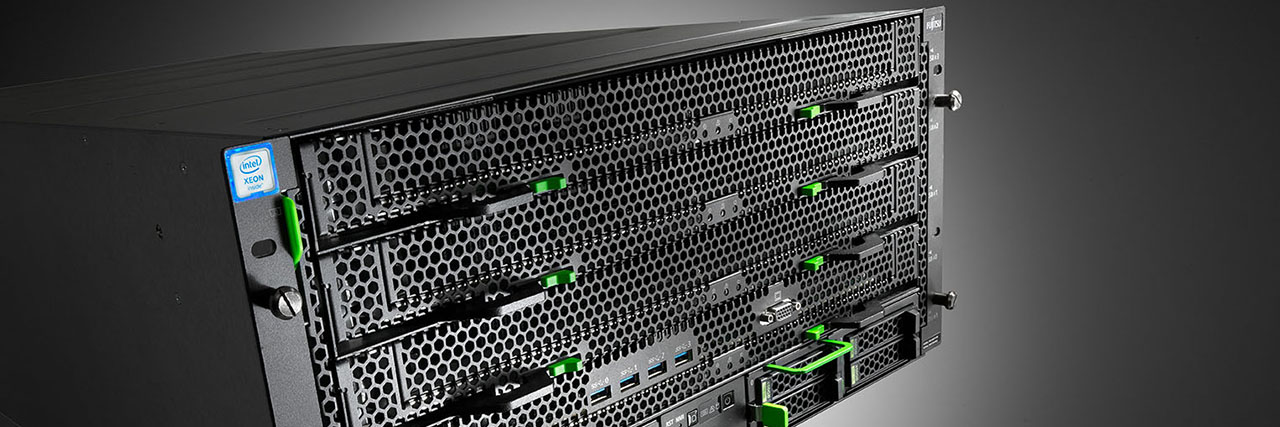

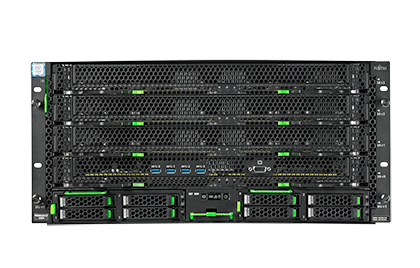

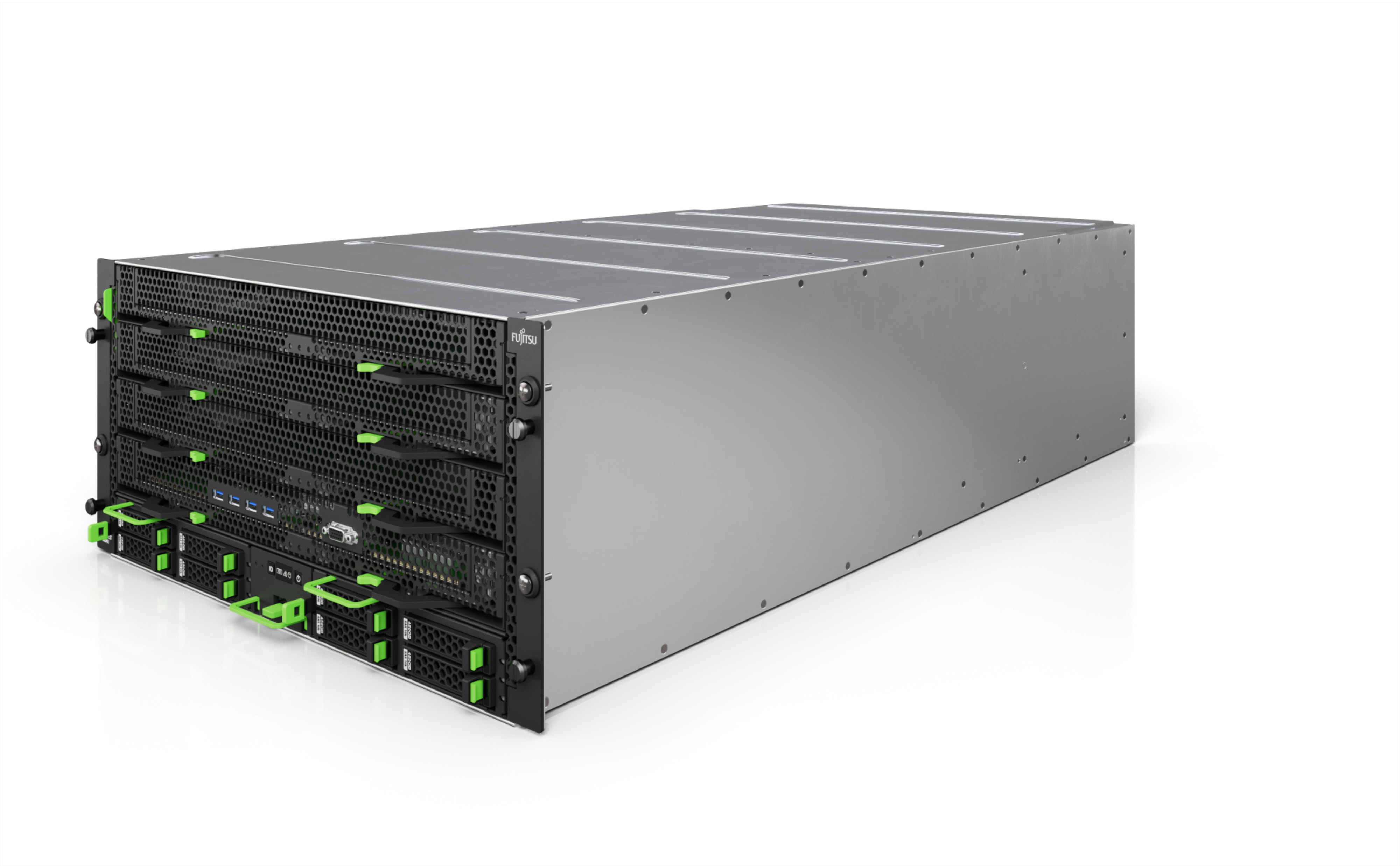

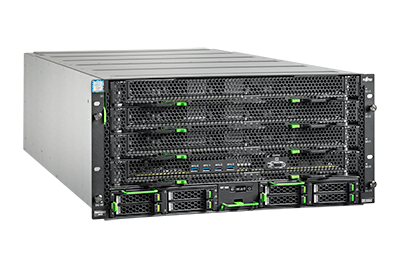

FUJITSU Server PRIMEQUEST 3800B2
FUJITSU Server PRIMEQUEST 3800B2
- Octo-socket rack server that offers superior performance, reliability and optimized economics for business-critical workloads
- Featuring the latest Intel® Xeon® Processor Scalable Family with up to 28 cores per processor and fastest available DDR4 memory modules
- Memory capacity of up to 24TB (DDR4 only) or 36TB with Intel® Optane™ DC Persistent Memory
- Significantly improves performance for in-memory databases such as SAP HANA® and real-time data analytics
- Optimized economics in a compact 5U chassis and advanced RAS features
|
|
|
|
Scalable platform for transaction demanding workloads and consolidation |
Advanced RAS features for Business Critical Workloads |
Smart architecture with high serviceability |
Cost efficiency for your data center |
|
Superior performance and memory capacity for demanding corporate databases, in-memory solutions and business-critical applications. Cost-efficient 5U chassis packs superior performance in an economic, space-saving footprint. |
Advanced RAS features in CPUs and memories have been built in to enable advanced actions for error circumvention, and increased system availability. |
‘Glue-less‘ design with no UPI cables ensures a high level of serviceability. |
Reduced data center hardware costs and electricity bills. Simplified and comprehensive power management that results with the high efficient power supplies in significant savings. |
-
Scalable platform for transaction demanding workloads and consolidation
Superior performance and memory capacity for demanding corporate databases, in-memory solutions and business-critical applications. Cost-efficient 5U chassis packs superior performance in an economic, space-saving footprint. -
Advanced RAS features for Business Critical Workloads
Advanced RAS features in CPUs and memories have been built in to enable advanced actions for error circumvention, and increased system availability. -
Smart architecture with high serviceability
‘Glue-less‘ design with no UPI cables ensures a high level of serviceability. -
Cost efficiency for your data center
Reduced data center hardware costs and electricity bills. Simplified and comprehensive power management that results with the high efficient power supplies in significant savings.
Product Video
Tech Specs
| Chipset |
Intel® C621 |
| Mainboard type |

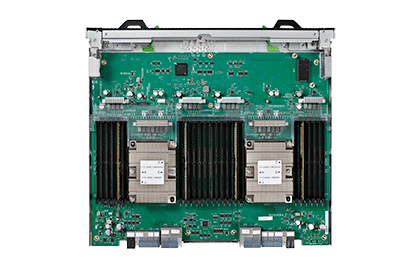

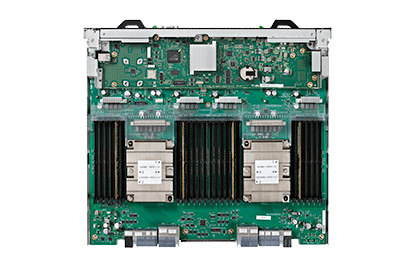

up to 4 x System boards |
| Product Type |
Octo Socket Rack Server |
| Processor |
Intel® Xeon® Platinum 8xxx processor |
| Memory |
64 GB - 36 TB, DIMM (DDR4 / DDR-T for non-volatile memory modules) |
| Memory protection |
ECC, Advanced ECC, Memory Mirroring support, Address Range Memory Mirroring support, Rank sparing memory support, Memory Scrubbing, SDDC+1, ADDDC-MR |
| PCI-Express 3.0 x8 |
8 x Low profile |
| PCI-Express 3.0 x16 |
8 x Low profile (PCI hot-plug is available in 4 out of 8 slots) |
| Storage drive bays |
8 x 2.5-inch hot-plug 8x 2.5” HDD/SSD´s |
| I/O controller onboard |
Intel® i210 onboard 10/100/1000 Mbit/s Ethernet Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller) |
| Power supply configuration |
Up to 4 hot-plug power supplies. |
| Active power (max. configuration) |
4,810 W |
| Weight |
Up to 80 kg |
| Rack (W x D x H) |
482 x 820 x 219 mm |
| Server Management |
Infrastructure and Server Management |
| DC Infrastructure Management |
Infrastructure Manager (ISM) Infrastructure Manager (ISM) |
| Warranty period |
3 years (depending on country) |
| Warranty type |
Onsite Service |
| Service Lifecycle |
5 years after end of product life |
| Service Weblink |
www.fujitsu.com/support |
