Data block check codes for improved data integrity - Data Block Guard

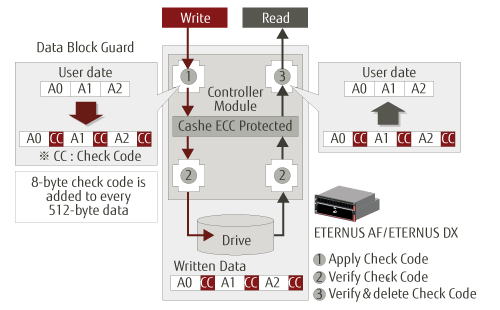

When data is written from the server, the Data Block Guard function adds eight bytes check codes to each block (every 512 bytes) of the data and verifies the data at multiple checkpoints to ensure data consistency. This function can detect a data error when data is destroyed or data corruption occurs. When data is read from the server, the check codes are confirmed and then removed, ensuring that data consistency is verified in the whole storage system.
In addition, the T10-DIF function is supported. T10-DIF is a function that adds a check code to data that is to be transferred between the Oracle Linux server and the ETERNUS DX, and ensures data integrity at the SCSI level.
The server generates a check code for the user data in the host bus adapter (HBA), and verifies the check code when reading data in order to ensure data integrity.
The ETERNUS DX S3 series (*Note1) and ETERNUS DX200F double-check data by using the data block guard function and by using the supported T10-DIF to improve reliability.
Data is protected at the SCSI level on the path to the server. Therefore, data integrity can be ensured even if data is corrupted during a check code reassignment.
By linking the Data Integrity Extensions (DIX) function of Oracle DB, data integrity can be ensured in the entire system including the server
*Note1: Except ETERNUS DX60 S3.
- Very high data integrity and improved system reliability
