FUJITSU Server PRIMERGY BX400 S1

Keyboard shortcuts for the player:
  • F: Fullscreen
  • Esc: Exit fullscreen
  • ↑: Volume up
  • ↓: Volume down
  • ←: 5 sec. back
  • →: 5 sec. forward
  • Space: Play/Pause
  • S: Subtitle On/Off
Managing large computing and storage requirements with limited resources, budgets and space is a challenge. The Fujitsu Server PRIMERGY BX400 helps to solve it. It is a fully-featured blade system built from the ground up as a user-friendly and versatile IT infrastructure. Up to eight server and storage blades are all packed into a surprisingly small enclosure that is as easy to install and manage as it is to use.
  • 3Star Icon - Green IT
  • Intel®/sup Xeonsup® processor
  • PRIMERGY 20years Badge

Features & Benefits

Features Benefits
Tailor-made for your Business
  • The Fujitsu PRIMERGY BX400 provides an optimum combination of up to eight server or storage blades in a small enclosure that is available as 6U rack- and floorstand-version.
  • Combines server, storage and networking into a single chassis in order to convert it into a small data center and to deploy PRMERGY BX400 into an everyday office environment.

  • Modular infrastructure to meet office and datacenter environments, designed to share components throughout the family making it easy to create, customize and grow.
Converged Performance
  • Latest Intel® Xeon® processor E5-2400v2 / E5-2600v3 product family, scalable memory configurations and flexible dual-channel 10GbE Universal Converged Network Adapter (UCNA) to provide a common infrastructure for LAN and SAN and the ability to partition the bandwidth, making it ideal to suit the needs of individual applications.
  • Ideal suited as complement to x86 server virtualization with additional benefits such as improved manageability, availability, and operational efficiency from shared cable infrastructures or virtual input/output (I/O).

  • Its smart design makes the PRIMERGY BX400 more flexible than other server solutions, offering easy scalability to protect your investments.
Simple to Manage - Easy to Control
  • With ServerView you manage your servers and enclosures locally and remotely and take complete control regardless of the state of the server operating system.
  • Additional software components to simplify the management of PRIMERGY servers in LAN and SAN environments while providing highest flexibility for deployment and operation.

  • Simplified lifecycle management cuts server administration time by up to 60 percent, saving you even more effort and money.
Enhanced Energy Optimization
  • Thanks to its highly efficient components, advanced cooling technology, and potent power management tools, the Fujitsu PRIMERGY BX400 also reduces cooling and air conditioning costs.

  • More efficient use of power and cooling to save energy costs as never before.

Technical details

CharacteristicsAffordable and fully-featured blade system built from the ground up to be user-friendly and versatile, saving time and costs for midsized companies.
System unit type6 U chassis for 19-inch rack, or floorstand version
WeightRack: up to 98 kg / Floorstand: up to 112.5 kg
Front bays8 half height bays for server or storage blades
MidplaneHigh speed midplane with 3 fabrics
Rear bays4 x for Connection Blades, 4 x for PSU/fan modules
Management Blades1x hot-plug management blade as standard, redundant management blades as option
Fan configurationUp to 3 additional hot plug, redundant fan modules
Power supply configurationUp to 4x hot-plug power supply modules (1x as standard)
Operating buttonsOn/off switch, ID button
Status LEDsPower (amber / green), System status (orange / yellow), Identification (blue)
Service displayServerView Local Service Display for Blade (LSB)
Warranty period3 years
Warranty typeOnsite warranty
Recommended Service24x7 Onsite Service with 4h Onsite Response Time
Service Lifecycle5 years after end of product life

Blades

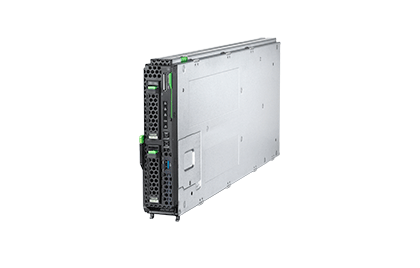

FUJITSU Server PRIMERGY BX2560 M1
PRIMERGY BX2560 M1 right sideThe FUJITSU Server PRIMERGY BX2560 M1 sets higher standards for performance, usability and efficiency. The dual-socket server blade can be eqipped with latest Intel® Xeon® E5-2600v3 processors and DDR4 memory technology which makes it optimal for demanding workloads, such as mail and messaging services, collaboration, enterprise applications and virtual environments. The embedded dual-channel 10 Gbit/s universal converged network adapter with 8 physical functions per channel, usable for Ethernet, iSCSI, FCoE and RDMA over Converged Ethernet, allows allocating the network throughput to match individual application needs. Two additional PCIe 3.0 I/O expansion slots support the use of the highest performing mezzanine cards now and into the future.
FUJITSU Server PRIMERGY BX2580 M1
PRIMERGY BX2580 M1 right sideThe FUJITSU Server PRIMERGY BX2580 M1 is optimized for extensive virtualization and consolidation projects as well as demanding high performance computing applications. It can be equipped with two processors of the latest Intel® Xeon® E5-2600 v3 processor family, up to 1,536 GB of DDR4 memory (with 64 GB DIMMs), two 1,8” SSD drives, and provides further boot options with local UFM and SATADOM flash devices.
FUJITSU Server PRIMERGY BX920 S4
PRIMERGY Blade Server BX920 S3 side rightThe Fujitsu Server PRIMERGY BX920 S4 is a dual-socket server blade which offers the ideal balance of performance and cost-efficiency. It provides breakthrough server blade economics for essential enterprise workloads with the latest Intel® Xeon® processor E5-2400v2 product family, 768GB of memory, two hot-plug hard disk drives and flexible networking options via the onboard dual-channel 10Gbit/s Ethernet Converged Network Adapter.
Fujitsu Server PRIMERGY BX924 S4
PRIMERGY BX924 S4 right sideThe Fujitsu Server PRIMERGY BX924 S4 sets new standards in the area of versatility and scalability of dual-socket server blades and thus reinforces its position as a high-end server. With two CPUs of the new Intel® Xeon® processor E5-2600 v2 product family, 24 DIMM slots supporting up to 1,024 GB of memory and an integrated 10 Gbit/s Ethernet Universal Converged Network Adapter the server blade is ideally suited for extensive virtualization and consolidation projects as well as a variety of workloads including demanding high performance computing applications.
FUJITSU Server PRIMERGY SX910 S1
PRIMERGY SX910 S1 - right sideThe PRIMERGY SX910 S1 Storage Blade Tape module can be used to archive and backup local data in the PRIMERGY BX400 and 900 system units. Up to 1,500 GB may be stored on one LTO tape drive therein, matching the demands of a server blade’s disk capacities and leaving room for future, higher capacities. The Storage Blade requires one Blade slot within the PRIMERGY BX system unit.
FUJITSU Server PRIMERGY SX940 S1
PRIMERGY SX940 S1 - front 1The PRIMERGY SX940 S1 Direct Attached Storage Blade Disk can be used to extend the internal storage capacity of PRIMERGY BX92x Server Blades. A maximum of four internal disk drives greatly extends the maximum amount of disk storage of a Server Blade. One Storage Blade occupies one blade slot within the PRIMERGY BX system units; it is positioned either on the left or right to an adjacent BX92x Server Blade, or between the two. The 1x 4 or 2x 2 disk drives of one SX940 S1 are driven by 1 or 2 integrated, highly functional SAS/RAID controllers with 512 Mbyte cache and BBU. Each controller provides RAID levels 0, 1, 5 and 6.
FUJITSU Server PRIMERGY SX960 S1
PRIMERGY SX960 - side rightThe Fujitsu PRIMERGY SX960 Storage Blade offers direct-attached storage for the PRIMERGY BX Blade Server with support of up to 10 hot-plug SAS or SATA hard disks. The storage blade can be inserted, like a server blade, in the front of the blade server housing. It can be hot-plugged and used with various types of server blades. The BX Blade Servers' midplanes offer PCI Express connections to the adjacent server blades, enabling top-quality memory access without using additional cables. The PRIMERGY SX960 Storage Blade has an onboard LSI MegaRAID controller with 512 MB Write Back Cache and optional Battery Backup Unit, for top performance and data security.
Use Microsoft Windows Storage Server 2012 or other software products of your choice to turn the SX960 into an iSCSI SAN for all severs in the enclosure. As part of a network-attached storage appliance, Windows Storage Server 2012 enhances the traditional file serving capabilities and delivers excellent economics for a shared storage solution by leveraging industry standard hardware matched with robust storage capabilities. It delivers continuous availability that is designed to protect from a range of failures and prevent downtime in a scalable and reliable manner.
FUJITSU Server PRIMERGY SX980 S2
PRIMERGY Storage Blade SX980 S1 side right standingThe Fujitsu PRIMERGY SX980 S2 is ideal suited for mid-sized organizations and branch offices which would like to expand their internal storage capacity within the PRIMERGY Blade Server chassis. The SX980 S2 is a SAS 2.0 storage solution that helps users easily transition from direct attached to centralized storage. This storage blade is connected via midplane to one or two SAS Connection Blades, holding up to 10 hot-plug SAS HDD’s or SSD’s, accessible by any server blade installed in the enclosure.
FUJITSU Server PRIMERGY BX Ethernet Switch/IBP 1Gbit/s 36/12
BX900 Ethernet switch IBP 1Gb 36/12 - right sideThe PRIMERGY Ethernet Switch/IBP 36/12 is an integrated 1 Gbit/s Connection Blade for use in the PRIMERGY BX400 and BX900 chassis. It can be installed in all Connection Blade bays (4x in BX400, 8x in BX900) and provides 36 downlink ports each with 1 Gbit/s to the midplane to connect with the Server Blades. The module contains 12 uplink ports each 1 Gbit/s; Layer 2+ functionalities are supported.
PRIMERGY BX Ethernet Switch/IBP 1Gbit/s 36/8+2
BX900 Ethernet switch IBP 1Gb 36/8 +2 - front 1The PRIMERGY Ethernet Switch/IBP 36/8+2 is an integrated 1 Gb Connection Blade for use in the PRIMERGY BX400 and BX900 chassis. It can be installed in each Connection Blade slot (4x in BX400, 8x in BX900) and provides 36 downlink ports each with 1 Gb to the midplane to connect with the Server Blades.
FUJITSU Server PRIMERGY BX Ethernet Switch/IBP 10Gbit/s 18/8
BX900 Ethernet switch IBP 10Gb 188 - right sideThe PRIMERGY Ethernet Switch/IBP 18/8 is an integrated 10 Gbit/s Ethernet connection blade with DCB mode for use in the PRIMERGY BX400 and BX900 blade server chassis. Collaboration with Top of Rack (ToR) switches enables for operation of converging FCoE, extending usage areas comprehensively.
FUJITSU Server PRIMERGY BX Fibre Channel Switch 8 Gbit/s 18/8 (Brocade 5450)
BX900 Fibre Channel switch 8Gb 18/8 - right sideBlade Server and Fibre Channel SANs form an ideal infrastructure for maximizing consolidation and server virtualization benefits. By connecting blade servers and SAN switch platforms of the highest density Fujitsu and Brocade offer extraordinary performance, reliability and flexibility.
FUJITSU Server PRIMERGY BX Fibre Channel Pass Thru 8Gbit/s 18/18
BX900 Fibre Channel Pass-Thru 8 GB18/18 - sideBlade Servers and Fibre Channel SANs build an ideal infrastructure for maximizing the benefits of consolidation and server virtualization. In addition to Fibre Channel switch blades Fujitsu offers a connection blade for direct transmission of sensitive data between servers and storage.
PRIMERGY BX Ethernet Pass Thru 1/10Gbit/s 18/18
PRIMERGY CB Eth Pass-Thru 10 Gb 18-18 - front 2Each of the up to six auto-sensing 1/10Gbit/s Ethernet Pass-Thru Blades in a PRIMERGY BX Blade Server is an ideal complement for clients looking to enable up to 18 end-to-end non-blocking and lossless, direct 1 and 10 Gbit/s connections between server blades and the network.
FUJITSU Server PRIMERGY BX Ethernet Switch/IBP 1Gbit/s 18/6
PRIMERGY CB Switch-IBP 1 Gb 18-6 - sideThe PRIMERGY Ethernet Switch/IBP 18/6 is an integrated 1 Gbit/s Connection Blade for use in the PRIMERGY BX chassis. It provides 18 downlink ports with respective 1Gbit/s to the midplane for connection with the server blades as well as 6 uplink ports.
FUJITSU Server PRIMERGY BX SAS Switch 6Gbit/s 18/6
The Fujitsu CB SAS Switch 6Gb 18/6 for the PRIMERGY BX Blade Servers is an integral part of the SAS storage solution, providing a straight forward architecture for chassis internal and external, dedicated as well as shared storage resources. The SAS Connection Blade is the connecting part between the SAS mezzanine card in the server blades and the PRIMERGY SX980 storage blade(s) in the PRIMERGY BX Blade Servers.
FUJITSU Server PRIMERGY BX Ethernet FEX 10Gbit/s 16/8 (Cisco Nexus B22F)
PRIMERGY BX Ethernet FEX 10Gbit/s 16/8 (Cisco Nexus B22F) sideThe PRIMERGY BX Ethernet FEX 10Gbit/s 16/8 is a Connection Blade for Fujitsu PRIMERGY Blade Servers and is an element of Fujitsu’s DynamicFabric approach to create a highly-flexible and optimized network infrastructure. The Connection Blade is part of the Cisco Fabric Extender (FEX) portfolio, which provides a scalable unified server access platform supporting up to 10Gbit/s Ethernet over both fiber and copper and data center bridging protocols.

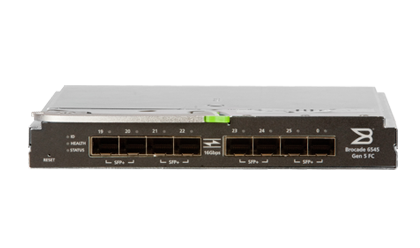

FUJITSU Server PRIMERGY BX Fibre Channel Switch 16Gbit/s 18/8 (Brocade 6545)
The PRIMERGY Fibre Channel 16Gbit/s 18/8 Connection Blade meets the demands of hyper-scale, private cloud environments by delivering market-leading Fibre Channel technology and capabilities that support the explosive data growth and dynamic changes driven by virtualized workloads.
FUJITSU Server PRIMERGY BX Ethernet Switch 10/40Gbit/s 18/8+2
The PRIMERGY Ethernet Switch 18/8+2 is an integrated 10/40 Gbit/s Ethernet connection blade with DCB mode for use in the PRIMERGY BX400 and BX900 blade server chassis. Collaboration with Top of Rack (ToR) switches enables for operation of converging FCoE, extending usage areas comprehensively.

Case Studies

  • Indonesia , Industry: Manufacturing
    FCC Indonesia values Fujitsu as a provider of data center components of high performance, high quality, and high durability

    FCC Indonesia needed to revamp their aging server infrastructure to maintain current business operation and to prepare for future requirements. Fujitsu provided FCC Indonesia with complete IT infrastructure enhancement solution. Tags:

  • Europe , Italy , Industry: Energy & Utilities
    AEWnet from Northern Italy increases efficiency by virtualizing its data center

    Azienda Energetica Reti – Etschwerke Netz, also known under the trade name of AEWnet, manages and measures electric power distribution in numerous municipalities of the Alto Adige region of Italy. Read why they chose Fujitsu to overhaul the main components of its data center so that it could take advantage of the benefits of virtualization. Tags: Data Center , Server High-Availaibility, Storage Solutions, Virtualisation

  • Europe , Germany , Industry: Manufacture-Other
    Fast and successful completion of "Rescue" project

    EUROVIA operates throughout Germany, covering the entire supply chain in the field of road construction. They were faced with restoring business processes as quickly as possible following the theft of the company’s entire hardware system. Read how Fujitsu was able to help to provide a rescue service using FUJITSU PRIMERGY TX300 S8 with LTO5 drive delivered in record time. Tags: Server High-Availaibility

  • Korea , Industry: Education
    Virtual Server Platform boosts IT performance of Wonkwang University in Korea

    Wonkwang University chose FUJITSU Server PRIMERGY BX900S2 with Intel® Xeon® Processor for its excellent system reliability, redundancy and scalability. The blade server provided an optimal platform for integration of the University’s academic administration system, and for implementation of a reliable virtualization environment that could facilitate infrastructure expansion and rapid turnaround after outages. Tags: Virtualisation

  • Indonesia , Industries: Government , others
    The Indonesian Institute of Sciences introduces Rack and Scale Out Server platform for High Performance Computing

    The family range of Fujitsu Server PRIMERGY systems underpin a powerful and flexible data center solution that allows LIPI to perform complex scientific calculations, reduce the risk of critical data loss, offers high scalability and a low TCO. Tags: Data Center , High Performance Computing
