Hot spare disk use between different RAID groups - Global Hot Spare

Hot spare disks are preparatory disk drives that are kept on active standby for use when a disk drive fails. The Global Hot Spare function enables hot spare disks to be used for any RAID group.

When a disk drive in a RAID group fails, data on the disk drive is rebuilt automatically on the hot spare disk in background. Then after the failed disk drive is replaced by a new disk drive, data on the hot spare disk will be retrieved (copied back) onto the new disk drive automatically.

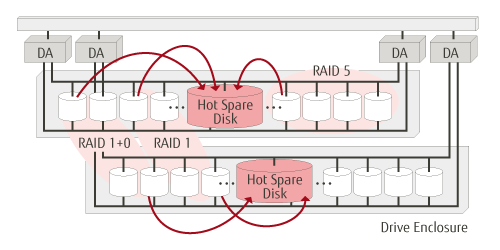

Global hot spare

*Note: This image may differ depending on the storage product configuration.

Benefit

  • Efficient use of a hot spare disk by any RAID groups.

Product Requirements

Supported Storage Disk Storage Systems ETERNUS DX60 S3
ETERNUS DX100 S3/DX200 S3
ETERNUS DX500 S3/DX600 S3
ETERNUS DX8700 S3/DX8900 S3
ETERNUS DX60/DX60 S2
ETERNUS DX80/DX80 S2
ETERNUS DX90/DX90 S2
ETERNUS DX400/DX400 S2 series
ETERNUS DX8000 series/DX8700 S2
ETERNUS4000, ETERNUS8000
All Flash Arrays ETERNUS DX200F

*Note: Products/features/support content introduced on this page may be modified without notice.
