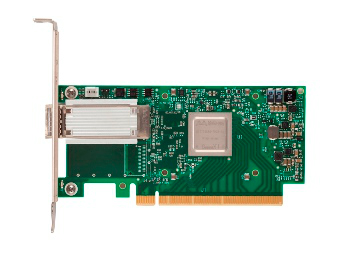

PLAN EP MCX4-EN 100GbE QSFP28

The FUJITSU PLAN EP MCX4-EN 100GbE is based on Mellanox’s ConnectX®-4 EN (Single port) Network Interface Card. ConnectX-4 EN Network Controller with 100Gb/s Ethernet connectivity addresses virtualized infrastructure challenges, delivering best-in-class and highest performance to various demanding markets and applications. Providing true hardware-based I/O isolation with unmatched scalability and efficiency, achieving the most cost-effective and flexible solution for Web 2.0, Cloud, data analytics, database, and storage platforms. 100Gb Ethernet (100GbE) enables network bandwidth to be cost-effectively scaled in support of next-generation server and storage solutions residing in Cloud and Web-scale data center environments.

FUJITSU PLAN EP MCX4-EN 100GbE Network Interface Cards deliver advanced Ethernet solutions designed for FUJITSU Server PRIMERGY and PRIMEQUEST systems with Microsoft Windows Server 2016, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 12, VMware ESXi 6.5. Designed for SUSE Linux Enterprise Server 12 SP2 operating system supporting use cases such as SAP HANA®, and for Microsoft Windows Server 2016 operating system supporting use cases such as Storage Spaces Direct certified with Premium and Standard SDDC (Software Defined Data Center) qualifiers.

Features & Benefits

Features Benefits
  • Designed for FUJITSU Server PRIMEQUEST and PRIMERGY systems in SAP and all general purpose environments
  • Delivering best-in-class and highest performance to various demanding markets and applications. Providing true hardware-based I/O isolation with unmatched scalability and efficiency, achieving the most cost-effective and flexible solution for Web 2.0, Cloud, data analytics, database, and storage platforms for general purpose, SAP HANA, and Microsoft S2D (Storage Spaces Direct) environments
  • Microsoft Windows Server 2016, Red Hat Enterprise Linux 7, SuSE Linux Enterprise Server 12, VMware ESXi 6.5 Support
  • Designed and released for qualifying PRIMERGY and PRIMEQUEST servers
  • RDMA over Converged Ethernet (RoCE)
  • Delivering low-latency and high-performance Remote Direct Memory Access (RDMA) over Ethernet networks. RoCE provides efficient low-latency RDMA services over Layer 2 and Layer 3 networks
  • Connectivity
  • Interoperable with 1/10/25/40/50/100Gb Ethernet switches. Powered connectors for optical and active cable support. Tested with Mellanox and Cisco DAC 100G, AOC 100G. Mellanox QSFP28 optical transceivers are available from Fujitsu, 850nm SR4 up to 100m as well as 1310nm PSM4 up to 500m

Technical details

Controller SiliconMellanox ConnectX4-EN MCX415A-CCAT Single-Port 100 Gigabit Ethernet Controller
Connector typeQSFP28
Data transfer rate up to100 Gbit/s
Bus typePCIe 3.0
Bus transfer rate8GT/s
Power consumptionSingle-Port QSFP28 with passive DAC 100G or DAC 100G to 4x25G splitter cables: 14.62W
Single-Port QSFP28 with active AOC 100G cables: 20.7W
Single-Port QSFP28 with QSFP28 optical transceivers: 20.7 W
