Combining the power of Intel® Xeon® Processor Scalable Family, the standard specifications of Microsoft Windows and Linux operating systems and the wealth of market solutions with innovative RAS features for highest availability and business continuity, PRIMEQUEST Server systems systems provide new levels of operational efficiency for business and mission critical computing with truly open standards and deliver highest performance. PRIMEQUEST Server systems combine the efficiency of an x86-architecture with the reliability levels rivaling that of a UNIX/mainframe architecture. This makes it ideal for processing Big Data, In-memory solutions such as SAP HANA® and Business Intelligence applications, while preserving all the RAS qualities for maximum uptime.

Find the right server

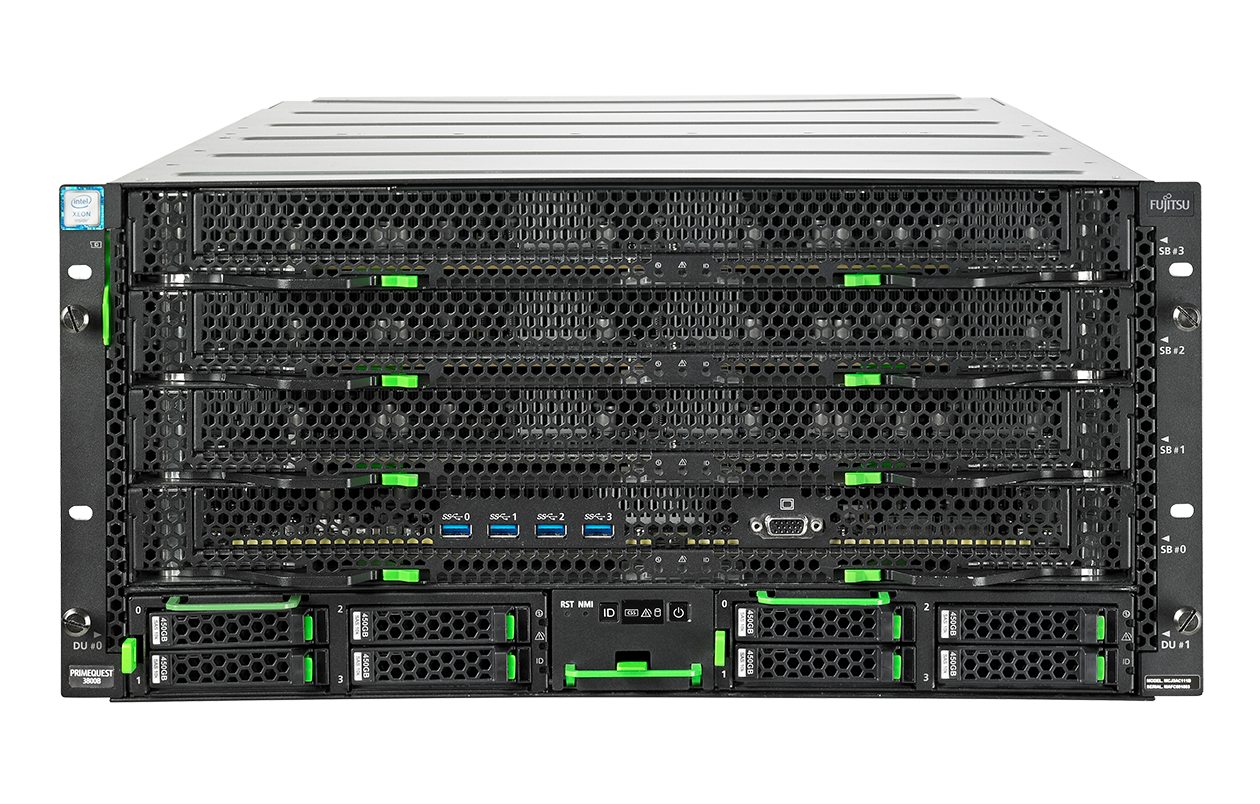

PRIMEQUEST 3800B2

Octo-socket rack server that offers superior performance, reliability and optimized economics for business-critical workloads
Featuring the Intel^® Xeon^® Processor Scalable Family with up to 28 cores per processor and fast DDR4 memory modules
Memory capacity of up to 24TB (DDR4 only)
Significantly improves performance for in-memory databases such as SAP HANA^® and real-time data analytics
Optimized economics in a compact 5U chassis and advanced RAS features

add to comparison

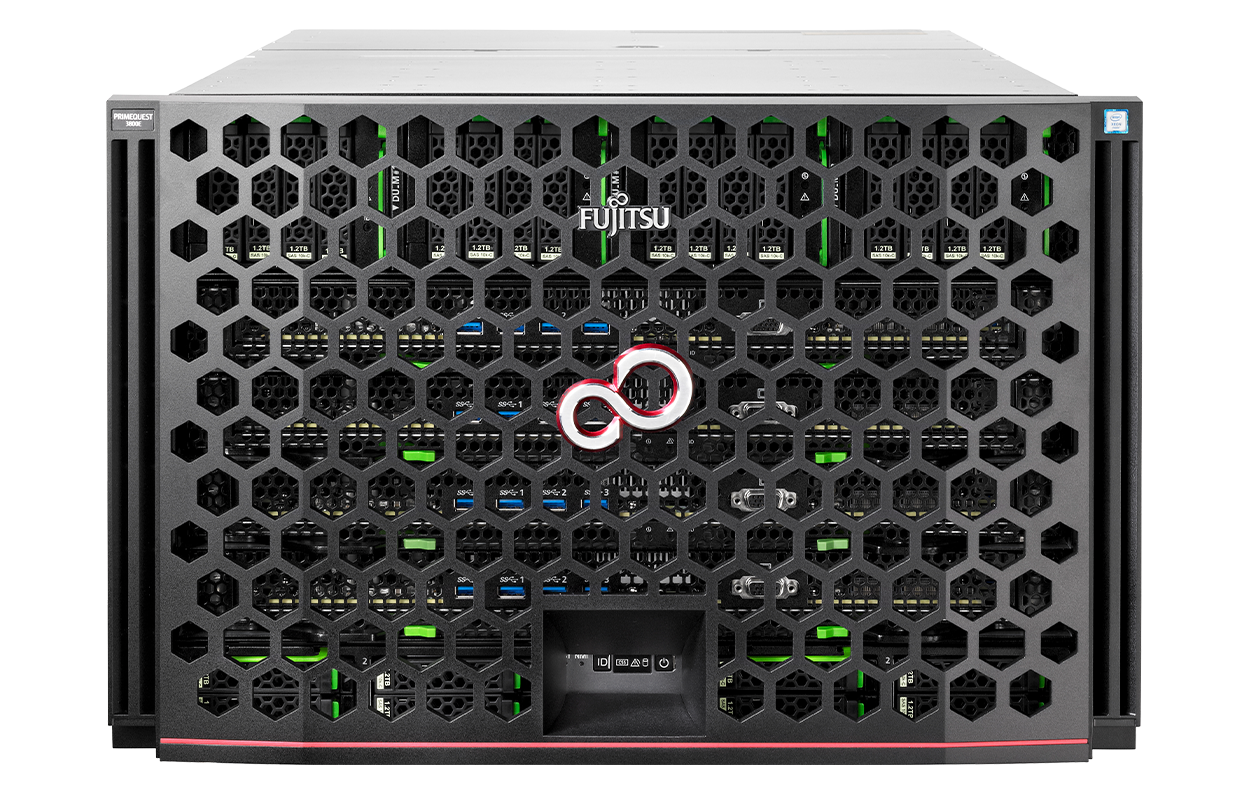

PRIMEQUEST 3800E2

Octo-socket rack server that offers superior performance and optimized efficiency for the most demanding mission-critical environments
Intel^® Xeon^® Platinum processors with up to 28 cores per processor and fast DDR4 memory modules
Memory capacity of up to 24TB (DDR4 only)
Optimized economics in a compact 7U form-factor and mission-critical level reliability including advanced RAS features
Improves performance for in-memory databases such as SAP HANA^® and Microsoft SQL Server, thereby making it the right choice for the most complex mission-critical workloads in big data processing environments

add to comparison

×

	PRIMEQUEST 3800B2	PRIMEQUEST 3800E2
Chipset	Intel^® C621	Intel^® C621
Mainboard type	up to 4 x System boards	up to 4 x System boards
Product Type	Octo Socket Rack Server	Octo Socket Rack Server
Processor	Intel^® Xeon^® Platinum 8xxx processor	Intel^® Xeon^® Gold 6xxx processor, Intel^® Xeon^® Platinum 8xxx processor
Memory	64 GB - 36 TB, DIMM (DDR4 / DDR-T for non-volatile memory modules)	32 GB - 36 TB, DIMM (DDR4 / DDR-T for non-volatile memory modules)
Memory protection	ECC, Advanced ECC, Memory Mirroring support, Address Range Memory Mirroring support, Rank sparing memory support, Memory Scrubbing, SDDC+1, ADDDC-MR	ECC, Advanced ECC, Memory Mirroring support, Address Range Memory Mirroring support, Rank sparing memory support, Memory Scrubbing, SDDC+1, ADDDC-MR
PCI-Express 3.0 x8	8 x Low profile	12 x Low profile (3slots / IOU, Max. 4 IOUs / Chassis)
PCI-Express 3.0 x16	8 x Low profile (PCI hot-plug is available in 4 out of 8 slots)	4 x Low profile (1slot / IOU, Max. 4 IOUs / Chassis)
Storage drive bays	8 x 2.5-inch hot-plug 8x 2.5” HDD/SSD´s	2.5-inch hot-plug SAS Max. 24 x 2.5-inch
I/O controller onboard	Intel^® i210 onboard 10/100/1000 Mbit/s Ethernet Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller)	Intel^® X540-AT2 2 x 10 Gbit/s Ethernet PQ3000 Management Board (MMB)
Power supply configuration	Up to 4 hot-plug power supplies.	Up to 4 hot-plug power supplies. Minimum 2 power supplies, redundancy as option.
Active power (max. configuration)	4,810 W	5,940 W
Weight	Up to 80 kg	Up to 110 kg
Rack (W x D x H)	482 x 820 x 219 mm	445 x 820 x 308 mm
Server Management	Infrastructure and Server Management	Infrastructure and Server Management
DC Infrastructure Management	Infrastructure Manager (ISM) Essential Edition Advanced Edition Infrastructure Manager (ISM) Essential Edition Advanced Edition, ServerView Suite	Infrastructure Manager (ISM) Essential Edition Advanced Edition Infrastructure Manager (ISM) Essential Edition Advanced Edition, ServerView Suite
Manufacturer warranty period	3 years (depending on country)	3 years (depending on country)
Manufacturer warranty type	Onsite Service	Onsite Service
Service Lifecycle	at least 5 years after shipment, for details see https://support.ts.fujitsu.com/	at least 5 years after shipment, for details see https://support.ts.fujitsu.com/
Service Weblink	www.fujitsu.com/support	www.fujitsu.com/support

×

Redefining mission-critical server architecture

The PRIMEQUEST Server systems 3800E2 is an 8-socket rack server that packs superior performance and mission-critical level reliability in a compact 7U form-factor making it an ideal purpose-built system for the most demanding mission-critical environments.
