FJICAD SX
COLMINA Design & Manufacturing Support
FJICAD SX is a tool specialized for machine design

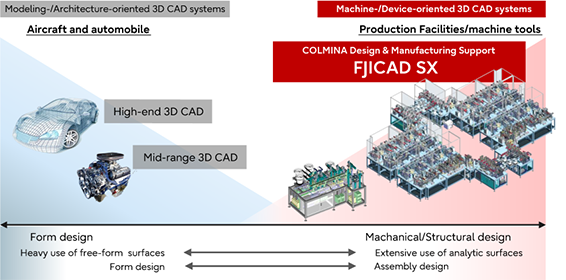

We believe that the optimal 3D CAD system depends on the nature of one's design targets. FJICAD SX is a 3D CAD system developed with a focus on machine/device forms as well as design process characteristics.
Customer Benefits
FJICAD SX is equipped with a high-speed CAD engine capable of processing 3 million parts in 0.2 seconds. A single system carries out all operations required for equipment design.
Case Study
FJICAD SX offers 2D/3D hybrid design environment.
| Line of business | Customer benefits | |
|---|---|---|
| Company A
(Number of employees: 32,700) | Manufacture and sale of cars, forklifts, and ships; other related business operations. | FJICAD SX has accelerated the speed of 3D design of engine manufacturing equipment. |
| Company B
(Number of employees: 140) | Design and manufacture of press molds and tools. | The full-scale 3D automatic design function has reduced design time and costs. |
| Company C
(Number of employees: 640) | Manufacture and sale of machine tools, semiconductor equipment, and numerical control devices for machine tools. | The seamless combination of 3D/2D CAD systems has reduced delivery times and costs. |
Modules of COLMINA Design & Manufacturing Support FJICAD SX
We will prepare abundant product lineups.
| Mechanical Design CAD, COLMINA Design & Manufacturing Support FJICAD SX V8 | |
|---|---|
| Basic Modules | 3D2D Design Module Standard |
| 3D2D Design Module Professional* | |
| 3D2D Design Module Meister* | |
| Design support options | Motion Design* |
| Electric Circuit Design* | |
| Mold Design* | |
| 3D Data Conversion Options | CATIA V5 Import* |
| NX I-deas Import* | |
| PTC Creo Parametric (former Pro/E) Import* | |
| NX Import* | |
| JT Import* | |
| JT Export* | |
* Please check with your dealer about the timing of provision of this product.
Notes #1 Either of the basic modules is a prerequisite for designing with FJICAD SX
Notes #2 Licenses can be provided as local or network licenses.
FJICAD SX data formats
FJICAD SX corresponds to a variety import/export formats.
| 3D File Formats | |
|---|---|
| Bi-directional Conversion | IGES, STEP, Parasolid, STL, JT* |
| Import | NX*, I-deas*, CATIA V5*, PTC Creo Parametric (former Pro/E)* |
| Export | VRML |
| 2D File Formats | |
|---|---|
| Bi-directional Conversion | DXF, DWG |
*Indicates optional items.
FJICAD SX product requirements
Use this information to ensure you are always work with FJICAD SX supported and optimized system for hardware and operating system software.
| FJICAD SX | |
|---|---|
| OS
that has been localized for the following languages is supported. - Languages English, Japanese, Korean, Chinese(Simplified), Chinese(Traditional) |
|
| Machine | Fujitsu CELSIUS series, ESPRIMO series, LIFEBOOK series, other Windows machines |
| CPU | Intel processor , 1.0GHz or higher |
| Memory | 2.0GB or more |
| Storage Area | 5.0GB or more |
| Graphics Accelerator | NVIDIA Quadro graphics boards*1 or Intel Graphics
Click here for details.*2 |
| Display | Resolution of 1280 × 1024 or higher |
| Network License Server*3 | |
|---|---|
| OS
that has been localized for the following languages is supported. - Languages English, Japanese, Korean, Chinese(Simplified), Chinese(Traditional) | Windows Server 2022
Windows Server 2019 Windows Server 2016 （32-bit version / 64-bit version） |
| CPU | Intel processor , 1.0GHz or higher |
| Memory | 1.0GB or more |
| Storage Area | 0.1GB or more |
*1 Recommended when operating large-scale 3D models.
*2 When using some graphics accelerators and drivers, there may be some problems with display.
Ensure that you check the operation status at the following URL (Japanese Only) , and prepare your graphics accelerator and drivers.
https://www.fujitsu.com/jp/solutions/industry/manufacturing/monozukuri-total-support/products/plm-software/icad/sx/product-requirements/graphics-certification/
*3 Network license servers can also be operated with OSs that support FJICAD SX.
