Fujitsu offers a broad portfolio of tested and qualified components that support a wide range of IT environments from small to medium-sized businesses all the way through to large corporations. This portfolio of server components helps to expand PRIMERGY & PRIMEQUEST servers to cover a range of application scenarios and will enable customers to build expandable, cost-efficient large-scale and versatile systems across a range of industries and applications. Fujitsu’s comprehensive portfolio of server & rack components includes:
Find the right component
FC controller

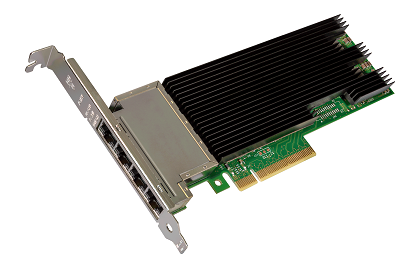

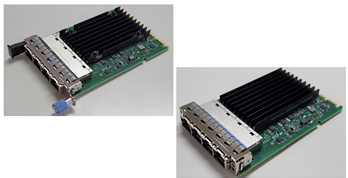

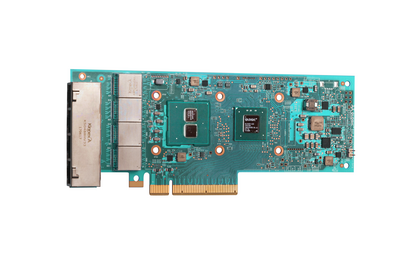

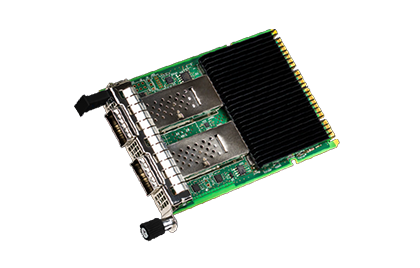

LAN controller

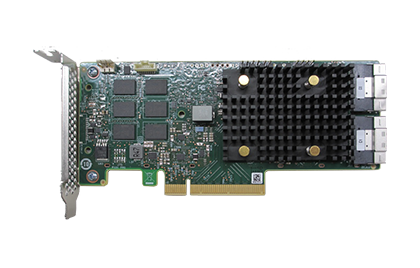

RAID controller

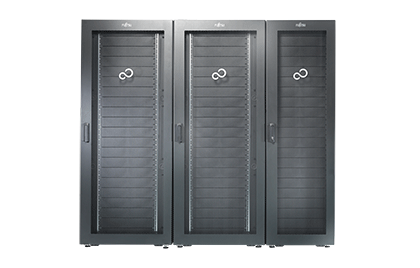

Rack infrastructure
×

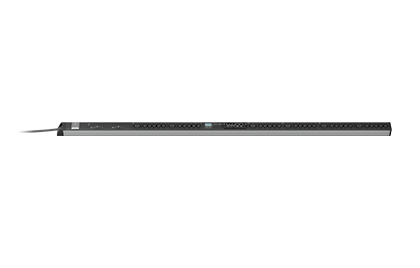

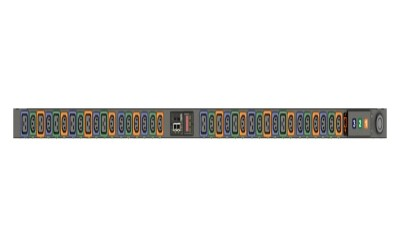

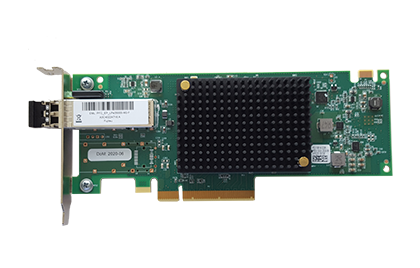

FUJITSU Power Distribution Unit | FUJITSU Analog and Digital KVM console switches | FUJITSU PCNA EP QL41262 2X 25G SFP28 | FUJITSU PFC EP Emulex LPe31000 / LPe31002 Fibre Channel Adapters | FUJITSU PFC EP Emulex LPe32000 / LPe32002 Fibre Channel Adapters | FUJITSU PFC QLE2690 / QLE2692 Fibre Channel Adapters | FUJITSU PFC QLE2740 / QLE2742 Fibre Channel Adapters | FUJITSU PLAN 1Gbit PCI 2.1 Intel<sup>®</sup> I210 T1 | FUJITSU PLAN CP 2x1Gbit Cu Intel<sup>®</sup> I350-T2 | FUJITSU PLAN CP 4x1Gbit Cu Intel<sup>®</sup> I350-T4 | FUJITSU PLAN EP Intel<sup>®</sup> X710-DA2 2x10GbE SFP+ | FUJITSU PLAN EP Intel<sup>®</sup> XXV710-DA2 2x25/10GbE SFP28 | FUJITSU PLAN EP MCX4-EN 100GbE QSFP28 | FUJITSU PLAN EP MCX4-EN 40GbE QSFP | FUJITSU PLAN EP MCX4-LX 25GbE SFP28 | FUJITSU PLAN EP QL41112 2X 10GBASE-T | FUJITSU PLAN EP QL41132 2X 10G SFP+ | FUJITSU PLAN EP QL41134 4X 10G SFP+. | FUJITSU PRAID CP400i - 8 port 12Gb/s SAS, 6Gb/s SATA | FUJITSU PRAID EP400i / EP420i | FUJITSU PRAID EP420e | Fujitsu PSAS CP400e | Fujitsu PSAS CP400i | Intel<sup>®</sup> X550-T2 2x 10GBase-T LAN Adapter | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Service Weblink | https://www.fujitsu.com/emeia/support/ | https://www.fujitsu.com/emeia/support/ | https://www.fujitsu.com/emeia/support/ | https://www.fujitsu.com/emeia/support/ | https://www.fujitsu.com/emeia/support/ | https://www.fujitsu.com/emeia/support/ | https://www.fujitsu.com/emeia/support/ | https://www.fujitsu.com/emeia/support/ | https://www.fujitsu.com/emeia/support/ | https://www.fujitsu.com/emeia/support/ | https://www.fujitsu.com/emeia/support/ | https://www.fujitsu.com/emeia/support/ | https://www.fujitsu.com/emeia/support/ | https://www.fujitsu.com/emeia/support/ | https://www.fujitsu.com/emeia/support/ | https://www.fujitsu.com/emeia/support/ | https://www.fujitsu.com/emeia/support/ | https://www.fujitsu.com/emeia/support/ | https://www.fujitsu.com/emeia/support/ | https://www.fujitsu.com/emeia/support/ | https://www.fujitsu.com/emeia/support/ | https://www.fujitsu.com/emeia/support/ | https://www.fujitsu.com/emeia/support/ | https://www.fujitsu.com/emeia/support/ |
Cabling | - | UTP CAT5e/6 cable ( RJ45): 2m, 5m and 10m, as well as customized length for ex works installation KVM adapter USB cable | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Cascading | - |
All Analog KVM switches have Chain IN/OUT ports. The cascading protocol runs via this Chain IN/OUT port and the master and slave switch are automatically detected and integrated. KVM Cable-Daisy Chain needed for cascading Analog KVM switches. Digital KVM should always be selected as the master switch. The local console is also connected to this switch. KVM adapter cable-USB needed for cascading Digital KVM switches |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Possible variants | - | Analog KVM 8port/16port on top Analog KVM 8port/16port, Digital KVM 16port on top of Analog KVM 8port/16port | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Warranty period | - | 3 years (depending on country) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 3 years | 3 years | - |
Warranty type | - | Onsite Service | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Controller Silicon | - | - | Marvell FastLinQ(TM) QL41262 10/25 Dual-Port Gigabit Ethernet Controller25 Gbit/s | Emulex XE501 | Emulex XE50132 Gbit/s | 16 Gbit/s | PFC EP QLE2742 2x 32Gb Qlogic32 Gbit/s | - | Intel® I350-AM2 Gigabit Ethernet Controller | Intel® I350-AM4 Gigabit Ethernet Controller | Intel® Ethernet Controller X710-AM210 Gbit/s | Intel® XXV710-DA2 25 Gigabit Ethernet Controller10 Gbit/s | Mellanox ConnectX4-EN MCX415A-CCAT Single-Port 100 Gigabit Ethernet Controller100 Gbit/s | Mellanox ConnectX4-EN MCX416A-BCAT Dual-Port 40 Gigabit Ethernet Controller40 Gbit/s | Mellanox ConnectX4-Lx EN MCX4121A-ACAT Dual-Port 25 Gigabit Ethernet Controller100 Gbit/s | Marvell(R) FastLinQ(TM) QL41112 10G Dual-Port Gigabit Ethernet Controller10 Gbit/s | Marvell(R) FastLinQ(TM) QL41132 10G Dual-Port Gigabit Ethernet Controller10 Gbit/s | Marvell(R) FastLinQ(TM) QL41134 10G Quad-Port Ethernet Controller10 Gbit/s | LSI SAS3008 | RoC (RAID on Chip) LSI SAS3108 | RoC (RAID on Chip) LSI SAS3108 | based on LSI SAS300812 Gbit/s | LSI SAS3008 | Intel® Ethernet Controller X55040 Gbit/s |
Connector type | - | - | SFP28 | LC-style | LC-style | LC-style | LC-style | RJ45 | RJ45 | RJ45 | SFP+ | SFP28 | QSFP28 | QSFP | SFP28 | RJ45 | SFP+ | SFP+ | 2x SFF8643 (Mini-SAS HD) | SSF-8087 | SSF-8644 | SSF-8644 | SSF-8643 | RJ45 |
Number of Connectors | - | - | 2 | - | - | - | 2 | - | - | - | - | - | 1 | 2 | 2 | 2 | 2 | 4 | - | - | - | 8 | - | - |
Auto Negotiation support | - | - | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | No | - | - | - | - | - | Yes |
Bus transfer rate | - | - | 8GT/s | 8GT/s | 8GT/s | 8GT/s | 8GT/s | 2.5GT/s | 5GT/s | 5GT/s | 8GT/s | 8GT/s | 8GT/s | 8GT/s | 8GT/s | 8GT/s | 8GT/s | 8GT/s | - | - | - | - | - | 5GT/s |
Network protocol and standards compatibility | - | - | IEEE 802.1q VLAN, IEEE 802.1Qaz Enhanced Transmission Selection (ETS), IEEE 802.1Qbb Priority Flow Control (PFC), IEEE 802.3x Flow Control, IPv4, IPv6 and mixed IPv4/IPv6 network protocols | - | - | - | - | IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.1q VLAN, IEEE 802.1p Class of Service, IPv4, IPv6 and mixed IPv4/IPv6 network protocols | IEEE 802.1as Timing and Synchronization, IEEE 802.1q VLAN, IEEE 802.3ab 1000BASE-T, IEEE 802.3ad LACP, IEEE 802.3az Energy Efficient Ethernet (EEE), IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3x Flow Control, IEEE 1588 Precision Time Protocol | IEEE 802.1as Timing and Synchronization, IEEE 802.1q VLAN, IEEE 802.3ab 1000BASE-T, IEEE 802.3ad LACP, IEEE 802.3az Energy Efficient Ethernet (EEE), IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3x Flow Control, IEEE 1588 Precision Time Protocol | IPv4, IPv6 and mixed IPv4/IPv6 network protocols, IEEE 802.1p Class of Service, IEEE 802.1q VLAN, IEEE 802.1Qaz Enhanced Transmission Selection (ETS), IEEE 802.3ae 10Gbit Ethernet, IEEE 802.3x Flow Control, IEEE 802.1as Timing and Synchronization, IEEE 1588 Precision Time Protocol, IEEE 802.3az Energy Efficient Ethernet (EEE), SFF 8431 SFP+ | IPv4, IPv6 and mixed IPv4/IPv6 network protocols, IEEE 802.1p Class of Service, IEEE 802.1q VLAN, IEEE 802.1Qaz Enhanced Transmission Selection (ETS), IEEE 802.3ae 10Gbit Ethernet, IEEE 802.3x Flow Control, IEEE 802.1as Timing and Synchronization, IEEE 1588 Precision Time Protocol, IEEE 802.3az Energy Efficient Ethernet (EEE), SFF 8431 SFP+ | IEEE 802.1p Class of Service, IEEE 802.1q VLAN, IEEE 802.1Qau Congestion Notification, IEEE 802.1Qaz Enhanced Transmission Selection (ETS), IEEE 802.1Qbb Priority Flow Control (PFC), IEEE 802.3ad LACP, IEEE 802.3ae 10Gbit Ethernet, IEEE 802.ap based auto-negotiation and KR startup, IEEE 802.3az Energy Efficient Ethernet (EEE), IEEE 802.3ba 40Gbit Ethernet, IEEE 802.3bj, 802.3bm 100 Gigabit Ethernet , IEEE 802.3x Flow Control, IEEE 1588 Precision Time Protocol, IPv4, IPv6 and mixed IPv4/IPv6 network protocols | IEEE 802.1p Class of Service, IEEE 802.1q VLAN, IEEE 802.1Qau Congestion Notification, IEEE 802.1Qaz Enhanced Transmission Selection (ETS), IEEE 802.1Qbb Priority Flow Control (PFC), IEEE 802.3ad LACP, IEEE 802.3ae 10Gbit Ethernet, IEEE 802.ap based auto-negotiation and KR startup, IEEE 802.3az Energy Efficient Ethernet (EEE), IEEE 802.3ba 40Gbit Ethernet, IEEE 802.3x Flow Control, IEEE 1588 Precision Time Protocol, IPv4, IPv6 and mixed IPv4/IPv6 network protocols | IEEE 802.1p Class of Service, IEEE 802.1q VLAN, IEEE 802.1Qau Congestion Notification, IEEE 802.1Qaz Enhanced Transmission Selection (ETS), IEEE 802.1Qbb Priority Flow Control (PFC), IEEE 802.3ad LACP, IEEE 802.3ae 10Gbit Ethernet, IEEE 802.ap based auto-negotiation and KR startup, IEEE 802.3az Energy Efficient Ethernet (EEE), IEEE 802.3x Flow Control, IEEE 1588 Precision Time Protocol, IPv4, IPv6 and mixed IPv4/IPv6 network protocols, IEEE DCBX Data Center Bridging Exchange protocol proposal for 802.1 Qaz | IEEE 802.1q VLAN, IEEE 802.1Qaz Enhanced Transmission Selection (ETS), IEEE 802.1Qbb Priority Flow Control (PFC), IEEE 802.3x Flow Control, IPv4, IPv6 and mixed IPv4/IPv6 network protocols | IEEE 802.1q VLAN, IEEE 802.1Qaz Enhanced Transmission Selection (ETS), IEEE 802.1Qbb Priority Flow Control (PFC), IEEE 802.3x Flow Control, IPv4, IPv6 and mixed IPv4/IPv6 network protocols | IEEE 802.1q VLAN, IEEE 802.1Qaz Enhanced Transmission Selection (ETS), IEEE 802.1Qbb Priority Flow Control (PFC), IEEE 802.3x Flow Control, IPv4, IPv6 and mixed IPv4/IPv6 network protocols | - | - | - | - | - | IEEE 802.1p, IEEE 802.1q VLAN, IEEE 802.3ad LACP, IEEE 802.3 2005 flow control support |
LAN controller notes | - | - | This Ethernet network adapter supports SFP+ Optical Transceiver Modules for 10 Gbps line rate, SFP28 Optical Transceiver Modules for 25 Gbps line rate, Twinax cables for 10 Gbps line rate, or Direct Access Copper cables for 25 Gbps line rate. Interoperable with 10/25/40/50/100Gb Ethernet switches. The component ships with empty cages. Optical transceivers are commercial options. | - | - | - | - | 10, 100, and 1000 Mbps | DMA Coalescing: Reduces platform power consumption by coalescing, aligning, and synchronizing DMA | DMA Coalescing: Reduces platform power consumption by coalescing, aligning, and synchronizing DMA | SFP+ Modules (S26361-F3986-E3 / -L3) for MMF SR fiber optic or SFP+ Twinax cables (from switch vendors) can be plugged | - | Interoperable with 10/25/40/50/100Gb Ethernet switches. The component ships with an empty cage. Optical transceivers are commercial options. | Interoperable with 10/25/40Gb Ethernet switches. The component ships with an empty cage. Optical transceivers are commercial options. | Interoperable with 10/25Gb Ethernet switches. The component ships with empty cages. Optical transceivers are commercial options. | This Ethernet network adapter supports 10GBASE-T and 1000BASE-T eco-systems and provides two RJ45 interfaces. | This Ethernet network adapter supports SFP+ Optical Transceiver Modules for 10 Gbps line rate, Twinax cables for 10 Gbps line rate. Interoperable with 10/40Gb Ethernet switches. The component ships with empty cages. Optical transceivers are commercial options. |
The Fujitsu PLAN EP QL41134 HLCU Ethernet network adapter requires a full height slot for PCIe compliance. Fujitsu does offer a 4x10 SFP+, low profile, non-PCI compliant version of the Fujitsu PLAN EP QL41134 HLCU Ethernet network adapter. Please contact your Fujitsu representitive for information about this low-profile adapterand its release in Fujitsu Server PRIMERGY and PRIMEQUEST systems. |
- | - | - | - | - | - |
HW Virtualization | - | - | SR-IOV: up to 240 virtual functions, 120 per port, NPAR: up to 16 physical functions, 8 per port | - | - | - | - | - | PCI-SIG SR-IOV specification, up to 8 Virtual Functions per Port (16 VF) | PCI-SIG SR-IOV specification, up to 8 Virtual Functions per Port (32 VF) | - | - | SR-IOV: Up to 256 Virtual Functions | SR-IOV: Up to 256 Virtual Functions | SR-IOV: Up to 256 Virtual Functions | SR-IOV: up to 240 virtual functions, 120 per port, NPAR: up to 16 physical functions, 8 per port | SR-IOV: up to 240 virtual functions, 120 per port, NPAR: up to 16 physical functions, 8 per port | SR-IOV: up to 240 virtual functions, 120 per port, NPAR: up to 16 physical functions, 8 per port | - | - | - | - | - | PCI-SIG SR-IOV with up to 64 virtual functions per port for Linux, VMware, Windows |
Offloading | - | - |
- TCP Stateless Offloads (include checksum, TSO, TSS, RSS, and RSC) - TX/RX IP, TCP & UDP checksum offload (IPv4, IPv6) capabilities |
- | - | - | - | TCP segmentation/large send |
TCP/UDP, IPv4 checksum offloads (Rx/ Tx/Large-send); Extended Tx descriptors for more offload capabilities IPv6 support for IP/TCP and IP/UDP receive checksum offload Tx TCP segmentation offload (IPv4, IPv6) Transmit Segmentation Offloading (TSO) Receive Side Scaling (RSS) for Windows environment DMA Coalescing (DMAC) |
TCP/UDP, IPv4 checksum offloads (Rx/ Tx/Large-send); Extended Tx descriptors for more offload capabilities IPv6 support for IP/TCP and IP/UDP receive checksum offload Tx TCP segmentation offload (IPv4, IPv6) Transmit Segmentation Offloading (TSO) Receive Side Scaling (RSS) for Windows environment |
- TCP Stateless Offloads (include checksum, TSO, VMDq and RSS) - TX/RX IP, SCTP, TCP & UDP checksum offload (IPv4, IPv6) capabilities - iSCSI Host Initiator - Flow Classification (Trafficking data flows across multiple consumers and connections) |
- TCP Stateless Offloads (include checksum, TSO, VMDq and RSS) - TX/RX IP, SCTP, TCP & UDP checksum offload (IPv4, IPv6) capabilities - iSCSI Host Initiator - Flow Classification (Trafficking data flows across multiple consumers and connections) |
CPU Offloads - RDMA over Converged Ethernet (RoCE) - TCP/UDP/IP stateless offload - LSO, LRO, checksum offload - RSS (can be done on encapsulated packet), TSS, HDS, VLAN insertion / stripping, Receive flow steering - Intelligent interrupt coalescence |
CPU Offloads - RDMA over Converged Ethernet (RoCE) - TCP/UDP/IP stateless offload - LSO, LRO, checksum offload - RSS (can be done on encapsulated packet), TSS, HDS, VLAN insertion / stripping, Receive flow steering - Intelligent interrupt coalescence |
CPU Offloads - RDMA over Converged Ethernet (RoCE) - TCP/UDP/IP stateless offload - LSO, LRO, checksum offload - RSS (can be done on encapsulated packet), TSS, HDS, VLAN insertion / stripping, Receive flow steering - Intelligent interrupt coalescence |
- TCP Stateless Offloads (include checksum, TSO, TSS, RSS, and RSC) - TX/RX IP, TCP & UDP checksum offload (IPv4, IPv6) capabilities |
- TCP Stateless Offloads (include checksum, TSO, TSS, RSS, and RSC) - TX/RX IP, TCP & UDP checksum offload (IPv4, IPv6) capabilities |
- TCP Stateless Offloads (include checksum, TSO, TSS, RSS, and RSC) - TX/RX IP, TCP & UDP checksum offload (IPv4, IPv6) capabilities |
- | - | - | - | - |
Tx/Rx IP, SCTP, TCP and UDP checksum offloading (IPv4 & IPv6) TX TCP segmentation offload (IPv4 & IPv6) Receive/Transmit Side Scaling for Windows and Scalable I/O for Linux (IPv4, IPV6, TCP/UDP) |
Additional features | - | - | Microsoft SDDC PREMIUM and STANDARD Logo Qualifiers for Storage Spaces Direct | - | - | - | - | Jumbo Frames | Jumbo Frames (up to 9.5k) | Jumbo Frames (up to 9.5k) | - | - | - | - | - | Microsoft SDDC PREMIUM and STANDARD Logo Qualifiers for e.g., Storage Spaces Direct | Microsoft SDDC PREMIUM and STANDARD Logo Qualifiers for e.g., Storage Spaces Direct | Microsoft SDDC PREMIUM and STANDARD Logo Qualifiers for e.g., Storage Spaces Direct | - | - | - | - | - | - |
Power consumption | - | - | - |
single: typical 9.3W; max 11.6 W dual: typical 11.1W; max 13.3 W |
LPe32000: typical 9.3W; max 11.6 W LPe32002: typical 11.1W; max 13.3 W |
- | - | 1 W | typ. 4.4 W; max. 4.8 W | typ. 5.0 W; max. 6.0 W |
Dual Port 10GBase-SR typ. 4.3 W, max. 4.8 W Dual Port 10GBase-LR typ. 4.5 W, max. 5.1 W Dual Port SFP+ Twinax typ. 3.3 W, max. 3.7 W |
typ. 4.5 W, max. 5.1 W | - | - | - | - | - | - | - | - | - | - | - |
6.6 W / 100Mbps 9.5 W / 1Gbps 17.4 W / 10Gbps |
Technology | - | - | - |
Optics: 16 Gb/s short wave lasers with LC type connectors. Data rates: 14.025 Gb/s (16GFC); 8.5 Gb/s (8GFC); 4.25 Gb/s (4GFC) automatically negotiated |
Optics: 32 Gb/s short wave lasers with LC type connectors. Data rates: 28.05 Gb/s (32GFC); 14.025 Gb/s (16GFC); 8.5 Gb/s (8GFC); automatically negotiated |
Optics: 16 Gb/s short wave lasers with LC type connectors | Optics: 32 Gb/s short wave lasers with LC type connectors | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Standards | - | - | - |
- Current ANSI/IETF Standards: FC-PI-4; FC-PI-5; FC-PI-6; FC-FS-3; FC-LS-2; FC-GS-6; FC-DA; FC-DA2: FCP-4; SPC-4; SBC-3; SSC-3; SSC-4 - Legacy ANSI/IETF standards: FC-PH; FC-PH-2; FC-PH-3; FC-PI; FC-PI-2; FC-FS; FC-GS-2/3/4/5; FCP-2/3; FC-HBA; FC-TAPE; FC-MI; SPC-3; SBC-2; SSC-2; SSC-3 - PCIe base spec 3.0 - PCIe card electromechanical spec 3.0 - Fibre Channel Class 3 - PHP hot plug-hot swap |
- Current ANSI/IETF Standards: FC-PI-4; FC-PI-5; FC-PI-6; FC-FS-3; FC-LS-2; FC-GS-6; FC-DA; FC-DA2: FCP-4; SPC-4; SBC-3; SSC-3; SSC-4 - Legacy ANSI/IETF standards: FC-PH; FC-PH-2; FC-PH-3; FC-PI; FC-PI-2; FC-FS; FC-GS-2/3/4/5; FCP-2/3; FC-HBA; FC-TAPE; FC-MI; SPC-3; SBC-2; SSC-2; SSC-3 - PCIe base spec 3.0 - PCIe card electromechanical spec 3.0 - Fibre Channel Class 3 - PHP hot plug-hot swap |
Throughput x 16Gb/sec full-duplex line rate per port Logins x Support for 2048 concurrent logins and 2048 active exchanges Port Virtualization x NPIV (N_Port ID Virtualization) Compliance x SCSI-3 Fibre Channel Protocol (SCSI-FCP) x Fibre Channel Tape (FC-TAPE) Profile x SCSI Fibre Channel Protocol-2 (FCP-2) x Second Generation FC Generic Services (FC-GS-2) and Third Generation FC Generic Services (FC-GS-3) |
Throughput x 32Gb/sec full-duplex line rate per port Logins x Support for 2048 concurrent logins and 2048 active exchanges Port Virtualization x NPIV (N_Port ID Virtualization) Compliance x SCSI-3 Fibre Channel Protocol (SCSI-FCP) x Fibre Channel Tape (FC-TAPE) Profile x SCSI Fibre Channel Protocol-2 (FCP-2) x Second Generation FC Generic Services (FC-GS-2) and Third Generation FC Generic Services (FC-GS-3) |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Remote boot support | - | - | - | - | - | - | - | PXE 2.0 | PXE 2.1 | PXE 2.1 | PXE 2.0 | PXE 2.0 | - | - | - | - | - | - | - | - | - | - | - | iSCSI , PXE |
iSCSI support | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Yes | - | - | - | - | - | - |
Key RAID Data Protection Feature | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
RAID levels 0, 1, 10, 5, 50 RAID Level Migration (RLM) Auto resume after loss of system power during array rebuild or reconstruction Fixed stripe size of 64kB Fast initialization for quick array setup Check Consistency for background data integrity - Make Data Consistent (MDC) Patrol read for media scanning and repairing 16 logical drive support Configuration on Disk (COD) S.M.A.R.T support |
- RAID levels 0, 1, 5 and 6 - RAID spans 10, 50 and 60 - Maximum number of spans is 8 - Online Capacity Expansion (OCE) - Online RAID level Migration (RLM) - Auto resume after loss of system power during array rebuild or reconstruction (RLM) - Fast initialization for quick array setup - Single controller multipathing (failover) - Load Balancing - Configurable stripe size up to 1MB - Fast initialisation for quick array setup - Check consistency for background data integrity - Make Data Consistent (MDC) - Patrol read for media scanning and repairing - Up to 64 logical drives per controller - S.M.A.R.T support - Global and dedicated Hot Spare with Revertible Hot Spare support - Automatic rebuild - Enclosure affinity - Enclosure management - SES (inband) - SGPIO (outband) |
- RAID levels 0, 1, 5 and 6 - RAID spans 10, 50 and 60 - Online Capacity Expansion (OCE) - Online RAID level Migration (RLM) - Auto resume after loss of system power during array rebuild or reconstruction (RLM) - Single controller multipathing (failover) - Load Balancing - Configurable stripe size up to 1MB - Fast initialisation for quick array setup - Check consistency for background data integrity - SSD support with SSD Guard technology - Patrol read for media scanning and repairing - Up to 64 logical drive support - DDF-compliant configuration on disk (COD) - S.M.A.R.T support - Global and dedicated Hot Spare with Revertible Hot Spare support - Automatic rebuild - Enclosure affinity - Enclosure management - SES (inband) - SGPIO (outband) - Shielded state drive diagnostic technology |
- | - | - |
RAID Management | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Fully supported by PRIMERGY ServerView RAID Manager (AURA) for RAID management |
ServerView RAID Manager StorCLI (command-line interface) BIOS Configuration Utility |
ServerView RAID Manager StoreCLI (command-line interface) Crtl + R |
- | - | - |
×
