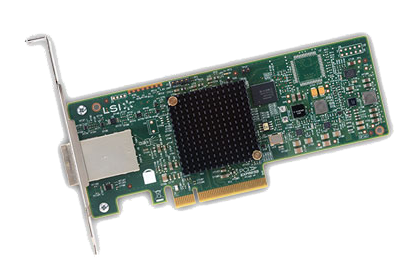

PSAS CP400e
The PSAS CP400e, eight port SAS/SATA host bus adapter provides increased connectivity and maximum performance for high-end servers and applications within internal and external storage. Performance is based on the LSI SAS9300 IO controller, integrating the latest enhancements in SAS and PCI Express 3.0 technology.
Features & Benefits
Características | Benefits |
---|
- 12Gb/s data transfer rate per port
| - 12Gb/s SAS connectivity eases integration and broadens application by supporting legacy speeds and the SATA protocol
|
- Two x4 external mini-SAS HD connectors (SFF-8644)
| - Doubles the performance of previous generation SATA+SAS HBAs
|
- LSI SAS9300 IO Controllers Fusion-MPT 2.5 architecture can achieve more than 320,000 I/Os per second
| - Environmentally friendly due to low-power consumption
|
- Low profile form-factor design
| - Low profile factor ideal for 1U and 2U server
|
Technical details
Controller Silicon | based on LSI SAS3008
|
---|
Connector type | SSF-8644
|
---|
