Best fit for your business partner
Evolving the multi-purpose dot matrix printer
"Wide connectivity through different printe models", "Stylish compact design"

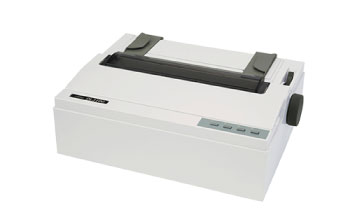

DL3100 Dot Matrix Printer
-
DL3100
-
- 24 wire dot matrix printer
- Achieves incredible reliabity
- Wide connectivity through different printer models
- Stylish compact design
- Amazing multi-copy capability
Variety of Paper Types
- Stock Forms (3.75'' - 10.5'' width)
- Cut Sheet Papers (3.75'' - 10.5'' width)
- Carbon Backed Papers (2P-7P)
-
Stylish Compact design
The design of DL3100 was completely reviewed all the component.
DL3100 is achieved the compactness without any performance degradationi
-
High speed printing
The maximum print speed is up to 450 cps at 10 cpi.
This is achieved through the advanced head control technology.
Flexible connectivity
Standard Interface is USB. There are each interface model suitable for business as follows.
Energy saving
DL3100 Series comply with the New Energy Star Program.
Also, The power consumption is 1.1W or less at the waiting mode and 37W or less at the operation (Average)
Reduced operation Costs
Save money and reduce waste by using Fujitsu's ribbon. Ribbon replacement is quick and easy and does not require any tools.
The consumable costs per page are up to 20 time less than that of other printer types.
(SIDM : Serial Impact Dot Matrix Printer)
Basic Specification
| Print Technology | Bi-directional with logical seeking | |
|---|---|---|
| Speed | High Draft Quality | 450cps(10cpi) |
| Draft Quality | 300cps (10cpi) | |
| Letter Quality | 120cps (10cpi) | |
| Resolution | 360 x 360 dpi *1 | |
| Copy Ability | 5 including original | |
| Emulation (standard) | Original + 4carbonless copies | |
| Max. paper thickness | 0.52mm (0.0204'') | |
| Line Feed Speed | 60ms per 1/6'' line | |
| Form Feed Speed | 4'' per second continuous feed | |
| Continuous Form / Cut Sheet switch function | Manual | |
| Paper thickness adjust function | Manual | |
| Interface | USB | USB Ver.2.0 (TYPE B) |
| Parallel | IEEE1284 Nibble Mode | |
| Serial | RS232C 25pin | |
| LAN | 10BASE-T, 100 Base-TX, TCP/IP Protocol | |
| Emulation | Epson ESC/P2, IBM ProPrinter | |
| Barcode | Code 3 of 9, UPC Type A, UPC Type A with check character, EAN13, EAN8, Interleaved 2 of 5, Code 128,Codabar(NW-7), Matrix 2 of 5, Industrial 2 of 5, POSTNET, UPC-E | |
| Printer Driver | Microsoft Windows Driver Available | |
| Input Buffer | Max. 256KB | |
| Input Voltage | 100V AC to 120V AC ±10%, single phase, 50Hz to 60Hz | |
| 220V AC to 240V AC ±10%, single phase, 50Hz to 60Hz | ||
| Consumption Power | Stan by | 1.4W or Less |
| Average | 34W | |
| Environmental Condition | 5°C to 35°C(41°F to 95°F), 10~80%RH
(Non-condensing) |
|
| Dimension (W×D×H) | 369 x 283 x 146mm | |
| Weight | Approx. 5.5Kg | |
| Noise | Approx. 54dBA / 52dBA(Low noise mode) | |
| Interface type | USB |
|---|---|
| USB+Parallel | |
| USB+Serial | |
| USB+LAN |
About Printer Test Environment with Remote Connection
Even if you do not have DL3100 printer on hand, you can connect to DL3100 printer installed in our company by remote connection and test the actual machine.
This eliminates the requirement to ship and return a printer for printer testing, reduces the requirement for having the space, reduces printer setup, and facilitates printer testing.
For more information about the service, please contact us.
Fujitsu Isotec Limited
E-mail: fit-gsm@cs.jp.fujitsu.com
Download Leaflet (Roll Paper Holder for DL3100)
Download Roll Paper Holder Start Guide

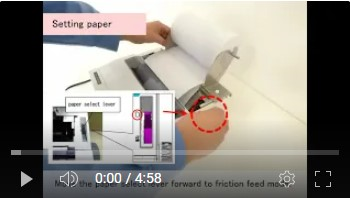

Videos for Setup Guide

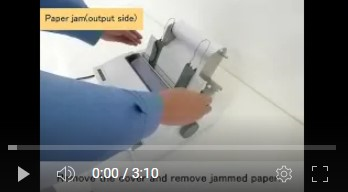

Videos for Trouble Shooting
