DL4850+ offers a superior balance of cost, performance specifications and quality

Cost-effective 136 columns printer suitable for mission critical applications
The optimal balance of specifications and quality
FIT original technology print head

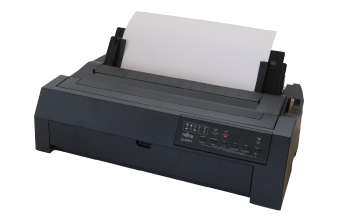

DL4850+ Dot Matrix Printer

  • DL4850+

  • - High speed printing (MAX 600 cps)
    - Ultra-high ribbon life
    (17 M characters)
    - High reliability in history of Fujitsu SIDM printers MTBF – 25,000 hours

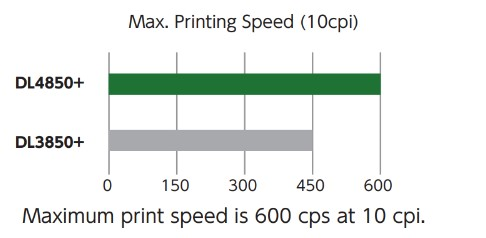

  • High speed printing

    Advanced print head control technology, maximises speed through increased magentic efficiency.

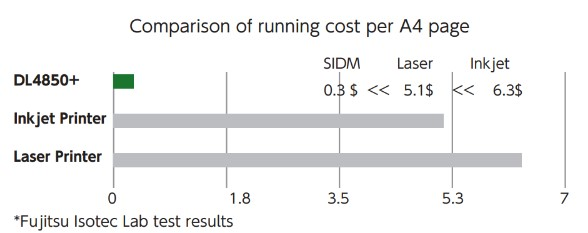

  • Ultra-high ribbon life

    Minimum running cost
    Save money and reduce waste with the 17M character ribbon.
    The highest of any product in this class of printer.
    Likewise the printhead has a capacity of a remarkable 500M characters.
    Ribbon replacement is quick and easy and does not require any tools.

  • High Impact for Multiple Carbon Copies

    The DL4850+ can cover various business application.
    Print up to 7 copies.(*Front & Bottom tractor only)
    High Impact mode enables darker prints with high reproduction capacity.

  • High reliability in history of Fujitsu SIDM printers
    MTBF – 25,000 hours

    Fujitsu dot matrix printers are renowned for their reliability and longevity.
    The DL4850+ has been designed and tested extensively to ensure it meets Fujitsu’s quality standards.
    This results in a class leading MTBF (mean time between failure) of 25,000 hours, ensuring your devices remain available, maximizing up time and the productivity of your organization.

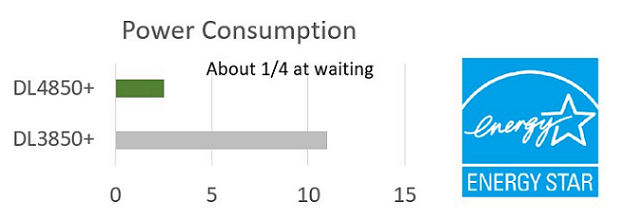

  • Energy saving

    SIDM is a very eco-friendly print technology.
    With power consumption as low as 2.5W or less when online,the DL4850+ complies with Energy Star 3.2

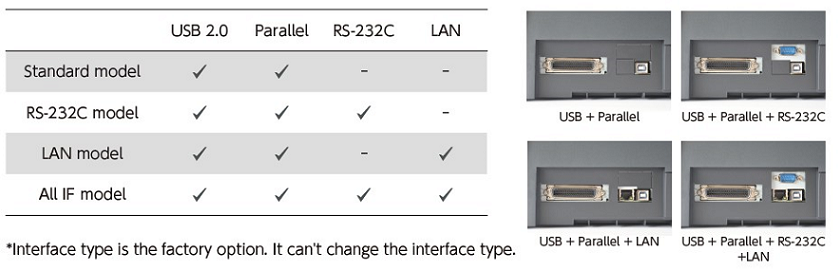

  • Extensive interface support

Basic Specification

Printing Method 24 wire, Impact dot matrix / Wire Size Φ 0.2
Print Direction Bidirectional with logic seeking in text and graphics mode
Printing Column 136 columns (10cpi) / 166 columns (12cpi) / 244 columns (15cpi)
Resolution Maximum Graphics Resolution 360 x360 dpi
Printing Speed Super High Speed Draft Quality 600cps (10cpi), 720cps (12cpi), 900cps(15cpi)
High Speed Draft Quality 480cps (10cpi), 576cps (12cpi), 720cps(15cpi)
Draft Quality 360cps (10cpi), 432cps (12cpi), 540cps(15cpi)
Near Letter Quality 240cps (10cpi), 288cps (12cpi), 360cps(15cpi)
Letter Quality 120cps (10cpi), 144cps (12cpi), 180cps (15cpi)
Number of Copies 1P-7P(Original + 6 copies)
*6P/7P (High Impact mode) *7P is for only Front
Max. Paper Thickness 0.38 mm (Only Front) (*Print assured up to 0.32mm)
Paper Feeding Speed 68ms per 1/6”line (*This speed is for 1P)
Paper Feeding Mechanism Continuous Form Rear in Rear out, Front in Rear out, Bottom in Top out
Cut Sheet Rear in top out, Front in Top out
(*Front in Top out is out of warranty)
Paper Handling Continuous Form Width : 4”to 16”, Length : 4”or more
Cut Sheet Width : 120 mm to 420mm (4.7 inch – 16.5 inch)
Length : 76mm to 420mm (2.9 inch – 16.5 inch)
Emulation (Printer Language) Epson ESC/P2, IBM ProPrinter (Including PPDS,XL24E),
OKI (Barcode ESC DLE, *Will plan to meet specific requirements.)
Interface Standard USB 2.0 + Parallel
Factory's Options RS-232C, LAN
Fonts 8 resident fonts
Character Sets 35 national character sets
Input Buffer Maximum 150kbyte
Software Printer Driver Windows 11 / Windows 10
Windows Server 2022 / Windows Server 2019 / Windows Server 2016
Printer Config Tool Software to set the printer's setup items
MTBF 25,000H (25% duty cycle)
Print Head Life 500 million strokes
Ribbon Life 17 million characters ANK (alphabet, Numeric,Kana) Draft Quality

Specifications are subject to change without notice.

About Printer Test Environment with Remote Connection

Even if you do not have DL4850+ printer on hand, you can connect to DL4850+ printer installed in our company by remote connection and test the actual machine.

This eliminates the requirement to ship and return a printer for printer testing, reduces the requirement for having the space, reduces printer setup, and facilitates printer testing.

For more information about the service, please contact us.
