Reliable, high speed performance and flat structure with a variety of paper paths
8 available paper paths for any printing and paper kinds Fujitsu Isotec Dot Matrix printer
achieves paper path printing to print various paper types for customer's usage.

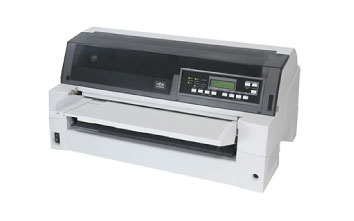

DL7400Pro / DL7600Pro Dot Matrix Printer
-
DL7400Pro
-
DL7600Pro
High speed printing
High reliability Print head
"Not obstruct your operation"
Change the wire diameter from Φ0.20mm to Φ0.21mm
Tough and Strong **Pin breaking strength is twice.
Easy paper set
"Paper set Automatic function"
Easy operation with LCD
"Operator-friendly"
It's cleart and easy to see (New LCD panel type)
**Operation panel Selection**
Eco-friendly (Energy Star progral ver2.0 and Erp Lot6)
Silent printing
"Enable to use the dot matrix printer in your office"
- QUIET mode
- Optimization of the pin drive control
- Sound proof cover (Option)
Acoustic Noise
DL7400Pro 55dBA
DL7600Pro 55dBA
Multi languages fonts
Functional Specifications
| DL7400Pro | DL7600Pro | ||
|---|---|---|---|
| Printing Method | 24 wire, Impact dot matrix | 24 wire, Impact dot matrix / Wire Size Φ0.21 or Φ0.25 - In case of theΦ0.25 wire, the print speed will be slower. |
|
| Print Direction | Bidirectional with logic seeking in text and graphics mode | ||
| Printing Column | 136 columns (10cpi ) / 163 columns ( 12cpi ) / 204 columns ( 15cpi ) | ||
| Resolution | Maximum Graphics Resolution 360 x360 dpi | ||
| Printing Speed | Letter Quality | 120cps (10cpi), 144cps (12cpi), 180cps (15cpi) | 180cps (10cpi), 216cps (12cpi), 270cps ( 15cpi) |
| Report Quality | 240cps (10cpi), 288cps (12cpi), 360cps (15cpi) | 360cps (10cpi), 432cps (12cpi), 540cps( 15cpi) | |
| Draft Quality | 360cps (10cpi), 432cps (12cpi), 540cps (15cpi) | 540cps (10cpi), 648cps (12cpi), 810cps( 15cpi) | |
| High Draft Quality | 505cps (10cpi), 606cps (12cpi), 757cps (15cpi) | 720cps (10cpi), 864cps (12cpi), 1080cps( 15cpi) | |
| Super High Draft Quality | 600cps (10cpi), 720cps (12cpi) Note: additional left and right margin (1””) is necessary, if margin is not enough HDQ speed is selected. |
800cps (10cpi), 960cps (12cpi) | |
| Number of Copies | Original + four copies (At High Copy Mode: Original + Seven copies) | Original + Seven copies (At High Copy Mode: Original + Eight copies) | |
| Max. Paper Thickness | 0.57 mm (0.022”) | 0.65 mm (0.026”) | |
| Paper Feeding Speed | Line Feed | 60 milliseconds per line at 1/6” | 50 millisecond per line at 1/6” |
| Form Feed | 6” per second | 9” per second | |
| Paper Feeding Mechanism | Continuous Form |
|
|
| Cut Sheet |
|
|
|
| Cut Sheet Feeder |
|
|
|
| Paper Handling | Continuous Form | Width : 4” to 16.5”, Length : 4” and more (For Rear, Length : 5” and more) | |
| Cut sheet |
|
|
|
| Others | Envelope, Post card, Label | ||
| Emulation (Printer Language) | Fujitsu DPL24C Plus, Epson ESC/P2, IBM XL24 | ||
| Barcode | Code 3 of 9, UPC Type A, UPC Type A with check character,Codabar(NW7), EAN13, EAN8, Industrial 2 of 5, Matrix 2 of 5,Interleaved 2 of 5, Code 128, POSTNET, UPC-E | ||
| 2D code | QR-code | ||
| Interface | Parallel + Serial I/F Model | IEEE1284, RS232C （No I/F Option） | |
| Parallel + USB I/F Model | IEEE1284, USB 1.1 （Only LAN Card for Option） | ||
| Fonts | 19 resident fonts | ||
| Character Sets | 62 national character sets | ||
| Input Buffer | Max. 128KB | ||
| Acoustic Noise | 59 dB(A) ( Standard paper table) / 55 dB(A) (With Sound proof cover) | 55 dB(A) | |
| Warranty | Printer : 3 year warranty, Print Head : 2 year warranty | ||
| Software | Printer Driver | Printer Drivers applicable for the following Operating System. Windows 10 / Windows 7 / Windows 8 / Windows 8.1 / Windows XP / Windows Vista Windows Server 2012 / Windows Server 2012R2 / Windows Server 2003 / Windows Server 2008 / Windows Server 2008R2 |
|
| DLMENU | Software to set the printer’s setup items | ||
Reliability
| DL7400Pro | DL7600Pro | |
|---|---|---|
| MTBF (Mean-time-between-failure) | 20,000H (25% Duty cycle) | |
| MTTR (Mean-time-to-repair) | 0.5H | |
| Printer Life | 5 million line-feed or 5 years | 7.5 million line-feed or 5 years |
| Consumable Life | Print Head 400 million strokes/wire Black Fabric Ribbon 7.5 million characters (ANK Draft Quality) - The ribbon can be used as DL3750+/3850+ and DL9300/9400. - The ribbon for DL7400 can’t be used as DL7400Pro. - Life is a readable number of characters. It varies depending on the customer's usage environment. |
Print Head Normal mode:400 million strokes/wire High Impact mode: 240 million strokes/wire Black Fabric Ribbon 18 million characters (ANK Draft Quality ) - The ribbon can be used as DL7600. - The ribbon for DL7600 can’t be used as DL7600Pro |
Physical Specifications
| DL7400Pro | DL7600Pro | ||
|---|---|---|---|
| Power Requirements |
100V AC to 120V AC ±10%, 50/60 Hz, Single Phase 220V AC to 240V AC ±10%, 50/60 Hz, Single Phase |
||
| Power Consumption | Maximum 225W Average during operating 120 W During standby 1W or less - Comply Energy Star V2.1 and ErP Lot6 |
Maximum 530W Average during operating 275W During standby 1W or less - Comply Energy Star V2.1 and ErP Lot6 |
|
| Ambient Temperature | 5 degrees to 38 degrees | ||
| Relative Humidity | 20% RH to 80% RH | ||
| Dimensions | Height | 290.0mm (11.42”) | |
| Width | 600.0 mm (23.62”) | ||
| Depth | 350.0 mm (13.78”) | ||
| Weight (without the packing box) | 17Kg (37lb) | 22Kg | |
| Other Function |
HCPP(Host Control Paper Path), APTC(Auto Paper Thickness Control), Interlock - Easy set free function. ( Left margin collection ) - Barcode printing via Windows Driver. - Eco friendly product (Energy Star Ver.2.1 / ErP Lot6, RoHS PB Free). - Silent printing ( Reduce acoustic Noise ) - Backlight LCD Operator Panel can be selected |
||
Option
| LAN Card |  |
|---|---|
| Tractor Unit |  |
| Large Stacker |  |
| Small Paper Table |  |
| Sound Proof Cover |  |
| Paper table |  |
Ribbon
Long-Life Ribbon Cassettes (economical and eco friendly)
DL7400Pro - 7.5 million characters
DL7600Pro - 18 million characters
Print Head
- *1:The spare parts number will be changed
- *2:FIT can provide the special print head, the wire diameter is Φ0.25mm
However, the maximum printing speed will be slowdown. - *3:The P.C.B. is also new.
The diameter of the print head wires (pins) were increased to 0.21 mm to further improve durability while maintaining high speed and fine print quality.
About Printer Test Environment with Remote Connection
Even if you do not have DL7400Pro / DL7600Pro printer on hand, you can connect to DL7400Pro / DL7600Pro printer installed in our company by remote connection and test the actual machine.
This eliminates the requirement to ship and return a printer for printer testing, reduces the requirement for having the space, reduces printer setup, and facilitates printer testing.
For more information about the service, please contact us.
Fujitsu Isotec Limited
E-mail: fit-gsm@cs.jp.fujitsu.com
