Disaster Recovery by Remote Location Backup Remote Copy using iSCSI Interface (Remote Advanced Copy function (REC))

ETERNUS AF/ETERNUS DX (herein after called "ETERNUS") provide an easy installable disaster recovery capability via direct network link.

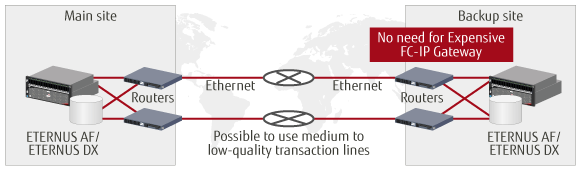

In this case, connection between the ETERNUS is via iSCSI interface over an IP network. This allows ETERNUS to provide a disaster recovery solution at reduced cost, as no tradition appliances such as fibre channel switches and SAN gateways are required.
In addition, ETERNUS AF and ETERNUS DX S2 and later support replication between common models and newer/previous models, as well as N to 1 integrated backup. These capabilities enable flexible system configuration matched to requirements.

• Benefit

  • Able to construct more cost-effective disaster recovery systems

  Product Requirements

  Supported Storages	All-Flash Arrays	ETERNUS AF250 S3/S2, AF250 ETERNUS AF650 S3/S2, AF650 ETERNUS DX200F
  	Hybrid Storage Systems	ETERNUS DX100 S5/S4/S3, DX200 S5/S4/S3 ETERNUS DX500 S5/S4/S3, DX600 S5/S4/S3 ETERNUS DX900 S5 ETERNUS DX8700 S3/S2, DX8900 S4/S3 ETERNUS DX90 S2, DX400 S2 series
  Supported Servers		GlobalServer, Mission Critical IA Server UNIX Server, Industry Standard Servers
  Operational Interface	Mission Critical IA Server UNIX Server Industry Standard Servers	ETERNUS SF AdvancedCopy Manager
  	GlobalServer	Systemwalker StorageMGR GR/CF
