Online high-speed backup - Advanced Copy functions

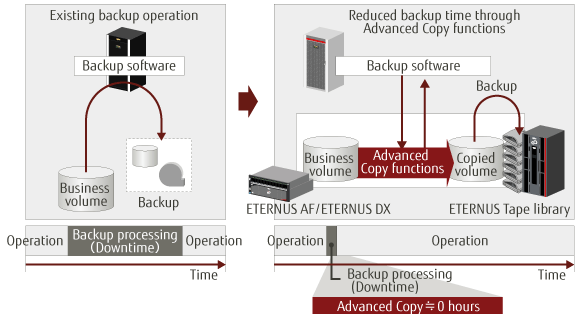

The Advanced Copy functions allow the ETERNUS AF/ETERNUS DX to carry out high-speed copying operations itself, with no need to draw on server CPU resources. With Advanced Copy functions, at any point in time a business data volume can be copied to a separate copy volume, quickly and within the ETERNUS AF/ETERNUS DX . Once the copy is complete, the copy volume can be separated from the business volume ensuring no further updates to the business volume are applied to the copy volume. This allows the copy volume data to be backed up to a tape device, as a point in time copy of the business data, while normal operations continue.

Advanced copy functions1

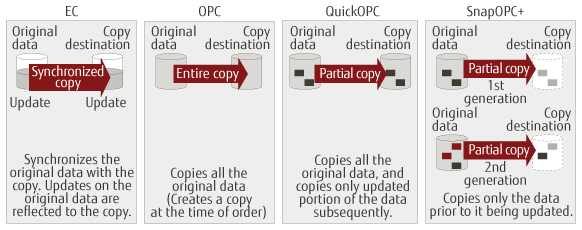

The Advanced Copy functions offer different copy methods: "Mirror Suspend", "Background Copy" and "Copy-on-Write" that are implemented as "Equivalent Copy (EC)", "One Point Copy (OPC)", and "SnapOPC+" functions.
There is also a QuickOPC function, which only copies data that has been updated since the previous update, while the SnapOPC+ function also enables generation management.

EC (Equivalent Copy) function

A function that always creates a synchronized copy of a business data volume on a copy volume (Mirroring method).
The business volume and copy volume are synchronized but can be separated at any required time (mirror suspend). The copy volume can then be backed up to a tape device while business operations continue on the business volume.
Suspend/Resume functions can be used to re-establish the mirror by copying only updated data since the mirror was suspended.

OPC (One Point Copy) function

A function that creates a copy of the business data volume at any point in time (Background Copy).
Data on the business volume is copied logically to a copy volume, quickly, as and when required.
The copy volume can be used for backup operation, to a tape device, without waiting for physical copy completion, while business operations can continue on the business volume.

QuickOPC

A function that creates a copy of all the business data volume and subsequently only copies updated data (Background Copy). This suits large database operation where backup times must be reduced.

SnapOPC

A function that creates a copy of the data prior to it being updated (Copy-on-Write).
As requires less copy volume capacity compared with full backup, SnapOPC is ideal for backup operations for systems with relatively few updates such as file servers.

SnapOPC+

Like SnapOPC, SnapOPC+ only copies the data prior to it being updated on the business volume. However, it enables generation management of the updated data (Copy-on-Write).
As SnapOPC+ doesn't actually store duplicate data but manages it as history information (unlike SnapOPC), disk-based generation backup can be achieved using less copy volume capacity.

Advanced copy functions2

Benefit

  • Non-disruptive backup operations using Advanced Copy functions not only reduce backup processing times but also ensure backup data is always up-to-date.

Product Requirement

Supported Storage Systems

Copy methods Supported Storage
EC
OPC
QuickOPC
SnapOPC
SnapOPC+
ETERNUS AF150 S3 All-Flash Arrays
ETERNUS AF250 S3/S2, AF250 All-Flash Arrays
ETERNUS AF650 S3/S2, AF650 All-Flash Arrays
ETERNUS DX200F All-Flash Arrays
ETERNUS DX60 S5/S4/S3
ETERNUS DX100 S5/S4/S3, DX200 S5/S4/S3 [1]
ETERNUS DX500 S5/S4/S3, DX600 S5/S4/S3 [1]
ETERNUS DX900 S5
ETERNUS DX8700 S3/S2, DX8900 S4/S3
ETERNUS DX60 S2 [2], DX80 S2, DX90 S2
ETERNUS DX400 S2 series

[1] EC, OPC, SnapOPC and SnapOPC+ are available in SAN environments. QuickOPC and SnapOPC+ are available in SAN/NAS environments.

[2] SnapOPC is not supported.

Operational Interface and Supported Servers

Supported Servers Operational Interface Copy methods
GlobalServer Systemwalker StorageMGR GR/CF EC, OPC
Mission Critical IA Server ETERNUS SF AdvancedCopy Manager EC, OPC, QuickOPC, SnapOPC, SnapOPC+
VSS(Volume Shadow copy Service)[1] QuickOPC, SnapOPC+
ETERNUS Web GUI [1]
ETERNUS CLI [1]
SnapOPC+
UNIX server ETERNUS SF AdvancedCopy Manager EC, OPC, QuickOPC, SnapOPC, SnapOPC+
ETERNUS Web GUI [1]
ETERNUS CLI [1]
SnapOPC+
Industry Standard Servers ETERNUS SF AdvancedCopy Manager EC, OPC, QuickOPC, SnapOPC, SnapOPC+
ETERNUS SF Express [2] SnapOPC+
VSS(Volume Shadow copy Service)[1] QuickOPC, SnapOPC+
ETERNUS Web GUI [1]
ETERNUS CLI [1]
SnapOPC+

[1] Up to 8 sessions of this function are available for free with ETERNUS AF150 S3, AF250 S3/S2, AF250, DX200F , DX60 S5/S4/S3/S2, DX100 S5/S4/S3, DX200 S5/S4/S3 and DX80 S2/DX90 S2.

[2] Please refere to the ETERNUS Express operating environment for supported storage for this software.
