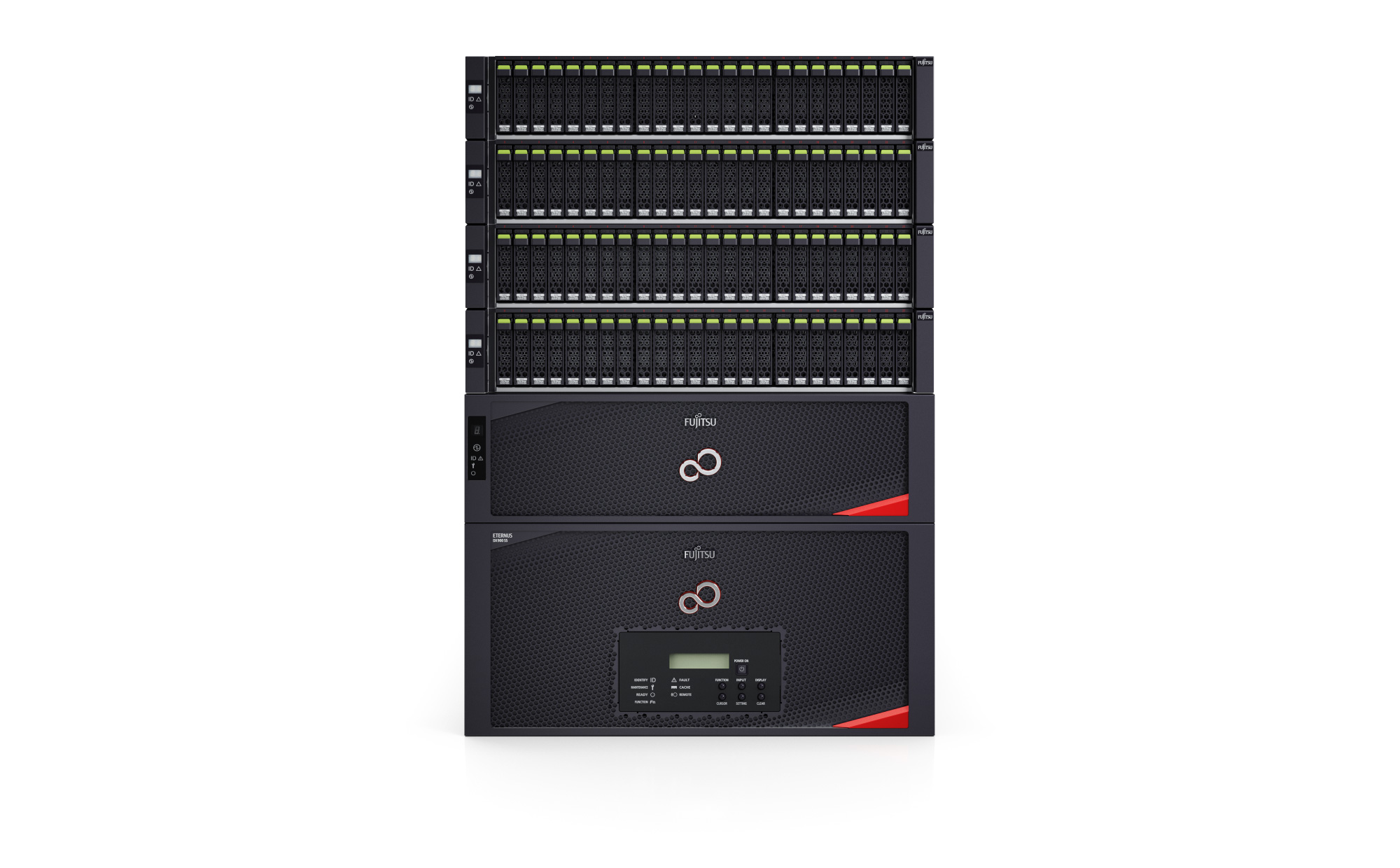

Fujitsu Storage ETERNUS DX900 S5

Fujitsu Storage ETERNUS DX900 S5

  • Enterprise-grade, midrange hybrid storage system that offers modular scalability, leading performance headroom and relentless business continuity capabilities
  • Max No. of controllers: 4
  • Max No. of drives: 2,304
  • Maximum storage capacity of up to 70,778 TB
  • Random access performance of up to 1.8 Million IOPS

More Details
ImgPlaceholder ImgPlaceholder ImgPlaceholder ImgPlaceholder
Flexible scalability in capacity and performance
Relentless Business continuity
Automated Management of Data Service Levels
Transition to a Full Flash Data Center

Future-proof scale-out architecture and upgrade options meet current and future business requirements. Flexible combination of flash and disk media allow for different workloads of deployments and NVMe cache provides highest performance. The perfect system for data center storage consolidation.

Avoid planned or unplanned downtimes with replication and Storage Cluster. High redundancies enable business critical computing, data processing and real time data mirroring at the highest level and a system availability of up to 99.9999%. Intelligent snapshot functionality supports secure backups.

Control application priorities according to business needs, minimize admin efforts, automate monitoring and adjustment to guarantee service levels and compress data without performance impact.

Flash-optimized data center storage system with complete management compatibility using ETERNUS SF software
  • ImgPlaceholder
    Flexible scalability in capacity and performance
    Future-proof scale-out architecture and upgrade options meet current and future business requirements. Flexible combination of flash and disk media allow for different workloads of deployments and NVMe cache provides highest performance. The perfect system for data center storage consolidation.
  • ImgPlaceholder
    Relentless Business continuity
    Avoid planned or unplanned downtimes with replication and Storage Cluster. High redundancies enable business critical computing, data processing and real time data mirroring at the highest level and a system availability of up to 99.9999%. Intelligent snapshot functionality supports secure backups.
  • ImgPlaceholder
    Automated Management of Data Service Levels
    Control application priorities according to business needs, minimize admin efforts, automate monitoring and adjustment to guarantee service levels and compress data without performance impact.
  • ImgPlaceholder
    Transition to a Full Flash Data Center
    Flash-optimized data center storage system with complete management compatibility using ETERNUS SF software

Tech Specs

Type Unified disk storage system for small and mid-range enterprises
Latency 140µsec (Read), 60µsec (Write)
Sequential access performance 44,000 MB/s (128KB Read)
22,000 MB/s (128KB Write)
Random access performance 1,800,000 IOPS (8KB Read)
870,000 IOPS (8KB Write)
Host Interfaces Fibre Channel (16 Gbit/s, 32Gbit/s)
iSCSI (10Gbit/s [10GBASE-SR, 10GBASE-CR])
iSCSI (1 Gbit/s)
Maximum Disk Drives 2,304
Max. no. of SSDs unlimited
Maximum Storage Capacity HDD 40,723 TB
Maximum Storage Capacity SSD 70,778 TB
No. of host interfaces 4-64 ports [FC(32Gbit/s,16Gbit/s)], 4-32 ports [iSCSI(10Gbit/s,1Gbit/s)]
Max. no. of hosts 8,192
Supported RAID levels 0, 1, 1+0, 5, 5+0, 6
Drive interface Serial Attached SCSI (12 Gbit/s)
Thin Provisioning Yes
Automated Storage Tiering Yes
Remote Copy functionality Synchronous and asynchronous
Support Pack Options Available in major metropolitan areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)
 Recommended Service 24x7, Onsite Response Time: 4h
Support Pack Options Available in major metropolitan areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)
Recommended Service 24x7, Onsite Response Time: 4h

Read full specs

Software

FUJITSU ETERNUS SF V16.9
Storage Management Software

ETERNUS SF storage management software supports overall daily operations within the entire ETERNUS AF and ETERNUS DX storage infrastructure by offering an easy-to-use graphical user interface for all management tasks,like health monitoring, capacity management, provisioning, local and remote replication and disaster recovery as well as the management of unified storage. At the same time it reduces significantly administrator’s training efforts with regards to cost and time.

Fujitsu Storage ETERNUS Multipath Driver
(only available for APAC region)

ETERNUS Multipath Driver software achieves high-reliability and performance systems due to multipath connection between storages and servers. In case of path failure ETERNUS Mutpath Driver switches the access path to improves system reliability. In addition, further improved system performance is ensured by the load balancing function between multiple paths.

Show all in the data sheet
