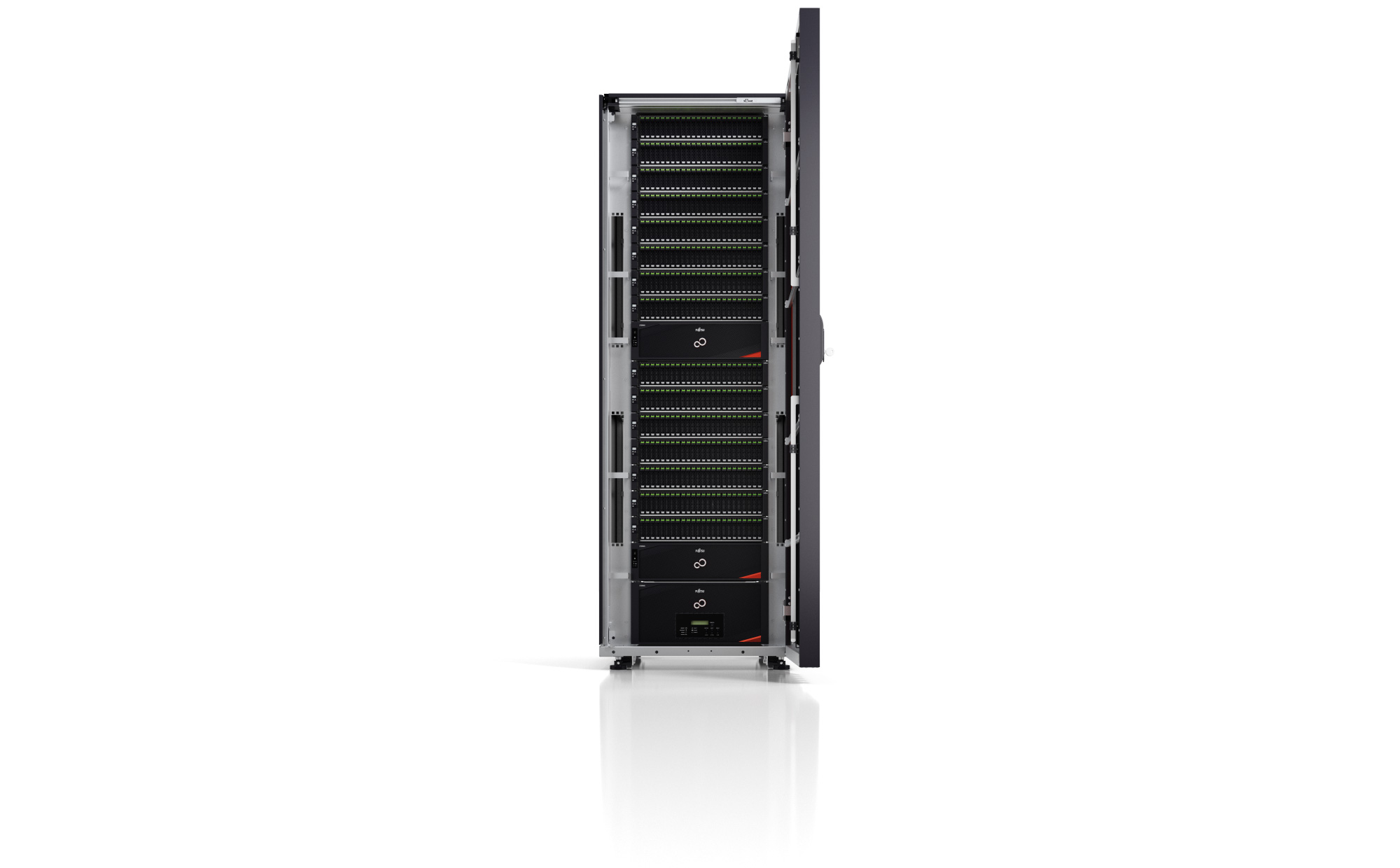

Fujitsu Storage ETERNUS DX8900 S4

Fujitsu Storage ETERNUS DX8900 S4

  • Enterprise-level purpose built hybrid storage platform to consolidate storage in large data centers, offering modular scalability, leading performance headroom and relentless business continuity capabilities
  • Max No. of controllers: 24
  • Max No. of drives: 6,912
  • Maximum storage capacity of up to 141,558 TB
  • Random access performance of up to 10 Million IOPS

ImgPlaceholder ImgPlaceholder ImgPlaceholder ImgPlaceholder
Flexible scalability in capacity and performance
Relentless Business continuity
Automated Management of Data Service Levels
Transition to a Full Flash Data Center

Future-proof scale-out architecture and upgrade options meet current and future business requirements. Flexible combination of flash and disk media allow for different workloads of deployments and NVMe cache provides highest performance. The perfect system for data center storage consolidation.

Avoid planned or unplanned downtimes with replication and Storage Cluster. Transparent failover allows 100% data insurance and non-stop operations, as well as a system availability of up to 99.9999%. Intelligent snapshot functionality supports secure backups.

Control application priorities according to business needs, minimize admin efforts, automate monitoring and adjustment to guarantee service levels and compress data without performance impact.

Flash-optimized data center storage system with complete management compatibility using ETERNUS SF Management software

  • ImgPlaceholder
    Flexible scalability in capacity and performance
    Future-proof scale-out architecture and upgrade options meet current and future business requirements. Flexible combination of flash and disk media allow for different workloads of deployments and NVMe cache provides highest performance. The perfect system for data center storage consolidation.
  • ImgPlaceholder
    Relentless Business continuity
    Avoid planned or unplanned downtimes with replication and Storage Cluster. Transparent failover allows 100% data insurance and non-stop operations, as well as a system availability of up to 99.9999%. Intelligent snapshot functionality supports secure backups.
  • ImgPlaceholder
    Automated Management of Data Service Levels
    Control application priorities according to business needs, minimize admin efforts, automate monitoring and adjustment to guarantee service levels and compress data without performance impact.
  • ImgPlaceholder
    Transition to a Full Flash Data Center
    Flash-optimized data center storage system with complete management compatibility using ETERNUS SF Management software

Tech Specs

Type High-end disk storage system for large enterprises
Random access performance 10M IOPS
(8KB Random Read Miss)
Host Interfaces Fibre Channel (16 Gbit/s, 32Gbit/s)
iSCSI (10 Gbit/s, 1 Gbit/s)
Maximum Disk Drives 6,912
Maximum Disk Drives SSD, SAS and Nearline SAS in a mixed configuration (3.5" / 2.5")
Max. no. of SSDs unlimited
Maximum Storage Capacity HDD 119.92 PB
Maximum Storage Capacity SSD 141.56 PB
No. of host interfaces 4-384 ports [FC(32Gbit/s, 16Gbit/s)], 4-192 ports [iSCSI(10Gbit/s, 1Gbit/s)]
Max. no. of hosts 8,192
Supported RAID levels 0, 1, 1+0, 5, 5+0, 6
Drive interface Serial Attached SCSI (12 Gbit/s)
Thin Provisioning Yes
Automated Storage Tiering Yes
Remote Copy functionality Synchronous and asynchronous
Support Pack Options Available in major metropolitan areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)
Recommended Service 24x7, Onsite Response Time: 4h
Support Pack Options Available in major metropolitan areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)
Recommended Service 24x7, Onsite Response Time: 4h

Software

FUJITSU ETERNUS SF V16.9
Storage Management Software

ETERNUS SF storage management software supports overall daily operations within the entire ETERNUS AF and ETERNUS DX storage infrastructure by offering an easy-to-use graphical user interface for all management tasks,like health monitoring, capacity management, provisioning, local and remote replication and disaster recovery as well as the management of unified storage. At the same time it reduces significantly administrator’s training efforts with regards to cost and time.

Fujitsu Storage ETERNUS Multipath Driver
(only available for APAC region)

ETERNUS Multipath Driver software achieves high-reliability and performance systems due to multipath connection between storages and servers. In case of path failure ETERNUS Mutpath Driver switches the access path to improves system reliability. In addition, further improved system performance is ensured by the load balancing function between multiple paths.
