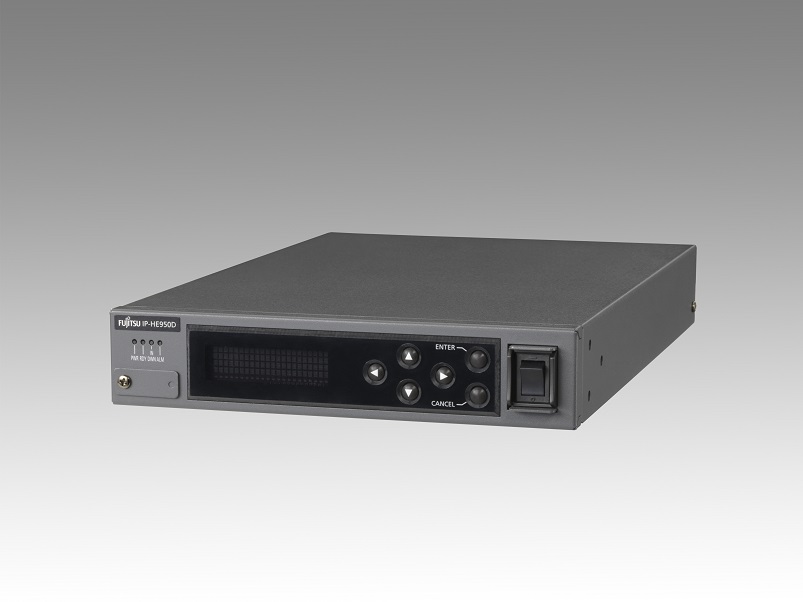

IP-HE950D


Larger View (41 KB)　 Data Sheet (426 KB)

Overview

  • IP-HE950D is a video decoder adopted highly efficient video encoding technology “H.265/HEVC”.
  • H.265/HEVC realizes 2 times compression ratio than H.264/AVC. 1U half rack size small chassis with high performance LSI will realize real-time 4K contribution.
  • IP-HE950D incorporating HEVC/H.265 technology is covered by one or more claims of the HEVC patents listed at patentlist.accessadvance.com.

Features

1U half size chassis

1U half rack size chassis with front panel and keys will realizes PC less operation.

SD~4K Video

SD~HD transmission as basic function and 4K transmission as optional function will be supported. User can install as HD model first, then can upgrade to 4K later based on changing its market requirement. This will realize user’s efficient investment.
In addition, Decoder recognizes receiving stream formats automatically and decodes to output video. HDx4ch multi-channel transmission is also available with IP-HE950E.

Variable I/O Interface

Onboard BNC supports 12G/3G/HD/SD-SDI video signals. In addition, support SFP for other new interface such as HDMI and Video over IP. Analog audio is also supported.

Robust Network Error Correction

Fujitsu proprietary FEC and ARQ combination proven by Fujitsu IP series and standardized SMPTE-2022-1 FEC will provide robust network error correction. In addition, 2 LAN port for IP network redundancy provides robust network error tolerance by using different IP network.

Note: These key features include future enhancement.

Specifications

Model IP-HE950D (Decoder)
Video coding H.265/HEVC
□ Profile : Main422 10*, Main 10, Main　　　　　□ Level : 5.1*, 4.1, 4.0
□ Resolution (Frequency) : 2160p x 3840 (29.97/50/59.94Hz)*, 1080i x 1920 (50/59.94Hz) x 4ch*
　1080p x 1920 (50/59.94Hz), 1080i x 1920/1440 (50/59.94Hz),
　720p x 1280 (50/59.94Hz), 480i x 720 (59.94Hz), 576i x 720 (50Hz)
H.264/MPEG-4 AVC
□ Profile : High422*, High, Main　　　　　　　　□ Level : 4.2, 4.0
□ Resolution (Frequency) : 1080p x 1920 (50/59.94Hz), 1080i x 1920/1440 (50/59.94Hz),
　720p x 1280 (50/59.94Hz), 480i x 720 (59.94Hz), 576i x 720 (50Hz)
MPEG-2
□ Profile : Main　　　　　□ Level : High
□ Resolution (Frequency) : 1080i x 1920/1440 (50/59.94Hz), 720p x 1280 (50/59.94Hz)
Audio coding MPEG-1 Layer2, MPEG-2 AAC LC, SMPTE 302M , MPEG-4 AAC LC, MPEG-4 AAC-ELD
4ch, 8ch*, 5.1ch
Ancillary data SMPTE 2038*, ARIB STD-B40*
Streaming protocol RTP, UDP, Unicast, Multicast(IGMPv3/IPv4, MLDv2/IPv6)
Error correction(IP) FEC, ARQ, SMPTE 2022-1, IP network redundancy*
Encryption BISS-1 / E
Audio & Video I/F 1 x 12G*/3G/HD/SD-SDI output
Analog (Balanced) stereo output (2ch)*
2 x SFP I/F(Quad 3G/HD-SDI output*, SDI output(Additional output)*)
1 x Reference input, 1 x Reference output
Streaming I/F 2 x 10BASE-T/100BASE-TX/1000BASE-T(Stream & Control)
1 x DVB-ASI input
AUX data 1 x RS-232C/RS-422
Control Front Panel / Web GUI / SNMP
Dimensions 210(W) x 300(D) x 43(H) mm
Weight Approx. 2.5kg
Power supply AC 100 - 240V
Power consumption 87W max.
Operating Environment -10 ~ 55°C (Except under 0°C start) / 20 ~ 90RH (No condensation)
Compliance UL / CE / KC / Mexico CofC

*: Optional function
