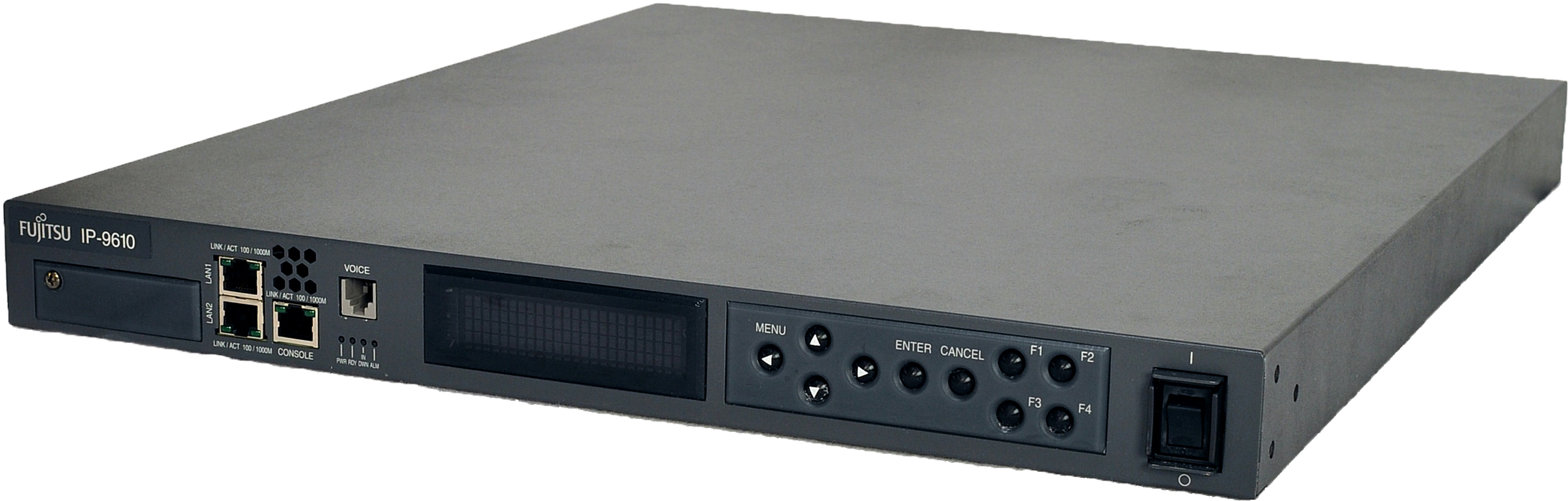

IP-9610
Larger View (728 KB)
Data Sheet (245 KB)
Overview
The main functions of IP-9610 are:
- Support 10 bit 4：2：2 1080p
- 3G Video Input
- Ultra Low Latency *Optional
- NIT (Carrier ID) support for Satellite Transmission
- Transmit Compressed video for 2 channels with Multiple Programs
- Multi-Audio (Max 16ch)
- Robust Error Correction (FEC/ARQ)
- Easy Operation
Features
Enhanced new IP-9610 supports NIT (Carrier ID) for satellite video transmission. This new feature is suitable for global video transmission opportunities among plural countries. In addition, Ultra low latency mode (approx. 99ms) option and bit rate expansion up to 100 Mbps (video bit rate) enable speedy video streaming with keeping the high fidelity. These new features enable to stream video seamlessly and simultaneously and you would not have to feel the distances through the video from your site.
Fujitsu IP-9610 can transmit High Definition video using IP network and Satellite. The codec supports 1080p and 10 bit 4:2:2 color format from original ASIC. It suceeds Fujitsu Proprietary chroma-scalable coded CSC4:2:2. You can choose available functions with using flexible module structure of IP-9610. Compared with interlace video, 1080p enables to enhance your video fidelity. Also, IP-9610 enables you to 3G-SDI input/output and Dual-Link SDI. You can provide high-leveled video fidelity for high-speed transitional video with high resolution. Furthermore, you can output from ASI syncronizing 2ch's video as MPTS. This enables you to apply for 3D video distribution and concurrent sending of multiple programs.
In addition to new features above, IP-9610 succeeds functions of existing IP series.
IP-9610 has a robust error correction feature with combination of FEC (Forward Error Correction) and ARQ (Automatic Repeat request) which is Fujitsu proprietary methods.This offers powerful network error correction. Also, you can input using various audio encoding (MPEG-1, AAC, HE-AAC）. You can distribute multiple numbers of channels and the maximum is 16 channels per video channel. Compared with IP-9500 series, 4 function keys of front panel are added and they enables you to assign a shortcut for your own. Also, you can access from WEB to control the equipment. Compared with former versions of Fujitsu IP products, you can control and operate much easier with using the front panel and Web GUI.
Specifications
| Model | IP-9610 | |
|---|---|---|
| Chassis | Single channel unit | Single Encoder Single Decoder |
| Multi channel unit | Multi Encoder Multi Decoder Codec |
|
| Video | SDI Input board/ Encoder*2, Codec | 1 x 3G *1/HD/SD-SDI Input (SMPTE 424M/292M/259M) 1 x 3G *1/ HD/SD-SDI Output (Loop-thru) ※Support Dual-Link SDI (SMPTE 372M) using 2 boards |
| SDI Output board/ Decoder*2, Codec | 2 x 3G/ HD/ SD-SDI Output (SMPTE 424M/292M/259M)
*Support Dual-Link SDI (SMPTE 372M) using 2 boards |
|
| Coding | ITU-T H.264/MPEG-4 AVC (ISO/IEC 14496-10)
High422@L4.2, HP@L4, High422@L3, HP@L3, CSC422 |
|
| Resolution, Frequency, Bit Rate | 1080p x 1920/1440/960 (50/59.94/60Hz) *1 1Mbps - 100Mbps
1080i x 1920/1440/960 (50/59.94/60Hz) 500Kbps - 100Mbps 720p x 1280/960/640 (50/59.94/60Hz) 500Kbps - 100Mbps 480i x 720/352 (59.94Hz), 576i x 720/352 (50Hz) 150Kbps - 100Mbps |
|
| Reference | 1 x Reference Input (Tri-sync/Bi-sync)*3
1 x Reference Output (Decoder Synchronization)*3 |
|
| Audio | SDI Input Board/Encoder*2 | 1 x SDI Embedded Input (SMPTE 299M/272M)
1 x SDI Embedded Output (Loop-thru) |
| SDI Output Board/Decoder*2 | 2 x SDI Embedded Output (SMPTE 299M/272M)
|
|
| Coding (16ch) | MPEG-1 Layer2 (Mono, Dual mono, Stereo)
MPEG-2/4 AAC*4, MPEG-4 HE-AAC V1*4 (Mono, Dual mono, Stereo, 5.1ch) Pass-thru (SMPTE-302M, AC-3/ATSC, AC-3/DVB) |
|
| Intercom | 1 x Input/ Output : G.711 | |
| Multiplexing Method | 1 x MPEG-2 TTS/MPEG-2 TS,
2 X MPEG-2 TTS/MPEG-2 TS*5 (SPTS/MPTS) |
|
| Ancillary Data | Private PES (SMPTE RDD 11-2007), DID/SDID filtering, ATSC Annex F (Closed Caption)
NIT (Carrier ID), SDT |
|
| AUX Data | 2 x RS-232C/RS-422 Pass-thru
|
|
| Console | 1 x 10BASE-T/100BASE-TX/1000BASE-T
|
|
| LAN | Interface | 2 x 10BASE-T/100BASE-TX/1000BASE-T
|
| Protocol | IPv4/IPv6, HTTP, SNMP, SNTP, RTP, UDP
|
|
| Error Correction | Fujitsu FEC & ARQ, SMPTE2022-1 | |
| DVB-ASI | Interface | 2 x DVB-ASI Output
1 x DVB-ASI Input*3 |
| Encryption | BISS mode 1/mode E*6
|
|
| Control | Display + Key
(up, down, left, right, enter, cancel, 4 x function-key), Web-GUI, SNMP |
|
| External Dimensions
(W x D x H) |
425 x 500 x 43mm (w/o protrusions) | |
| Weight | Approx. 7.0 kg
|
|
| Power | AC100 - 240V
|
|
| Power Consumption | 100 - 170VA (Depends on the structure)
|
|
| Temperature | 0 - 50 degrees C
|
|
| Humidity | 20 - 90RH (No condensations) | |
| Compliance | UL, CE, FCC, RoHS, KC | |
*1: Need "3G Option"
*2: Up to 2 boards can be installed
*3: Function of Decoder and Codec
*4: Need "AAC Encode Option" at Encoder
*5: Function of Multi Encoder and Multi Decoder
*6: Need "BISS scrambler Option" at Encoder
※3G input supports "Level-A/B" and 3G output supports "Level-A".
***Information in this page is subject to change without notice.
