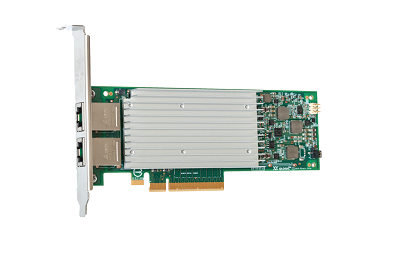

FUJITSU PLAN EP QL41112 2X 10GBASE-T

FUJITSU PLAN EP QL41112 2X 10GBASE-T

  • Powerful 10G Ethernet network adapter with both iWARP and RoCE RDMA
  • Compared to other 10GbE solutions, NPAR technology unique to this adapter provides switch-independent network partitioning
  • Integrated, advanced networking eliminates I/O bottlenecks and conserves CPU cycles

More Details
ImgPlaceholder ImgPlaceholder ImgPlaceholder ImgPlaceholder
Scalable performance
Flexible technology support
Efficient networking
Connectivity

Delivers full line-rate 10GbE performance across both ports.10G/1G Autonegotiation. Boosts host CPU efficiency with hardware offloads for GRE, NVGRE, and VXLAN tunnels. NPAR is unique to this adapter and allows network partitioning

Delivers choice and flexibility with concurrent support for RoCE v2 and iWARP technologies; Recommended as a discrete PCIe adapter for scale-up of Fujitsu's default DynamicLoM iWARP adapter capabilities

Increase VM density and accelerate multitenant networks with full offload for tunneling protocols; iSCSI Boot will be commercially supported once the server UEFI is implemented

Enables provisioning of 10GbE ports for greater deployment flexibility through switch-independent NIC partitioning, Microsoft Windows Server, VMware ESXi, SLES, and RHEL
  • ImgPlaceholder
    Scalable performance
    Delivers full line-rate 10GbE performance across both ports.10G/1G Autonegotiation. Boosts host CPU efficiency with hardware offloads for GRE, NVGRE, and VXLAN tunnels. NPAR is unique to this adapter and allows network partitioning
  • ImgPlaceholder
    Flexible technology support
    Delivers choice and flexibility with concurrent support for RoCE v2 and iWARP technologies; Recommended as a discrete PCIe adapter for scale-up of Fujitsu's default DynamicLoM iWARP adapter capabilities
  • ImgPlaceholder
    Efficient networking
    Increase VM density and accelerate multitenant networks with full offload for tunneling protocols; iSCSI Boot will be commercially supported once the server UEFI is implemented
  • ImgPlaceholder
    Connectivity
    Enables provisioning of 10GbE ports for greater deployment flexibility through switch-independent NIC partitioning, Microsoft Windows Server, VMware ESXi, SLES, and RHEL

Tech Specs

Controller Silicon Marvell(R) FastLinQ(TM) QL41112 10G Dual-Port Gigabit Ethernet Controller
10 Gbit/s
Connector type RJ45
Number of Connectors 2
Auto Negotiation support Yes
Bus transfer rate 8GT/s
Network protocol and standards compatibility IEEE 802.1q VLAN, IEEE 802.1Qaz Enhanced Transmission Selection (ETS), IEEE 802.1Qbb Priority Flow Control (PFC), IEEE 802.3x Flow Control, IPv4, IPv6 and mixed IPv4/IPv6 network protocols
LAN controller notes This Ethernet network adapter supports 10GBASE-T and 1000BASE-T eco-systems and provides two RJ45 interfaces.
HW Virtualization SR-IOV: up to 240 virtual functions, 120 per port, NPAR: up to 16 physical functions, 8 per port
Offloading - TCP Stateless Offloads (include checksum, TSO, TSS, RSS, and RSC)
- TX/RX IP, TCP & UDP checksum offload (IPv4, IPv6) capabilities
Additional features Microsoft SDDC PREMIUM and STANDARD Logo Qualifiers for e.g., Storage Spaces Direct
Service Weblink https://www.fujitsu.com/emeia/support/
Support Pack Options Globally available in major business areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)
 Recommended Service 24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner.
Support Pack Options Globally available in major business areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)
Recommended Service 24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner.

Read full specs
