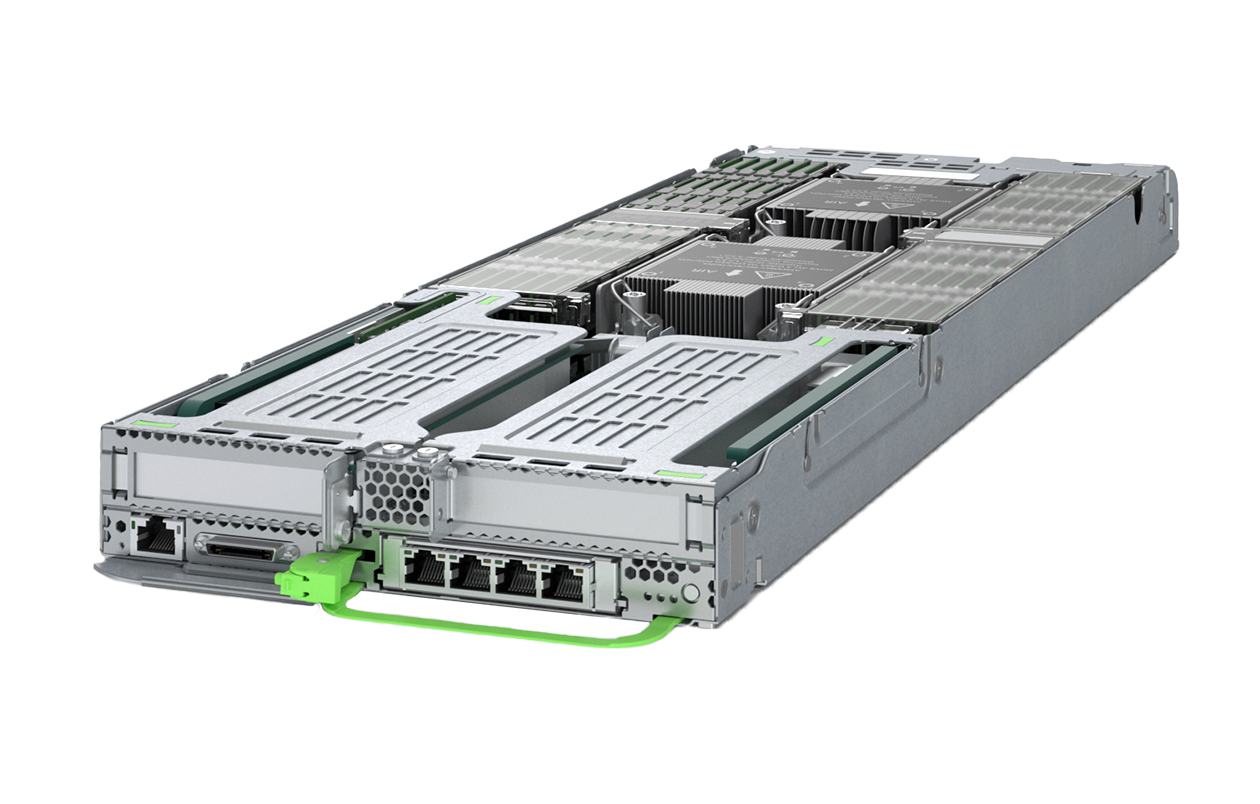

FUJITSU Server PRIMERGY CX2560 M6

FUJITSU Server PRIMERGY CX2560 M6

  • Ideal solution for virtualization and cloud scenarios with maximum power and security
  • 3rd generation of Intel® Xeon® Processor Scalable Family brings the highest performance
  • 24 memory slots supporting up to 3TB with DDR4 DIMM modules (up to 2 TB in combination with PMem)
  • Gain storage flexibility 6 (4x SATA/SAS + 2x (SATA/PCIeSSD) or 6 PCIeSSD per node
  • DynamicLoM adapter via OCP V3 and 3 new PCIe 4th Generation slots

자세히 보기
ImgPlaceholder ImgPlaceholder ImgPlaceholder ImgPlaceholder
Compact and modular foundation
High performance on a small footprint
Increased power with lower consumption
Easy Expandability

With PRIMERGY CX400 M6 together with the CX2560 M6 node, you get much more server density in combination with high performance and best of data secure. It is the ideal solution for virtualization and cloud scenarios. In case the requirements change, it is possible to gradually add or remove server nodes as required by your business needs.

Ready for the future and data growth scenarios with the performance of up to two processors per node. Make the standard of tomorrow with an increase in computing power. With the new Intel® Xeon® processor generation, you get more performance on a small density.

With DDR4 and the Intel® Optane™ persistent memory the CX2560 M6 delivers a unique combination of affordable large capacity and high performance. It helps businesses drive innovation, process more data and make better decisions while lowering total cost and protecting data.

Be ready for future changes and combine high-performance PCIeSSD with normal SATA/SAS drive or choose only the PCIeSSD for your IT environment. No matter what, you will not only reduce latency but also improve the data transfer speed of your IT infrastructure.

  • ImgPlaceholder
    Compact and modular foundation
    With PRIMERGY CX400 M6 together with the CX2560 M6 node, you get much more server density in combination with high performance and best of data secure. It is the ideal solution for virtualization and cloud scenarios. In case the requirements change, it is possible to gradually add or remove server nodes as required by your business needs.
  • ImgPlaceholder
    High performance on a small footprint
    Ready for the future and data growth scenarios with the performance of up to two processors per node. Make the standard of tomorrow with an increase in computing power. With the new Intel® Xeon® processor generation, you get more performance on a small density.
  • ImgPlaceholder
    Increased power with lower consumption
    With DDR4 and the Intel® Optane™ persistent memory the CX2560 M6 delivers a unique combination of affordable large capacity and high performance. It helps businesses drive innovation, process more data and make better decisions while lowering total cost and protecting data.
  • ImgPlaceholder
    Easy Expandability
    Be ready for future changes and combine high-performance PCIeSSD with normal SATA/SAS drive or choose only the PCIeSSD for your IT environment. No matter what, you will not only reduce latency but also improve the data transfer speed of your IT infrastructure.

Product Video

Tech Specs

Chipset Intel® C621A
Mainboard type D 3894
Product Type Dual Socket 1U Server Node
Processor Intel® Xeon® Silver 43xx processor, Intel® Xeon® Gold 53xx processor
Memory 8 GB - 3 TB, DIMM (DDR4 RDIMM, LRDIMM and Intel® Optane™ PMem)
Memory slots 24 (12 DIMMs per CPU, 8 channels with 2 slots per channel)
Memory protection ECC, Memory Scrubbing, SDDC, ADDDC (Adaptive Double DRAM Device Correction), Memory Mirroring support
PCI-Express 4.0 x16 2 x x low profile PCIe 4.0 x16 slots (via riser card)
Storage drive bays up to 6x 2.5-inch drive bay per node (in the PRIMERGY CX400 M6 chassis), and 2x M.2 device (in the CX2560 M6 node)
LAN Controller Intel X550 (Onboard LAN) (on D3894-A1x)
10/100/1000/10000 Mbit/s Ethernet
Remote Management IPMI 2.0 compatible, Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller)
USB ports 2 x USB 3.0 (rear) with high density connector
Graphics 1 x VGA (1x rear) with high density connector
Management LAN (RJ45) Management LAN traffic can be switched to shared onboard Gbit LAN port
Trusted Platform Module (TPM) optional TPM
Weight 4.9 kg
DC Infrastructure Management Infrastructure Manager (ISM)
Essential Edition
Advanced Edition
Server Management ServerView Suite, Infrastructure Manager (ISM)
Essential Edition
Advanced Edition
Operating system http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473
Warranty period 3 years
Warranty type Onsite warranty
Service Lifecycle at least 5 years after shipment, for details see https://support.ts.fujitsu.com/
Service Weblink https://www.fujitsu.com/emeia/support/
Service Weblink https://www.fujitsu.com/emeia/support/
Recommended Service 24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner.
Recommended Service 24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner.

Read full specs
