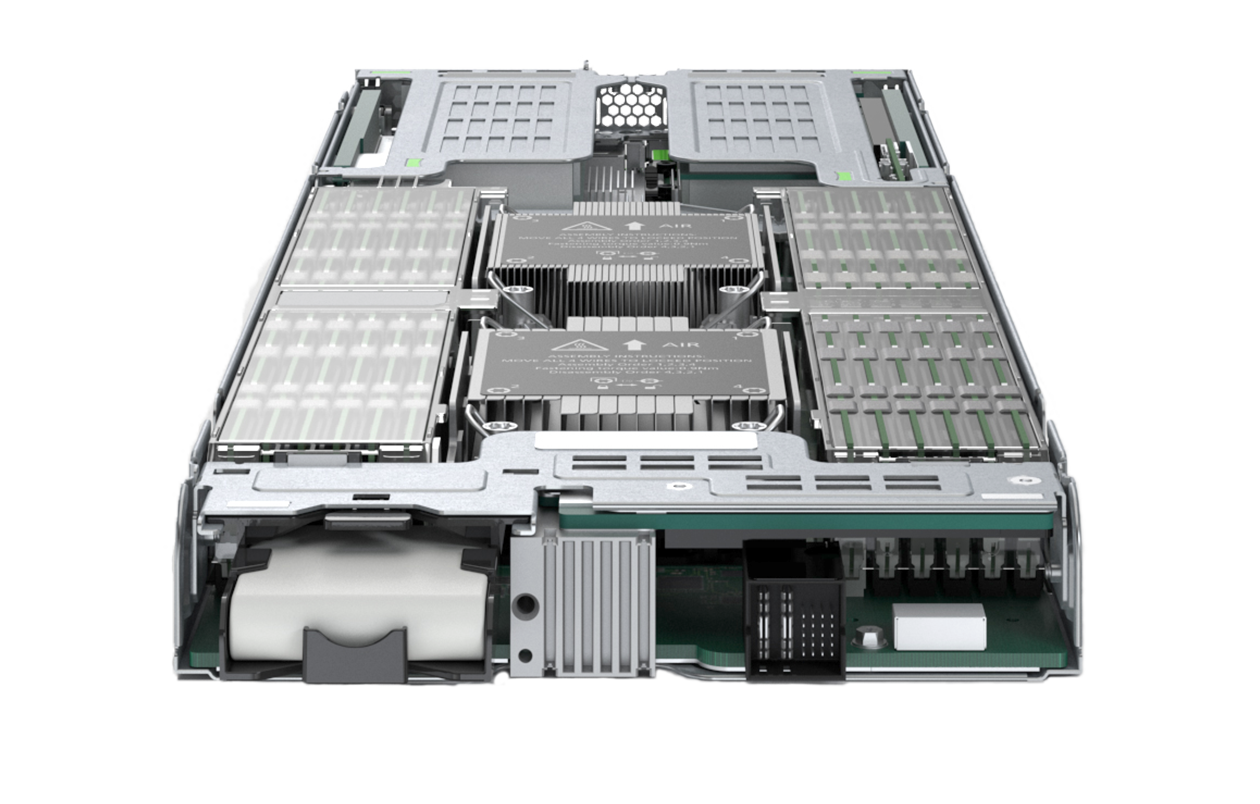

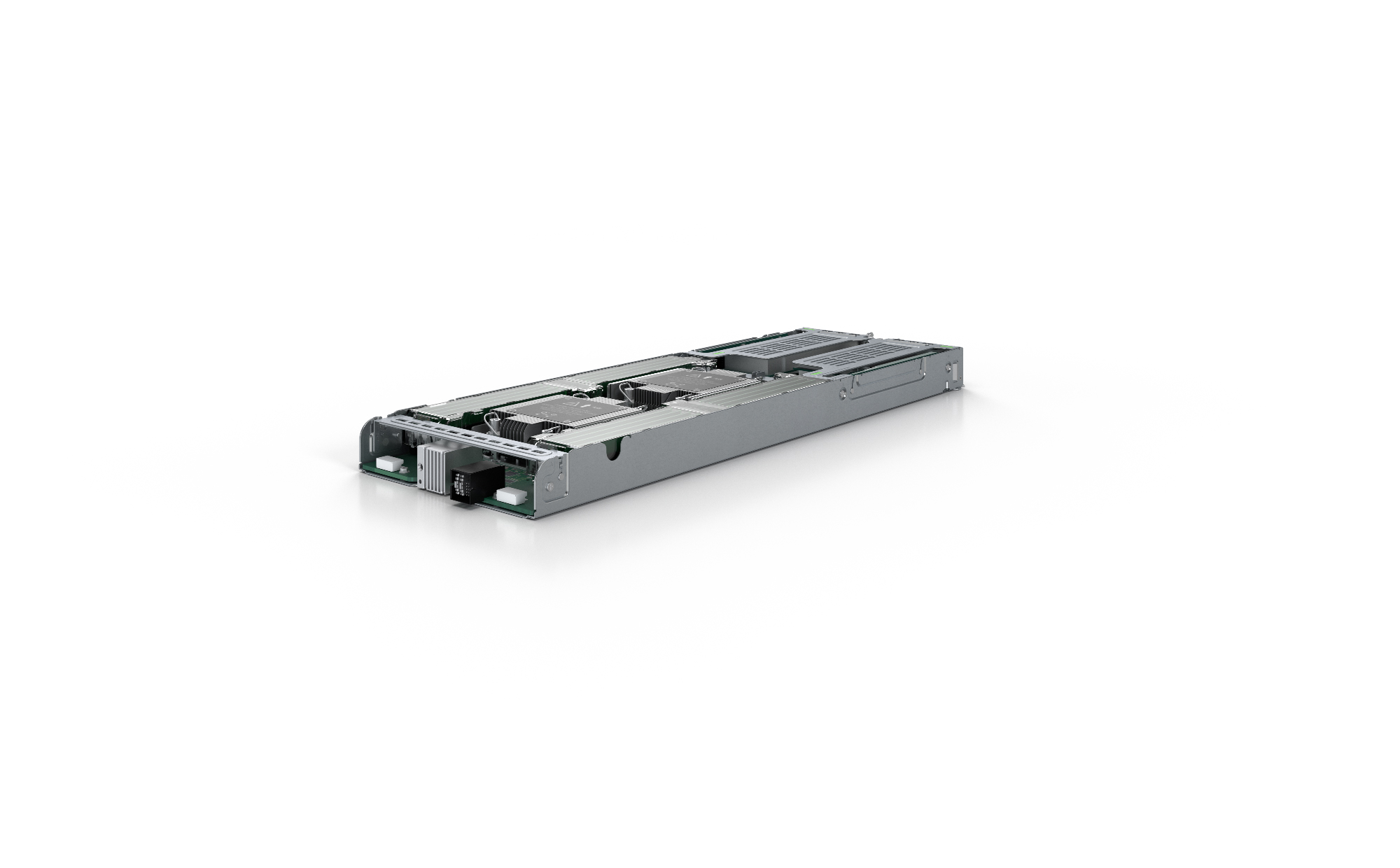

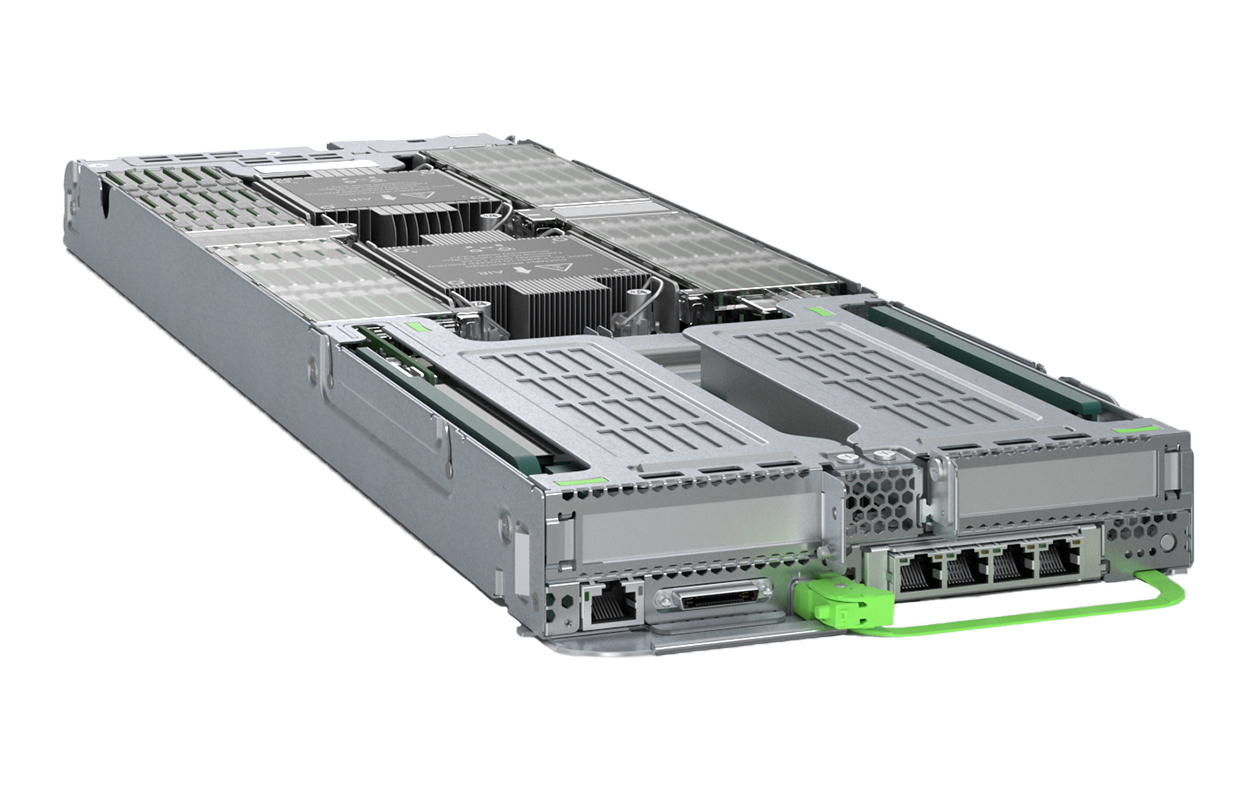

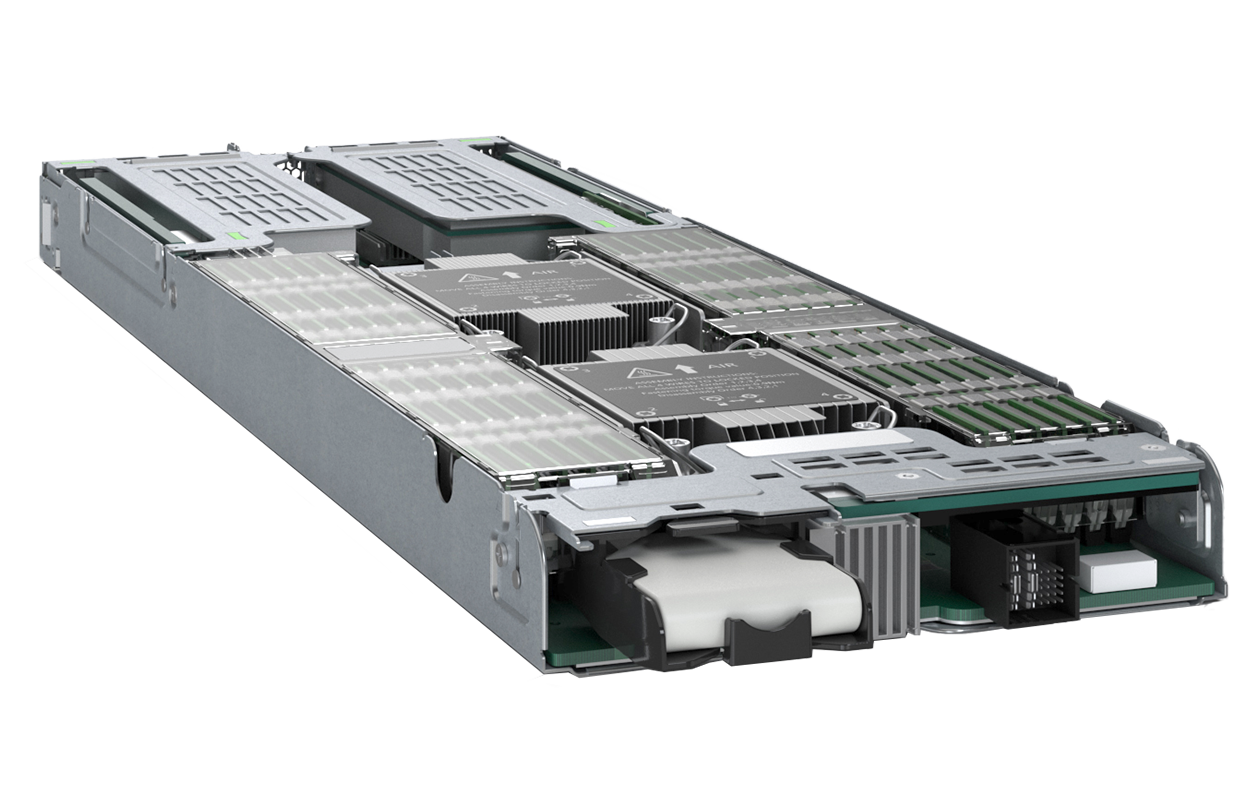

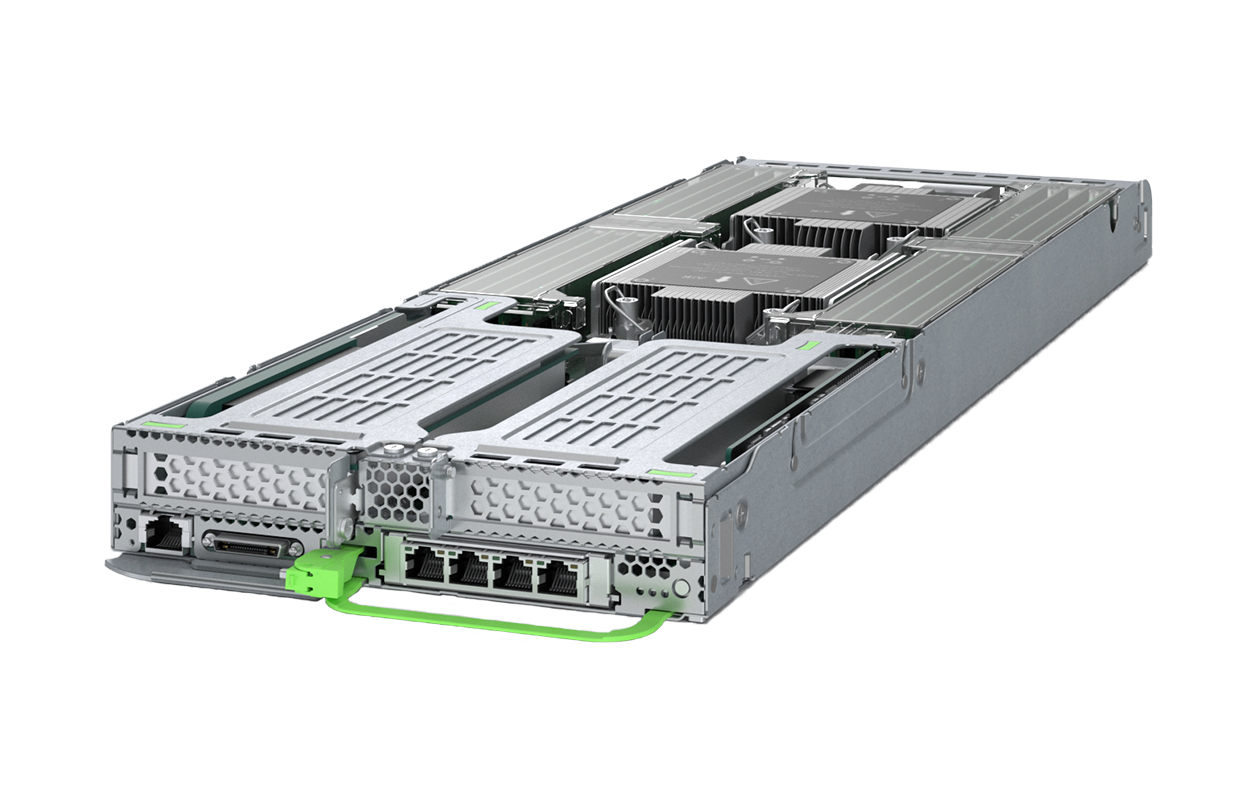

Fujitsu PRIMERGY CX2550 M6

Fujitsu PRIMERGY CX2550 M6

  • Ideal for high performance and technical computing with a 1U server node (4 nodes in CX400 M6)
  • Best performance with the 3rd generation of Intel® Xeon® Processor Scalable Family (up to 24 cores/CPU)
  • 16x DIMM slots with high memory bandwidth of up to 3200 MT/s ideal for memory intensive workloads
  • DynamicLoM adapter via OCP V3 and the new PCIe 4th Generation slots
  • Scale capacity and performance with up to two 2.5” SATA or PCIeSSD storage devices per node

자세히 보기
ImgPlaceholder ImgPlaceholder ImgPlaceholder ImgPlaceholder
Compact and modular foundation
Superior performance in a dense form factor
Increased power at low cost
Comprehensive expansion options

With PRIMERGY CX400 M6 multi-node server, you get much more server density compared to the standard rack servers. This makes it ideal for service providers, the automotive industry modeling new designs, state and local authorities to provide citizen services or a retailer analyzing consumer trends. In case the requirements change, the CX400 M6 makes it possible to gradually add or remove server nodes as required by your business needs.

The PRIMERGY CX2550 M6 enables a flexible and fast response to rapidly changing IT demands. It provides the best performance for scale-out workloads such as high performance and technical computing with the new generation of Intel® Xeon® Processors Scalable Family.

With up to 4 TB of DDR4 memory, combine performance and versatility to adapt to a variety of applications to meet future needs. The higher bandwidth let the applications run smoothly, without any problems. Save time and money, and focus on business goals.

Fujitsu offers comprehensive infrastructure management and server management solutions, which is key to efficient data center operations. They provide all the functions for flexible and automated 24x7 IT operations and improve end-user productivity via intelligent and innovative system management solutions. FUJITSU Software Infrastructure Manager enables organizations to drive towards the path of achieving software-defined infrastructure, by automating and simplifying infrastructure operations across compute, storage and networking.
  • ImgPlaceholder
    Compact and modular foundation
    With PRIMERGY CX400 M6 multi-node server, you get much more server density compared to the standard rack servers. This makes it ideal for service providers, the automotive industry modeling new designs, state and local authorities to provide citizen services or a retailer analyzing consumer trends. In case the requirements change, the CX400 M6 makes it possible to gradually add or remove server nodes as required by your business needs.
  • ImgPlaceholder
    Superior performance in a dense form factor
    The PRIMERGY CX2550 M6 enables a flexible and fast response to rapidly changing IT demands. It provides the best performance for scale-out workloads such as high performance and technical computing with the new generation of Intel® Xeon® Processors Scalable Family.
  • ImgPlaceholder
    Increased power at low cost
    With up to 4 TB of DDR4 memory, combine performance and versatility to adapt to a variety of applications to meet future needs. The higher bandwidth let the applications run smoothly, without any problems. Save time and money, and focus on business goals.
  • ImgPlaceholder
    Comprehensive expansion options
    Fujitsu offers comprehensive infrastructure management and server management solutions, which is key to efficient data center operations. They provide all the functions for flexible and automated 24x7 IT operations and improve end-user productivity via intelligent and innovative system management solutions. FUJITSU Software Infrastructure Manager enables organizations to drive towards the path of achieving software-defined infrastructure, by automating and simplifying infrastructure operations across compute, storage and networking.

Product Video

Tech Specs

Chipset Intel® C621A
Mainboard type D 3893
Product Type Dual Socket 1U Server Node
Processor Intel® Xeon® Gold 53xx processor, Intel® Xeon® Silver 43xx processor
Memory 8 GB - 2 TB, DIMM (DDR4)
8 GB - 4096 GB
Memory slots 16 (8 DIMMs per CPU, 8 channels with 1 slot per channel)
Memory protection ECC, Memory Scrubbing, SDDC
PCI-Express 4.0 x16 2 x low profile (via riser card)
Storage drive bays up to 2x 2.5-inch drive bay per node (in the PRIMERGY CX400 M6 chassis), and 2x M.2 device (in the CX2550 M6 node)
LAN Controller BCM5727 (On board LAN) (on D3893-Axx)
10/100/1000 Mbit/s Ethernet
Remote Management IPMI 2.0 compatible, Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller)
USB ports 2 x USB 3.0 (rear) with high density connector
Graphics 1 x VGA (1x rear) with high density connector
Weight 5.1 kg
DC Infrastructure Management Infrastructure Manager (ISM)
Essential Edition
Advanced Edition
Server Management Infrastructure Manager (ISM)
Essential Edition
Advanced Edition, ServerView Suite
Operating system http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473
Warranty period 3 years
Warranty type Onsite warranty
Service Lifecycle at least 5 years after shipment, for details see https://support.ts.fujitsu.com/
Service Weblink https://www.fujitsu.com/emeia/support/
Service Weblink https://www.fujitsu.com/emeia/support/
Recommended Service 24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner.
Recommended Service 24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner.

Read full specs
