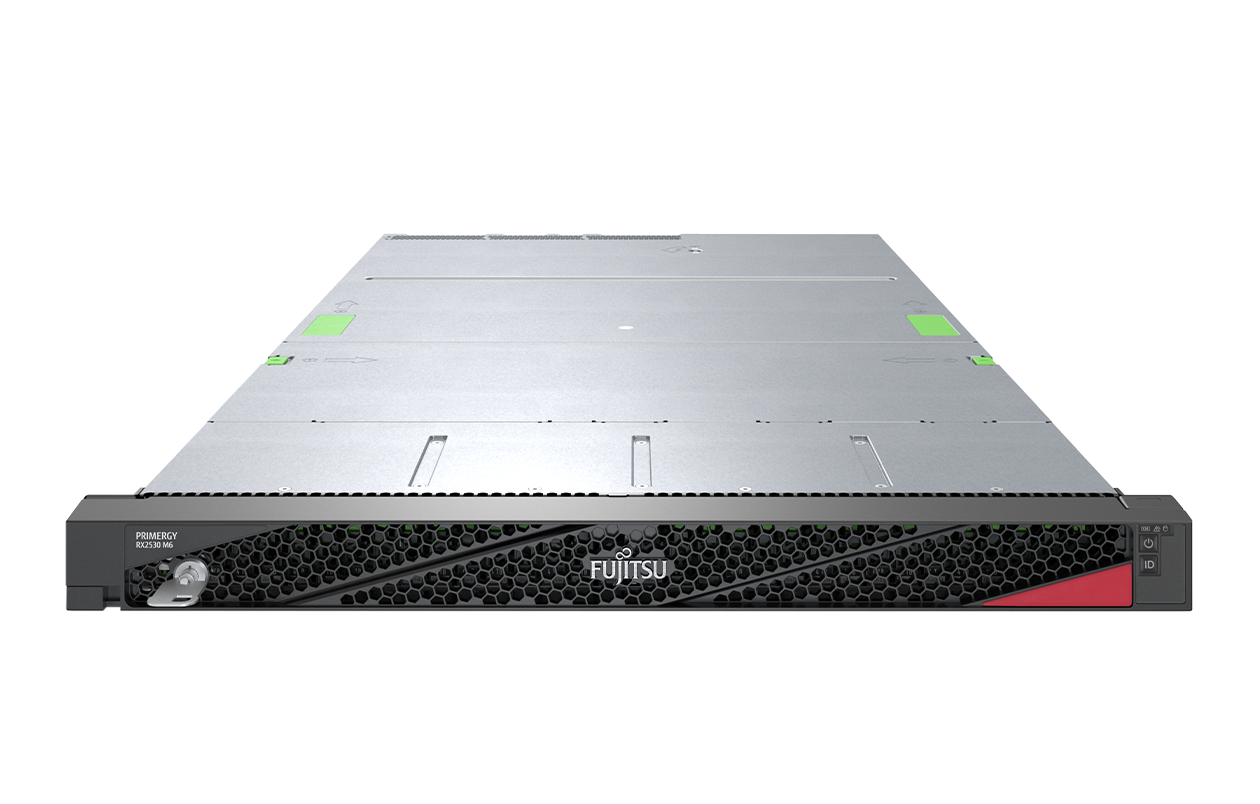

Fujitsu PRIMERGY RX2530 M6

Fujitsu PRIMERGY RX2530 M6

  • Dual-socket x86 server providing an ideal mix of performance and cost in a dense 1U chassis
  • Ideal for virtualization, scale-out scenarios, databases as well as HPC infrastructures
  • Boost performance with 3rd Generation Intel® Xeon® Scalable Processors (up to 40 cores / CPU)
  • Maximize performance with 32 DIMM modules (up to 10 TB in combination with PMem)

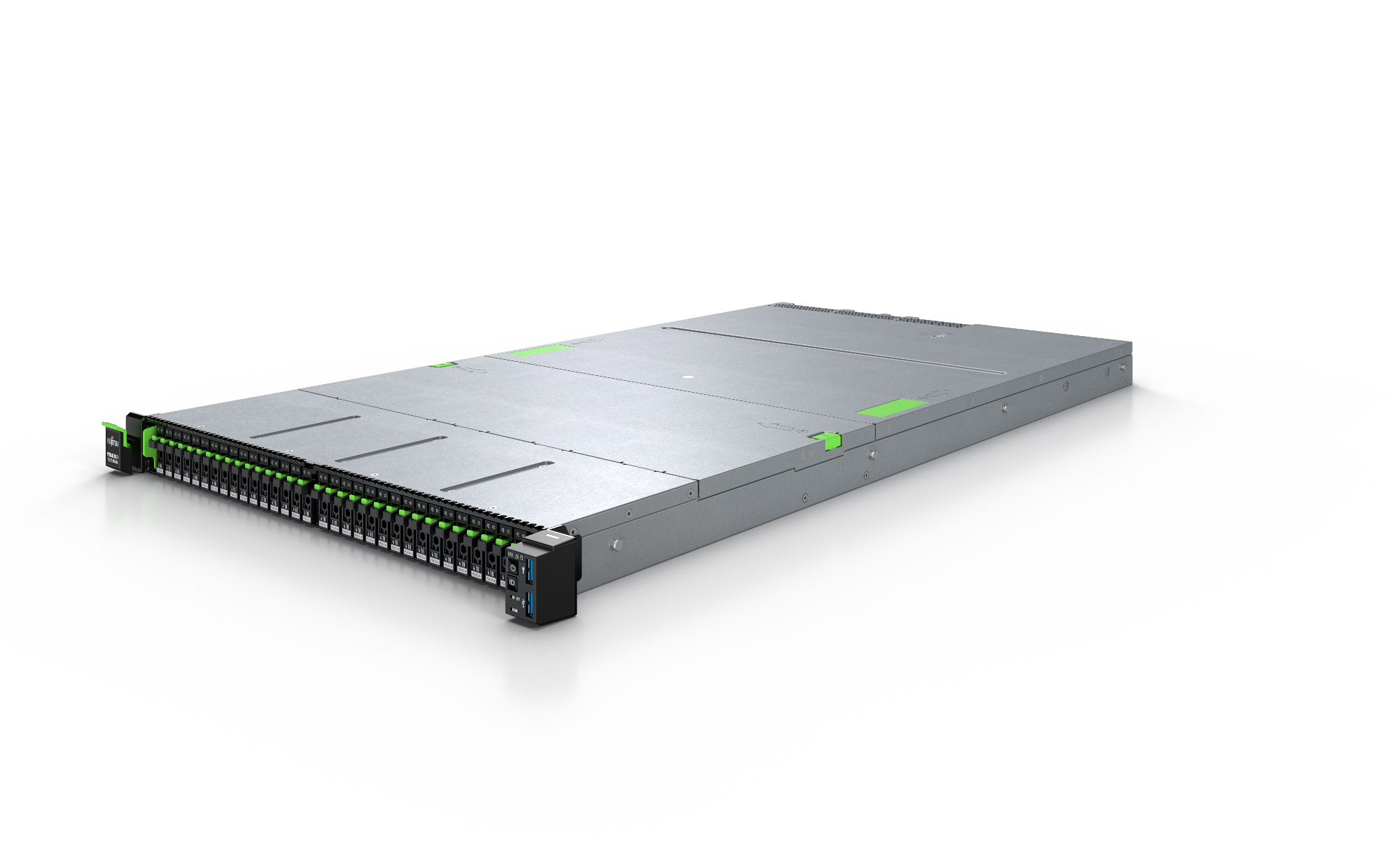

  • Gain storage flexibility with up to 4x 3.5”, up to 10x 2.5”, or 32x EDSFF storage devices

자세히 보기
ImgPlaceholder ImgPlaceholder ImgPlaceholder ImgPlaceholder
OPTIMIZED PERFORMANCE AND DENSITY
POWER YOUR APPLICATIONS
EASY EXPANDABILITY
COMPREHENSIVE PROTECTION

Ideal dual-socket platform for dense scale-out data center computing powered by latest 3rd Generation Intel® Xeon® Scalable Processors with up to 40 cores per CPU.

Combine performance and versatility to adapt to a variety of applications and meet future demands with 32 DIMM modules (16 of which can be PMem) and up to 10 TB of memory. Intel® Optane™ persistent memory provide fast, high capacity and cost effective memory for memory intensive workloads.

Benefit from the flexibility of 2.5”, 3.5” as well as EDSFF storage drives for highest storage capacities with up to 32 drives per height unit (U) and additional expandability with up to 4 PCIe Gen4 slots flexible DynamicLoM adapters via OCP V3.

Benefit from advanced security technologies such as Platform Firmware Resilience (PFR) to protect the most sensitive portions of a workload, encryption support to enhance data and VM protection as well as physical protection to avoid unauthorized access.
  • ImgPlaceholder
    OPTIMIZED PERFORMANCE AND DENSITY
    Ideal dual-socket platform for dense scale-out data center computing powered by latest 3rd Generation Intel® Xeon® Scalable Processors with up to 40 cores per CPU.
  • ImgPlaceholder
    POWER YOUR APPLICATIONS
    Combine performance and versatility to adapt to a variety of applications and meet future demands with 32 DIMM modules (16 of which can be PMem) and up to 10 TB of memory. Intel® Optane™ persistent memory provide fast, high capacity and cost effective memory for memory intensive workloads.
  • ImgPlaceholder
    EASY EXPANDABILITY
    Benefit from the flexibility of 2.5”, 3.5” as well as EDSFF storage drives for highest storage capacities with up to 32 drives per height unit (U) and additional expandability with up to 4 PCIe Gen4 slots flexible DynamicLoM adapters via OCP V3.
  • ImgPlaceholder
    COMPREHENSIVE PROTECTION
    Benefit from advanced security technologies such as Platform Firmware Resilience (PFR) to protect the most sensitive portions of a workload, encryption support to enhance data and VM protection as well as physical protection to avoid unauthorized access.

Product Video

Tech Specs

Chipset Intel® C621A
Mainboard type D3890
Product Type Dual Socket Rack Server
Processor Intel® Xeon® Silver 43xx processor, Intel® Xeon® Gold 53xx processor, Intel® Xeon® Gold 63xx processor, Intel® Xeon® Platinum 83xx processor
Memory 8 GB - 10 TB, DIMM (DDR4 RDIMM, LRDIMM and Intel® Optane™ PMem)
Memory slots 32 (16 DIMMs per CPU, 8 channels with 2 slots per channel)
Memory protection ECC, Memory Scrubbing, SDDC, ADDDC (Adaptive Double DRAM Device Correction), Memory Mirroring support
Drives (optional) DVD supermulti, ultraslim, SATA I
PCI-Express 4.0 x8 1 x Low profile
PCI-Express 4.0 x16 3 x Low profile (2nd processor required for slot 3); 1x16 if fh slot selected
Accessible drive bays 1 x 5.25/9.5mm for DVD-RW/Blu-ray
Optional accessible drives 2x 2.5-inch hot-plug SAS/SATA rear option
Ultra slim 9.5mm optical drive (optional)
n/a
Not for 10x 2.5-inch/32 x EDSFF base unit. All possible options described in relevant system configurator.
Storage drive bays up to 4 x 3.5-inch, 8 x 2.5-inch, 10 x 2.5-inch or 32 x EDSFF base unit
up to 8x 2.5" (SFF) hot plug drives (SAS/SATA)

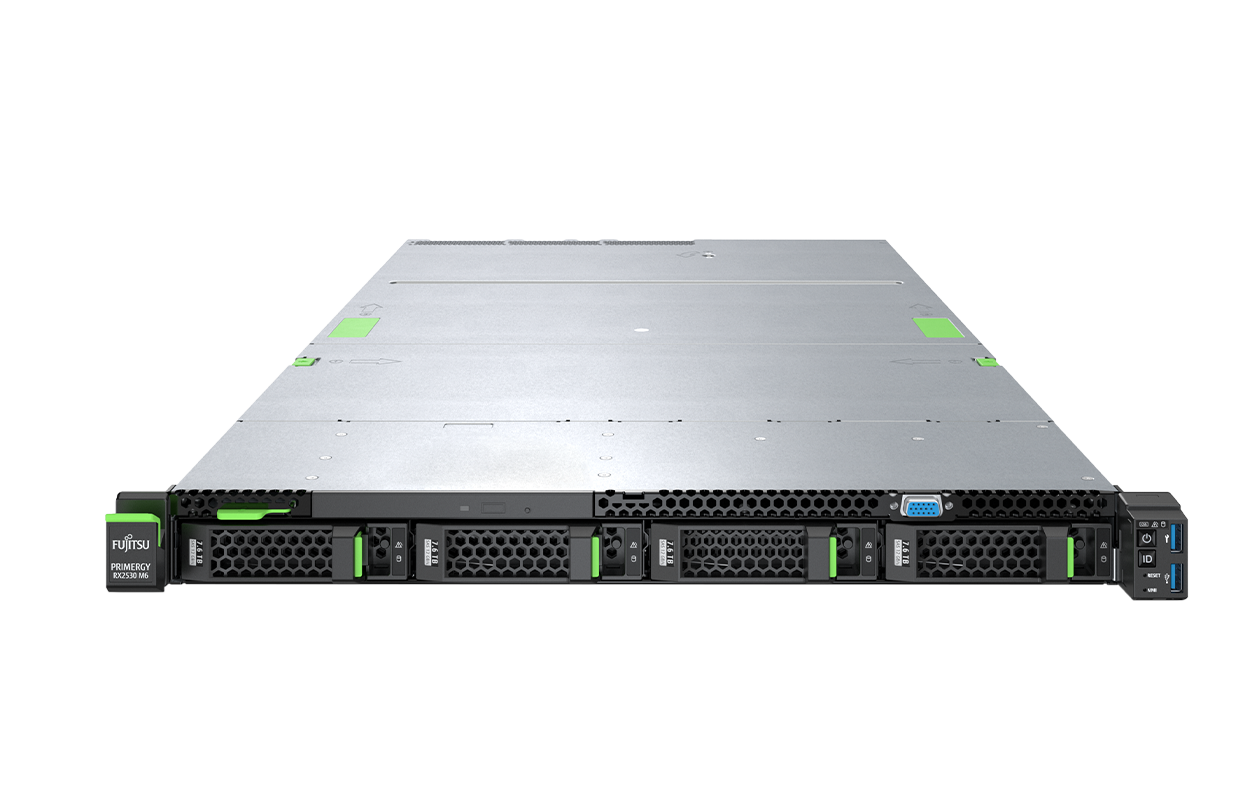

up to 4x 3.5" (LFF) hot plug drives (SAS/SATA)
up to 32x EDSFF hot plug drives (PCIe SSD)
up to 10x 2.5" (SFF) hot plug drives (SAS/SATA/PCIe SSD)
LAN Controller Dynamic LoM via OCP slot; OCPv3 compliant, Optional OCP adaptors:, 4 x 1 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s Ethernet (RJ45), 4 x 10 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s SFP+, 4 x 10 Gbit/s SFP+, 2 x 25 Gbit/s SFP28, 2x 100 Gbit/s QSFP28
Remote Management Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller), IPMI 2.0 compatible
USB ports 5 x USB 3.0 (2x front, 2x rear, 1x internal)
Graphics 2 x VGA (thereof 1x front optional - not for base unit with 10x 2.5” and 32x EDSFF drives)
Management LAN (RJ45) 1 x dedicated management LAN port for iRMC S5 (10/100/1000 Mbit/s)
Trusted Platform Module (TPM) Infineon / TPM 2.0 module; TCG compliant (option)
Power supply configuration 1 x hot-plug power supply or 2 x hot-plug power supply for redundancy
Active power (max. configuration) 1,848 W
Weight max. 18.2 kg
Rack (W x D x H) 482.2 mm (Bezel) / 435 mm (Body) x 807.45 x 42.7 mm
Mounting Depth Rack 836.95 mm
DC Infrastructure Management Infrastructure Manager (ISM)
Essential Edition
Advanced Edition
Server Management Infrastructure Manager (ISM)
Essential Edition
Advanced Edition, ServerView Suite
Operating system http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473
Warranty period 3 years
Warranty type Onsite warranty
Service Lifecycle at least 5 years after shipment, for details see https://support.ts.fujitsu.com/
Service Weblink http://www.fujitsu.com/emeia/products/product-support-services/
Service Weblink http://www.fujitsu.com/emeia/products/product-support-services/
Support Pack Options Globally available in major metropolitan areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)
 Recommended Service 24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner.
Support Pack Options Globally available in major metropolitan areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)
Recommended Service 24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner.

Read full specs

Components

Fujitsu PFC QLE2690 / QLE2692 Fibre Channel Adapters

The enhanced Gen5 16 Gb/s Fibre Channel Host Bus Adapters (HBA) QLE2690 and QLE2692 for the PRIMERGY & PRIMEQUEST servers are ideal for virtualized environments and transaction intensive applications. The adapters support the latest PCIe 3.0 standard for lower cooling and power costs. In addition, QLogic StorFusion technology delivers streamlined provisioning, guaranteed quality of service (QoS), and improved resiliency while addressing the needs of IT organizations that require reliability, integrated management, and guaranteed network performance.

FUJITSU PFC EP Emulex LPe31000 / LPe31002 Fibre Channel Adapters

The Emulex Gen 6 16 Gb Fibre Channel (FC) Host Bus Adapters (HBA) by Broadcom for PRIMERGY and PRIMEQUEST server systems are optimal Fibre Channel HBAs for virtualized, cloud and mission critical deployments. The PFC EP Emulex Gen 6 Fibre Channel HBAs LPe31000/31002 by Broadcom take performance to a new level with PCIe 3.0 support, data integrity capabilities and cloud scale reliability, and ease of use. Organizations looking to improve performance, protect against data corruption, and simplify operations of FC SANs in cloud or high performance environments can benefit from deploying the PFC EP LPe31000/31002.
