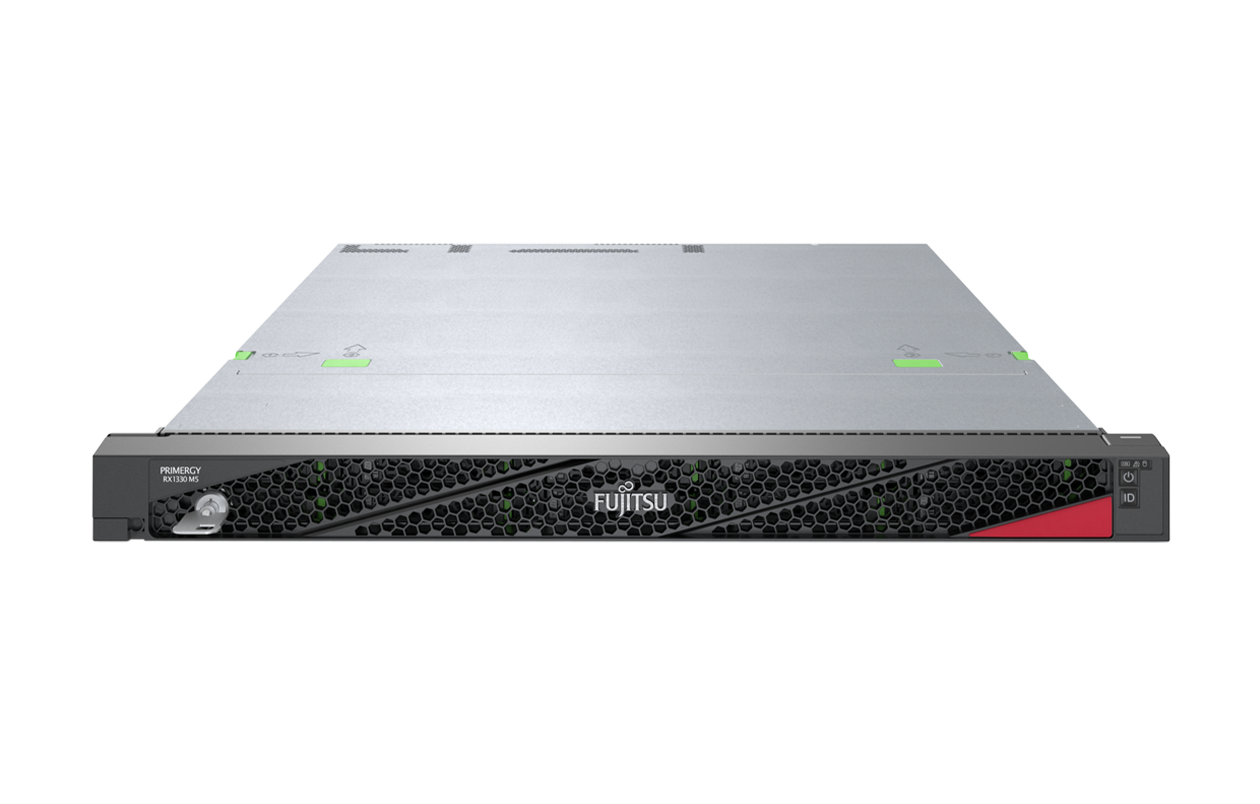

Fujitsu PRIMERGY RX1330 M5

Fujitsu PRIMERGY RX1330 M5

  • Mono-socket x86 server providing an ideal mix of performance and cost in a compact 1U space
  • Ideal foundation for many SMBs across industries and for a wide range of workloads such as file/print applications, web hosting, communication, collaboration, and virtualization
  • Cost-efficient performance based on Intel® Xeon® E-2300 processors either with 4-, 6-, or 8-cores
  • Address data sets with up to 4x DDR4 DIMMs (in total up to 128GB memory)

자세히 보기
ImgPlaceholder ImgPlaceholder ImgPlaceholder ImgPlaceholder
BOOST YOUR PRODUCTIVITY
SCALE YOUR IT ACCORDING TO YOUR NEEDS
SIMPLIFY YOUR IT
GROW YOUR BUSINESS

Workload optimized performance for space and power constrained environments from the edge to the data center.

The PRIMERGY RX1330 M5 delivers the flexibility to increase compute, storage, and memory capacity based on various configuration options and different base units.

New iRMC S6 enhances server administrator productivity with a variety of user-friendly features for remote management. Moreover, Infrastructure Manager (ISM) enables organizations to have centralized control over the entire infrastructure using a single user interface.

The variety of expansion options makes the RX1330 M5 an ideal rack server platform for growing businesses. Outstanding configuration flexibility caters to a variety of business requirements and a range of HPE Qualified Options to fit most needs.
  • ImgPlaceholder
    BOOST YOUR PRODUCTIVITY
    Workload optimized performance for space and power constrained environments from the edge to the data center.
  • ImgPlaceholder
    SCALE YOUR IT ACCORDING TO YOUR NEEDS
    The PRIMERGY RX1330 M5 delivers the flexibility to increase compute, storage, and memory capacity based on various configuration options and different base units.
  • ImgPlaceholder
    SIMPLIFY YOUR IT
    New iRMC S6 enhances server administrator productivity with a variety of user-friendly features for remote management. Moreover, Infrastructure Manager (ISM) enables organizations to have centralized control over the entire infrastructure using a single user interface.
  • ImgPlaceholder
    GROW YOUR BUSINESS
    The variety of expansion options makes the RX1330 M5 an ideal rack server platform for growing businesses. Outstanding configuration flexibility caters to a variety of business requirements and a range of HPE Qualified Options to fit most needs.

Product Video

Tech Specs

Chipset Intel® C256
Mainboard type D3929
Product Type Mono Socket Rack Server
Processor Intel® Xeon® E-2300 processor family, Intel® Pentium® processor
Memory 8 GB - 128 GB, UDIMM (DDR4)
Memory slots 4
Memory protection ECC
Drives (optional) DVD supermulti, ultraslim, SATA I
PCI-Express 3.0 x4 1 x Low profile
PCI-Express 4.0 x8 2 x Low profile
Accessible drive bays 1 x 5.25/9.5mm for DVD-RW/Blu-ray
Optional accessible drives Not for 10x 2.5-inch HDD base unit. All possible options described in relevant system configurator.
Storage drive bays 4/8 x 2.5-inch hot-plug SATA/SAS (Up to 4x NVMe PCIe SSD supported) or 4x 3.5-inch hot-plug or 10 x 2.5-inch hot-plug SATA/SAS
Max. 4x 3.5-inch
Max. 8x 2.5-inch
Max. 10x 2.5-inch
4x 2.5-inch
LAN Controller Intel® i210 onboard
2 x 10/100/1000 Mbit/s Ethernet (TCP/IP acceleration)
Remote Management Integrated Remote Management Controller (iRMC S6, 1024 MB attached memory incl. graphics controller)
USB ports 5 (Rear: 2x 3.2 Gen1 for all base units, Front (except 10x 2.5" base unit): 2x USB 3.2 Gen1, 1x USB 3.2 Gen2(20 Gb, Type C) , Front (for 10x 2.5" base unit): 2x USB 3.2 Gen1)
Graphics 1 x VGA (15-pin) / optional 1 x front VGA (not for 10x 2.5” base unit)
Management LAN (RJ45) 1 x dedicated management LAN port for iRMC S6 (10/100/1000 Mbit/s), Management LAN traffic can be switched to shared onboard Gbit LAN port
Trusted Platform Module (TPM) TPM 2.0 module (option)
Power supply configuration 1x standard power supply or 1x hot-plug power supply or 2x hot-plug power supplies for redundancy depending on model
Active power (max. configuration) 1,088 W
Weight Std: max.13 kg / Short depth: max. 10 kg
Rack (W x D x H) 482.6 mm (Bezel) / 435.4 mm (Body) x 612 x 43 mm
DC Infrastructure Management Infrastructure Manager (ISM)
Essential Edition
Advanced Edition
Operating system http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473
Warranty period 1 year
Warranty type Onsite warranty
Service Lifecycle at least 5 years after shipment, for details see https://support.ts.fujitsu.com/
Service Weblink http://www.fujitsu.com/emeia/products/product-support-services/
Service Weblink http://www.fujitsu.com/emeia/products/product-support-services/
Support Pack Options Globally available in major metropolitan areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)
 Recommended Service 24x7 Onsite Service with 4h Onsite Response Time
Support Pack Options Globally available in major metropolitan areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)
Recommended Service 24x7 Onsite Service with 4h Onsite Response Time

Read full specs

Components

Fujitsu PFC QLE2690 / QLE2692 Fibre Channel Adapters

The enhanced Gen5 16 Gb/s Fibre Channel Host Bus Adapters (HBA) QLE2690 and QLE2692 for the PRIMERGY & PRIMEQUEST servers are ideal for virtualized environments and transaction intensive applications. The adapters support the latest PCIe 3.0 standard for lower cooling and power costs. In addition, QLogic StorFusion technology delivers streamlined provisioning, guaranteed quality of service (QoS), and improved resiliency while addressing the needs of IT organizations that require reliability, integrated management, and guaranteed network performance.

FUJITSU PFC EP Emulex LPe31000 / LPe31002 Fibre Channel Adapters

The Emulex Gen 6 16 Gb Fibre Channel (FC) Host Bus Adapters (HBA) by Broadcom for PRIMERGY and PRIMEQUEST server systems are optimal Fibre Channel HBAs for virtualized, cloud and mission critical deployments. The PFC EP Emulex Gen 6 Fibre Channel HBAs LPe31000/31002 by Broadcom take performance to a new level with PCIe 3.0 support, data integrity capabilities and cloud scale reliability, and ease of use. Organizations looking to improve performance, protect against data corruption, and simplify operations of FC SANs in cloud or high performance environments can benefit from deploying the PFC EP LPe31000/31002.

Show all in the data sheet
