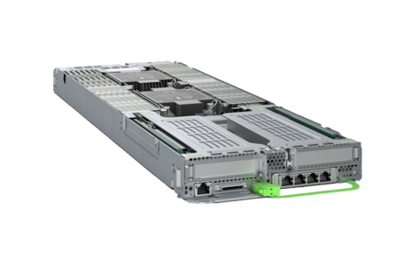

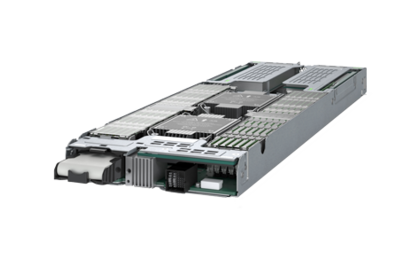

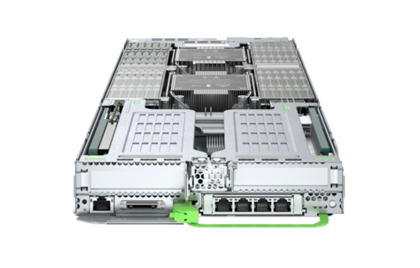

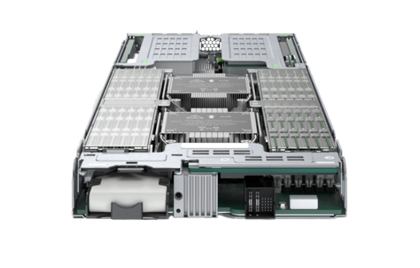

FUJITSU Server PRIMERGY CX2560 M6
FUJITSU Server PRIMERGY CX2560 M6
- Ideal solution for virtualization and cloud scenarios with maximum power and security
- 3rd generation of Intel® Xeon® Processor Scalable Family brings the highest performance
- 24 memory slots supporting up to 6TB with DDR4 DIMM modules (up to 12 TB in combination with PMem)
- Gain storage flexibility 6 (4x SATA/SAS + 2x (SATA/PCIeSSD) or 6 PCIeSSD per node
- DynamicLoM adapter via OCP V3 and 3 new PCIe 4th Generation slots
|
|
|
|
Compact and modular foundation |
High performance on a small footprint |
Increased power with lower consumption |
Easy Expandability |
|
With PRIMERGY CX400 M6 together with the CX2560 M6 node, you get much more server density in combination with high performance and best of data secure. It is the ideal solution for virtualization and cloud scenarios. In case the requirements change, it is possible to gradually add or remove server nodes as required by your business needs. |
Ready for the future and data growth scenarios with the performance of up to two processors per node. Make the standard of tomorrow with an increase in computing power. With the new Intel® Xeon® processor generation, you get more performance on a small density. |
With DDR4 and the Intel® Optane™ persistent memory the CX2560 M6 delivers a unique combination of affordable large capacity and high performance. It helps businesses drive innovation, process more data and make better decisions while lowering total cost and protecting data. |
Be ready for future changes and combine high-performance PCIeSSD with normal SATA/SAS drive or choose only the PCIeSSD for your IT environment. No matter what, you will not only reduce latency but also improve the data transfer speed of your IT infrastructure. |
-
Compact and modular foundation
With PRIMERGY CX400 M6 together with the CX2560 M6 node, you get much more server density in combination with high performance and best of data secure. It is the ideal solution for virtualization and cloud scenarios. In case the requirements change, it is possible to gradually add or remove server nodes as required by your business needs. -
High performance on a small footprint
Ready for the future and data growth scenarios with the performance of up to two processors per node. Make the standard of tomorrow with an increase in computing power. With the new Intel® Xeon® processor generation, you get more performance on a small density. -
Increased power with lower consumption
With DDR4 and the Intel® Optane™ persistent memory the CX2560 M6 delivers a unique combination of affordable large capacity and high performance. It helps businesses drive innovation, process more data and make better decisions while lowering total cost and protecting data. -
Easy Expandability
Be ready for future changes and combine high-performance PCIeSSD with normal SATA/SAS drive or choose only the PCIeSSD for your IT environment. No matter what, you will not only reduce latency but also improve the data transfer speed of your IT infrastructure.
Product Video
Tech Specs
| Chipset |
Intel® C621A |
| Mainboard type |
D 3894 |
| Product Type |
Dual Socket 1U Server Node |
| Processor |
Intel® Xeon® Silver 43xx processor, Intel® Xeon® Gold 53xx processor |
| Memory |
8 GB - 4 TB, DIMM (DDR4 RDIMM, LRDIMM and Intel® Optane™ PMem) |
| Memory slots |
24 (12 DIMMs per CPU, 8 channels with 2 slots per channel) |
| Memory protection |
ECC, Memory Scrubbing, SDDC, ADDDC (Adaptive Double DRAM Device Correction), Memory Mirroring support |
| PCI-Express 4.0 x16 |
2 x x low profile PCIe 4.0 x16 slots (via riser card) |
| Storage drive bays |
up to 6x 2.5-inch drive bay per node (in the PRIMERGY CX400 M6 chassis), and 2x M.2 device (in the CX2560 M6 node) |
| LAN Controller |
Intel X550 (Onboard LAN) (on D3894-A1x) 10/100/1000/10000 Mbit/s Ethernet |
| Remote Management |
IPMI 2.0 compatible, Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller) |
| USB ports |
2 x USB 3.0 (rear) with high density connector |
| Graphics |
1 x VGA (1x rear) with high density connector |
| Management LAN (RJ45) |
Management LAN traffic can be switched to shared onboard Gbit LAN port |
| Trusted Platform Module (TPM) |
optional TPM |
| Weight |
4.9 kg |
| DC Infrastructure Management |
Infrastructure Manager (ISM) |
| Server Management |
ServerView Suite, Infrastructure Manager (ISM) |
| Operating system |
http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473 |
| Warranty period |
3 years |
| Warranty type |
Onsite warranty |
| Service Lifecycle |
5 years after end of product life |
| Service Weblink |
https://www.fujitsu.com/emeia/support/ |
| Recommended Service | 24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner. |
| Recommended Service | 24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner. |
Resources
Datasheets
Technical Details
Brochures & Flyers
Press
Components
|
FUJITSU PRAID EP540iThe Fujitsu RAID Controller PRAID EP540i with 4GB cache and16x12Gbit/s SAS ports improves performance for storage intensive workloads such as databases and sets new speed and data security standards for internal storage drives. The new PRAID EP540i supports up to 16 SAS/SATA drives, up to 4 NVMe PCIe drives or a mixture of SAS/SATA and NVMe drives. NVMe is an interface with lower overhead, lower latency and drastically increased bandwidth and IOP's. The RAID stack is based on the Broadcom MegaRAID® and offers high data throughput, a comprehensive fault tolerance function and user-friendly management options. Moreover, the Controller management is integrated seamlessly into the Fujitsu server management concept. All controller functions are supported by the Fujitsu ServerView RAID Manager. The PRAID EP540i is designed for 3, 6 and 12Gbit/s SAS as well as for 3 and 6Gbit/s SATA drives. Regardless of the drive speed, it delivers significant performance improvements in both read and write applications. |
|
FUJITSU PACC EP QAT8970The Fujitsu PLAN EP Intel X710-DA2 SFP+ Server Adapter is the most flexible and scalable Ethernet adapter for the current demanding data center environments. |
|
FUJITSU PLAN EP MCX4-LX 25GbE SFP28The FUJITSU PLAN EP MCX4-LX 25GbE is based on Mellanox’s ConnectX®-4 Lx EN (Dual port) Network Interface Card. ConnectX-4 Lx EN Network Controller with 10/25Gb/s Ethernet connectivity addresses virtualized infrastructure challenges, delivering best-in-class and highest performance to various demanding markets and applications. Providing true hardware-based I/O isolation with unmatched scalability and efficiency, achieving the most cost-effective and flexible solution for Web 2.0, Cloud, data analytics, database, and storage platforms. 25Gb Ethernet (25GbE) enables network bandwidth to be cost-effectively scaled in support of next-generation server and storage solutions residing in Cloud and Web-scale data center environments. The 25GbE results in a single switch lane connection similar to existing 10GbE technology—but it delivers 2.5 times greater bandwidth. |
|
FUJITSU PLAN CP 4x1Gbit Cu Intel® I350-T4Trust the network communication of the new Ethernet LAN adapter. The new Intel I350-T4 Ethernet LAN Adapter, based on the latest Intel® 1GbE chip technology, offers four Gigabit Ethernet ports for 10/100/1000BaseT. |
|
FUJITSU PFC EP Emulex LPe31000 / LPe31002 Fibre Channel AdaptersThe Emulex Gen 6 16 Gb Fibre Channel (FC) Host Bus Adapters (HBA) by Broadcom for PRIMERGY and PRIMEQUEST server systems are optimal Fibre Channel HBAs for virtualized, cloud and mission critical deployments. The PFC EP Emulex Gen 6 Fibre Channel HBAs LPe31000/31002 by Broadcom take performance to a new level with PCIe 3.0 support, data integrity capabilities and cloud scale reliability, and ease of use. Organizations looking to improve performance, protect against data corruption, and simplify operations of FC SANs in cloud or high performance environments can benefit from deploying the PFC EP LPe31000/31002. |
