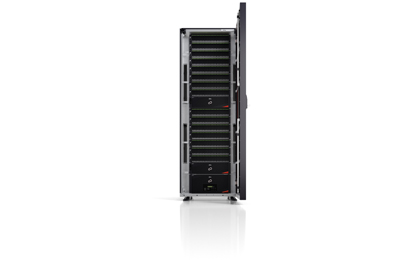

Fujitsu Storage ETERNUS DX8900 S4
Fujitsu Storage ETERNUS DX8900 S4
- Enterprise-level purpose built hybrid storage platform to consolidate storage in large data centers, offering modular scalability, leading performance headroom and relentless business continuity capabilities
- Max No. of controllers: 24
- Max No. of drives: 6,912
- Maximum storage capacity of up to 141,558 TB
- Random access performance of up to 10 Million IOPS
|
|
|
|
Flexible scalability in capacity and performance |
Relentless Business continuity |
Automated Management of Data Service Levels |
Transition to a Full Flash Data Center |
|
Future-proof scale-out architecture and upgrade options meet current and future business requirements. Flexible combination of flash and disk media allow for different workloads of deployments and NVMe cache provides highest performance. The perfect system for data center storage consolidation. |
Avoid planned or unplanned downtimes with replication and Storage Cluster. Transparent failover allows 100% data insurance and non-stop operations, as well as a system availability of 99.9999%. Intelligent snapshot functionality supports secure backups. |
Control application priorities according to business needs, minimize admin efforts, automate monitoring and adjustment to guarantee service levels and compress data without performance impact. |
Flash-optimized data center storage system with complete management compatibility using ETERNUS SF Management software |
-
Flexible scalability in capacity and performance
Future-proof scale-out architecture and upgrade options meet current and future business requirements. Flexible combination of flash and disk media allow for different workloads of deployments and NVMe cache provides highest performance. The perfect system for data center storage consolidation. -
Relentless Business continuity
Avoid planned or unplanned downtimes with replication and Storage Cluster. Transparent failover allows 100% data insurance and non-stop operations, as well as a system availability of 99.9999%. Intelligent snapshot functionality supports secure backups. -
Automated Management of Data Service Levels
Control application priorities according to business needs, minimize admin efforts, automate monitoring and adjustment to guarantee service levels and compress data without performance impact. -
Transition to a Full Flash Data Center
Flash-optimized data center storage system with complete management compatibility using ETERNUS SF Management software
Product Video
Tech Specs
| Type |
High-end disk storage system for large enterprises |
| Random access performance |
10M IOPS (8KB Random Read Miss) |
| Host Interfaces |
Fibre Channel (16 Gbit/s, 32Gbit/s) iSCSI (10 Gbit/s, 1 Gbit/s) |
| Maximum Disk Drives |
6,912 |
| Maximum Disk Drives |
SSD, SAS and Nearline SAS in a mixed configuration (3.5" / 2.5") |
| Max. no. of SSDs |
unlimited |
| Maximum Storage Capacity HDD |
119.92 PB |
| Maximum Storage Capacity SSD |
141.56 PB |
| No. of host interfaces |
4-384 ports [FC(32Gbit/s, 16Gbit/s)], 4-192 ports [iSCSI(10Gbit/s, 1Gbit/s)] |
| Max. no. of hosts |
8,192 |
| Supported RAID levels |
0, 1, 1+0, 5, 5+0, 6 |
| Drive interface |
Serial Attached SCSI (12 Gbit/s) |
| Thin Provisioning |
Yes |
| Automated Storage Tiering |
Yes |
| Remote Copy functionality |
Synchronous and asynchronous |
| Support Pack Options |
Available in major metropolitan areas: 9x5, Next Business Day Onsite Response Time 9x5, 4h Onsite Response Time (depending on country) 24x7, 4h Onsite Response Time (depending on country) |
Recommended Service | 24x7, Onsite Response Time: 4h |
| Support Pack Options |
Available in major metropolitan areas: 9x5, Next Business Day Onsite Response Time 9x5, 4h Onsite Response Time (depending on country) 24x7, 4h Onsite Response Time (depending on country) |
| Recommended Service | 24x7, Onsite Response Time: 4h |
