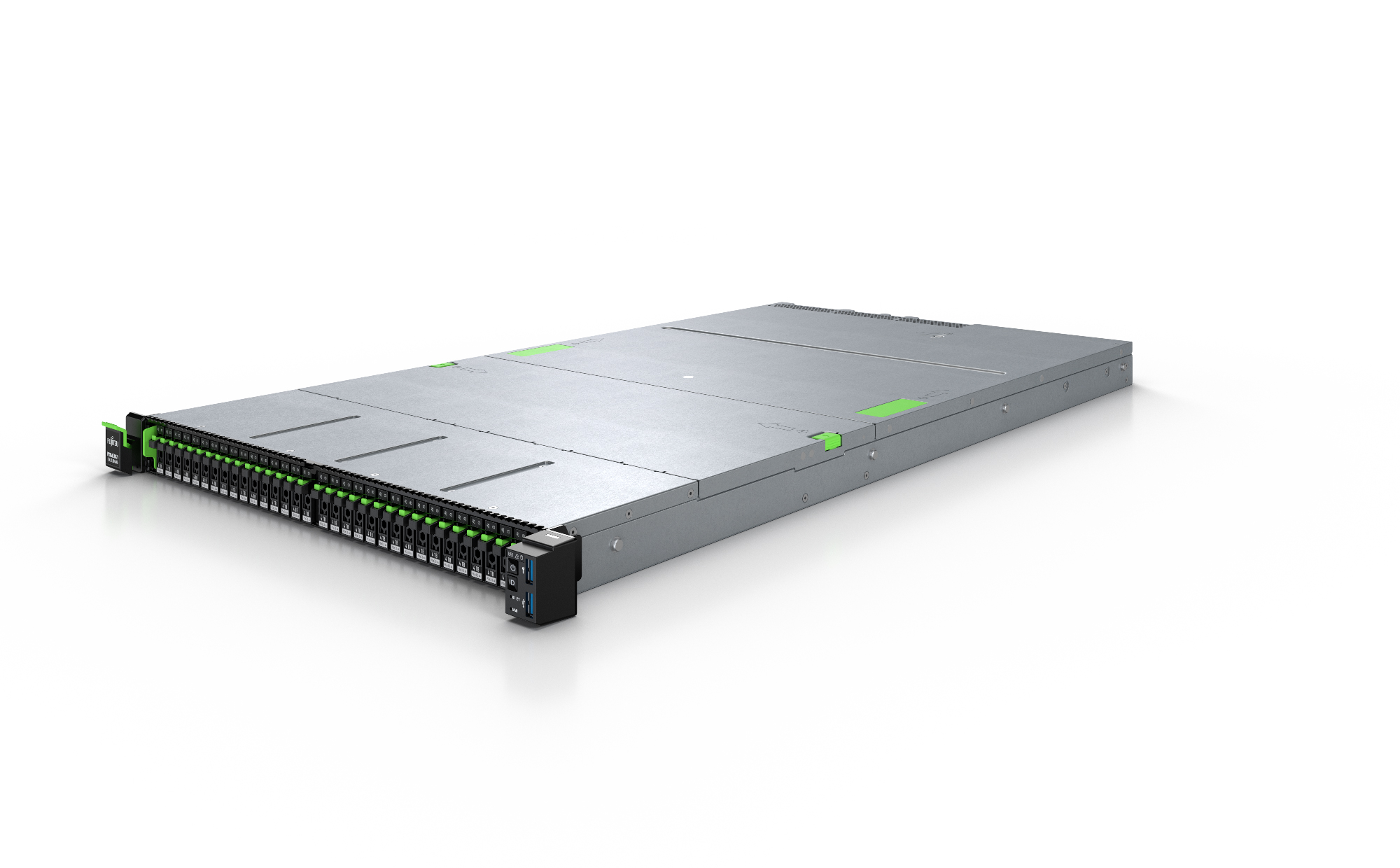

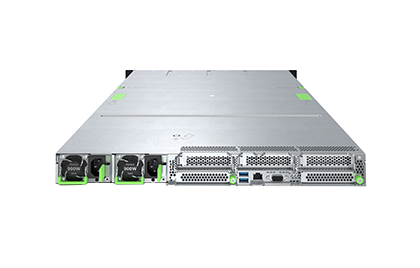

FUJITSU Server PRIMERGY RX2530 M6

Dual-socket x86 server providing an ideal mix of performance and cost in a dense 1U chassis
Ideal for virtualization, scale-out scenarios, databases as well as HPC infrastructures
Boost performance with 3rd Generation Intel^® Xeon^® Scalable Processors (up to 40 cores / CPU)
Maximize performance with 32 DIMM modules (up to 10 TB in combination with PMem)
Gain storage flexibility with up to 4x 3.5”, up to 10x 2.5”, or 32x EDSFF storage devices

More Details


OPTIMIZED PERFORMANCE AND DENSITY	POWER YOUR APPLICATIONS	EASY EXPANDABILITY	COMPREHENSIVE PROTECTION
Ideal dual-socket platform for dense scale-out data center computing powered by latest 3rd Generation Intel^® Xeon^® Scalable Processors with up to 40 cores per CPU.	Combine performance and versatility to adapt to a variety of applications and meet future demands with 32 DIMM modules (16 of which can be PMem) and up to 10 TB of memory. Intel^® Optane™ persistent memory provide fast, high capacity and cost effective memory for memory intensive workloads.	Benefit from the flexibility of 2.5”, 3.5” as well as EDSFF storage drives for highest storage capacities with up to 32 drives per height unit (U) and additional expandability with up to 4 PCIe Gen4 slots flexible DynamicLoM adapters via OCP V3.	Benefit from advanced security technologies such as Platform Firmware Resilience (PFR) to protect the most sensitive portions of a workload, encryption support to enhance data and VM protection as well as physical protection to avoid unauthorized access.

OPTIMIZED PERFORMANCE AND DENSITY
Ideal dual-socket platform for dense scale-out data center computing powered by latest 3rd Generation Intel^® Xeon^® Scalable Processors with up to 40 cores per CPU.
POWER YOUR APPLICATIONS
Combine performance and versatility to adapt to a variety of applications and meet future demands with 32 DIMM modules (16 of which can be PMem) and up to 10 TB of memory. Intel^® Optane™ persistent memory provide fast, high capacity and cost effective memory for memory intensive workloads.
EASY EXPANDABILITY
Benefit from the flexibility of 2.5”, 3.5” as well as EDSFF storage drives for highest storage capacities with up to 32 drives per height unit (U) and additional expandability with up to 4 PCIe Gen4 slots flexible DynamicLoM adapters via OCP V3.
COMPREHENSIVE PROTECTION
Benefit from advanced security technologies such as Platform Firmware Resilience (PFR) to protect the most sensitive portions of a workload, encryption support to enhance data and VM protection as well as physical protection to avoid unauthorized access.

Product Video

Tech Specs

Chipset	Intel^® C621A
Mainboard type	D3890
Product Type	Dual Socket Rack Server
Processor	Intel^® Xeon^® Silver 43xx processor, Intel^® Xeon^® Gold 53xx processor, Intel^® Xeon^® Gold 63xx processor, Intel^® Xeon^® Platinum 83xx processor
Memory	8 GB - 10 TB, DIMM (DDR4 RDIMM, LRDIMM and Intel^® Optane™ PMem)
Memory slots	32 (16 DIMMs per CPU, 8 channels with 2 slots per channel)
Memory protection	ECC, Memory Scrubbing, SDDC, ADDDC (Adaptive Double DRAM Device Correction), Memory Mirroring support
Drives (optional)	DVD supermulti, ultraslim, SATA I
PCI-Express 4.0 x8	1 x Low profile
PCI-Express 4.0 x16	3 x Low profile (2nd processor required for slot 3); 1x16 if fh slot selected
Accessible drive bays	1 x 5.25/9.5mm for DVD-RW/Blu-ray
Optional accessible drives	2x 2.5-inch hot-plug SAS/SATA rear option Ultra slim 9.5mm optical drive (optional) n/a Not for 10x 2.5-inch/32 x EDSFF base unit. All possible options described in relevant system configurator.
Storage drive bays	up to 4 x 3.5-inch, 8 x 2.5-inch, 10 x 2.5-inch or 32 x EDSFF base unit up to 8x 2.5" (SFF) hot plug drives (SAS/SATA) up to 4x 3.5" (LFF) hot plug drives (SAS/SATA) up to 32x EDSFF hot plug drives (PCIe SSD) up to 10x 2.5" (SFF) hot plug drives (SAS/SATA/PCIe SSD)
LAN Controller	Dynamic LoM via OCP slot; OCPv3 compliant, Optional OCP adaptors:, 4 x 1 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s Ethernet (RJ45), 4 x 10 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s SFP+, 4 x 10 Gbit/s SFP+, 2 x 25 Gbit/s QSFP28, 2x 100 Gbit/s QSFP28
Remote Management	Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller), IPMI 2.0 compatible
USB ports	5 x USB 3.0 (2x front, 2x rear, 1x internal)
Graphics	2 x VGA (thereof 1x front optional - not for base unit with 10x 2.5” and 32x EDSFF drives)
Management LAN (RJ45)	1 x dedicated management LAN port for iRMC S5 (10/100/1000 Mbit/s)
Trusted Platform Module (TPM)	Infineon / TPM 2.0 module; TCG compliant (option)
Power supply configuration	1 x hot-plug power supply or 2 x hot-plug power supply for redundancy
Active power (max. configuration)	1,848 W
Weight	max. 18.2 kg
Rack (W x D x H)	482.2 mm (Bezel) / 435 mm (Body) x 807.45 x 42.7 mm
Mounting Depth Rack	836.95 mm
DC Infrastructure Management	Infrastructure Manager (ISM) Essential Advanced
Server Management	Infrastructure Manager (ISM) Essential Advanced, ServerView Suite
Operating system	http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473
Warranty period	3 years
Warranty type	Onsite warranty
Service Lifecycle	5 years after end of product life
Service Weblink	http://www.fujitsu.com/emeia/products/product-support-services/

Support Pack Options

Globally available in major business areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)

Recommended Service

24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner.

Support Pack Options	Globally available in major business areas: 9x5, Next Business Day Onsite Response Time 9x5, 4h Onsite Response Time (depending on country) 24x7, 4h Onsite Response Time (depending on country)
Recommended Service	24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner.

Read full specs
