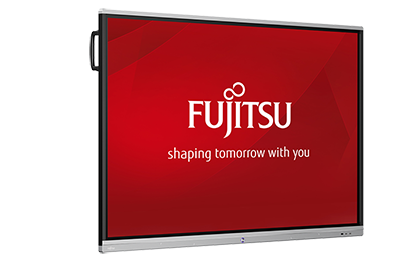

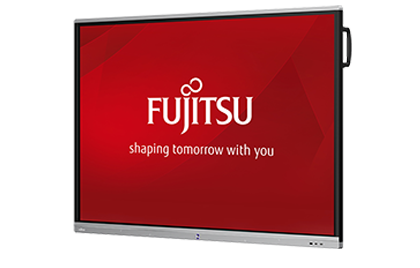

Interactive panel IW552/IW652/IW752/IW862

Fujitsu Interactive Panel is the essential hub for modern meeting spaces as well as digitize classrooms. Compared to projector-based systems, the Fujitsu Interactive Panel offers unparalleled visual performance and fosters collaboration to elevate meeting and teaching efficiency.

Features and Benefits

Interactive display with 4K resolution

  • Available at 55"/ 65"/ 75"/ 86”, the stunning display is key to support presentations that requires
  • Flicker-free display technology
  • Anti-glare filter reduces reflection
  • 7H hardness tempered glass

Multi-device sharing across different operating systems

  • Simultaneously displays screens of up to 32 devices*, enabling presenters to switch between devices
  • Wireless mirroring between devices running different operating systems, including smartphones, tablets, notebooks, Windows, Mac, iOS and Android

Multi-Panel Multi-Device Synchronisation

  • Multiple panels can be grouped together and synchronise their displays through wireless networking. Students can also mirror the panel’s content onto their own mobile devices.

Real whiteboard usage experience

  • 20-point touch screen
  • Smooth and natural writing experience
  • Smart Annotation
  • Freeze, annotate, save and share screen content easily
  • Pen Tip Detection Technology

*Default configuration supports simultaneous display of 4 devices. Windows environment supports projection of up to 32 devices. Performance may be affected by network bandwidth.

Technical Details

Product Name
Picture Performance
Panel and backlit DLED
Screen Surface Treatment AG tempered glass Mohs level 7
Contrast – typical 55”,65”: 1200:1 // 75”: 1100:1 // 86”: 1200:1
Viewing angle (h/v) - typical 178o
Color performance 1.07 Billion Colors
Brightness – typical 350 cd/m2(Typ)
Size and Resolution
Aspect ratio 16:9
Resolution (native) 3840(H) x 2160(V)
Picture Size (H x V) 55”: 1209.6×680.4mm // 65”: 1428.48mm×803.52mm // 75”: 1649.664×927.936mm // 86”: 1895.04×1065.96mm
Pixel Pitch 55”: 0.315mm // 65”: 0.372mm // 75”: 0.4296mm // 86”: 0.4935mm
Response Time 8ms(Typ)
Refreshing Frequency 60Hz
Connectivity
VGA/D-SUB 1 x D-SUB
DVI N/A
DP N/A
HDMI 1 × HDMI OUT, 3 × HDMI IN (HDMI2.0)
USB 3 x USB 2.0 (including 2 USB ports in front)
3 x USB 3.0
Audio In 1 x 3.5 mm stereo phone jack
Audio output 1 × Audio out
Built-in Speaker Yes, 2 × 12 W
RS232 Control 1 x RS232
LAN 1 × GIGABIT LAN (RJ45)
Touch System
Sensing Type Infrared recognition
Touch point 10 points writing and 20 points touch
Writing Response single-touch ≥6mm and multi-touch ≥8mm
Touch Tool Finger, Finger cover by glove, Opaque objects
Response Time <10ms
Accuracy ±1.5mm(over 90% Area)
Communication Mode Full-speed USB (driver free)
Surface Hardness Toughened Glass with Level 7 of Mohs Standard
Wireless Screen Mirroring
Wireless Screen Mirroring Supports
Self-Hotspot Screen Mirroring Supports
Reversely control Windows / MacOS Supports, client software required
AirPlay protocol Supports
Chromecast protocol Supports
Power consumption (Typical)
Soft switch off ≤0.5W
Overall Power(nominal power) 55”: 300W // 65”: 350W // 75”: 350W // 86”:550W
Electrical values
Rated voltage range 100 V – 240 V
Rated frequency range 50 Hz – 60 Hz
Protection class 1
Quality and Reliability
MTBF (demonstrated) 30,000h
Dimensions / Weight / Environmental
Key Location & Number Front physical keys, 1
Dimension (L x H x D) 55”: 1269×773×86mm // 65”: 1489×897×86mm // 75”: 1710×1020×86mm // 86”: 1957.2×1160×86mm
Dimension(package) LxWxH 55”: 1428×220×878mm // 65”: 1656×204×1050mm // 75”: 1860×280×1170mm // 86”: 2211×280×1370mm
Net Weight 55”: 26.75kg // 65”: 40.2kg // 75”: 51.75kg // 86”: 64.65kg
Gross Weight 55”: 34.35kg // 65”: 51.3kg // 75”: 70.35kg // 86”: 95.55kg
Thickness of machine and wall mount 55”, 65”: 116mm(9060G) // 75”: 132mm(9060F)// 86”: 126mm(9060F)
Wall-hanging Screw Spec M8×25mm
VESA 55”: 400×200mm // 65”: 600×400mm // 75”: 800×400mm // 86”: 800×600mm
Miscellaneous
Color Black
Accessories
AC Power Cable British Standard Power Cord (3 meters), EU Power Cord (3 meters)
USB Cable 5 meters
VGA Cable 5 meters
HDMI Cable 3 meters
Audio Cable 5 meters
Writing Pen 2
Remote Control 1
Operation Instruction 1
Order information
Order Code 55”: HLIWB0009A-01 // 65”: HLIWB0010A-01// 75”: HLIWB0011A-01 // 86”: HLIWB0012A-01
EAN Code 55”: 8888551288564 // 65”: 8888551288571// 75”: 8888551288588 // 86”: 8888551288595

Options

Product Name Order Number
Dual Band WiFi Module HLMWB0001A-01
Mobile Stand HLTWB0002A-01
