The FUJITSU ESPRIMO D9010 Desktop is a high performance, secure PC with superior manageability, expandability, and best-in-class connectivity. The 80Plus GOLD and 80Plus PLATINUM power supply helps to reduce environmental impact. The USB Type C and flexible graphics options offer great connectivity. Faster operations, a smaller foot print in vertical position enhances space saving to create the perfect working desk.

Overview

Features	Benefits
Windows Windows 10 Home Windows 10 Pro. Fujitsu recommends Windows 10 Pro for business.	Easy integration into customers’ existing infrastructure
Latest Intel^® Chipset technology with higher memory speed Superior Intel^® Q470 chipset with higher memory frequency of 2,933 MT/s The stable Intel^® vPro™ technology platform (depending on processor)	High performance ensures faster operations and lower system response time
New housing and ultimate expandability 2x low profile (LP) or 1x LP/ 1x Full height (Riser) via BTO Space saving in width and depth with new 8.3 litres volume	Easily customizable and highly expandable business desktop PC
Best-in-Class connectivity Support of new USB Type C in front Flexible graphics options (VGA, DVI-D, HDMI, Type C) USB Type C support of 60W (optional to power a display) Legacy PS2, serial port, parallel port connectors as option	Be flexible and stay productive in a hyper-connected world
High security with integrated options Cable cover in addition to existing Smartcard reader, Erasedisk software Integrated Cabinet lock with Master key option Hole for pad lock and Kensington as standard for security	Designed to protect data and hardware components against manipulation and theft
Low Power Consumption; Easy serviceability and usability 80Plus GOLD and 80Plus PLATINUM power supply efficiency with monitor outlet Tool-less access to components, easy change and screw-less add-on cards	Reduced environmental impact and reduced energy bills; Features designed for easy access, control and use of the system

Tech Specs

Product	ESPRIMO D9010
Operating system	Windows 10 Home Windows 10 Pro. Fujitsu recommends Windows 10 Pro for business.
Operating system notes	Windows 10 Support: After the end of the product life FUJITSU will continue to test and support all upcoming Window 10 releases for a period of maximum 5 years – depending on the available extension of hardware services through FUJITSU Warranty top ups. For details please see “FUJITSU Service Statement for Windows 10 Semi-Annual-Channel Support” at http://support.ts.fujitsu.com.
Mainboard	D3822 (proprietary ) Intel^® Q470
Chipset	Intel^® Core™ i9-10900 processor, 20 MB, 2.80 GHz Intel^® Core™ i7-10700 processor, 16 MB, 2.90 GHz Intel^® Core™ i5-10400 processor, 12 MB, 2.90 GHz Intel^® Core™ i5-10500 processor, 12 MB, 3.10 GHz Intel^® Core™ i5-10600 processor, 12 MB, 3.30 GHz Intel^® Core™ i3-10100 processor, 6 MB, 3.60 GHz
Supported capacity RAM (max.)	128 GB, 4 Memory slot(s) DIMM (DDR4), Dual channel support, For dual channel performance, 2 memory modules have to be ordered. Capacity per channel has to be the same. 2933 MHz may be clocked down to 2400MHz depending on processor and memory configuration
Serial ATA total	4
thereof SATA III	Serial ATA III (6 Gbit), NCQ, AHCI, RAID 0/1/5/10
Drives (optional)	DVD Super Multi ultra slim (tray), SATA BD Triple Writer SATA ultra slim (tray), SATA SD Card reader, USB 3.0
Drive bay	1 x 5.25-inch external bay
Slots	1 x PCI-Express 3.0 x4 (mech. x16) 1 x PCI-Express 3.0 x16
Interfaces	1 x Audio: line-in 1 x Audio: line-out 3 x USB 3.2 Gen 1 (5 Gbps) total 5 and 1 optional USB 3.2 Gen 2 (10 Gbps) total 4 x USB 2.0 total 2x USB 2.0; 2x USB 3.2 Gen 2; 1x USB 3.2 Gen 2 Type-C (supports up to 15W) x USB front 2x USB 2.0; 2x USB 3.2 Gen 1; 2x USB 3.2 Gen 2; optional: additional 1x USB 3.2 Gen 2 Type-C (supports DisplayPort 1.4 and power delivery (PD) up to 15W or 60W (occupies PCIe x16 slot) x USB rear 1x USB 2.0 or 1x USB 3.2 (Gen 1) Type A x USB internal optional VGA 1 (optional) x Parallel (25pin with EPP and ECP) 1 x Ethernet (RJ-45) 1 x Kensington Lock support optional (DVI-D) x DVI 2 x DisplayPort 2 (optional) x Mouse / Keyboard (PS/2)
Graphics	Intel^® UHD Graphics 610, Intel^® UHD Graphics 630, Up to half size of total system memory
Audio type	Realtek ALC623
Communication	10/100/1,000 MBit/s Intel^® I219LM optional; Intel^® Wi-Fi 6 AX200 (2x2/160) Gig+ and Bluetooth 5.1 x Integrated WLAN
Weight	approx. 8 kg approx. 17.64 lbs
Dimensions (W x D x H)	314 x 296 x 89 mm 12.36 x 11.65 x 3.51 inch
Power efficiency note	Power supply efficiency in % at 10% / 20% / 50% / 100% load 80Plus GOLD: for 230V ; 87/90/92/91 for 115V ; 86/89/91/88 80Plus PLATINUM: for 230V ; 88/92/94/93 for 115V ; 87/91/92/91
Warranty period	3 years

Accessories

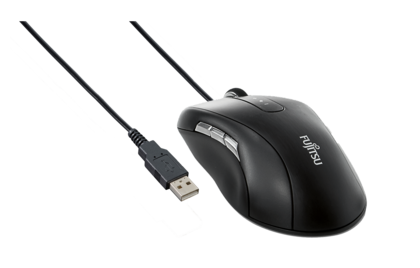

Blue LED Mouse M960
	The Blue LED Mouse M960 comes in a slim design with proven Fujitsu engineering quality. The track on glass Blue LED sensor enables ultra precise switchable resolution at 1,000, 1,600 and 2,000 dpi. Blue LED Mouse M960 makes your life easier because it’s tailor-made for right handed users. It just feels great in your hand.
