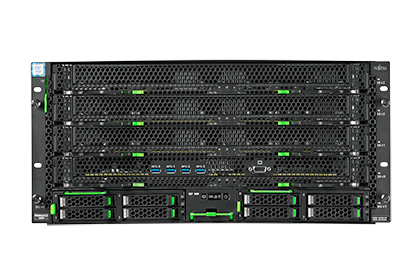

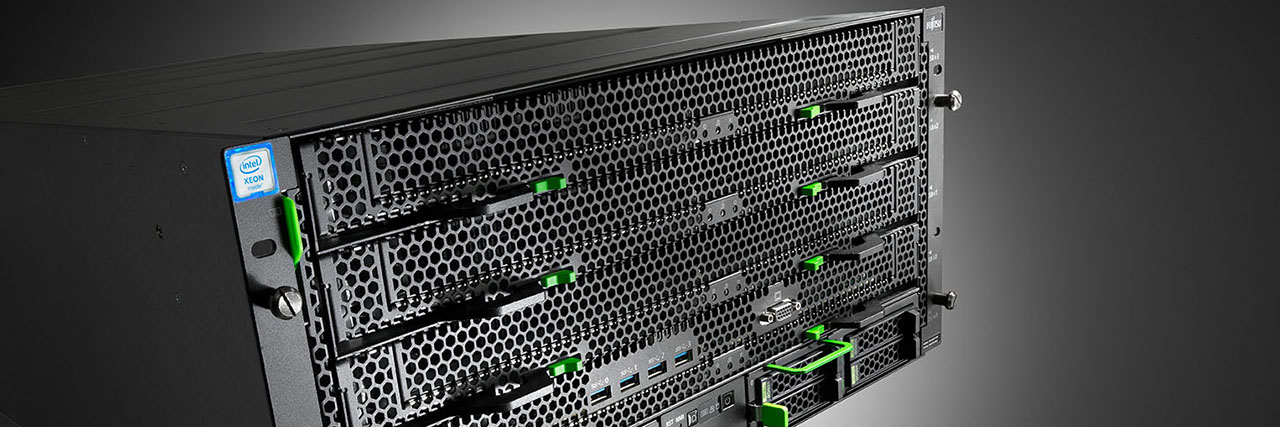

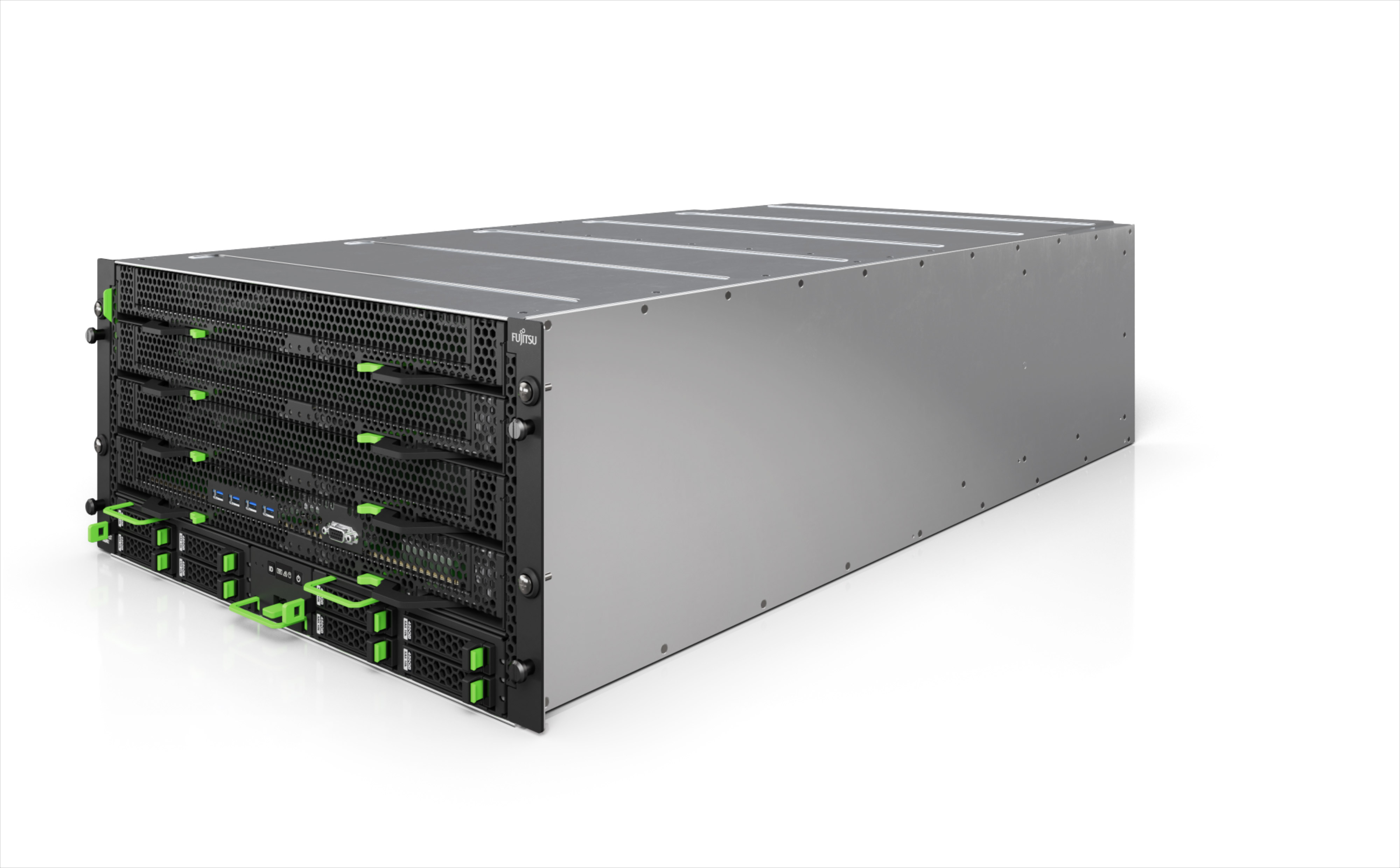

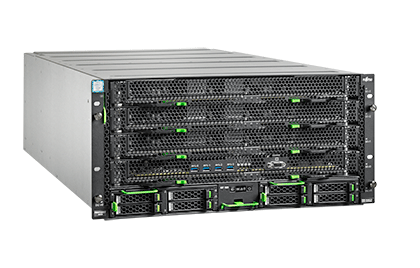

FUJITSU Server PRIMEQUEST 3800B2
FUJITSU Server PRIMEQUEST 3800B2
- Octo-socket rack server that offers superior performance, reliability and optimized economics for business-critical workloads
- Featuring the latest Intel® Xeon® Processor Scalable Family with up to 28 cores per processor and fastest available DDR4 memory modules
- Memory capacity of up to 24TB (DDR4 only) or 36TB with Intel® Optane™ DC Persistent Memory
- Significantly improves performance for in-memory databases such as SAP HANA® and real-time data analytics
- Optimized economics in a compact 5U chassis and advanced RAS features
|
|
|
|
Scalable platform for transaction demanding workloads and consolidation |
Advanced RAS features for Business Critical Workloads |
Smart architecture with high serviceability |
Cost efficiency for your data center |
|
Superior performance and memory capacity for demanding corporate databases, in-memory solutions and business-critical applications. Cost-efficient 5U chassis packs superior performance in an economic, space-saving footprint. |
Advanced RAS features in CPUs and memories have been built in to enable advanced actions for error circumvention, and increased system availability. |
‘Glue-less‘ design with no UPI cables ensures a high level of serviceability. |
Reduced data center hardware costs and electricity bills. Simplified and comprehensive power management that results with the high efficient power supplies in significant savings. |
-
Scalable platform for transaction demanding workloads and consolidation
Superior performance and memory capacity for demanding corporate databases, in-memory solutions and business-critical applications. Cost-efficient 5U chassis packs superior performance in an economic, space-saving footprint. -
Advanced RAS features for Business Critical Workloads
Advanced RAS features in CPUs and memories have been built in to enable advanced actions for error circumvention, and increased system availability. -
Smart architecture with high serviceability
‘Glue-less‘ design with no UPI cables ensures a high level of serviceability. -
Cost efficiency for your data center
Reduced data center hardware costs and electricity bills. Simplified and comprehensive power management that results with the high efficient power supplies in significant savings.
Product Video
Tech Specs
| Chipset |
Intel® C621 |
| Mainboard type |

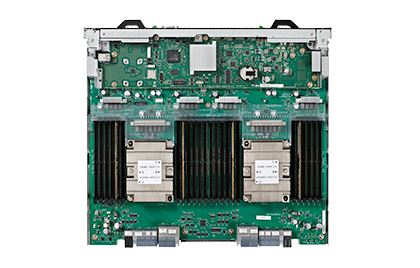

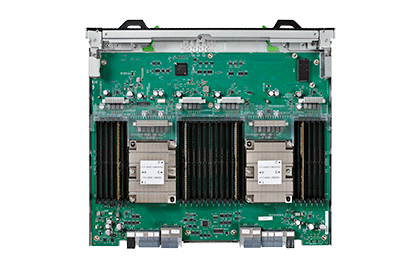

up to 4 x System boards |
| Product Type |
Octo Socket Rack Server |
| Processor |
Intel® Xeon® Platinum 8xxx processor |
| Memory |
64 GB - 36 TB, DIMM (DDR4 / DDR-T for non-volatile memory modules) |
| Memory protection |
ECC, Advanced ECC, Memory Mirroring support, Address Range Memory Mirroring support, Rank sparing memory support, Memory Scrubbing, SDDC+1, ADDDC-MR |
| PCI-Express 3.0 x8 |
8 x Low profile |
| PCI-Express 3.0 x16 |
8 x Low profile (PCI hot-plug is available in 4 out of 8 slots) |
| Storage drive bays |
8 x 2.5-inch hot-plug 8x 2.5” HDD/SSD´s |
| I/O controller onboard |
Intel® i210 onboard 10/100/1000 Mbit/s Ethernet Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller) |
| Power supply configuration |
Up to 4 hot-plug power supplies. |
| Active power (max. configuration) |
4,810 W |
| Weight |
Up to 80 kg |
| Rack (W x D x H) |
482 x 820 x 219 mm |
| Server Management |
Infrastructure and Server Management |
| DC Infrastructure Management |
Infrastructure Manager (ISM) Infrastructure Manager (ISM) |
| Warranty period |
3 years (depending on country) |
| Warranty type |
Onsite Service |
| Service Lifecycle |
5 years after end of product life |
| Service Weblink |
www.fujitsu.com/support |
Resources
Datasheets
Brochures & Flyers
Accessories
|
FUJITSU PFC QLE2740 / QLE2742 Fibre Channel AdaptersThe Gen6 32 Gb/s Fibre Channel Host Bus Adapters (HBA) QLE2740 and QLE2742 for the PRIMERGY & PRIMEQUEST servers are ideal for virtualized environments and transaction intensive applications. The adapters support the latest PCIe 3.0 standard for lower cooling and power costs. In addition, QLogic StorFusion technology delivers streamlined provisioning, guaranteed quality of service (QoS), and improved resiliency while addressing the needs of IT organizations that require reliability, integrated management, and guaranteed network performance. |
|
|
FUJITSU PFC QLE2690 / QLE2692 Fibre Channel AdaptersThe enhanced Gen5 16 Gb/s Fibre Channel Host Bus Adapters (HBA) QLE2690 and QLE2692 for the PRIMERGY & PRIMEQUEST servers are ideal for virtualized environments and transaction intensive applications. The adapters support the latest PCIe 3.0 standard for lower cooling and power costs. In addition, QLogic StorFusion technology delivers streamlined provisioning, guaranteed quality of service (QoS), and improved resiliency while addressing the needs of IT organizations that require reliability, integrated management, and guaranteed network performance. |
|

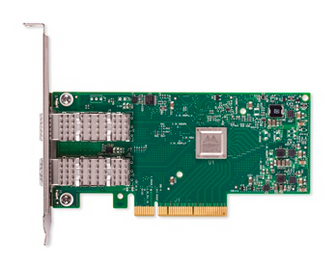

FUJITSU PLAN EP MCX4-LX 25GbE SFP28The FUJITSU PLAN EP MCX4-LX 25GbE is based on Mellanox’s ConnectX®-4 Lx EN (Dual port) Network Interface Card. ConnectX-4 Lx EN Network Controller with 10/25Gb/s Ethernet connectivity addresses virtualized infrastructure challenges, delivering best-in-class and highest performance to various demanding markets and applications. Providing true hardware-based I/O isolation with unmatched scalability and efficiency, achieving the most cost-effective and flexible solution for Web 2.0, Cloud, data analytics, database, and storage platforms. 25Gb Ethernet (25GbE) enables network bandwidth to be cost-effectively scaled in support of next-generation server and storage solutions residing in Cloud and Web-scale data center environments. The 25GbE results in a single switch lane connection similar to existing 10GbE technology—but it delivers 2.5 times greater bandwidth. |
|

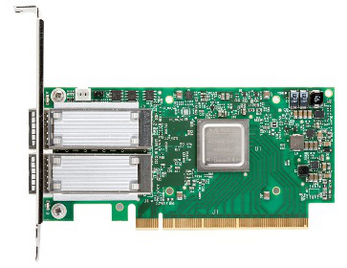

FUJITSU PLAN EP MCX4-EN 40GbE QSFPThe FUJITSU PLAN EP MCX4-EN 40GbE is based on Mellanox’s ConnectX®-4 EN (Dual port) Network Interface Card. ConnectX-4 EN Network Controller with 40Gb/s Ethernet connectivity addresses virtualized infrastructure challenges, delivering best-in-class and highest performance to various demanding markets and applications. Providing true hardware-based I/O isolation with unmatched scalability and efficiency, achieving the most cost-effective and flexible solution for Web 2.0, Cloud, data analytics, database, and storage platforms. 40Gb Ethernet (40GbE) enables network bandwidth to be cost-effectively scaled in support of next-generation server and storage solutions residing in Cloud and Web-scale data center environments. |
|

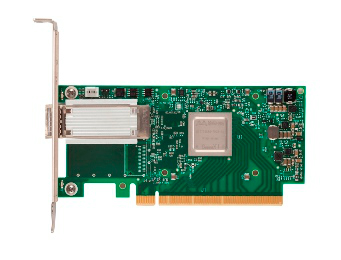

FUJITSU PLAN EP MCX4-EN 100GbE QSFP28The FUJITSU PLAN EP MCX4-EN 100GbE is based on Mellanox’s ConnectX®-4 EN (Single port) Network Interface Card. ConnectX-4 EN Network Controller with 100Gb/s Ethernet connectivity addresses virtualized infrastructure challenges, delivering best-in-class and highest performance to various demanding markets and applications. Providing true hardware-based I/O isolation with unmatched scalability and efficiency, achieving the most cost-effective and flexible solution for Web 2.0, Cloud, data analytics, database, and storage platforms. 100Gb Ethernet (100GbE) enables network bandwidth to be cost-effectively scaled in support of next-generation server and storage solutions residing in Cloud and Web-scale data center environments. |
