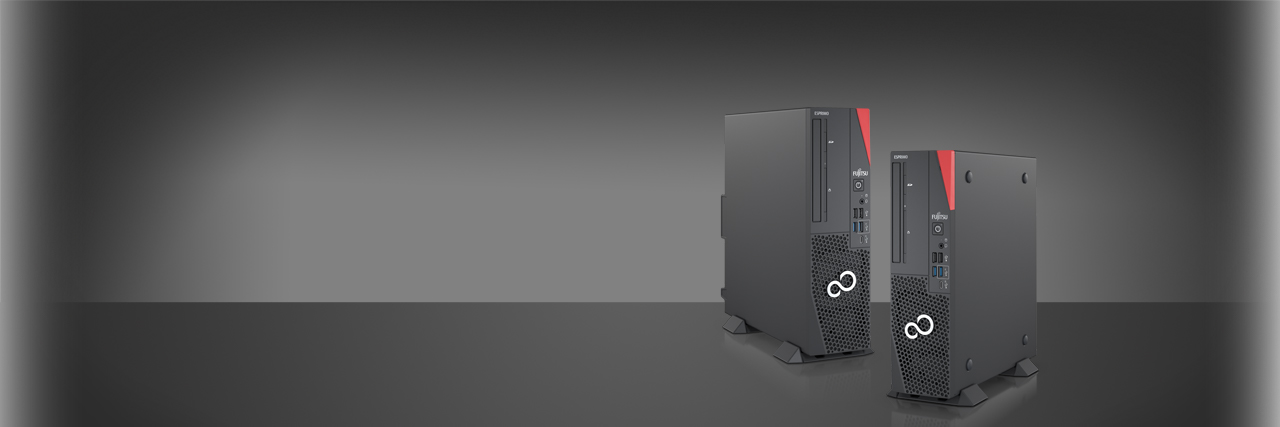

Fujitsu Desktop ESPRIMO D7012

Fujitsu Desktop ESPRIMO D7012

  • Windows 11 Pro. Fujitsu recommends Windows 11 Pro for business.
  • Space saving in width and depth with new 8.3 liters volume
  • High performance ensures faster operations and lower system response time
  • High security with integrated options
  • Low power consumption; easy serviceability and usability

More Details
ImgPlaceholder ImgPlaceholder ImgPlaceholder ImgPlaceholder
Latest Intel® chipset technology and higher memory speed
Ultimate expandability with easy serviceability
Best-in-class connectivity
High security with integrated options

High performance ensures faster operations and lower system response time

Space saving design for your future computing needs

Be flexible and stay productive in a hyper-connected world

Designed to protect data and hardware components against manipulation and theft
  • ImgPlaceholder
    Latest Intel® chipset technology and higher memory speed
    High performance ensures faster operations and lower system response time
  • ImgPlaceholder
    Ultimate expandability with easy serviceability
    Space saving design for your future computing needs
  • ImgPlaceholder
    Best-in-class connectivity
    Be flexible and stay productive in a hyper-connected world
  • ImgPlaceholder
    High security with integrated options
    Designed to protect data and hardware components against manipulation and theft

Tech Specs

Product ESPRIMO D7012
Operating system Windows 11 Pro. Fujitsu recommends Windows 11 Pro for business.
Windows 11 Home
Windows 10 Pro. Fujitsu recommends Windows 11 Pro for business.
Mainboard D4023-A2 (proprietary )
Chipset Intel® Q670
Processor Intel® Core™ i7-13700 processor, 30 MB, 2.1 GHz
Intel® Core™ i7-12700 processor, 25 MB, 2.1 GHz
Intel® Core™ i5-13500 processor, 24 MB, 2.5 GHz
Intel® Core™ i5-13400 processor, 20 MB, 2.5 GHz
Intel® Core™ i5-12500 processor, 18 MB, 3.0 GHz
Intel® Core™ i5-12400 processor, 18 MB, 2.5 GHz
Intel® Core™ i3-13100 processor, 12 MB, 3.4 GHz
Intel® Core™ i3-12100 processor, 12 MB, 3.3 GHz
Supported capacity RAM (max.) 128 GB, 4 Memory slot(s) DIMM (DDR4), Dual channel support, For dual channel performance, 2 memory modules have to be ordered. Capacity per channel has to be the same. 3200 MHz may be clocked down to 2933/2400MHz depending on processor and memory configuration
Serial ATA total 4
thereof SATA III Serial ATA III (6 Gbit), NCQ, AHCI, SATA RAID Support
Drives (optional) DVD Super Multi ultra slim (tray), SATA
SD Card reader, USB 3.0
Drive bay x 3.5-inch external bay
x 3.5-inch internal bay
1 x 5.25-inch external bay
Slots 1 x PCI-Express 3.0 x4 (mech. x16)
1 x PCI-Express 3.0 x1
Interfaces Front
3x USB 2.0 Type-A
1x USB 3.2 Gen 2 (10 Gbps) Type-A
1x USB 3.2 Gen 2x2 (20 Gbps) Type-C (supports up to 15W)
Rear
4x USB 2.0 Type-A
2x USB 3.2 Gen 1 (5 Gbps) Type-A
2 x DP, 1 x RJ-45
Flexible interface options (1 only)
HDMI, DP 1.4a, DVD-D, VGA, USB Type-C with power delivery up to 15w
USB Type-C with power delivery up to 60w (non e-star)
2.5GB Ethernet (non e-star)
9 pin Serial port (non e-star)
Graphics Intel® UHD Graphics 770, Intel® UHD Graphics 730, Intel® UHD Graphics 710, Up to half size of total system memory
Audio type Realtek ALC897
Communication 10/100/1,000 MBit/s Intel® I219LM
1 (optional) x Integrated WLAN
Weight approx. 8 kg
Dimensions (W x D x H) 314 x 296 x 89 mm
12.36 x 11.65 x 3.51 inch
Power efficiency note Power supply efficiency in % at 10% / 20% / 50% / 100% load
80Plus GOLD:
for 230V ; 87/90/92/91
for 115V ; 86/89/91/88

80Plus PLATINUM:
for 230V ; 88/92/94/93
for 115V ; 87/91/92/91
Warranty period 4 year
Operating system notes Bring-In / Onsite Service (depending on country)
Windows 11 requires for first device setup:
- Internet connectivity
- Microsoft account for Home editions or organizational account (e.g. ADD) for Pro editions
After product end of life, Fujitsu continues to test and support new Windows releases for max. 5 years, depending on extension of hardware services through warranty top ups.
For more details please visit our Fujitsu Service Statement under https://support.ts.fujitsu.com/IndexProdSupport.asp?lng=com&OpenTab=
The use of Windows Operating System is subject to acceptance of the End User License Agreement of Microsoft as applicable under the relevant Microsoft program.
1 x 2.5-inch internal bay
x 5.25-inch internal bay
