Keyboard KB100 SCR

Keyboard KB100 SCR

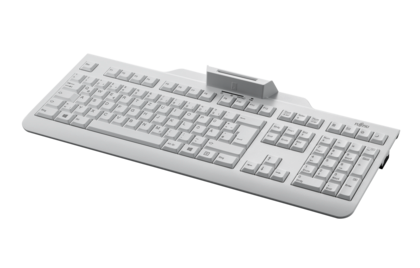

The FUJITSU Accessories Keyboard KB100 SCR includes a user-friendly class-2 SmartCard Reader making it a reliable solution for reading and writing SmartCards. It offers an open platform for all standard software applications. Use your SmartCards for authentication, Single Sign On, PKI, – this keyboard provides an easily accessible card-slot and ensures full-speed data transmission via USB 2.0 connection.

More Details
ImgPlaceholder ImgPlaceholder ImgPlaceholder ImgPlaceholder
Security
Usability
Ergonomics
Reliability

Secure PIN Entry Class 2 smartcard reader

Seamless Plug & Play installation for every PC with USB
Ultra soft and silent key stroke
Status LED for: NUM/CAPS - SmartCard communication - Secure PIN entry mode

Stress free and effective use through high contrast keys, ergonomic key design and a soft pressure point.

High quality and function stability designed in Germany
Abrasion-proof keys thanks to laser technology to write the keycaps
  • ImgPlaceholder
    Security
    Secure PIN Entry Class 2 smartcard reader
  • ImgPlaceholder
    Usability
    Seamless Plug & Play installation for every PC with USB
    Ultra soft and silent key stroke
    Status LED for: NUM/CAPS - SmartCard communication - Secure PIN entry mode
  • ImgPlaceholder
    Ergonomics
    Stress free and effective use through high contrast keys, ergonomic key design and a soft pressure point.
  • ImgPlaceholder
    Reliability
    High quality and function stability designed in Germany
    Abrasion-proof keys thanks to laser technology to write the keycaps

Tech Specs

Product Keyboard KB100 SCR
Keyboard Type Keyboard with contact SmartCard Reader / 105-key keyboard type
Special features SmartCard reader/writer for ISO 7816 cards
Cards with 5V; 3,3V; 1,8V
Short Circuit protection
Class 2 reader, Secure Pin Entry
CCID compatible
PC/SC 2.0, CT-API
Plug In cycles: 100.000
Data rate to Smartcard: 420 kBit/s
Data rate to system max. 12 MBit/s
Smartcard frequency 4,8 MhZ
Keys additional 4 multi function keys: Sleep, mail, browser, calculator
Multifunction keys Yes
Status LED green
Laser printed keys Yes
SmartCard Reader Yes
Height Adjustment 1.5° and 6°
Color Marble grey
USB 2.0 total USB 2.0 full speed
Package content KB100 SCR
CD-ROM (driver & utility)
Quickstart Guide
Weight 835 g
Order information S26381-K100-L1** (**: country specific version)
Warranty type Bring-In / Send-In Service (depending on country)
