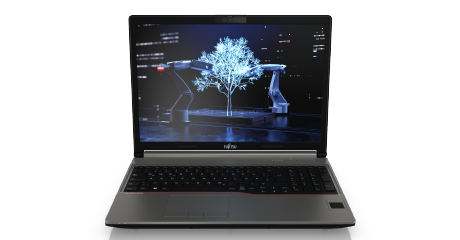

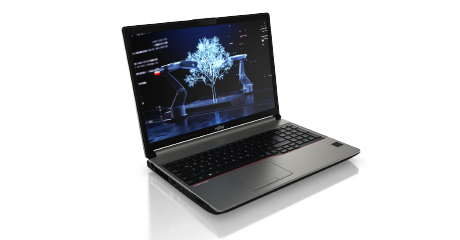

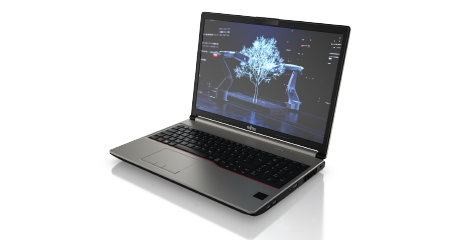

Fujitsu Mobile Workstation CELSIUS H7613 ESTARx
Excellent Combination of Portability and Power
Fujitsu’s latest 16” mobile workstation - CELSIUS H7613 ESTARx, equipped with a stunning 16:10 WQUXGA (3840 x 2400) LCD display, triple SSDs storage, latest DDR5 ECC memory and powerful NVIDIA RTX 3500 ADA graphic card. You can always work on your professional works and modelling fast, anywhere, anytime. CELSIUS H7613 ESTARx is the mobile workstation you definitely need for your daily design routine.
Features and Benefits
True Power
Mobile workstation raging with performance
- Latest 13th Gen Intel® Core™ HX-series processors up to i9-13950HX (24 cores, running at 5.5 GHz)
- Intel® Core™ vPro® Enterprise technology to secure and manage a hybrid workforce
- Up to 128GB DDR5 ECC memory
- Up to Triple M.2 SSDs PCIe Gen4 SSD for swift data processing in CAD applications
- Up to NVIDIA® Quadro® RTX 3500 ADA graphic card for engineers and designers to work without limits
- RAID 1 PCIe Gen4 SSD configuration preventing data loss and failure
- Up to 16:10 WQUXGA (3,840 x 2,400) display with 100% DCI-P3, 96% NTSC and 800cd2 brightness
- Dual fans cooling solution maximizies airflow and CPU performance
- Up to 8 hours battery life with 94.95 Wh
Ultimate User experience
Complete port connectivity for different expansion scenario
- 16” 4K stunning display for viewing technical drawings or modelling
- 2x Thunderbolt™ 4 (USB Type-C®) connector offer high speed of data transferring CAD design materials
- Full monitor connectivity support with full-sized HDMI for you to work straightaway with no hassle
- Support Thunderbolt™ 4 Port Replicator for further connectivity expansion
- Durable chassis complies with MIL-STD-810H standard
Ease of Upgradability
Instant upgrade via service door
- SSD and memory can be upgraded easily via service door whenever you needed
Maximum Security
Data security and peace of mind
- Integrated PalmSecure™ or Fingerprint sensor
- Infrared FHD webcam allows face recognition with Windows Hello
- EraseDisk ensures secure data deletion
- Privacy camera shutter to prevent others from illegally peeking through the lens
- TPM 2.0 for secure data processing
Technical Details
| Product | FUJITSU CELSIUS H7613 ESTARx |
|---|---|
| Operating System | Windows 11 Pro. Fujitsu recommends Windows 11 Pro for business.
Windows 10 Pro through Windows 11 Pro downgrade rights |
| Processor | Intel® Core™ i9-13950HX processor (24 Cores, up to 5.5 GHz)
Intel® Core™ i7-13850HX processor (20 Cores, up to 5.3 GHz) |
| Memory | 16GB (8GB x2) DDR5-4000 MHz
32GB(16GBx2) DDR5 4000 MHz 64GB(16GBx4) DDR5 3600 MHz 64GB(32GBx2) DDR5 4000 MHz ECC 128GB(32GBx4) DDR5 3600 MHz ECC |
| Storage | 4TB, Gen 4 Performance PCIe-SSD M.2 2280 NVMe module, SED
2TB, Gen 4 Performance PCIe-SSD M.2 2280 NVMe module, SED 1TB, Gen 4 Performance PCIe-SSD M.2 2280 NVMe module, SED 512GB, Gen 4 Performance PCIe-SSD M.2 2280 NVMe module, SED 256GB, Gen 4 Value PCIe-SSD M.2 2280 NVMe module, SED RAID1 SSD 2x 1TB, Performance PCIe-SSD M.2 2280 NVMe module, SED RAID1 SSD 2x 2TB, Performance PCIe-SSD M.2 2280 NVMe module, SED |
| Display | 16 inch (40.6 cm), 16:10, WQUXGA 3,840 x 2,400 pixel, Anti-glare display, 100% DCI-P3; 800 cd/m²
16 inch (40.6 cm), 16:10, WQXGA 2,560 x 1,600 pixel, Anti-glare display, 100% sRGB; 400 cd/m² |
| Graphics | NVIDIA® RTX 3500 ADA
NVIDIA® RTX 2000 ADA NVIDIA® RTX A1000 |
| Camera | Built-in FHD IR Webcam with privacy shutter. Windows Hello supported. |
| Audio | Realtek® ALC257 with MaxxAudio |
| Battery | 6 cell, 94.95Wh |
| Dimension (W x D x H) | 370 mm x 264.5 mm x 26.4 mm |
| Weight | Starting from 2.56kg |
| Input/Output Ports | 1x Audio Combo
3x USB 3.2 Gen 1 (2x USB-A, 1x USB-C) 2x USB 4 Gen 3 or Intel® Thunderbolt™ 4 (with DisplayPort and Power delivery function) 1x HDMI 2.0 1x Ethernet RJ-45 |
| Keyboard | 105 Keys, 18.4 mm pitch, 1.7 mm keystroke |
| Security | Integrated Fingerprint sensor (Optional)
Integrated PalmSecure™ palm vein sensor (Optional) Trusted Platform Module (TPM 2.0) (Optional) Integrated Smartcard reader Fujitsu EraseDisk Fujitsu AuthConductor™ Client Basic Fujitsu BIOS/Hard Disk password protection Kensington lock slot (lock to be purchased separately) |
| Ethernet | Intel® Ethernet Connection I226-LM |
| WLAN (Optional) | Intel® Wi-Fi 6E AX211 - Bluetooth 5.2 (depends on OS support), SRD cat.2 (6E frequency only in dedicated regions) |
*Availability depends on countries
Options
| Product Name | Order Number |
|---|---|
| TBT4 Port Replicator | FPCPR401DP |
| TBT4 Port Replicator for Taiwan | FPCPR401DQ |
| Battery pack (6cell, 94.95Wh) | FPCBP599DP |
| System AC Adapter, 3-pin, 230W, no cable | FPCAC327DP |
| 3-pin SG power cable for 230W AC | FPCACD11DP |
| 3-pin HK power cable for 230W AC | FPCACD12DP |
| 3-pin CN power cable for 230W AC | FPCACD13DP |
| 3-pin MY power cable for 230W AC | FPCACD14DP |
| 3-pin TH power cable for 230W AC | FPCACD15DP |
| 3-pin ID power cable for 230W AC | FPCACD16DP |
| 3-pin VN power cable for 230W AC | FPCACD17DP |
| 3-pin PH power cable for 230W AC | FPCACD18DP |
