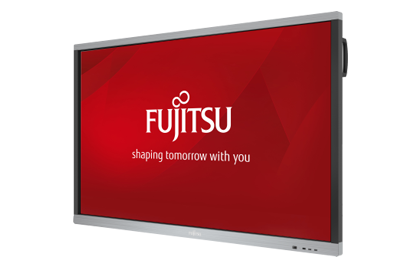

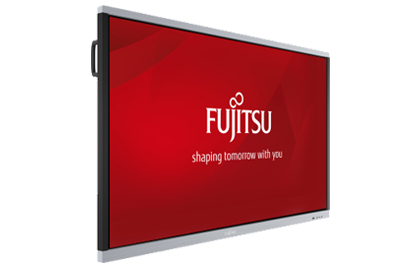

Interactive panel IW650/IW750/IW860
The Fujitsu Interactive Panel series is ideal for business and education users looking to upgrade their existing projector-based meeting spaces or classrooms. Compared to projector systems, the Fujitsu Interactive Panel is more robust, offering higher resolution and outstanding image quality, thus creating unparalleled interactivity in office meeting rooms or classrooms.
Features and Benefits
Interactive display with 4K resolution

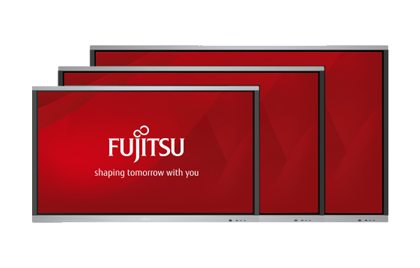

- Available at 65"/ 75"/ 86”, the stunning display is key to support presentations that requires illustrations of the finest visual details
- Flicker-free display technology
- Anti-glare filter reduces reflection
- 4mm-thick 7H hardness tempered glass
Multi-device sharing across different operating systems
- Simultaneously displays screens of up to 4 devices, enabling presenters to switch between devices
- Wireless mirroring between devices running different operating systems, including smartphones, tablets, notebooks, Windows, Mac, iOS and Android
Real whiteboard usage experience
- 20-point touch screen
- Smooth and natural writing experience
- Smart Annotation
- Freeze, annotate, save and share screen content easily
Technical Details
| Product Name | FOrder Number |
|---|---|
| Picture Performance | |
| Panel and backlit | LED |
| Screen Surface Treatment | AG tempered glass 4mm Mohs level 7 |
| Contrast – typical | 1200:01:00 |
| Viewing angle (h/v) - typical | 178o |
| Color performance | 1.07 Billion Colors |
| Brightness – typical | 330 cd/m2(Typ) |
| Size and Resolution | |
| Aspect ratio | 16:9 |
| Resolution (native) | 3840(H) x 2160(V) |
| Picture Size (H x V) | 65”: 1428.48 x 803.52mm // 75”: 1649.664 x 927.936mm // 86”: 1895.04 x 1065.96mm |
| Pixel Pitch | 65”: 0.372mm // 75”: 0.429mm // 86”: 0.4935mm |
| Response Time | 8ms(Typ) |
| Refreshing Frequency | 60Hz |
| Connectivity | |
| VGA/D-SUB | 1 x D-SUB |
| DVI | N/A |
| DP | N/A |
| HDMI | 1 x HDMI OUT, 2 x HDMI IN (HDMI2.0) |
| USB | 4 x USB 2.0 (including 2 USB ports in front) |
| 2 x USB 3.0 | |
| Audio In | 1 x 3.5 mm stereo phone jack |
| Audio sound output | 2 x 12 W |
| AV In | 1 x AV IN |
| RS232 Control | 1 x RS232 |
| Built-in Speaker | Yes |
| LAN | 1 x LAN |
| Touch System | |
| Sensing Type | Infrared recognition |
| Touch point | 10 points writing and 20 points touch |
| Writing Response | single-touch ≥6mm and multi-touch ≥8mm |
| Touch Tool | Finger, Finger cover by glove, Opaque objects |
| Response Time | <15ms |
| Accuracy | ±2mm(over 90% Area) |
| Communication Mode | Full-speed USB (driver free) |
| Surface Hardness | Toughened Glass with Level 7 of Mohs Standard |
| Power consumption (Typical) | |
| Soft switch off | ≤0.5W |
| Overall Power(nominal power) | 500W |
| Electrical values | |
| Rated voltage range | 100 V – 240 V |
| Rated frequency range | 50 Hz – 60 Hz |
| Protection class | 1 |
| Quality and Reliability | |
| MTBF (demonstrated) | 30,000h |
| Dimensions / Weight / Environmental | |
| Key Location & Number | Front physical keys, 1 |
| Dimension (L x H x D) | 65”: 1521 x 914 x 98mm // 75”: 1763 x 1034 x 100mm // 86”: 1988 x 1178 x 100mm |
| Net Weight | 65”: 45.6kg // 75”: 58.6kg // 86”: 75.5kg |
| Gross Weight | 65”: 55kg // 75”: 78kg // 86”: 105kg |
| Thickness of machine and wall mount | 65”: 144mm (9060F) // 75”: 146mm (9060F) // 86”: 146mm (9060F) |
| VESA | 65”: 600 x 400mm // 75”: 800 x 400mm // 86”: 800 x 600mm |
| Miscellaneous | |
| Color | Black |
| Accessories | |
| AC Power Cable | British Standard Power Cord (3 meters), EU Power Cord (3 meters) |
| USB Cable | 5 meters |
| VGA Cable | 5 meters |
| Audio Cable | 5 meters |
| Writing Pen | 3 |
| Remote Control | 1 |
| Operation Instruction | 1 |
Options
| Product Name | Order Number |
|---|---|
| Dual Band WiFi Module | HLMWB0001A-01 |
| Mobile Stand | HLTWB0001A-01 |
