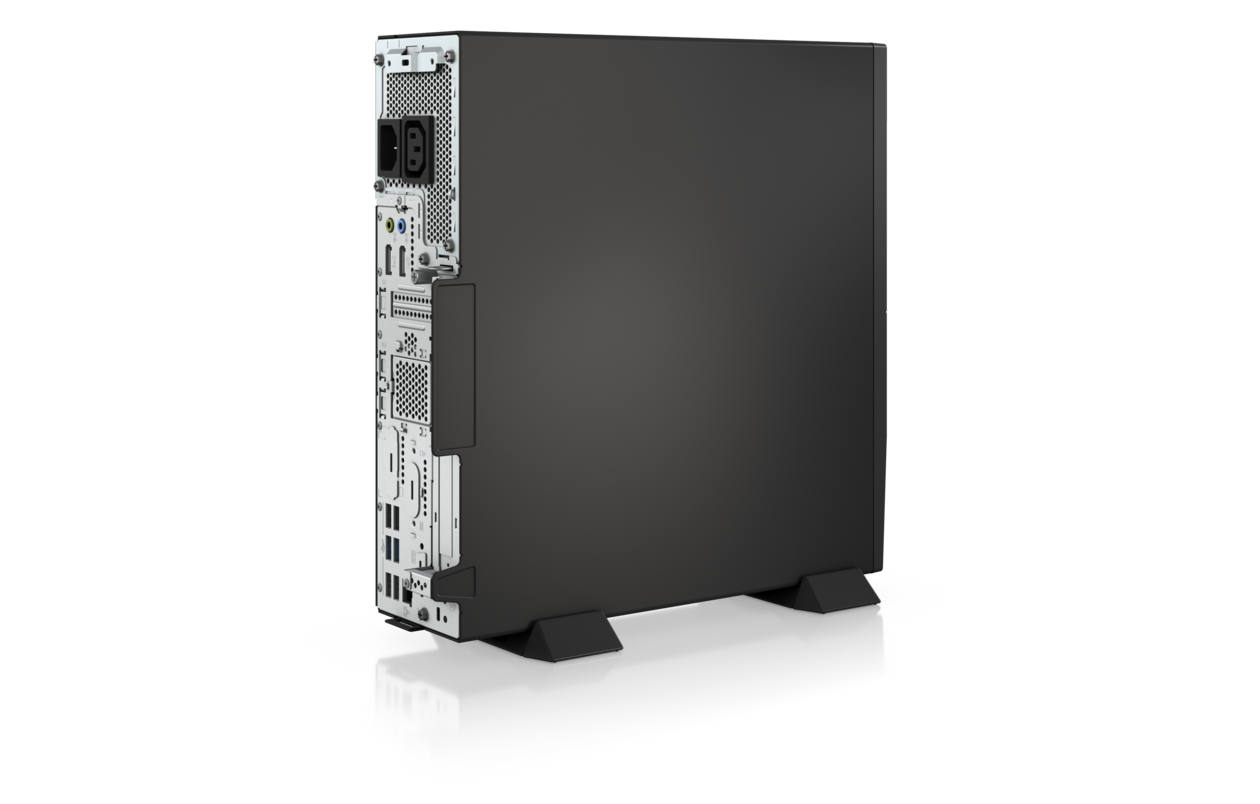

Fujitsu Desktop ESPRIMO D7012
The Fujitsu ESPRIMO D7012 desktop is a high performance, secure small form factor Desktop PC with ultimate expandability, along with best-in-class connectivity. Faster operations and a small housing helps in space saving to create the perfect working desk. The USB Type-C®, flexible graphics options, offers great connectivity. The 80Plus GOLD and 80Plus PLATINUM power supply helps to reduce environmental impact and energy bills.
Features and Benefits
Latest Intel® chipset technology and higher memory speed
Good performance ensures faster operations and lower system response time
- Intel® Q670 chipset with higher memory frequency of 3,200 MT/s
- Intel vPro® Enterprise and Intel vPro® Essentials technology as BTO (depending on processor)
Ultimate expandability with easy serviceability
Space saving design for your future computing needs
- 3x low profile (LP) or 1x LP/ 1x full height (riser) via BTO
- Space saving in width and depth with 8.3 liters volume
- Tool-less access to components, easy change and screw-less add on cards
Best-in-class connectivity
Be flexible and stay productive in a hyper-connected world
- Support of new USB Type-C® in front
- Flexible graphics options (VGA, DVI-D, HDMI, Type-C, DP)
- USB Type-C support of 60 W (optional to power a display)
High security
Designed to protect data and hardware components
- Hole for pad lock and Kensington as standard for security
- TPM 2.0 Module
Low power consumption and environmental impact
Reduced environmental impact and reduced energy bills
- 80Plus PLATINUM power supply efficiency with monitor outlet
Technical Details
| Product | FUJITSU ESPRIMO D7012 |
|---|---|
| Operating System | Windows 11 Pro
Windows 11 Home Windows 10 Pro (Via Windows 11 Pro Downgrade Option) Fujitsu recommends Windows 11 Pro for business |
| Mainboard | D4023-A2 |
| Chipset | Intel® Q670 |
| Processor | Intel® Core™ i7-13700 processor, 30 MB, 2.1 GHz
Intel® Core™ i5-13500 processor, 24 MB, 2.5 GHz Intel® Core™ i5-13400 processor, 20 MB, 2.5 GHz Intel® Core™ i3-13100 processor, 12 MB, 3.4 GHz Intel® Core™ i7-12700 processor, 25 MB, 2.1 GHz Intel® Core™ i5-12500 processor, 18 MB, 3.0GHz Intel® Core™ i5-12400 processor, 18 MB, 2.5GHz Intel® Core™ i3-12100 processor, 12 MB, 3.3GHz |
| Supported capacity RAM (max.) | 128 GB, 4 Memory slot(s) DIMM (DDR4), Dual channel support, For dual channel performance, 2 memory modules have to be ordered. Capacity per channel has to be the same. 3200 MHz may be clocked down to 2933/2400MHz depending on processor and memory configuration. |
| Serial ATA total | 4 |
| thereof SATA III | Serial ATA III (6 Gbit), NCQ, AHCI, SATA RAID Support |
| Drives (optional) | DVD Super Multi ultra slim (tray), SATA
SD Card Reader, USB 3.0 |
| Drive bay | 1 x 2.5-inch internal bay; 1 x 5.25-inch external bay ; 1 x internal 3.5-inch bay |
| Slots | 1 x PCI-Express 3.0 x4 (mech. x16)
1 x PCI-Express 3.0 x1 (Low profile) 1 x PCI-Express 4.0 x16 (Low profile) |
| Interfaces | 1 x Audio: line-in
1 x Audio: line-out 3 x USB 3.2 Gen 1 (5 Gbps) total 1 x USB 3.2 Gen 2 (10 Gbps) and 1 optional total 1 x USB 3.2 Gen 2x2 (20 Gbps) total 7 x USB 2.0 total Front: 3 x USB 2.0; 1 x USB 3.2 Gen 2; 1 x USB 3.2 Gen 2x2 Type C Rear: 4 x USB 2.0; 2 x USB 3.2 Gen 1; 1 x USB 3.2 Gen 2 Type-C (Optional) Internal: 1 x USB 2.0 or 1 x USB 3.2 (Gen1) 1 x Ethernet (RJ-45) 1 x Kensington Lock support 2 x DisplayPort |
| Graphics | Intel® UHD Graphics 770, Intel® UHD Graphics 730
*depends on CPU |
| Audio type | Realtek ALC897 |
| Communication | 10/100/1,000 MBit/s Intel® I219LM |
| Weight | Approx. 8 kg
Approx. 17.64 lbs |
| Dimensions (W x D x H) | 314 x 296 x 89 mm
12.36 x 11.65 x 3.51 inch |
| Power efficiency note | Power supply efficiency in % at 10% / 20% / 50% / 100% load
80Plus GOLD: for 230V ; 87/90/92/91 for 115V ; 86/89/91/88 80Plus PLATINUM: for 230V ; 88/92/94/93 for 115V ; 87/91/92/91 |
