Tower powerhouse with the richest feature set

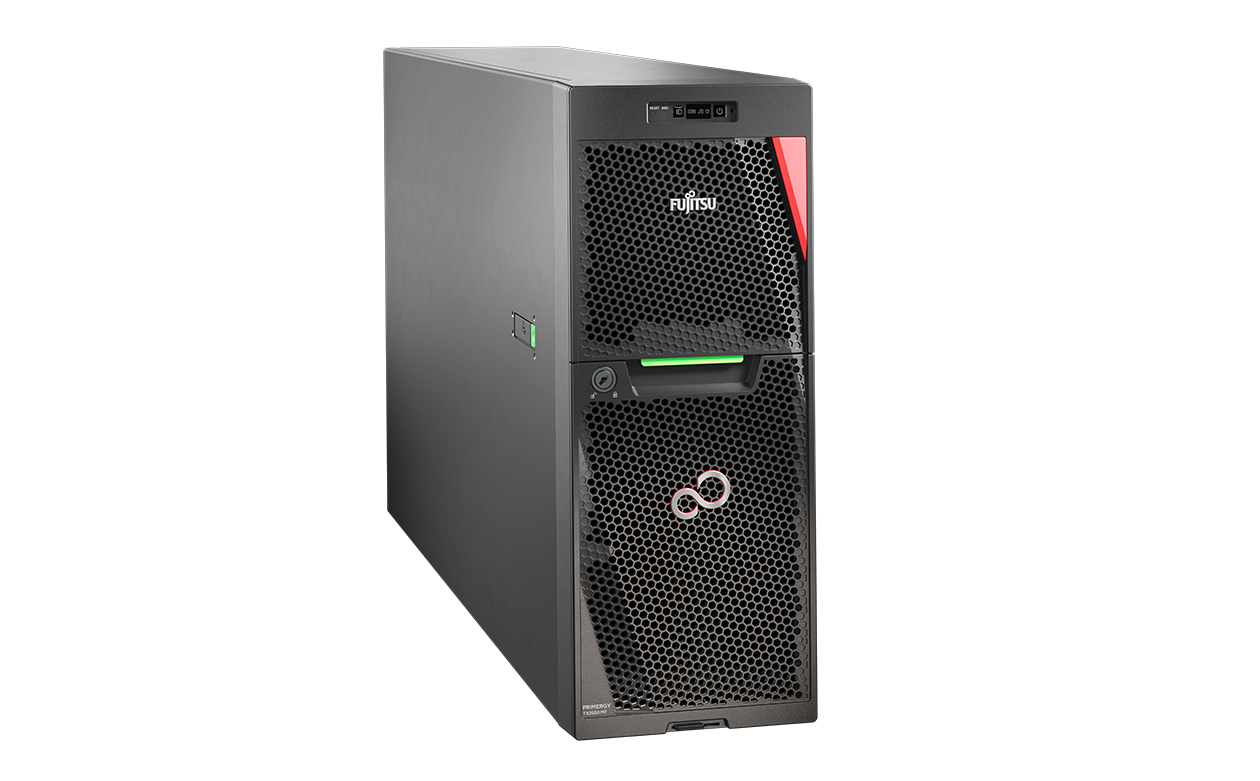

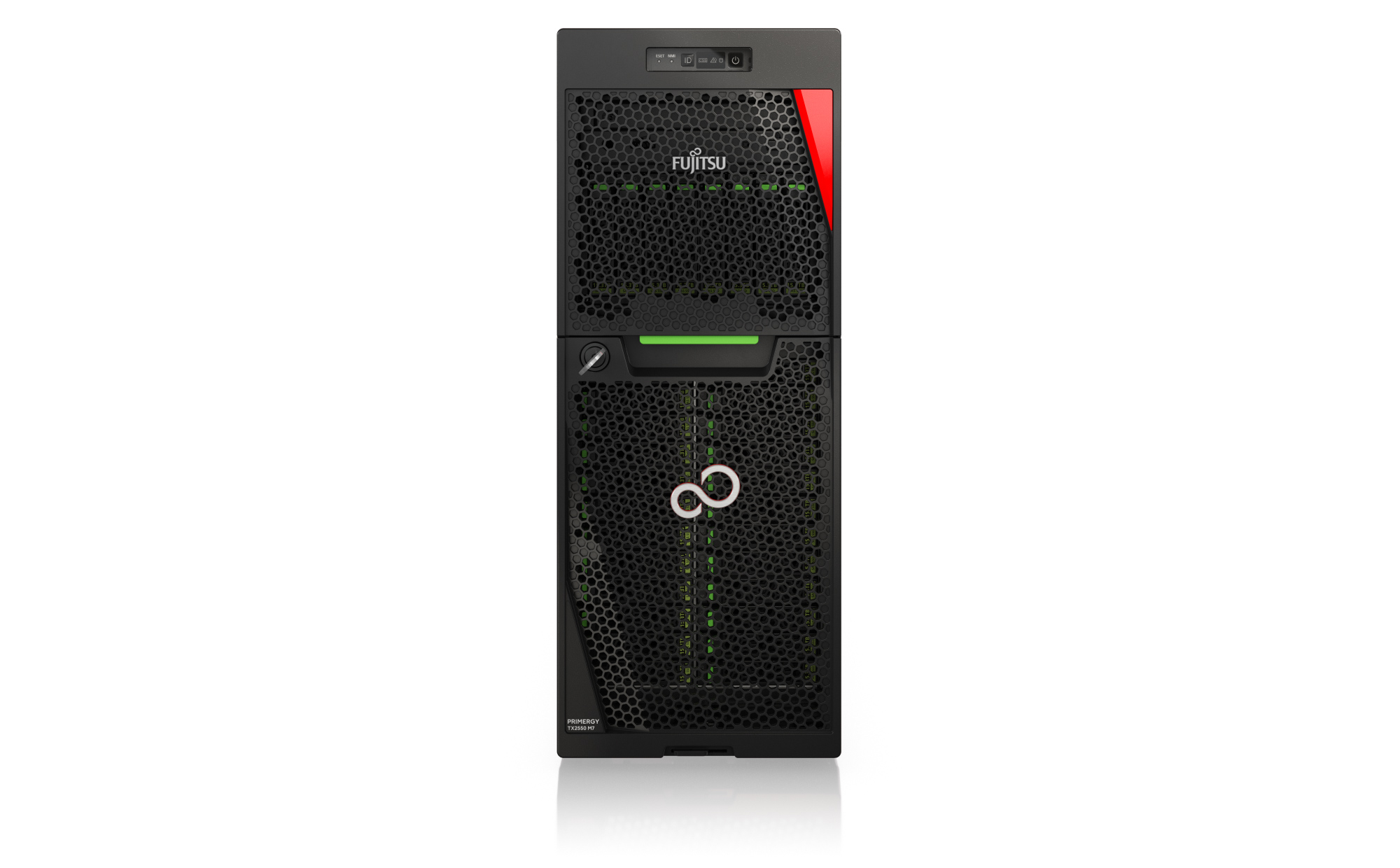

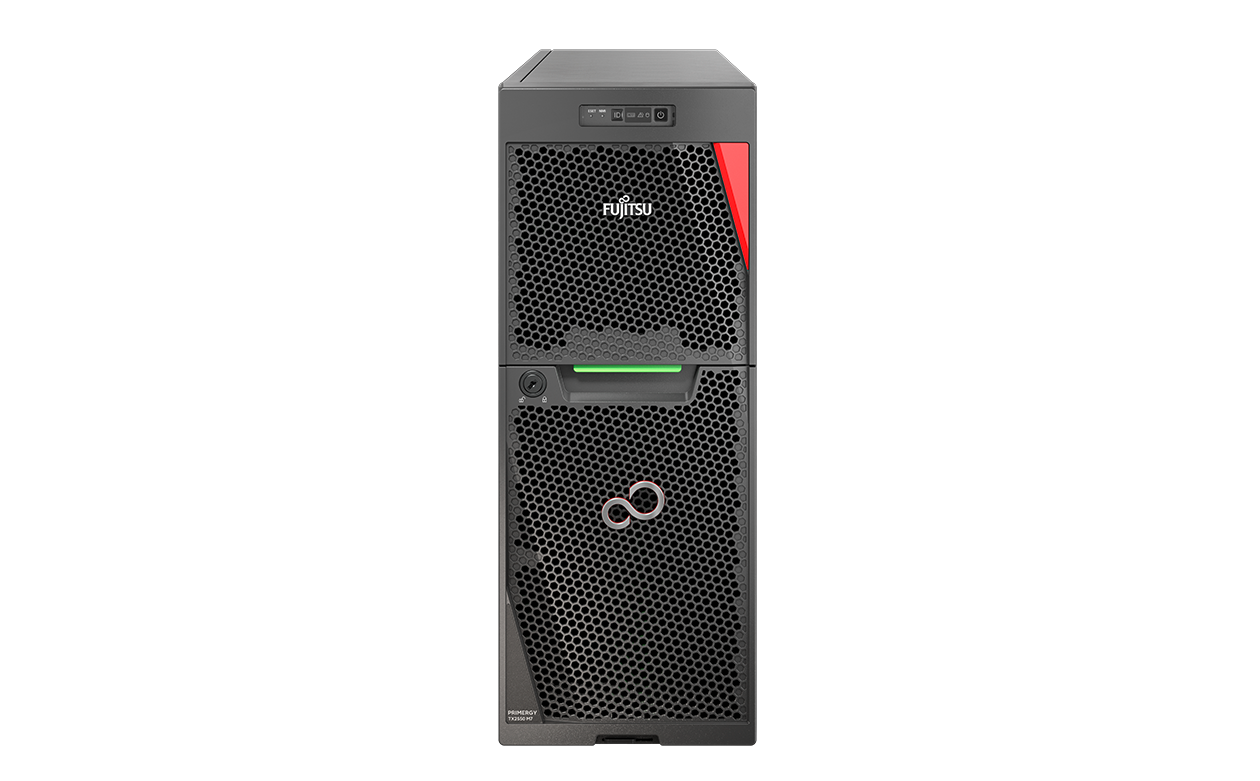

PRIMERGY TX2550 M7

PRIMERGY TX2550 M7
PRIMERGY TX2550 M7
- Small powerhouse for unprecedented business applications, processes and virtualized workloads
- Up to 2x CPUs of the 5th Generation Intel® Xeon® Scalable processors with 32 cores
- 16x high speed DDR5 DIMM slots with up to 8TB and 5.600 MT/s
- Up to 32x 2.5 SAS/SATA/NVME storage devices with hot-plug frames
- Room for up to 4 full height double width GPUs for AI/VID driven business workloads
![]() |
![]() |
![]() |
![]() |
Power packed performance across workloads |
Highly expandable and flexible design |
Designed to be upgrade ready and efficient |
Server and infrastructure management at your fingertips |
The enhanced dual-socket calculator and high bandwidth DDR5 processor help to improve efficiency and increase performance while reducing power consumption. The TX2550 M7 is capable of handling a range of different tasks at the highest level: demanding industrial and analytical applications, business processes and enterprise applications, and virtualised workloads. |
Storage suitable for securely managing extremely large datasets and flexible enough to be matched to a range of storage centric requirements such as IT infrastructure or collaboration workloads. Drives and RAID controllers can be tailored to specific business needs and budgets. Powerful and cost-effective networking options are available depending on your business need and budget. |
Versatile PCIe slots offer flexible expandability for the integration of existing and new storage controllers, networking cards, or the benefits of graphics cards. Add capabilities per your business needs. Graphics card improves performance for graphic intensive apps; get more from your display infrastructure. The server is designed for quiet operation and offers best-in-class reliability and energy efficiency with up to 96% efficiency and dual power supplies. The rack upgrade kit allows you to invest in a system designed for scalability to match your business growth. |
The onboard iRMC S6, is optimized for both data centers and SMEs who can rely on the latest generation server management. With ISM centralize the data center management as well as power and cooling by using a single user interface. Improve the whole data center productivity with converged infrastructure management. M.2 devices are perfect for hassle-free hypervisor /operating system start-up, while TPM 2.0 provides ease of mind for administrators with the latest hardware and Software driven security features. |
-
Power packed performance across workloads
The enhanced dual-socket calculator and high bandwidth DDR5 processor help to improve efficiency and increase performance while reducing power consumption. The TX2550 M7 is capable of handling a range of different tasks at the highest level: demanding industrial and analytical applications, business processes and enterprise applications, and virtualised workloads. -
Highly expandable and flexible design
Storage suitable for securely managing extremely large datasets and flexible enough to be matched to a range of storage centric requirements such as IT infrastructure or collaboration workloads. Drives and RAID controllers can be tailored to specific business needs and budgets. Powerful and cost-effective networking options are available depending on your business need and budget. -
Designed to be upgrade ready and efficient
Versatile PCIe slots offer flexible expandability for the integration of existing and new storage controllers, networking cards, or the benefits of graphics cards. Add capabilities per your business needs. Graphics card improves performance for graphic intensive apps; get more from your display infrastructure. The server is designed for quiet operation and offers best-in-class reliability and energy efficiency with up to 96% efficiency and dual power supplies. The rack upgrade kit allows you to invest in a system designed for scalability to match your business growth. -
Server and infrastructure management at your fingertips
The onboard iRMC S6, is optimized for both data centers and SMEs who can rely on the latest generation server management. With ISM centralize the data center management as well as power and cooling by using a single user interface. Improve the whole data center productivity with converged infrastructure management. M.2 devices are perfect for hassle-free hypervisor /operating system start-up, while TPM 2.0 provides ease of mind for administrators with the latest hardware and Software driven security features.
Product Video
Tech Specs
Chipset |
Intel® C741 |
Mainboard type |
D3985-A |
Product Type |
Dual Socket Tower Server |
Processor |
Intel® Xeon® Bronze 3xxx processor, Intel® Xeon® Silver 4xxx processor, Intel® Xeon® Gold 5xxx processor, Intel® Xeon® Gold 6xxx processor, Intel® Xeon® Platinum 8xxx processor |
Memory |
16 GB - 4.0 TB, DIMM (DDR5) |
Memory slots |
16 (8 DIMMs per CPU, 8 channels with one DIMM per channel) |
Memory protection |
ECC, Memory Scrubbing, SDDC, ADDDC (Adaptive Double DRAM Device Correction), Memory Mirroring support |
Drives (optional) |
CD-RW / DVD Combo, ultraslim, SATA III DVD-ROM, ultraslim, SATA III LTO7HH Ultrium, 300 MB/s DVD supermulti, ultraslim, SATA I Blu-ray Disc Triple Writer, ultraslim, SATA I LTO7HH Ultrium, 300 MB/s, 2,500 GB, SAS 6Gb/s LTO7HH Ultrium, 300 MB/s, SAS 6Gb/s |
PCI-Express 4.0 x8 |
8 x Full height Note: Refer to Slot Notes. |
PCI-Express 4.0 x16 |
4 x Full height Note: Refer to Slot Notes. |
Accessible drive bays |
3 x 5.25/1.6-inch |
Optional accessible drives |
3x 1.6x5.25" bays for an optical and/or backup drives All possible options described in relevant system configurator. |
Storage drive bays |
3.5-inch or 2.5-inch hot-plug SAS/SATA 8 x 2.5-inch hot-plug SAS/SATA 8 x 3.5-inch hot-plug SAS/SATA 24 x 2.5-inch hot-plug SAS/SATA 4 x 3.5-inch hot-plug SAS/SATA Optional expandable up to 24 storage drives Optional expanderble up to 12 storage drives optional expanderble up to 32 storage drives not expandable optional expandable up to 8 storage drives optional expandable up to 12 storage drives optional expandable up to 24 storage drives optional expandable up to 32 storage drives |
LAN Controller |
2 x 1 Gbit/s onboard |
Remote Management |
IPMI 2.0 compatible, Integrated Remote Management Controller (iRMC S6, 1024 MB attached memory incl. graphics controller) |
USB ports |
7 x USB 3.1 Gen1(USB3.0) (2x front, 4 x rear, 1x USB 3.1 Gen1 for backup devices) |
Graphics |
1 x VGA(1 x rear, 1 x front(Optional)) |
Management LAN (RJ45) |
Management LAN traffic can be switched to shared onboard LAN port, 1 x dedicated management LAN port for iRMC S6 (10/100/1000 Mbit/s) |
Trusted Platform Module (TPM) |
optional TPM |
Power supply configuration |
1x non hot-plug power supply or 2x hot-plug power supply for redundancy or 2x non hot-plug power supply |
Active power (max. configuration) |
2,758 W |
Weight |
Up to 41.9 kg |
Rack (W x D x H) |
483 (Bezel); 448 mm (body) x 772 x 175 mm |
Floor-stand (W x D x H) |
177 x 776 x 456 mm |
DC Infrastructure Management |
Infrastructure Manager (ISM) |
Server Management |
ServerView Agentless Service (SVAS), ServerView ESXi CIM Provider, ServerView Installation Manager (SVIM), ServerView Update Manager Express (UME) |
Operating system |
http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473 |
Manufacturer warranty period |
3 years |
Manufacturer warranty type |
Onsite warranty Warranty conditions tbd |
Service Lifecycle |
at least 5 years after shipment, for details see https://support.ts.fujitsu.com/ |
Service Weblink |
http://www.fujitsu.com/fts/products/product-support-services/ |
Service Weblink |
http://www.fujitsu.com/fts/products/product-support-services/ |
Support Pack Options |
Globally available in major metropolitan areas: 9x5, Next Business Day Onsite Response Time 9x5, 4h Onsite Response Time (depending on country) 24x7, 4h Onsite Response Time (depending on country) |
Recommended Service | 24x7 Onsite Service with 4h Onsite Response Time |
Support Pack Options |
Globally available in major metropolitan areas: 9x5, Next Business Day Onsite Response Time 9x5, 4h Onsite Response Time (depending on country) 24x7, 4h Onsite Response Time (depending on country) |
Recommended Service | 24x7 Onsite Service with 4h Onsite Response Time |
