Maximum productivity in a 1U housing

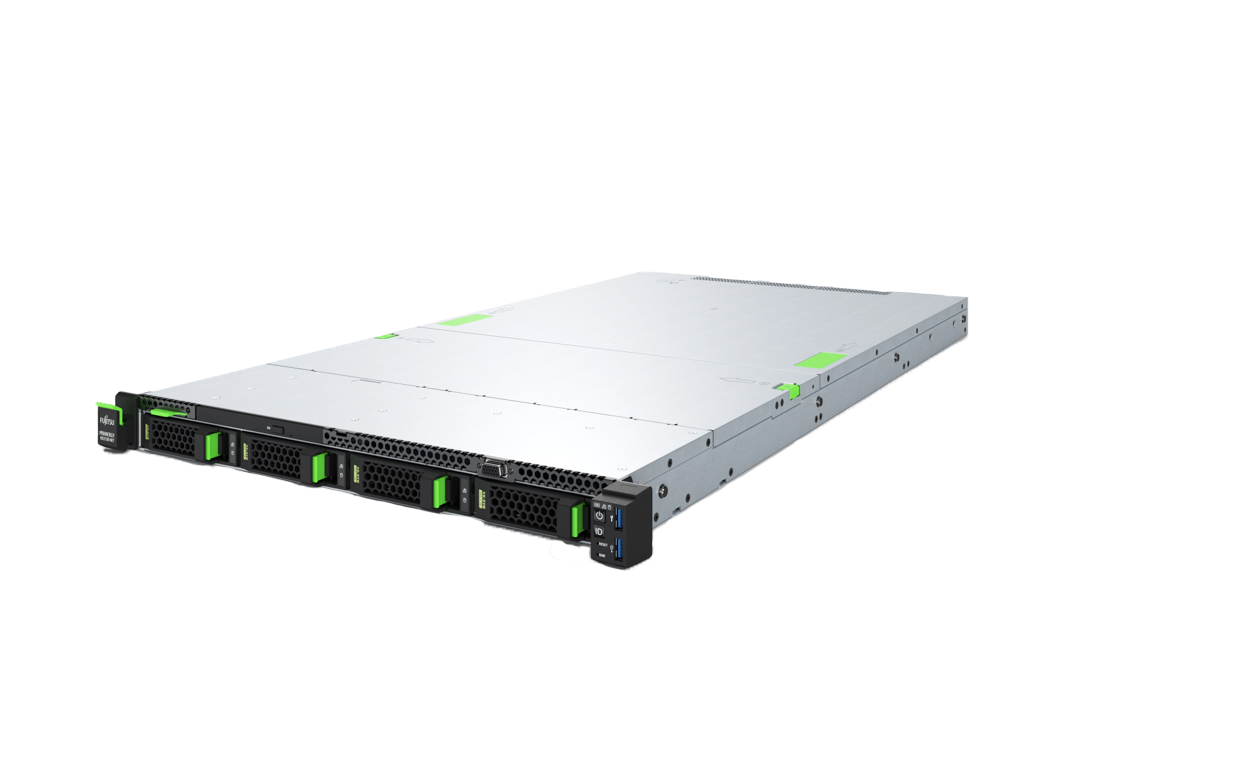

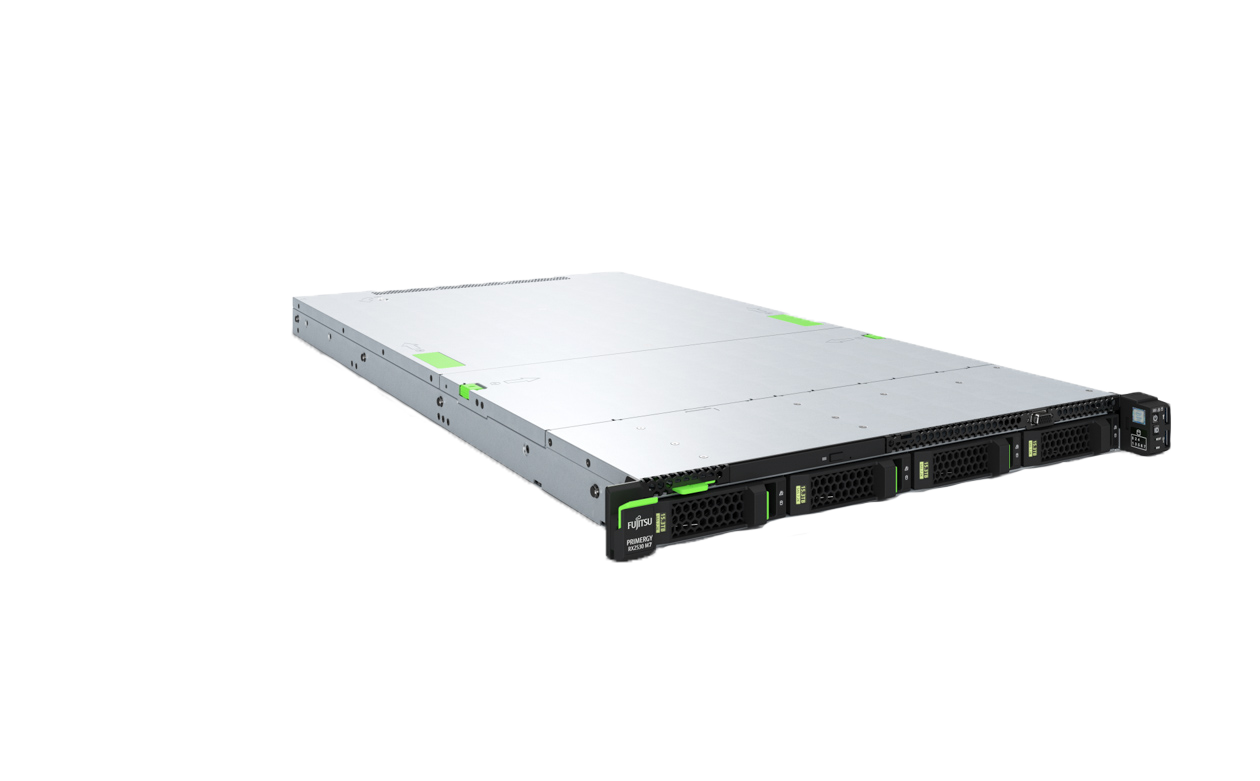

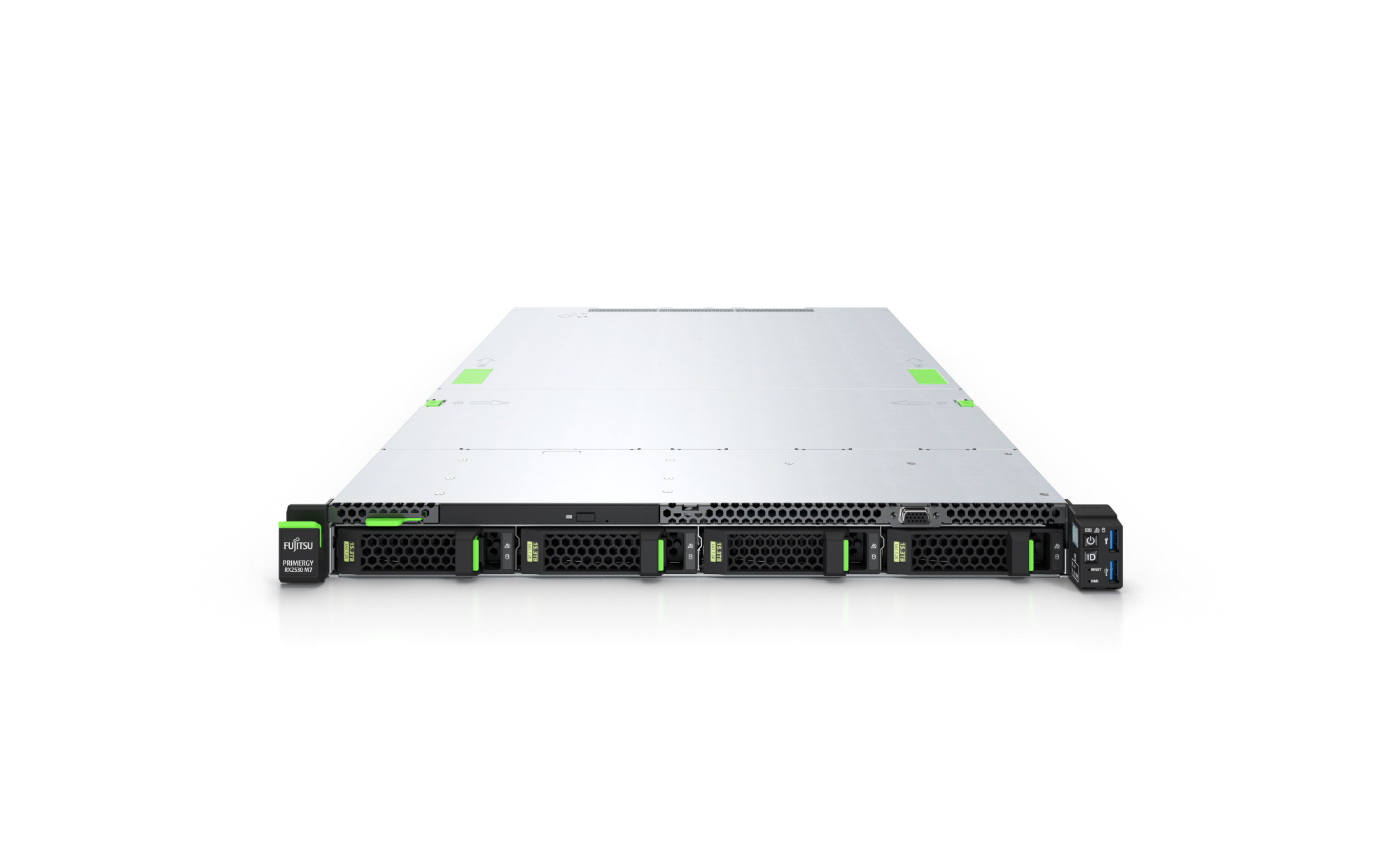

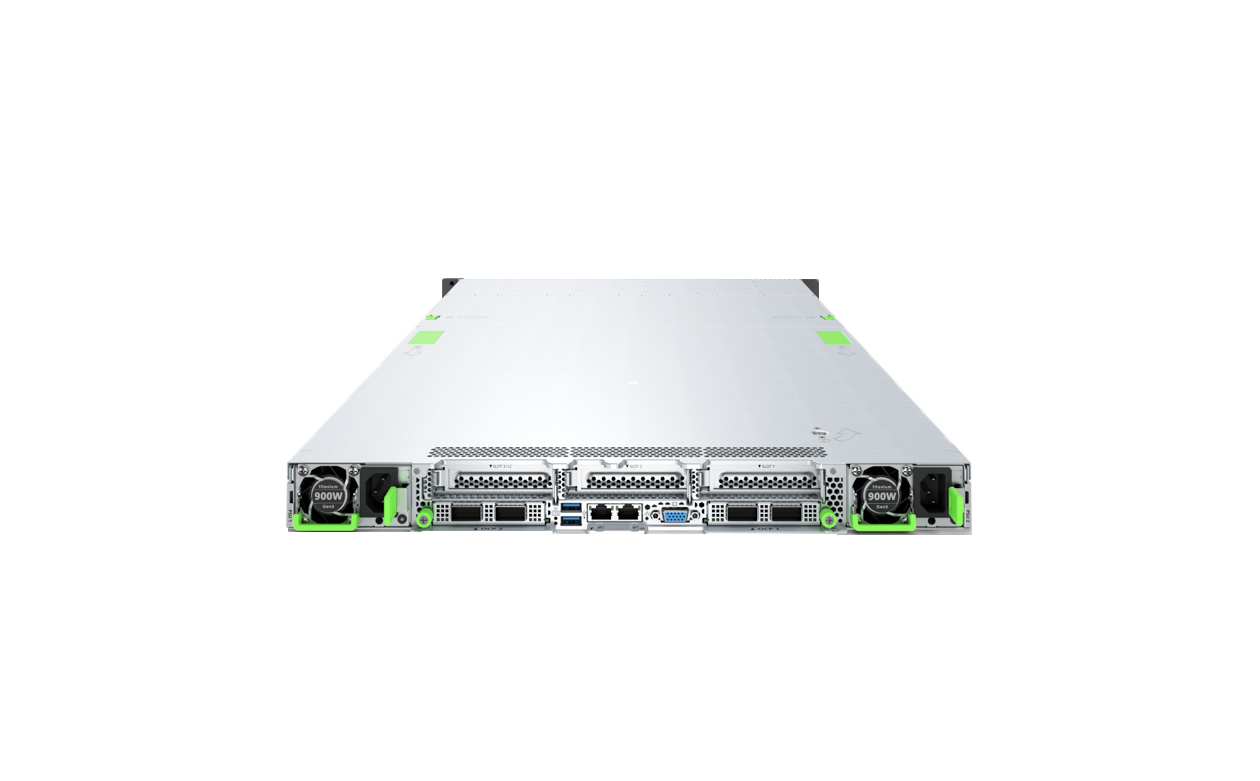

PRIMERGY RX2530 M7

PRIMERGY Server RX25300 M7

PRIMERGY RX2530 M7

PRIMERGY RX2530 M7

  • Dual-socket x86 server providing an ideal mix of performance and cost in a dense 1U chassis
  • Ideal for virtualization, scale-out scenarios, databases as well as HPC infrastructures
  • Boost performance with 4th or 5th generation Intel® Xeon® Scalable Processors (up to 60 / 64 cores / CPU)
  • Maximize performance with 32 DIMM modules (up to 8TB DDR5 @4,800 or 5,600 MT/s)
  • Gain storage flexibility with up to 4x 3.5” or up to 10x 2.5” storage devices

En savoir plus
ImgPlaceholder ImgPlaceholder ImgPlaceholder ImgPlaceholder
OPTIMIZED PERFORMANCE AND DENSITY
POWER YOUR APPLICATIONS
EASY EXPANDABILITY
COMPREHENSIVE PROTECTION

Ideal dual-socket platform for dense scale-out data center computing powered by latest 4th or 5th Generation Intel® Xeon® Scalable Processors with up to 60 / 64 cores per CPU.

Combine performance and versatility to adapt to a variety of applications and meet future demands with 32 DIMM modules and up to 8TB of memory. DDR5 DIMM memory provides fast, high capacity for memory intensive workloads.

Benefit from the flexibility of 2.5”, 3.5” storage devices for highest capacities with up to 10 drives per height unit (U) and additional expandability with up to 3 PCIe 5.0 /1x PCIe 4.0 (for Internal RAID controller) slots flexible adapters via OCP v3.

Benefit from advanced security technologies such as Platform Firmware Resilience (PFR) to protect the most sensitive portions of a workload, encryption support to enhance data and VM protection as well as physical protection to avoid unauthorized access.
  • ImgPlaceholder
    OPTIMIZED PERFORMANCE AND DENSITY
    Ideal dual-socket platform for dense scale-out data center computing powered by latest 4th or 5th Generation Intel® Xeon® Scalable Processors with up to 60 / 64 cores per CPU.
  • ImgPlaceholder
    POWER YOUR APPLICATIONS
    Combine performance and versatility to adapt to a variety of applications and meet future demands with 32 DIMM modules and up to 8TB of memory. DDR5 DIMM memory provides fast, high capacity for memory intensive workloads.
  • ImgPlaceholder
    EASY EXPANDABILITY
    Benefit from the flexibility of 2.5”, 3.5” storage devices for highest capacities with up to 10 drives per height unit (U) and additional expandability with up to 3 PCIe 5.0 /1x PCIe 4.0 (for Internal RAID controller) slots flexible adapters via OCP v3.
  • ImgPlaceholder
    COMPREHENSIVE PROTECTION
    Benefit from advanced security technologies such as Platform Firmware Resilience (PFR) to protect the most sensitive portions of a workload, encryption support to enhance data and VM protection as well as physical protection to avoid unauthorized access.

Product Video

Tech Specs

Chipset Intel® C741
Mainboard type D3982
Product Type Dual Socket Rack Server
Processor Intel® Xeon® Bronze 3xxx processor, Intel® Xeon® Silver 4xxx processor, Intel® Xeon® Gold 5xxx processor, Intel® Xeon® Gold 6xxx processor, Intel® Xeon® Platinum 8xxx processor
Memory 16 GB - 8 TB, DIMM (DDR5)
Memory slots 32 (16 DIMMs per CPU, 8 channels with 2 slots per channel)
Memory protection ECC, Memory Scrubbing, SDDC, ADDDC (Adaptive Double DRAM Device Correction), Memory Mirroring support
Drives (optional) DVD supermulti, ultraslim, SATA I
PCI-Express 4.0 x16 1 x Low profile
Accessible drive bays 1 x 5.25/9.5mm for DVD-RW/Blu-ray
Optional accessible drives 2x 2.5-inch hot-plug SAS/SATA rear option
Ultra slim 9.5mm optical drive (optional)
n/a
Not for 10x 2.5-inch base unit. All possible options described in relevant system configurator.
Storage drive bays up to 4 x 3.5-inch, 8 x 2.5-inch, 10 x 2.5-inch base unit
up to 8x 2.5" (SFF) hot plug drives (SAS/SATA)
up to 4x 3.5" (LFF) hot plug drives (SAS/SATA)
up to 10x 2.5" (SFF) hot plug drives (SAS/SATA)
up to 10x 2.5" (SFF) hot plug drives (SAS/SATA/PCIe SSD)
up to 10x 2.5" (SFF) hot plug drives (SATA/PCIe SSD)
LAN Controller 1 x 1 Gbit/s onboard, Dynamic LoM via OCP slot; OCPv3 compliant, Optional OCP adaptors:, 4 x 1 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s Ethernet (RJ45), 4 x 10 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s SFP+, 4 x 10 Gbit/s SFP+, 2 x 25 Gbit/s SFP28, 4 x 25 Gbit/s SFP28, 2x 100 Gbit/s QSFP28
Remote Management Integrated Remote Management Controller (iRMC S6, 1024 MB attached memory incl. graphics controller), IPMI 2.0 compatible
USB ports 4 x USB 3.0 (2x front, 2x rear)
Graphics 2 x VGA (thereof 1x front optional - not for base unit with 10x 2.5” devices)
Management LAN (RJ45) 1 x dedicated management LAN port for iRMC S6 (10/100/1000 Mbit/s)
Trusted Platform Module (TPM) Infineon / TPM 2.0 module, FIPS; TCG compliant (option)
Power supply configuration 1 x hot-plug power supply or 2 x hot-plug power supply for redundancy
Active power (max. configuration) 2,608 W
Weight Std: max. 19.2 kg / Short depth: max. 16.6 kg
Rack (W x D x H) 483 mm (Bezel) / 435 mm (Body) x 808 x 43 mm
Mounting Depth Rack Std: 836.95 mm / Short depth: 756.95 mm
DC Infrastructure Management Infrastructure Manager (ISM)
Essential Edition
Advanced Edition
Server Management ServerView Agentless Service (SVAS), ServerView ESXi CIM Provider, ServerView Installation Manager (SVIM), ServerView Update Manager Express (UME)
Operating system http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473
Manufacturer warranty period 3 years
Manufacturer warranty type Onsite warranty
Service Lifecycle at least 5 years after shipment, for details see https://support.ts.fujitsu.com/
Service Weblink http://www.fujitsu.com/emeia/products/product-support-services/
Service Weblink http://www.fujitsu.com/emeia/products/product-support-services/
Support Pack Options Globally available in major metropolitan areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)
 Recommended Service 24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner.
Support Pack Options Globally available in major metropolitan areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)
Recommended Service 24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact your local Fujitsu partner.

Read full specs

Components

Les solutions Fujitsu Adaptateurs Fibre Channel PFC QLE2690 / QLE2692

Les adaptateurs Fibre Channel Gen5 16 Gbit/s (Host Bus Adapters, HBA) QLE2690 et QLE2692 pour les serveurs PRIMERGY et PRIMEQUEST sont l'idéal pour les environnements virtualisés et les applications à hauts volumes de transactions. Les adaptateurs prennent en charge la plus récente norme PCIe 3.0 pour réduire les coûts de refroidissement et d’alimentation. Par ailleurs, la technologie QLogic StorFusion offre un provisioning rationalisé, une qualité de service garantie et une résilience améliorée, tout en répondant aux besoins des organisations informatiques qui exigent fiabilité, gestion intégrée et performances réseau assurées.

FUJITSU Adaptateurs Fibre Channel PFC EP Emulex LPe31000 / LPe31002

Les adaptateurs FC (Fibre Channel) Emulex Gen 6 16 Gbit/s de Broadcom pour les systèmes de serveur PRIMERGY et PRIMEQUEST sont des adaptateurs de bus hôte Fibre Channel optimaux pour les déploiements virtualisés, dans le Cloud et stratégiques. Les adaptateurs LPe31000/31002 Fibre Channel PFC EP Emulex Gen 6 de Broadcom font passer les performances à la vitesse supérieure avec la prise en charge de PCIe 3.0, des fonctionnalités d'intégrité des données et une fiabilité à l'échelle du Cloud, ainsi qu'une grande facilité d'utilisation. Les entreprises qui souhaitent améliorer leurs performances, protéger leurs données contre la corruption et simplifier le fonctionnement des réseaux de stockage FC en Cloud ou dans des environnements à hautes performances peuvent bénéficier des avantages du déploiement des PFC EP LPe31000/31002.

Show all in the data sheet
