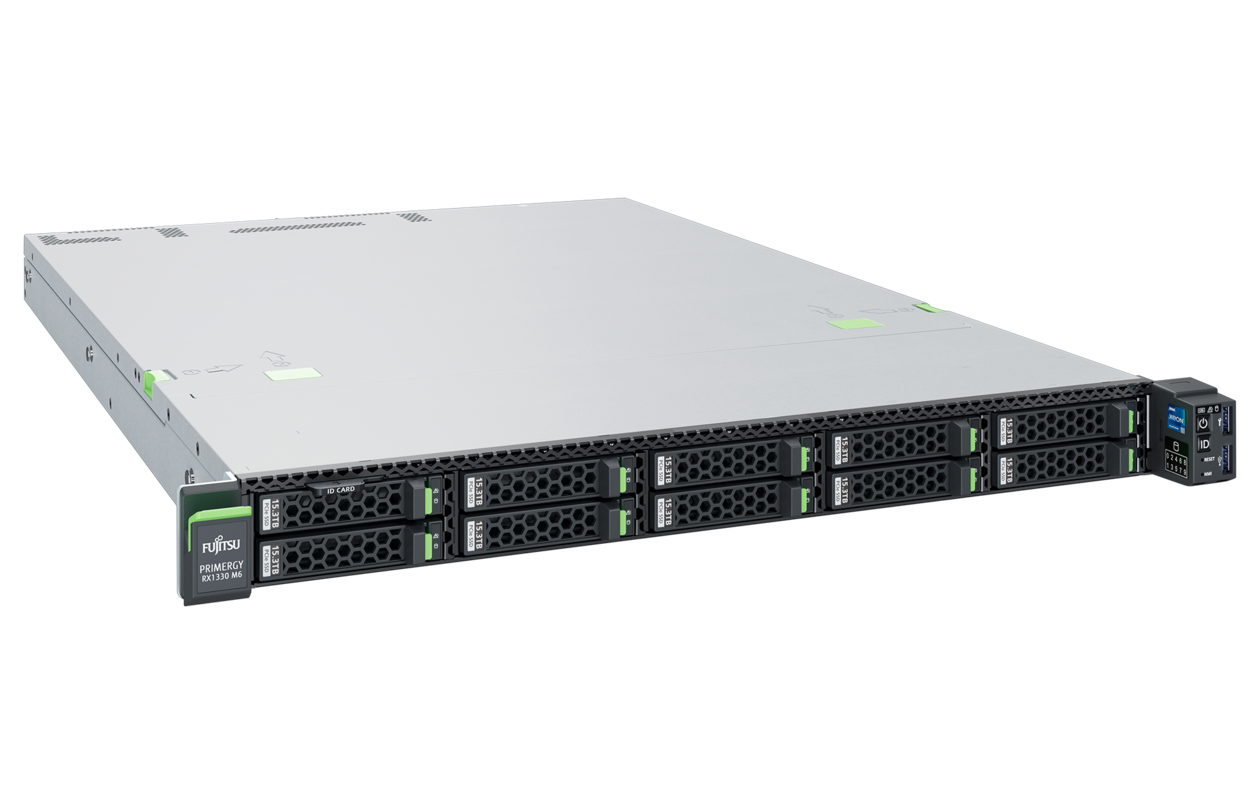

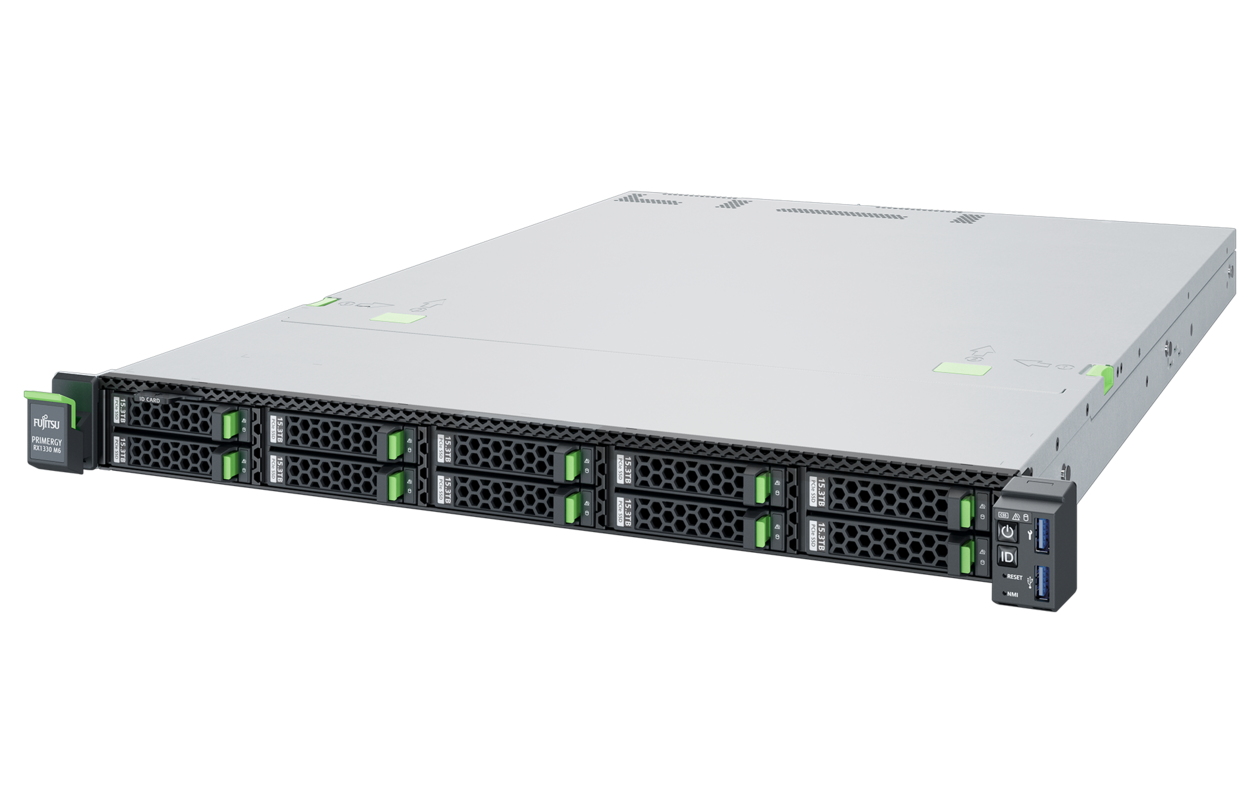

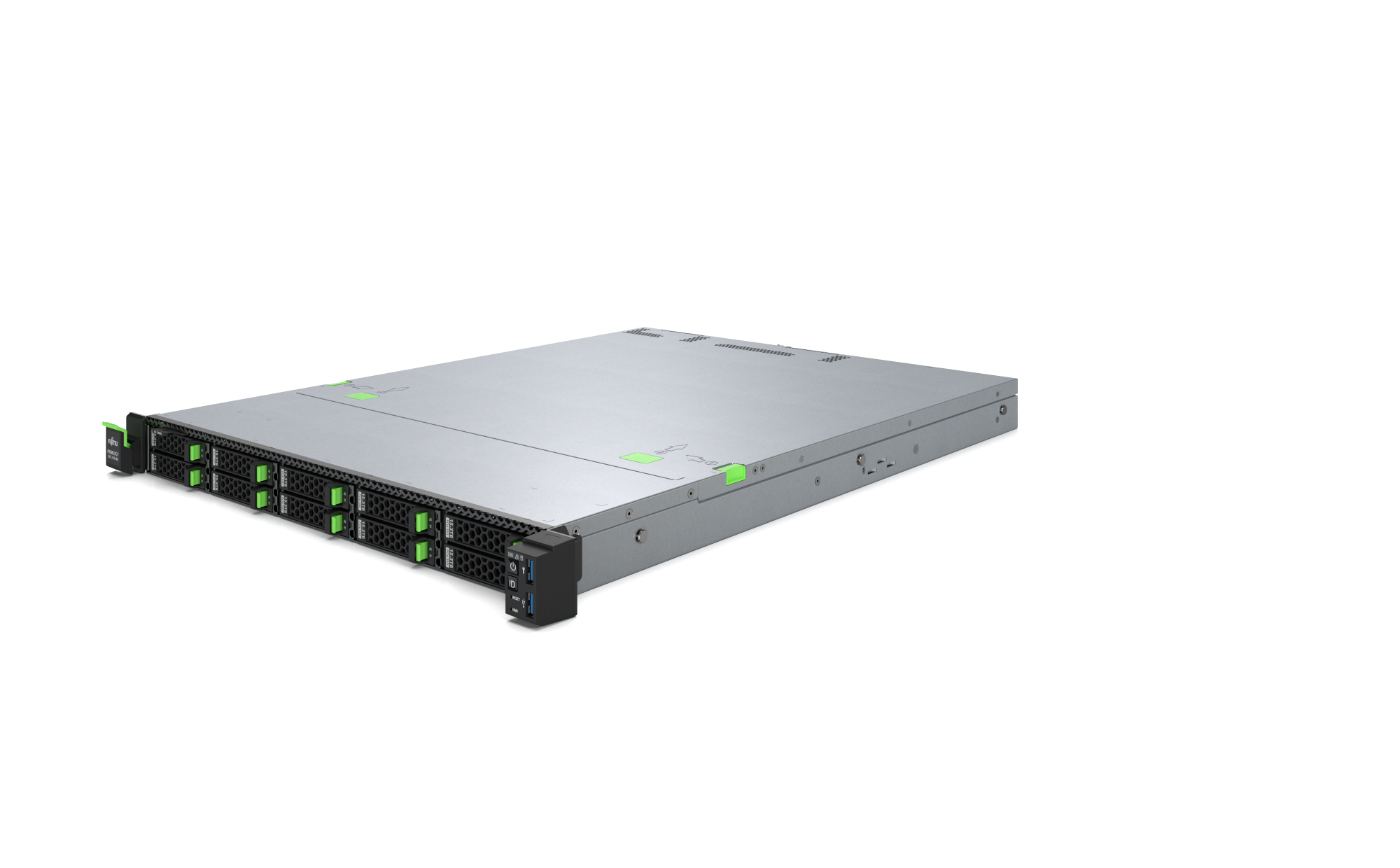

Fujitsu PRIMERGY RX1330 M6

PRIMERGY RX1330 M6

PRIMERGY RX1330 M6

  • Mono-socket x86 server providing an ideal mix of performance and cost in a compact 1U space
  • Ideal foundation for many SMBs across industries and for a wide range of workloads such as file/print applications, web hosting, communication, collaboration, and virtualization
  • Cost-efficient performance based on Intel® Xeon® 6300P processors either with 4-, 6-, or 8-cores
  • Address data sets with up to 4x DDR5 DIMMs (in total up to 128GB memory)

En savoir plus
ImgPlaceholder ImgPlaceholder ImgPlaceholder ImgPlaceholder
BOOST YOUR PRODUCTIVITY
SCALE YOUR IT ACCORDING TO YOUR NEEDS
SIMPLIFY YOUR IT
GROW YOUR BUSINESS

Workload optimized performance for space and power constrained environments from the edge to the data center.

The PRIMERGY RX1330 M6 delivers the flexibility to increase compute, storage, and memory capacity based on various configuration options and different base units.

New iRMC S6 enhances server administrator productivity with a variety of user-friendly features for remote management. Moreover, Infrastructure Manager (ISM) enables organizations to have centralized control over the entire infrastructure using a single user interface.

The variety of expansion options makes the RX1330 M6 an ideal rack server platform for growing businesses. Outstanding configuration flexibility caters to a variety of business requirements and a range of HPE Qualified Options to fit most needs.
  • ImgPlaceholder
    BOOST YOUR PRODUCTIVITY
    Workload optimized performance for space and power constrained environments from the edge to the data center.
  • ImgPlaceholder
    SCALE YOUR IT ACCORDING TO YOUR NEEDS
    The PRIMERGY RX1330 M6 delivers the flexibility to increase compute, storage, and memory capacity based on various configuration options and different base units.
  • ImgPlaceholder
    SIMPLIFY YOUR IT
    New iRMC S6 enhances server administrator productivity with a variety of user-friendly features for remote management. Moreover, Infrastructure Manager (ISM) enables organizations to have centralized control over the entire infrastructure using a single user interface.
  • ImgPlaceholder
    GROW YOUR BUSINESS
    The variety of expansion options makes the RX1330 M6 an ideal rack server platform for growing businesses. Outstanding configuration flexibility caters to a variety of business requirements and a range of HPE Qualified Options to fit most needs.

Product Video

Tech Specs

Chipset Intel® C266
Mainboard type D4133
Product Type Mono Socket Rack Server
Processor Intel® Xeon® E-2400 processor family, Intel® Pentium® processor, Intel® Xeon® 6300P processor family
Memory 16 GB - 128 GB, UDIMM (DDR5)
Memory slots 4
Memory protection ECC
Drives (optional) DVD supermulti, ultraslim, SATA I
Accessible drive bays 1 x 5.25/9.5mm for DVD-RW/Blu-ray
Optional accessible drives Not for 10x 2.5-inch HDD base unit. All possible options described in relevant system configurator.
Storage drive bays 4/8 x 2.5-inch hot-plug SATA/SAS or 4x 3.5-inch hot-plug or 10 x 2.5-inch hot-plug SATA/SAS
Max. 8x 2.5-inch
Max. 4x 3.5-inch
4x 2.5-inch
Max. 10x 2.5-inch
LAN Controller Intel® i210 onboard
2 x 10/100/1000 Mbit/s Ethernet (TCP/IP acceleration)
Remote Management Integrated Remote Management Controller (iRMC S6, 1024 MB attached memory incl. graphics controller)
USB ports 7 (Rear: 4x 3.2 Gen1 for all base units, Front (except 10x 2.5” base unit): 2x USB 3.2 Gen1, 1x USB 3.2 Gen2(20 Gb, Type
C) , Front (for 10x 2.5” base unit): 2x USB 3.2 Gen1)
Graphics 1 x VGA (15-pin) / optional 1 x front VGA (not for 10x 2.5” base unit)
Management LAN (RJ45) 1 x dedicated management LAN port for iRMC S6 (10/100/1000 Mbit/s), Management LAN traffic can be switched to shared onboard Gbit LAN port
Trusted Platform Module (TPM) Infineon / TPM 2.0 module, FIPS; TCG compliant (option)
Power supply configuration 1x standard power supply or 1x hot-plug power supply or 2x hot-plug power supplies for redundancy depending on model
Active power (max. configuration) 494 W
Weight Standard: max.13.1 kg [17.7 kg(including RMK/CMA)]
Short depth: max. 9.5 kg [13.8 kg(including RMK/CMA)]
Rack (W x D x H) 483 mm (Bezel) / 436 mm (Body) x 556 (including protrusion: 612) x 43 mm
DC Infrastructure Management Infrastructure Manager (ISM)
Essential Edition
Advanced Edition
Server Management Infrastructure Manager (ISM), ServerView Agentless Service (SVAS), ServerView ESXi CIM Provider, ServerView Installation Manager (SVIM), ServerView embedded Lifecycle Management (eLCM)
Lifecycle management
Operating system http://docs.ts.fujitsu.com/dl.aspx?id=d4ebd846-aa0c-478b-8f58-4cfbf3230473
Manufacturer warranty period 1 year
Manufacturer warranty type Onsite warranty
Service Lifecycle at least 5 years after shipment, for details see https://support.ts.fujitsu.com/
Service Weblink http://www.fujitsu.com/emeia/products/product-support-services/
Service Weblink http://www.fujitsu.com/emeia/products/product-support-services/
Support Pack Options Globally available in major metropolitan areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)
 Recommended Service 24x7 Onsite Service with 4h Onsite Response Time
Support Pack Options Globally available in major metropolitan areas:
9x5, Next Business Day Onsite Response Time
9x5, 4h Onsite Response Time (depending on country)
24x7, 4h Onsite Response Time (depending on country)
Recommended Service 24x7 Onsite Service with 4h Onsite Response Time

Read full specs

Components

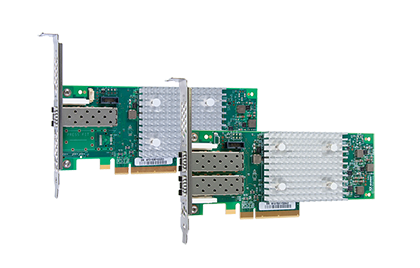

Les solutions Fujitsu Adaptateurs Fibre Channel PFC QLE2690 / QLE2692

Les adaptateurs Fibre Channel Gen5 16 Gbit/s (Host Bus Adapters, HBA) QLE2690 et QLE2692 pour les serveurs PRIMERGY et PRIMEQUEST sont l'idéal pour les environnements virtualisés et les applications à hauts volumes de transactions. Les adaptateurs prennent en charge la plus récente norme PCIe 3.0 pour réduire les coûts de refroidissement et d’alimentation. Par ailleurs, la technologie QLogic StorFusion offre un provisioning rationalisé, une qualité de service garantie et une résilience améliorée, tout en répondant aux besoins des organisations informatiques qui exigent fiabilité, gestion intégrée et performances réseau assurées.

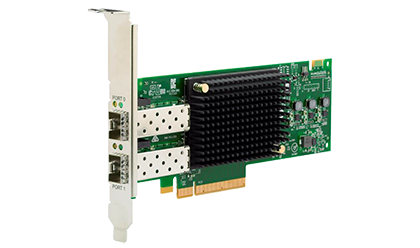

FUJITSU Adaptateurs Fibre Channel PFC EP Emulex LPe31000 / LPe31002

Les adaptateurs FC (Fibre Channel) Emulex Gen 6 16 Gbit/s de Broadcom pour les systèmes de serveur PRIMERGY et PRIMEQUEST sont des adaptateurs de bus hôte Fibre Channel optimaux pour les déploiements virtualisés, dans le Cloud et stratégiques. Les adaptateurs LPe31000/31002 Fibre Channel PFC EP Emulex Gen 6 de Broadcom font passer les performances à la vitesse supérieure avec la prise en charge de PCIe 3.0, des fonctionnalités d'intégrité des données et une fiabilité à l'échelle du Cloud, ainsi qu'une grande facilité d'utilisation. Les entreprises qui souhaitent améliorer leurs performances, protéger leurs données contre la corruption et simplifier le fonctionnement des réseaux de stockage FC en Cloud ou dans des environnements à hautes performances peuvent bénéficier des avantages du déploiement des PFC EP LPe31000/31002.

Show all in the data sheet
