CLOUD 2700 R

CLOUD 2700 R

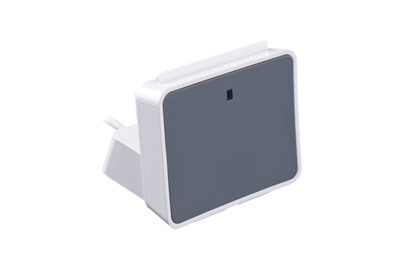

The SCR CLOUD 2700 R is the ideal PC-Linked USB contact smart card reader for a huge variety of applications. Typical usage environments may include corporates or authorities where applications like network log-in, Windows authentication & Single-Sign-On are implemented. A perfect mix between modern stylish design and ergonomic handling, the device works seamlessly with virtually all contact smart cards and operating systems.

More Details


Usability	Functionality	Security
Driver support for all major PC operating systems Supports all major smart cards, that correspond to ISO/IEC 7816, as well as synchronous memory cards like CAC and PKI cards Can be combined with SmartCards software, e.g. Workplace Protect (http://www.fujitsu.com/fts/solutions/high-tech/solutions/workplace/security/secure/)	Extended card data transmission rate of up to 600kBit/s Enhanced ergonomic user experience with enclosed Standing Base Kit, for comfortable, single-hand use	Ideal platform for e-Commerce / e-Business, SmartCard based authentication, Single Sign-on (SSO) and Access Protection The full support and compliance to EMV 2008 and GSA FIPS 201 expand the use to very specific use applications requiring additional security and data protection

Usability
Driver support for all major PC operating systems
Supports all major smart cards, that correspond to ISO/IEC 7816, as well as synchronous memory cards like CAC and PKI cards
Can be combined with SmartCards software, e.g. Workplace Protect (http://www.fujitsu.com/fts/solutions/high-tech/solutions/workplace/security/secure/)
Functionality
Extended card data transmission rate of up to 600kBit/s
Enhanced ergonomic user experience with enclosed Standing Base Kit, for comfortable, single-hand use
Security
Ideal platform for e-Commerce / e-Business, SmartCard based authentication, Single Sign-on (SSO) and Access Protection
The full support and compliance to EMV 2008 and GSA FIPS 201 expand the use to very specific use applications requiring additional security and data protection

Tech Specs

Product	CLOUD 2700 R
Status LED	Green
SmartCard Reader	Yes
Color	Black
Technical specification	*Speed: Communication speed: 12 Mbps (USB 2.0 full speed) Interface speed: up to 600 kBit/s (depending on card) Protocol: T=0, T=1 Clock frequency: ISO/IEC 7816 compliant up to 5 MHz, Operates up to 12 MHz Supported SmartCards: All major ISO/IEC 7816 compliant Smart Card, IC support Types: 5V, 3V and 1.8 V / ISO/IEC 7816 A/B/C Software: PC/SC API, CT-API, synchronous-API, M-Card API **Certifications / Compliances: EMV 2008 Ver 4.2 Level 1 CCID Microsoft(R) WHQL Environmental: REACH
Power supply input	USB bus powered
Weight	205 g (with Standing Base Kit)
Dimensions (W x D x H)	70 x 63 x 62
Acc order code SAP	S26381-F2700-L100
Warranty Terms & Conditions	http://www.fujitsu.com/warranty
