Interactive Panel IW862 Pro Max

Interactive Panel IW862 Pro Max

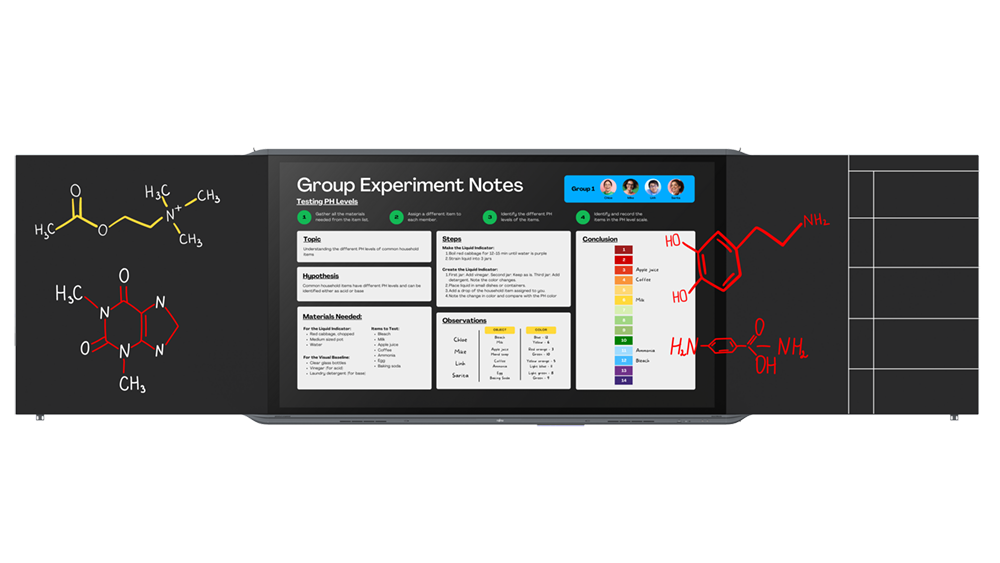

Fujitsu Interactive Panel IW862 Pro Max is based on the extremely high performance and reliable platform of Interactive Panel IW862 Pro, with the addition of stylish and sleek integrated side boards for writing, providing a fresh look for classrooms. Compared to projector-based systems, the Fujitsu Interactive Panel offers unparalleled visual performance and fosters collaboration to elevate teaching efficiency.

Features and Benefits

Interactive display with 4K resolution

  • Available in 86”, offers big viewing experience

High accuracy touch experience

  • Intuitive 20 points of touch
  • Resistant to optical interference (use as usual under direct sunlight)
  • Resistant to shielding
  • Rapid response, fluent in writing & demonstration

Multi OS + multi modules

  • Seamless switching between OS
  • Built-in Android + Pluggable PC module
  • Concealed WIFI module supports WIFI 6 standard

Technical Details

Product NameInteractive Panel IW862 Pro Max
Picture Performance
Panel backlitDLED
Contrast – typical1,200:1
Viewing angle (h/v) - typical178°
Color performance1.07 billion colors
Brightness – typical350 cd/m² (Typ)
Flicker-free technologySupports
Low blue lightSupports
Anti-glare filterSupports
Picture in Picture (PIP) modeSupports
Size and Resolution
Aspect ratio16:09
Resolution (native)3,840 (H) x 2,160 (V)
Picture Size (H x V)1,895.04 x 1,065.96 mm
Pixel Pitch0.4935 mm
Response Time8 ms (Typ)
Refreshing Frequency60 Hz
Connectivity
VGA/D-SUB1 x D-SUB
HDMI1 x HDMI OUT (4K), 3 x HDMI IN (HDMI 2.0)
USB1 x USB 2.0
4 x USB 3.0 (including 2 USB ports in front)
USB Type-C™2 x USB Type-C™
Audio in1 x 3.5 mm stereo phone jack
Audio output1 x Audio out
RS232 control1 x RS232
Built-in speakerYes, 2 x 16 W
LAN IN1 x GIGABIT LAN (RJ45)
LAN OUT1 x GIGABIT LAN (RJ45)
TOUCH OUT2 x TOUCH OUT (USB 3.0)
SPDIF1 x SPDIF
WiFi Yes, dual band, supports WiFi 6
Touch System
Sensing typeInfrared recognition
Touch point20 points touches, 10 points writing
Minimum object size3 mm
Writing height≤3.5 mm
Touch toolPassive infrared pen
Response time≤10 ms
Accuracy±2 mm (over 90% area)
Communication modeFull-speed USB (driver free)
Realtime 4K screen capture and annotationSupports
Wireless Screen Mirroring
Wireless Screen MirroringSupports
PIN code connection modeSupports both static and dynamic pin codes
Maximum number of split screens / devices projecting to the Panel simultaneously (Panel standalone Android mode)9
Self-hotspot Screen MirroringSupports
Native AirPlay protocol for Screen MirroringSupports
Native Chromecast protocol for Screen MirroringSupports
Native Miracast protocol for Screen MirroringSupports
Mirroring of Panel display to client devicesSupports
Reversely control Windows / MacOS during Screen MirroringSupports, client software required
Multi-Panels display synchronization Supports
Built-in moderator console Yes
Power consumption (Typical)
Soft switch off≤0.5 W
Overall power (max power)650 W
Electrical values
Rated voltage range100 V – 240 V
Rated frequency range6.5 A
Quality and Reliability
MTBF50,000 h
System
CPU (Central Processing Unit)Quad core A73 x 4 (1.8 Ghz)
GPU (Graphics Processing Unit)Quad core Mali G52
System memory4 GB
Storage32 GB
OSAndroid 9.0
Dimensions / Weight / Environmental
Key location & numberFront physical keys, 1
Dimension L x H x DMain screen: 2,091.2 × 1,204.5 × 89.7 mm
Blackboard: 1,116.2 × 1,200.2 × 94.5 mm
After assembling (maximum appearance): 4,199.6 × 1,224.9 × 97.7 mm
After assembling (main body appearance): 4,199.6 × 1,200.2 × 89.6 mm
Dimension (package) L x W x HMain screen: 2,188 × 280 × 1,330 mm
Blackboard: 1,240 × 280 × 1,257 mm
Net weightMain screen: 70.5 kg
Blackboard: 18.5 kg
Gross weightMain screen: 98.4 kg
Blackboard: 25.5 kg
Thickness of machine and wall mount89.6 mm
Wall-hanging screw specM8 x 25 mm
VESA800 x 600 mm

Options

Product NameOrder Number
Mobile StandHLTWB0001A-01
