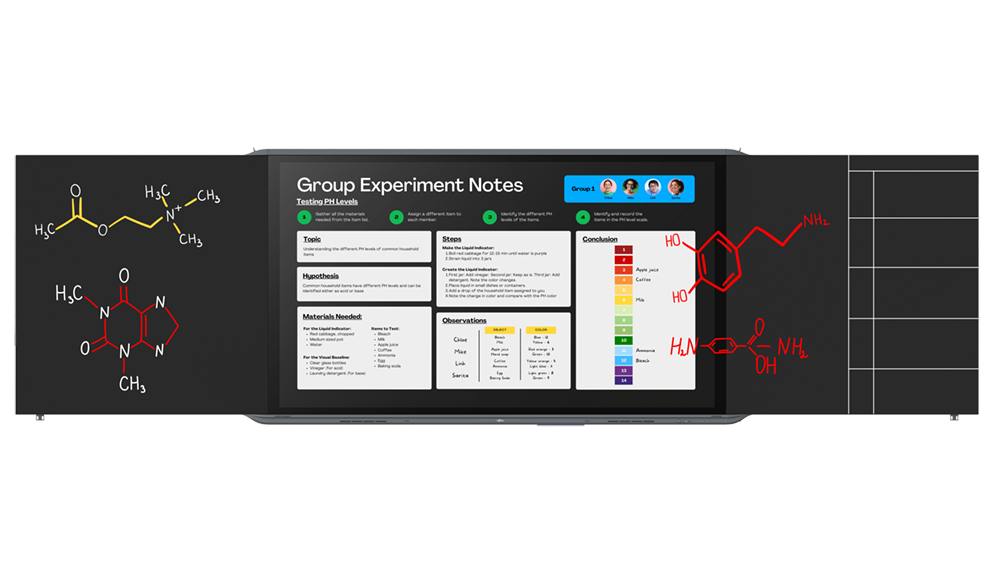

| Product Name | Interactive Panel IW862 Pro Max |
|---|
| Picture Performance |
| Panel backlit | DLED |
| Contrast – typical | 1,200:1 |
| Viewing angle (h/v) - typical | 178° |
| Color performance | 1.07 billion colors |
| Brightness – typical | 350 cd/m² (Typ) |
| Flicker-free technology | Supports |
| Low blue light | Supports |
| Anti-glare filter | Supports |
| Picture in Picture (PIP) mode | Supports |
| Size and Resolution |
| Aspect ratio | 16:09 |
| Resolution (native) | 3,840 (H) x 2,160 (V) |
| Picture Size (H x V) | 1,895.04 x 1,065.96 mm |
| Pixel Pitch | 0.4935 mm |
| Response Time | 8 ms (Typ) |
| Refreshing Frequency | 60 Hz |
| Connectivity |
| VGA/D-SUB | 1 x D-SUB |
| HDMI | 1 x HDMI OUT (4K), 3 x HDMI IN (HDMI 2.0) |
| USB | 1 x USB 2.0
4 x USB 3.0 (including 2 USB ports in front) |
| USB Type-C™ | 2 x USB Type-C™ |
| Audio in | 1 x 3.5 mm stereo phone jack |
| Audio output | 1 x Audio out |
| RS232 control | 1 x RS232 |
| Built-in speaker | Yes, 2 x 16 W |
| LAN IN | 1 x GIGABIT LAN (RJ45) |
| LAN OUT | 1 x GIGABIT LAN (RJ45) |
| TOUCH OUT | 2 x TOUCH OUT (USB 3.0) |
| SPDIF | 1 x SPDIF |
| WiFi | Yes, dual band, supports WiFi 6 |
| Touch System |
| Sensing type | Infrared recognition |
| Touch point | 20 points touches, 10 points writing |
| Minimum object size | 3 mm |
| Writing height | ≤3.5 mm |
| Touch tool | Passive infrared pen |
| Response time | ≤10 ms |
| Accuracy | ±2 mm (over 90% area) |
| Communication mode | Full-speed USB (driver free) |
| Realtime 4K screen capture and annotation | Supports |
| Wireless Screen Mirroring |
| Wireless Screen Mirroring | Supports |
| PIN code connection mode | Supports both static and dynamic pin codes |
| Maximum number of split screens / devices projecting to the Panel simultaneously (Panel standalone Android mode) | 9 |
| Self-hotspot Screen Mirroring | Supports |
| Native AirPlay protocol for Screen Mirroring | Supports |
| Native Chromecast protocol for Screen Mirroring | Supports |
| Native Miracast protocol for Screen Mirroring | Supports |
| Mirroring of Panel display to client devices | Supports |
| Reversely control Windows / MacOS during Screen Mirroring | Supports, client software required |
| Multi-Panels display synchronization | Supports |
| Built-in moderator console | Yes |
| Power consumption (Typical) |
| Soft switch off | ≤0.5 W |
| Overall power (max power) | 650 W |
| Electrical values |
| Rated voltage range | 100 V – 240 V |
| Rated frequency range | 6.5 A |
| Quality and Reliability |
| MTBF | 50,000 h |
| System |
| CPU (Central Processing Unit) | Quad core A73 x 4 (1.8 Ghz) |
| GPU (Graphics Processing Unit) | Quad core Mali G52 |
| System memory | 4 GB |
| Storage | 32 GB |
| OS | Android 9.0 |
| Dimensions / Weight / Environmental |
| Key location & number | Front physical keys, 1 |
| Dimension L x H x D | Main screen: 2,091.2 × 1,204.5 × 89.7 mm
Blackboard: 1,116.2 × 1,200.2 × 94.5 mm
After assembling (maximum appearance): 4,199.6 × 1,224.9 × 97.7 mm
After assembling (main body appearance): 4,199.6 × 1,200.2 × 89.6 mm |
| Dimension (package) L x W x H | Main screen: 2,188 × 280 × 1,330 mm
Blackboard: 1,240 × 280 × 1,257 mm |
| Net weight | Main screen: 70.5 kg
Blackboard: 18.5 kg |
| Gross weight | Main screen: 98.4 kg
Blackboard: 25.5 kg |
| Thickness of machine and wall mount | 89.6 mm |
| Wall-hanging screw spec | M8 x 25 mm |
| VESA | 800 x 600 mm |
